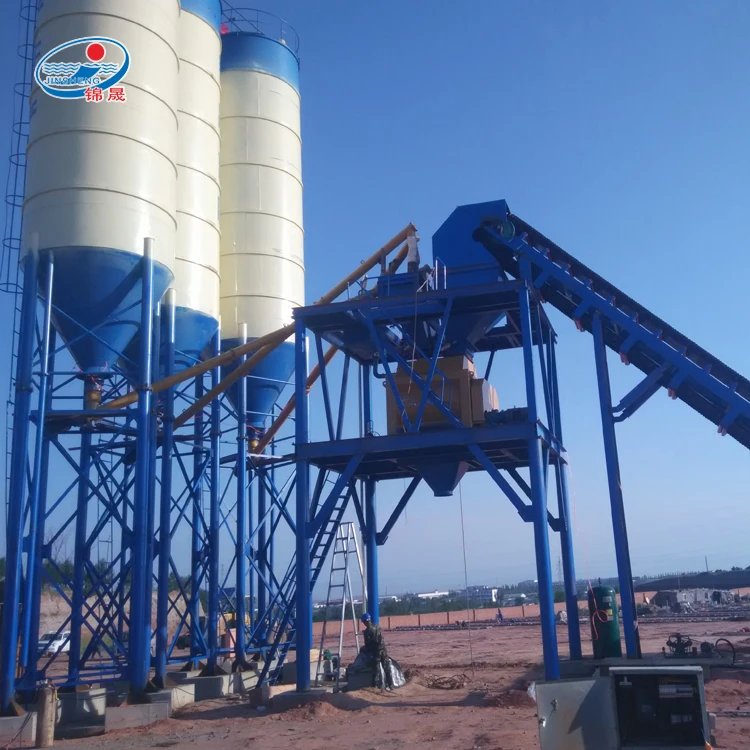

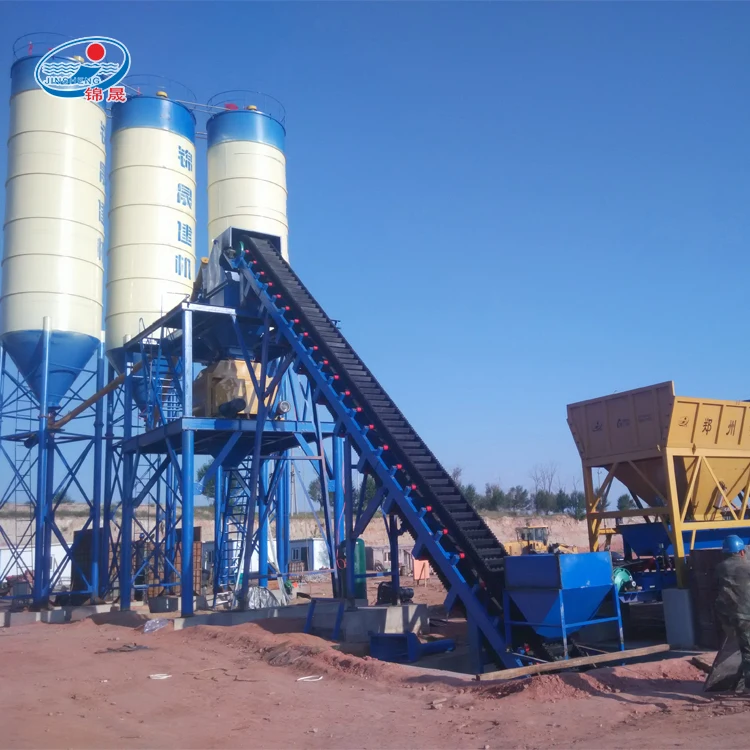

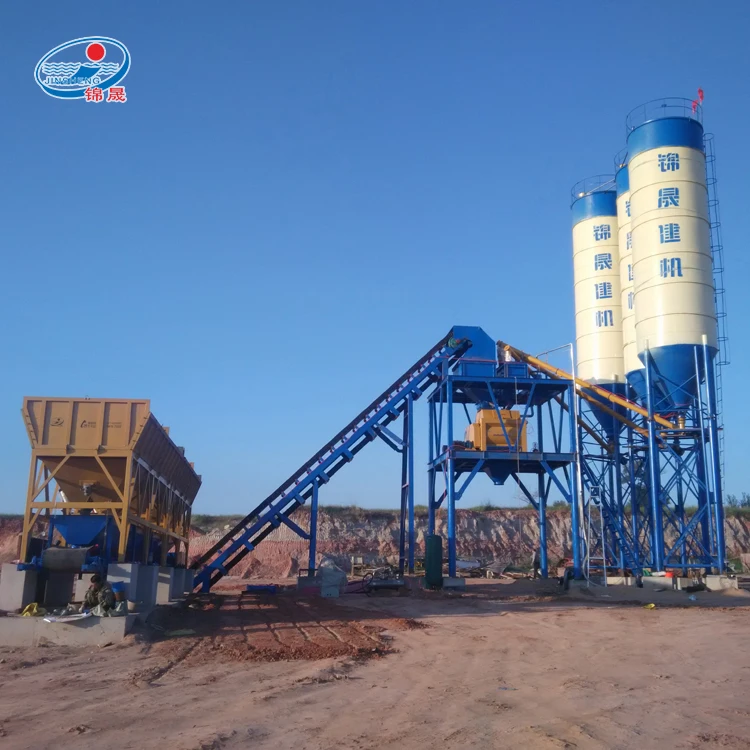

Chinese famous brand full automatic fixed hopper concrete mixer batching plant hzs60

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. HZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.

1. Twin shaft compulsory concrete mixer for HZS concrete batching plant

JINSHENG JS series double horizontal shaft compulsory concrete mixer is a multi-function mixer. It can mix stiff concrete, plastic concrete, light aggregate concrete and all kinds of mortar, with features of compact structure, stable working, uniform mixing, easy operation and short cycle time.

It can be used independently or combined with PLD batching machine into concrete batching plant.

2. Feeding machines for HZS concrete batching plant

The materials feeding to concrete mixer can be skip hopper, belt conveyor and screw conveyor.

Usually, for small mixing capacity ≤60 cubic meter per hour, the aggregate feeding is by skip hopper. If big, belt conveyor will be used. Screw conveyor is usually to deliver cement and coal ash, but it also can deliver aggregate for small gravels.

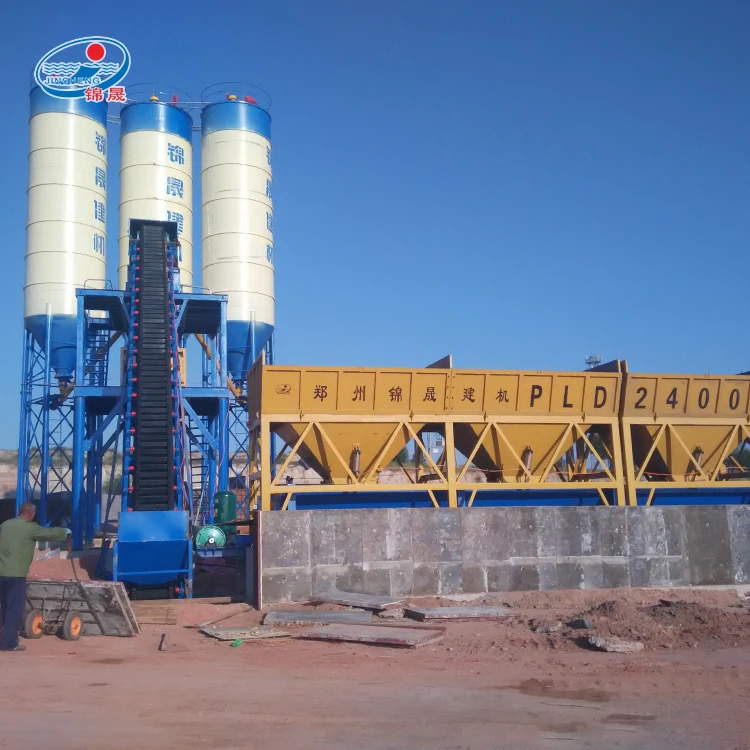

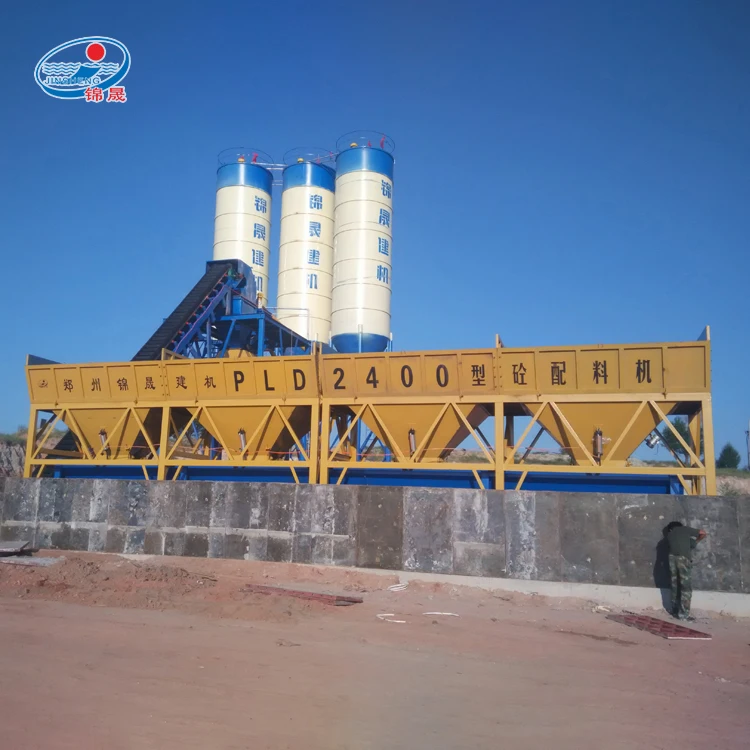

3. Concrete batching machine of aggregates for HZS concrete batching plant

PLD series concrete batching machine adopts electronic weighing, computer control, digital display, which can automatically finish the batching procedure of 3-6 kinds of aggregates, such as sand, stone or cement. It has features of accurate weight, auto compensation, fast speed and easy operation.
Hopper cumulative weighing, belt cumulative weighing and separate weighing are available.

4. Weighing system for HZS concrete batching plant

Including weight of aggregates, cement, fly ash, water and additive. Cement and fly ash are delivered to the feeding hopper by screw conveyors, while water and additive are by pumps. There are high precision load cells with error ±1% to weigh the material.
Weighing of aggregates is made by the load cells on concrete batching machine. Cumulative weighing and separate weighing are available.

5. Control system for HZS concrete batching plant

JINSHENG PLC can automatically, semi-automatically or manually control the production process with high reliability and stability, including the batching, feeding, mixing, discharging and the weighing. It also can dynamically show the process of weighing and discharging. The operation is clear and easy.

For small machines, usually it is packing and loaded into containers with good protection. Cement silo will be designed and made into many pieces for easy transportation and saving freight. It is very easy for the customer to assemble them together into a stable silo.

delivery by ocean, air, train and land are available according to customers' location and requirements. JINSHENG will help the customers to get the economical solution.

Zhengzhou Jinsheng Construction Machinery Co., Ltd was established in 1983, which is an international machinery enterprise. We are specialized in manufacture, marketing and service. So far it has developed with a wide range of concrete batching plant, concrete mixer, stabilized soil mixing plant, concrete batching machine, concrete truck, screw conveyor etc.
Our headquarter is located in Zhengzhou City, the capital city of Henan province. It is highly reputable both at home and abroad for its advanced technologies, strict quality control and complete after-sales service.
