OUORO AD13 PG9 M12 M16 M18 M20 Flexible Nylon Plastic Conduits Hose Connectors
- Category: >>>
- Supplier: Yueqing City Ouoro Electric Co. Ltd.
Share on (60798581198):
Product Overview
Description

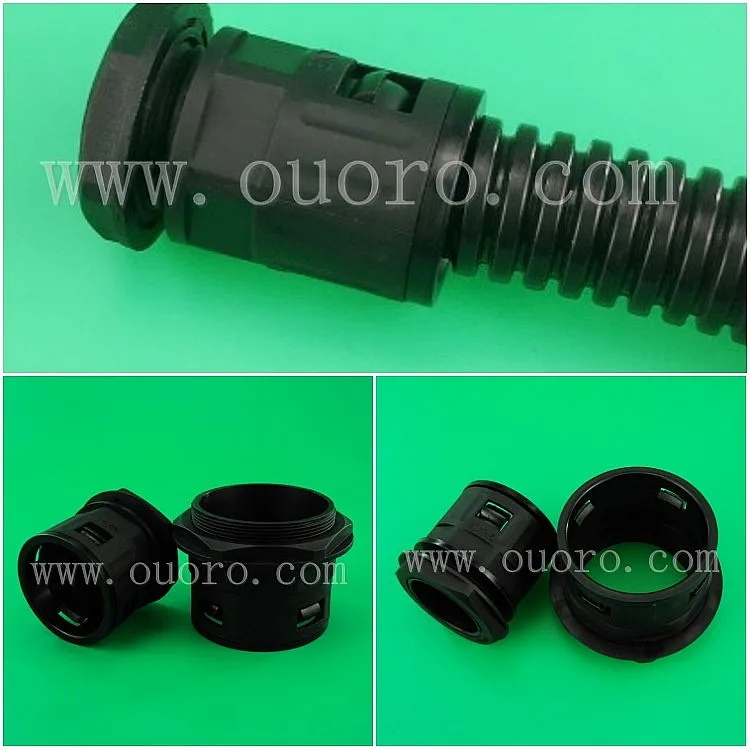

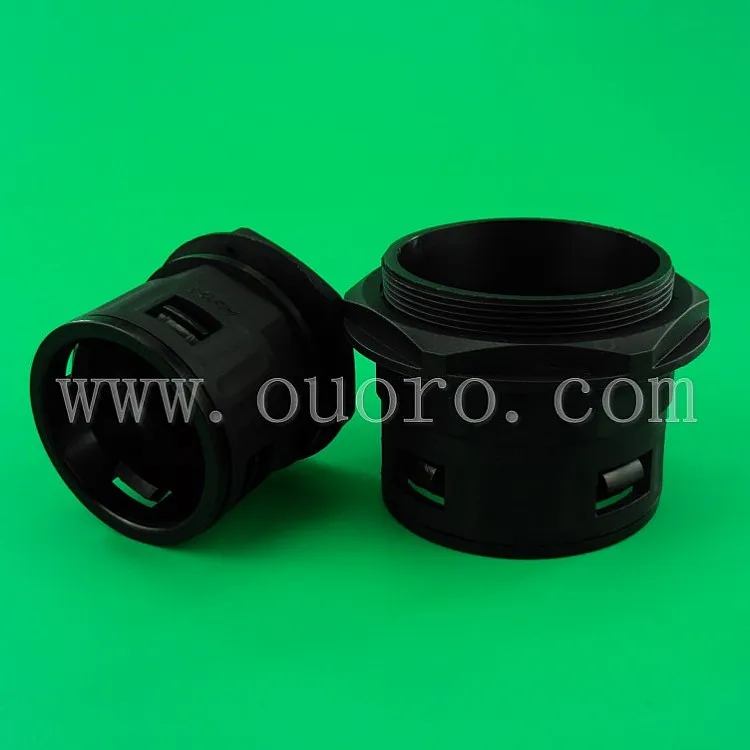

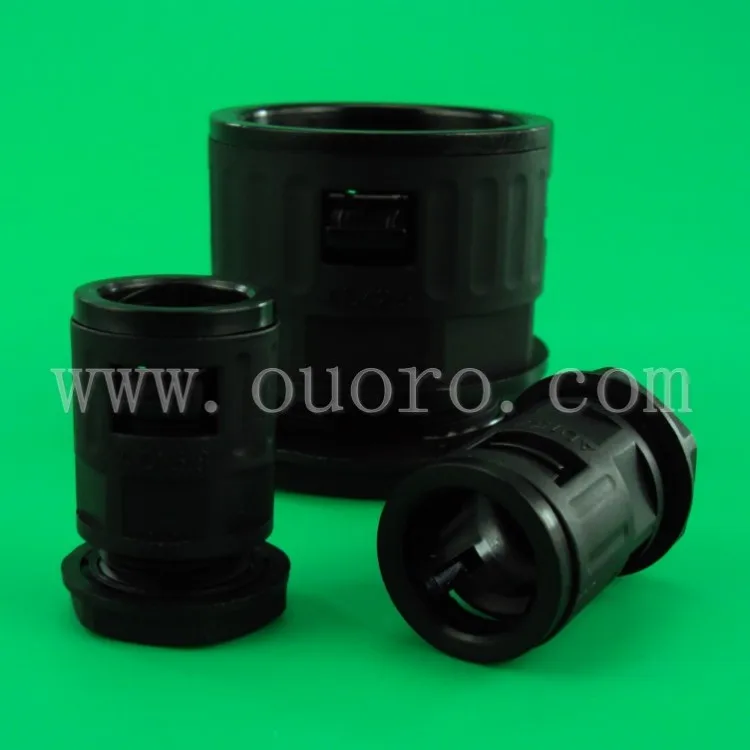

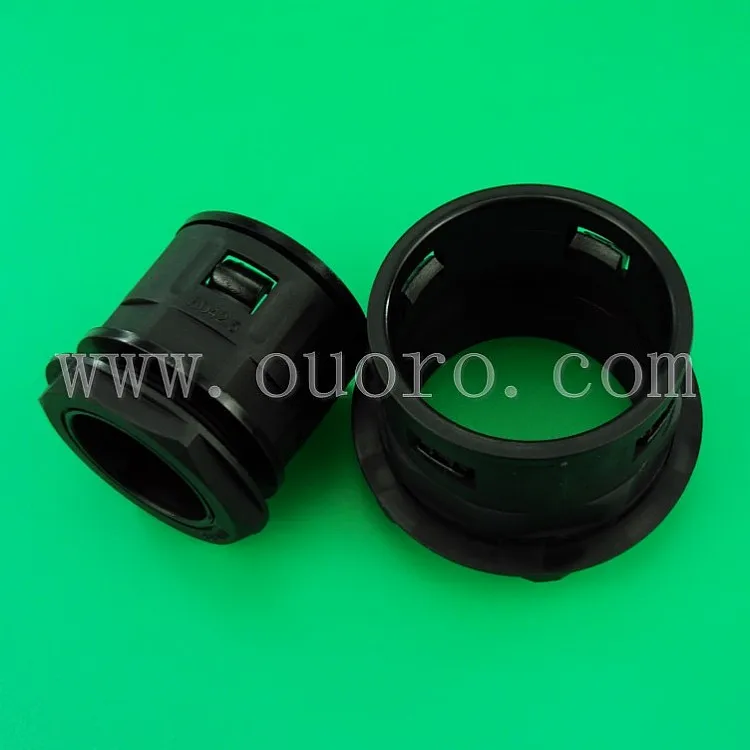

OUORO AD13 PG9 M12 M16 M18 M20 Flexible Nylon Plastic Conduits Hose Connectors
| Product Description | |||
| Product material | PA (polyamide) | ||
| Working temperature | -40℃ ~ +100℃ | ||
| Color | Black,Other colors are customizable | ||
| Certification | RoHS | ||
| Property | Special design of inner locking buckle make the mounting and dismounting done only by plugging or pulling,without using tools. | ||
| How to use | Straight Connector is the matching product for non-metallic conduit, can entry equipment cabinet directly, or can connect with electric device hole which have corresponding female thread . another side with respective size conduit by tighting up the sealing nut | ||
| Product Description | |||||||
| Unit: mm | |||||||

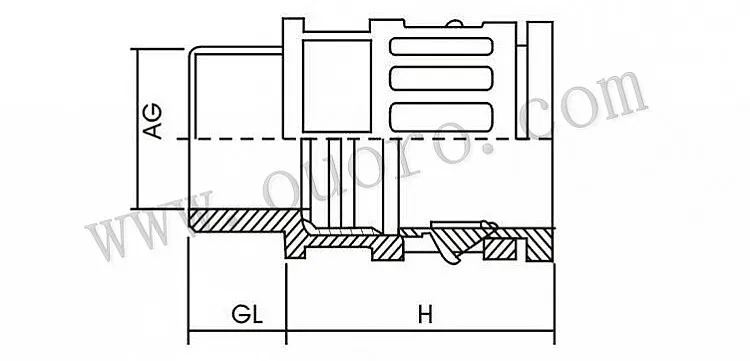

| Item No. | Suitable Flexible Conduit | Metric Dimension Of Thread | AG Outer Diameter AG | AG Inner Diameter AG | GL(mm) | H | Packing |
| AD10-PG7 | AD10 | PG7 | 12.3 | 6.5 | 10 | 23 | 100 pcs / Bag |
| AD10-M10X1 | M10X1 | 10 | 6.5 | 10 | 23 | 100pcs / Bag | |
| AD10-M12X1.5 | M12X1.5 | 12 | 6.5 | 10 | 25 | 100pcs / Bag | |
| AD10-M16X1.5 | M16X1.5 | 16 | 6.5 | 10 | 25 | 100pcs / Bag | |
| AD11.6-PG7 | AD11.6 | PG7 | 12.3 | 8 | 10 | 23 | 100pcs / Bag |
| AD11.6-M10X1 | M10X1 | 10 | 8 | 10 | 23 | 100pcs / Bag | |
| AD11.6-M12X1.5 | M12X1.5 | 12 | 8 | 10 | 25 | 100pcs / Bag | |
| AD13-PG9 | AD13 | PG9 | 15 | 10 | 10 | 25 | 100pcs / Bag |
| AD13-M12X1.5 | M12×1.5 | 12 | 7.5 | 11 | 25 | 100pcs / Bag | |
| AD13-M16×1.5 | M16×1.5 | 16 | 10 | 10 | 25 | 100pcs / Bag | |
| AD13-M18×1.5 | M18×1.5 | 16 | 10 | 10 | 25 | 100pcs / Bag | |
| AD13-M20×1.5 | M20×1.5 | 16 | 10 | 10 | 25 | 100pcs / Bag | |
| AD15.8-PG11 | AD15.8 | PG11 | 18.4 | 12.5 | 10 | 27.5 | 100pcs / Bag |
| AD15.8-PG13.5 | PG13.5 | 20.2 | 12.5 | 10 | 28 | 100pcs / Bag | |
| AD15.8-M16×1.5 | M16×1.5 | 16 | 11.5 | 10 | 27.5 | 100pcs / Bag | |
| AD15.8-M18×1.5 | M18×1.5 | 18 | 12 | 10 | 27.5 | 100pcs / Bag | |
| AD15.8-M20×1.5 | M20×1.5 | 20 | 12 | 10 | 27.5 | 100pcs / Bag | |
| AD15.8-G3/8 | G3/8 | 16.6 | 12 | 10 | 28 | 100pcs / Bag | |
| AD18.5-PG13.5 | AD18.5 | PG13.5 | 20.2 | 14.3 | 12 | 28 | 50pcs / Bag |
| AD18.5-M20×1.5 | M20×1.5 | 20 | 14.3 | 12 | 28 | 50pcs / Bag | |
| AD21.2-PG16 | AD21.2 | PG16 | 22.3 | 17 | 13 | 32 | 50pcs / Bag |
| AD21.2-M20×1.5 | M20×1.5 | 20 | 15 | 13 | 31.5 | 50pcs / Bag | |
| AD21.2-M24×1.5 | M24×1.5 | 24 | 17 | 13 | 31.5 | 50pcs / Bag | |
| AD21.2-M25×1.5 | M25×1.5 | 25 | 17 | 13 | 27 | 50pcs / Bag | |
| AD21.2-G1/2 | G1/2 | 20.9 | 15 | 13 | 31 | 50pcs / Bag | |
| AD25-M25X1.5 | AD25 | M25X1.5 | 25 | 20 | 14 | 30 | 50pcs / Bag |
| AD25-G1/2 | G1/2 | 20.9 | 16 | 13 | 35 | 50pcs / Bag | |
| AD28.5-PG21 | AD28.5 | PG21 | 28 | 23 | 14 | 34 | 50pcs / Bag |
| AD28.5-M25×1.5 | M25×1.5 | 25 | 20 | 14 | 34 | 50pcs / Bag | |
| AD28.5-M27×2.0 | M27×2.0 | 27 | 20.5 | 14 | 34 | 50pcs / Bag | |
| AD28.5-M30×2.0 | M30×2.0 | 30 | 22 | 14 | 34 | 50pcs / Bag | |
| AD28.5-M32×1.5 | M32×1.5 | 32 | 22 | 14 | 34 | 50pcs / Bag | |
| AD28.5-G3/4 | G3/4 | 26 | 20 | 14 | 35 | 50pcs / Bag | |
| AD34.5-PG29 | AD34.5 | PG29 | 36.7 | 29 | 14 | 36 | 20pcs / Bag |
| AD34.5-M32×1.5 | M32×1.5 | 32 | 27 | 14 | 36 | 20pcs / Bag | |
| AD34.5-M36×1.5 | M36×1.5 | 36 | 29 | 14 | 36 | 20pcs / Bag | |
| AD34.5-M40×1.5 | M40×1.5 | 40 | 29 | 14 | 36 | 20pcs / Bag | |
| AD34.5-G1 | G1 | 33 | 27 | 14 | 36 | 20pcs / Bag | |
| AD42.5-PG36 | AD42.5 | PG36 | 46.7 | 36 | 14 | 38.5 | 10pcs / Bag |
| AD42.5-M40×1.5 | M40×1.5 | 40 | 34 | 14 | 38.5 | 10pcs / Bag | |
| AD42.5-M42×1.5 | M42×1.5 | 42 | 36 | 14 | 38.5 | 10pcs / Bag | |
| AD42.5-M48×2.0 | M48×2.0 | 48 | 36 | 14 | 38.5 | 10pcs / Bag | |
| AD54.5-PG48 | AD54.5 | PG48 | 59 | 53 | 15 | 40 | 10pcs / Bag |
| AD54.5-M50×1.5 | M50×1.5 | 50 | 44 | 15.5 | 39 | 10pcs / Bag | |
| AD54.5-M60×2.0 | M60×2.0 | 60 | 48 | 15.5 | 39 | 10pcs / Bag | |
| AD54.5-M63X1.5 | M63X1.5 | 63 | 48 | 15.5 | 39 | 10pcs / Bag | |
| AD54.5-G2 | G2 | 59.6 | 48 | 15.5 | 39 | 10pcs / Bag | |

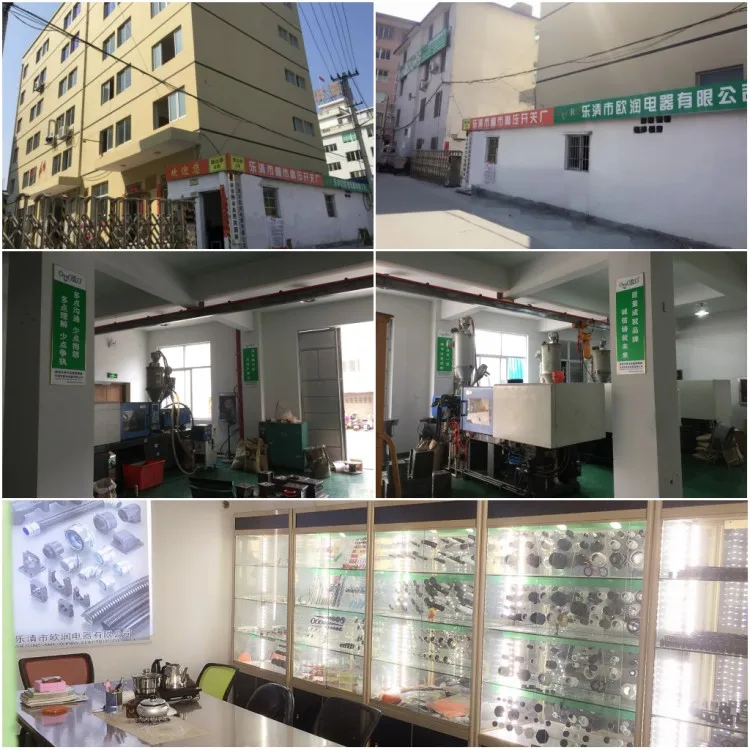

1.Q:Do you have your own factory?
A:Yes,H-V-S Company is manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.
2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?
A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.
3.Q:How can I visit your factory?
A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.
4.Q:Do you provide free sample?
A:Yes, we always do, but first time you'd better pay the delivery charge.
5.Q:Could you print our company logo on nameplate and package?
A:Yes,we can do that.
6.Q:Do you accept custom design on size?
A:Yes, if the size is reasonable.
7.Q:What's your delivery time?
A:H-V-S is factory, so we can efficiently control the production time.
