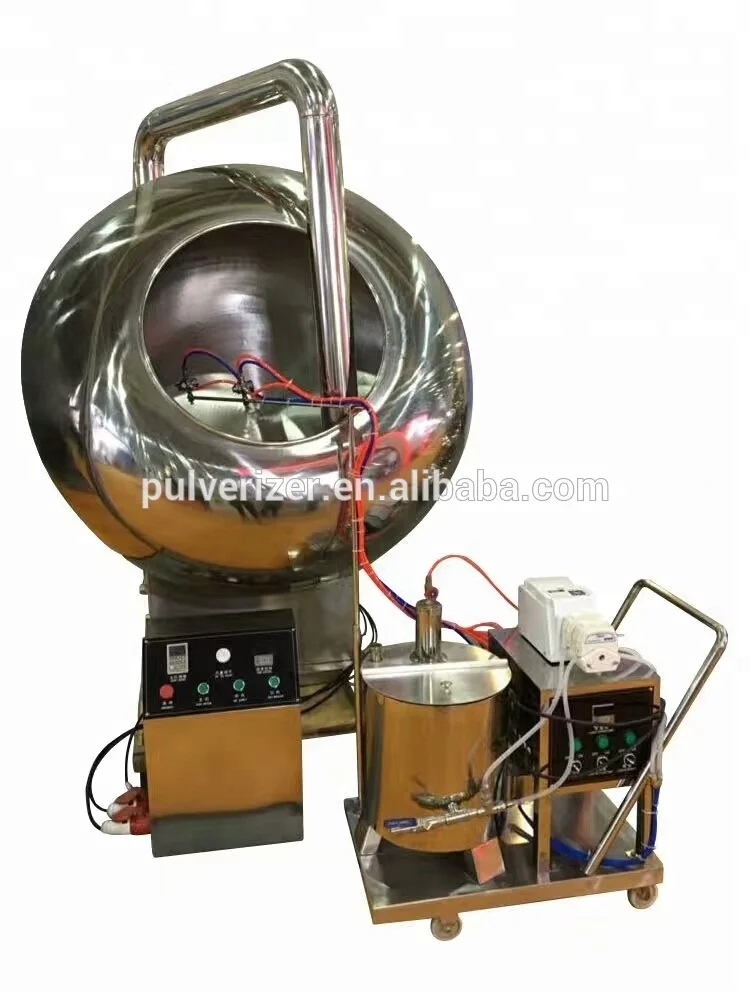

SUS304 BY400 Pharmaceutical powder coating machine price meet with GMP

Product Overview

Description

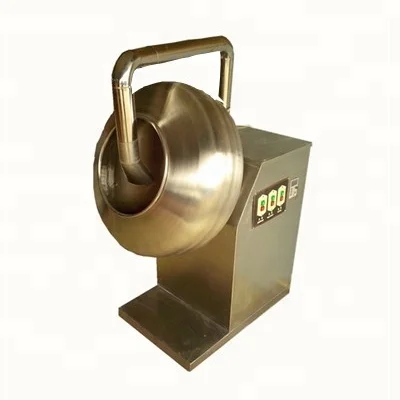

                             Sugar Coating Machine



Applications:

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds



Main Features:

1.  Sugarcoating round pot is elevated 30 degree to horizontal.

2.  Temperature of electrical heater can be adjusted.

3.  Pipe of the blower stretches into pot for heating or cooling purpose.

4.  Thermal capacity can be selected in three levels (1000Kw,2000Kw,3000Kw).







Diamater	600mm	800mm	1000mm	1250mm
capacity	8-15/Kg/time	30-50/Kgtime	50-70/Kgtime	90-150/Kgtime
the speed of pan	40r/min	32r/min	32r/min	30r/min
angle	15°-45°	15°-45°	15°-45°	15°-45°
motor power	0.75Kw	1.1Kw	1.5Kw	2.2Kw
fan power	100w	200w	200w	370w
in -out power	1000w+1000w	1500w+2000w	2000w+2000w	4000w+2000w
size	780×600×1360	1150×800×1550	1150×1000×1600	1340×1250×1680
weight	115kg	240Kg	250Kg	400Kg
