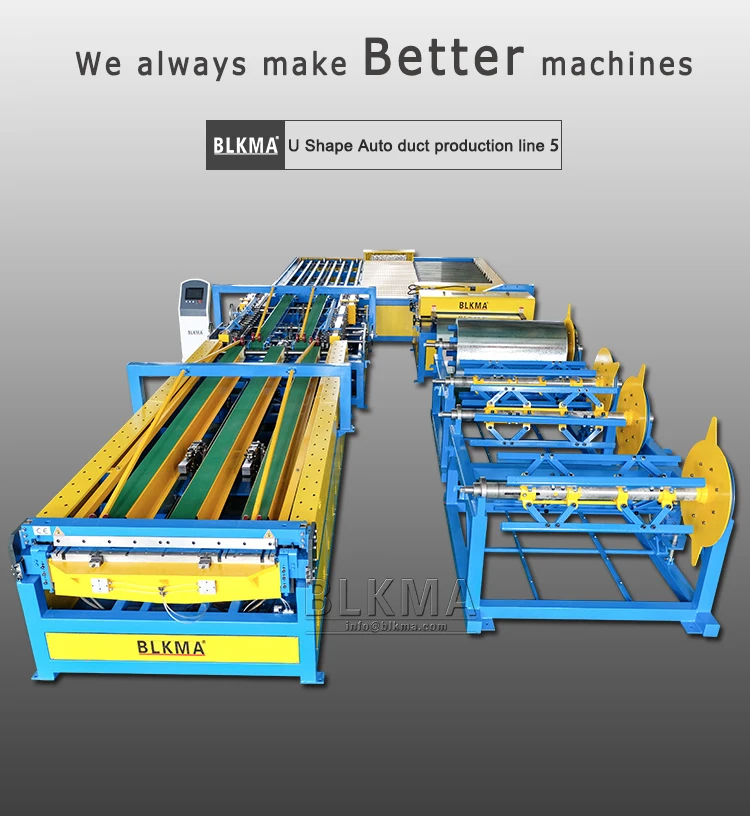

air duct manufacture auto coli line 5u
- Category: >>>
- Supplier: Anhui Blackma Heavy Industrial Machinery Co. Ltd.
Share on (60798587314):
Product Overview
Description
air duct manufacture auto coil line 5u
| YOUTUBE VIDEO |
| https://www.youtube.com/watch?v=4A3XTd_R9Fs |
Performance Features:
1. Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation helps customers to achieve the goals.
2. During feeding mechanism with pneumatic servo manipulator helps to ensure stability and speed of the machine, and the accuracy of its locating system.
3. It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.
4. Without moving back and forth the fixed locking machine is able to improve the efficiency.
5. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
6. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
7. With production memory functions, the production orders can be tracked and checked.
Function:
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
Main Technical Parameters:

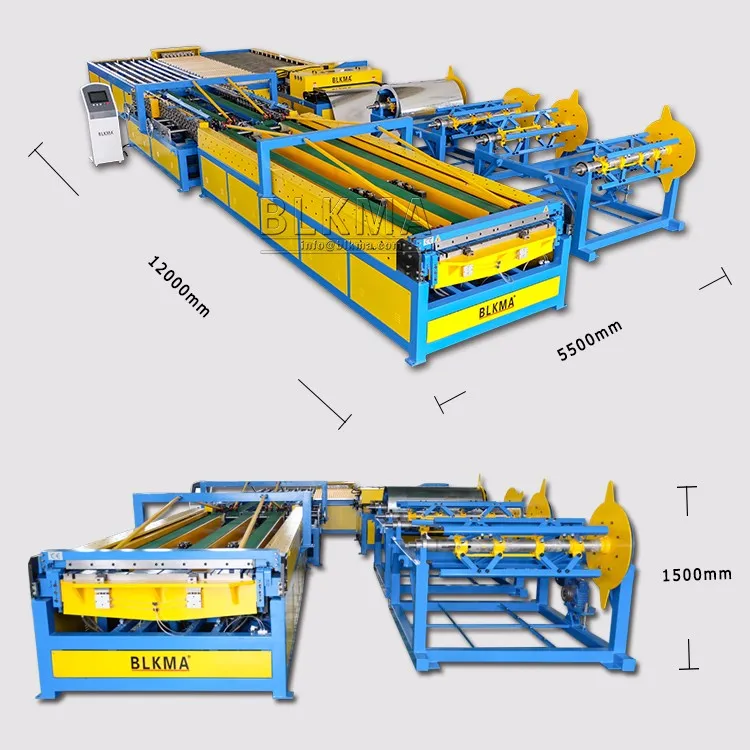

| Model | Sheeting thickness (mm) | Max width (mm) | Max working speed (m/min) | coiler max weight (T) | Dimensions L*W*H(mm) | Power (KW) | Weight (T) |
ADL-5U -1300 | 0.5-1.2 | 1300 | 15 | 7 | 12000*5500*1500 | 30 | 13 |
ADL-5U -1500 | 0.5-1.2 | 1500 | 15 | 7 | 12000*6300*1500 | 30 | 14 |
Working Folw:
Main import Configuration:
1. Beijing Huade + hydraulic system from Taiwan
2. Japan Omron encoder
3. Taiwan Hiwin linear guideways
4. Schneider electrical system
Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. Two stainless steel roller convey platforms
5. One fixed joint locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
FAQ
1. Are you factory or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory
for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both
sides' discussion and agreement.
4. OEM is available?
Yes.
