Woodworking Single Line Boring Machine drilling machine

Product Overview

Description

Woodworking Single Line Boring Machine drilling machine



1) FEATURES OF SINGLE LINE BORING MACHINE:

1. Taiwan made drilling lines;
2. Qty of drilling heads 21x1=21 pcs;
3. Suit for kitchen cabinet, wardrobes, office furnitures etc

Woodworking drilling machine, single line

Woodworking drilling machinery

 Woodworking borng machine



2). SPECIFICATIONS OF SINGLE LINE BORING MACHINE :

Spindle speed	2840rpm
Suitable voltage	220/380/415V,50/60Hz,3p
Weight	300kg
Heigth of working paltform off ground	900mm
Dimension	2400x1200x1200mm
Max drilling diameter	35mm
Drilling depth	60mm
Max processing pitch	1620x640mm
Minimum processing pitch	120x32mm
Total power of motor	1.5kw
Installation pitch of drilling head	10mm
Compressed air pressure	0.6-0.8kg/cm2
Total number of drilling shafts	21x1=21 pcs

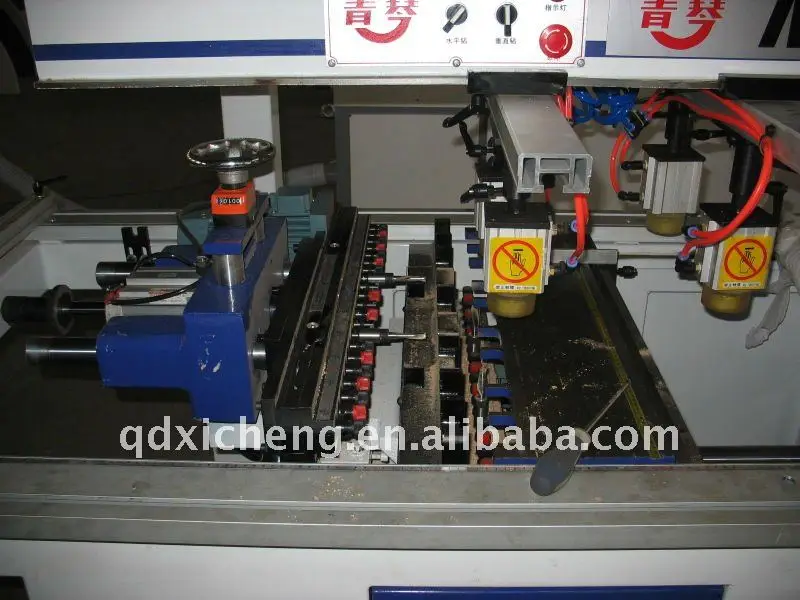

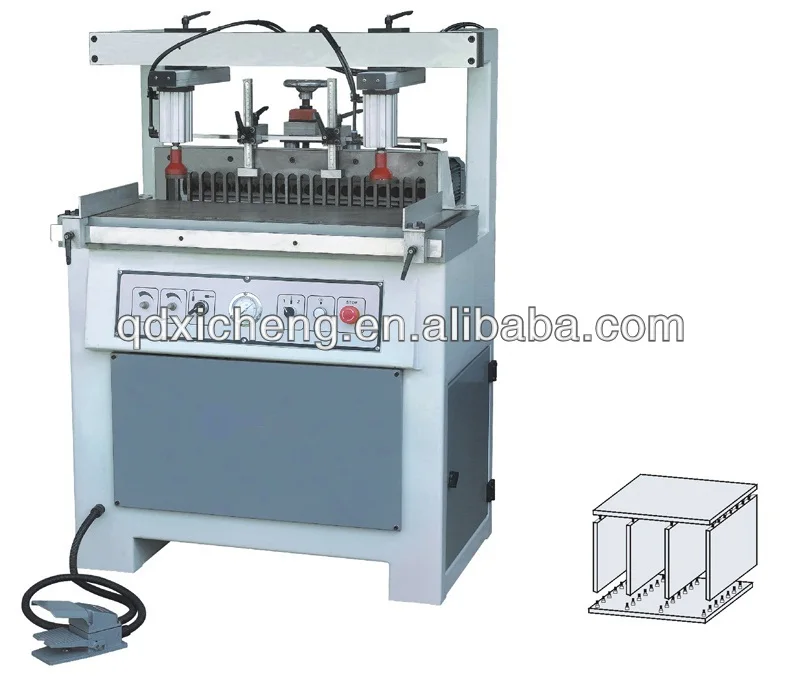

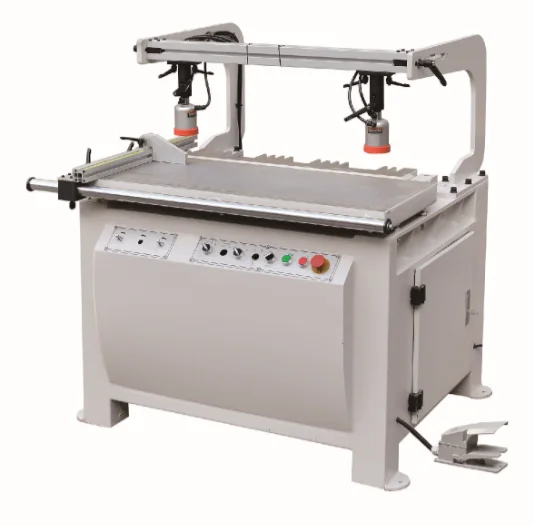

3) PICTURES FOR OF SINGLE LINE BORING MACHINE
