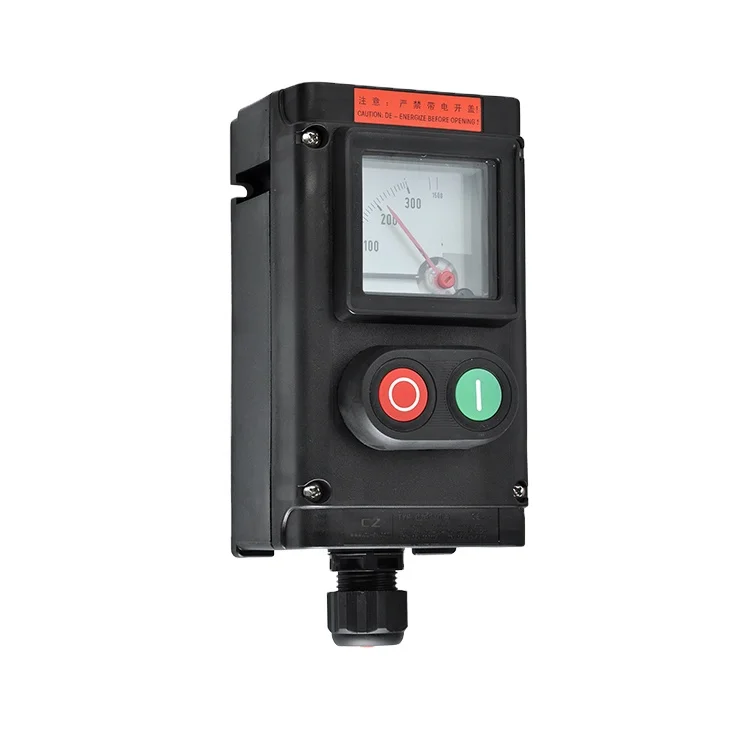

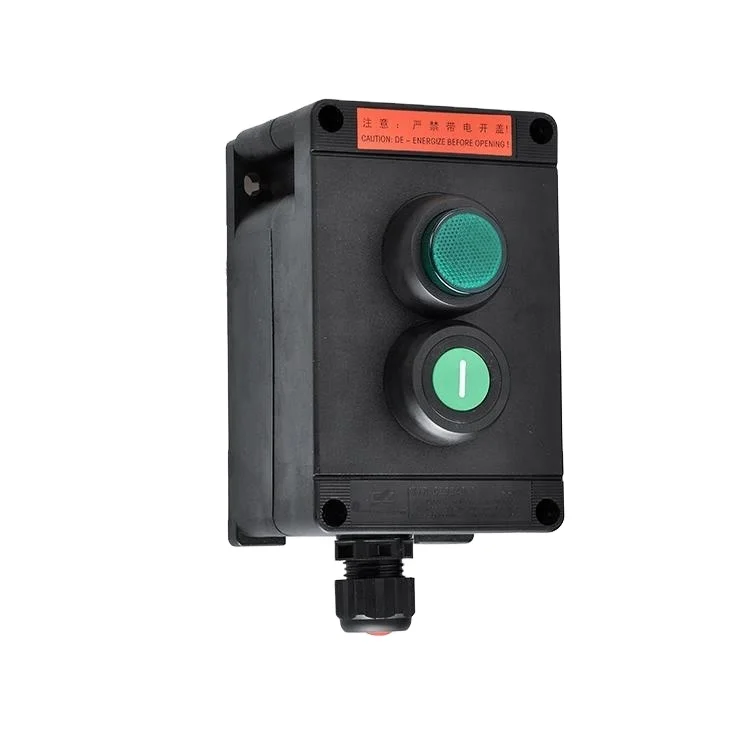

Factory Price IECEx Certified Explosion Proof Plastic Push Button Box

Product Overview

Description





Certification	Ex mark
IECEx	Ex de IIC T6   Ex tD A21 T80°C, Ex e II T6   Ex tD A21 T80°C
ATEX	Ex II 2GD  Ex de IIC T6   Ex tD A21 T80°C; Ex II 2GD Ex e IIC T6  Ex tD A21 T80°C



Intended use	zone1 and zone2  zone21 and zone22
Ambient temperature	-40°C≤Ta≤+40°C
Degree of protection	IP66
Material of enclosure	Alloy plastic of static resistance
Rated voltage/current	Max 400V, Max 16A
Component terminal	2.5 mm²
PE terminals	4 mm²



Descriptions:
There are six standard enclosure sizes for options. Each CZ0240/1, CZ0240/2 and CZ0240/3 can be combined together and each CZ0240/4, CZ0240/5 and CZ0240/6 can be combined together, but max. three pieces are together. The enclosure made of static -resistant plastic alloy and the concave-convex joint is designed between cover and body which the slicon rubber bar is sealed between them and it can be mounted even if the cover is closed and sealed.
Built-in explosion-proof components modules are mounted on rails in the enclosure and one cable entry of CZ0240/1, CZ0240/2, CZ0240/3 can be opened on top or at bottom as request. The max. 2 cable entries of CZ0240/4, CZ0240/5, CZ0240/6 can be opened at bottom.

Order specifications:

Outline dimensions:

Cable entry:
CZ0240/1, CZ0240/2, CZ0240/3 Standard configure: Molded plastic 1 x M20, cable outer diameter 5.5-13mm ,
CZ0240/4, CZ0240/5, CZ0240/6 Standard configure: Molded plastic 2 x M25, cable outer diameter 8-17mm .
Mounting way: Pendant mounted type , Vertical mounted type
