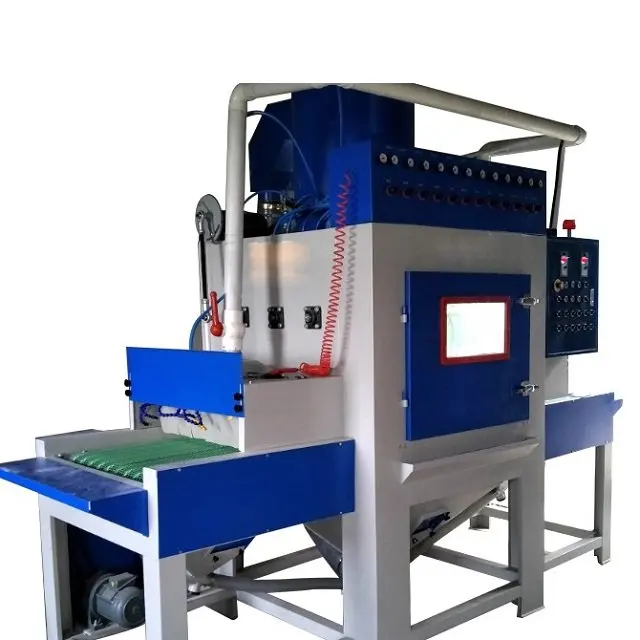

Automatic Conveyor Belt Sand Blasting Machine for Sale

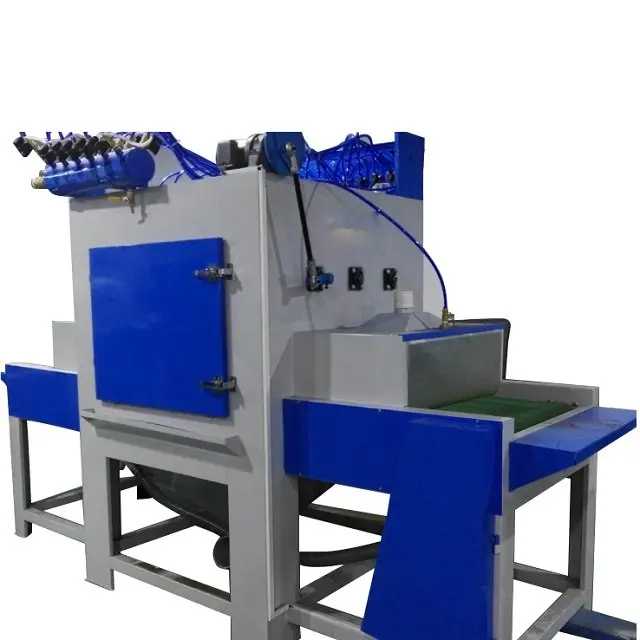

                   Automatic Conveyor Belt Sand Blasting Machine for Sale    The detail pictures of Automatic Conveyor Belt Sand Blasting Machine for Sale



Model No	CL-500-6A	CL-2804-8A	CL-6010-10A	CL-1280-12A
Working Space	1000*1000*700	900*800*1200	2750*600*650	3000*1200*1200
Through size(W*H) mm	500 X 300	400 X 300	600 X 300	800 X 350
Overall Size(mm)	2000*1000*1100	3400*900*2680	3200*1000*3500	3500*1300*2800
Fan mortor of dust collector	5.5KW 380V 50HZ	4KW 380V 50HZ	3KW 380V 50HZ	7.5KW 380V 50HZ
Load of Conveyor	30KGS	90KGS	50KGS	50KGS
Total Power	7.75KW	7.5KW	5.25KW	9 KW
Total weight	600kgs	1500kgs	1550kgs	2000kgs
Drive of conveyor	0.2KW Speed adjustable	0.75KW Speedadjustable	0.75KW Speed adjustable	0.75KW Speed adjustable
Gun Clamp	Automatic swing, speed adjustable Power 200W	Automatic swing, speed adjustable Power 400W	Automatic swing, speed adjustable Power 750W	Automatic swing, speed adjustable
Blast gun	6pcs	8pcs	10pcs	12pcs
Abravise container	1pcs(suitable for 30-150 mesh abrasive)	3pcs(suitable for 30-150 mesh abrasive)	3pcs(suitable for 30-150 mesh abrasive)	3pcs(suitable for 30-150 mesh abrasive)
Compressor AirRequirements	35CFM/Gun 5-8bar(kg/cm2)
Speed of Conveyor	0-3m/min ,Speed adjustable
Material of body	T2.5mm-6mm Cold rolled steel plate

The Features

•


  The speed of conveyor belt is controlled by variable frequency, whose flexibility ensure the optimal finishing result.





•

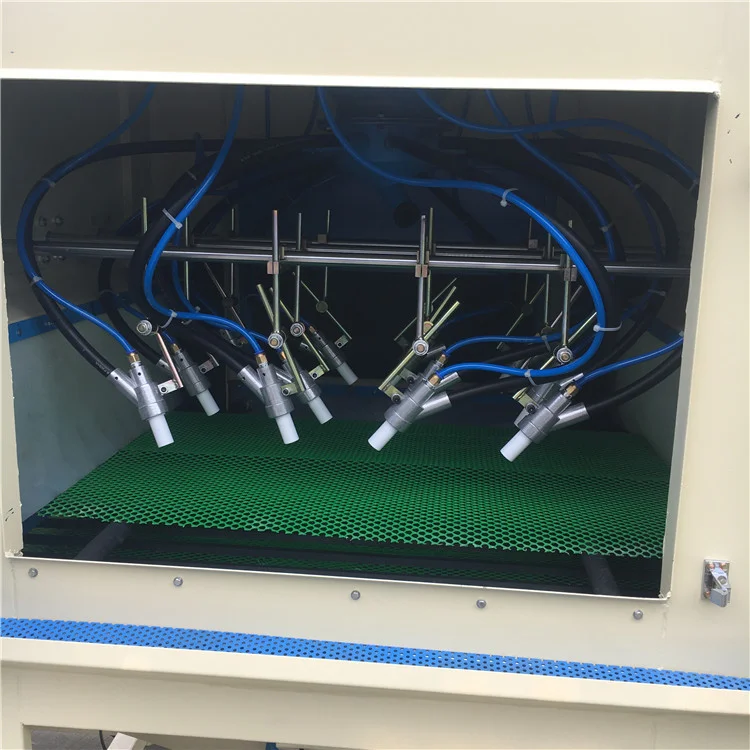

  The swinging angle, and distance between the blasting gun and parts can be adjusted to meet particular needs.





•


  Only requires operator to load and unload the work pieces, conveying and blasting by the automatic blast system, easy and reliable.





•


  A dust removing system thoroughly collects dust leaving a clear working view and ensures the recycling of pure abrasives.





•


  The automatic sand blasting machine can be equipped with many spray guns, 4pcs, 6pcs, 8pcs, etc, as customer required




The Application

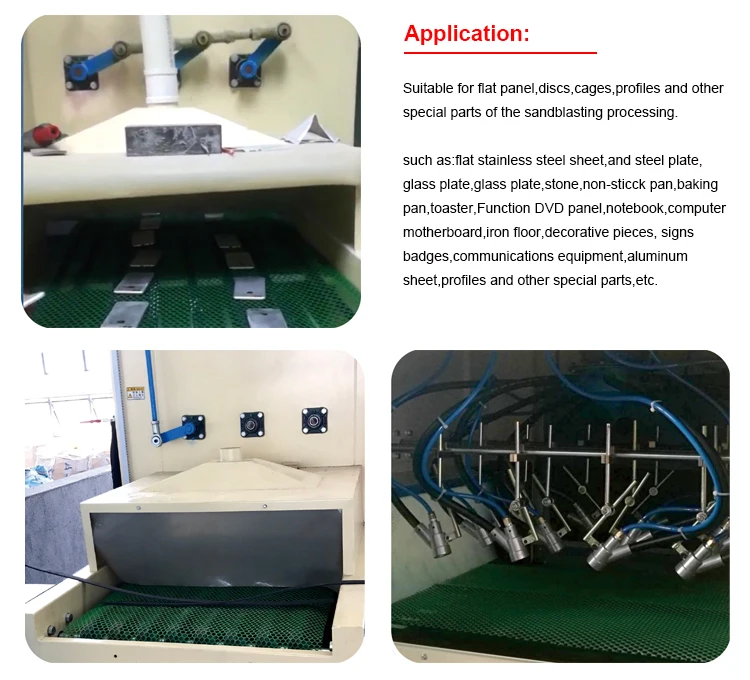

This Automatic Conveyor Belt Sand Blasting Machine is designed for flat type workpieces, like stainless steel plate, energy saving steel plate, glass plate, stone, non-stick pan, baking tray, toaster, computer case, functional DVD panel, notebook computer motherboard, iron soleplate, mobile phone shell,etc.

Sand blasting machine package with wooden box ,all meet exporting standred .

After More than 10 years of export experience, we already have a complete pre-sales service and after-sales professional team. Thank customers in all over of the world for their recognition of our sand blasting machines ,related machines and services.

We are a professional manufactuer of surface finishing machinery.we have worked on worldwide market for 10 years,because of the superior technology,quality,service.we exported into more than 100 countries,established long term business with distributer in US,Mexico,Russia,Poland,Uk,Germany ect.

We own a manufacruery base on 3600 square meter,around 100 employees and 24sets of production equipment ,dividing into technical department,after-sale department .

Kafan is a manufacturer of sand blasting machines, sand blasting accessories, vibratory polishing machines, abrasive for sand blasting as well. We possess our own Technical & Research Department, International

Q1: What is the regular packaging?

A:We use wooden package. Membrane packaging for large equipment.

Q2: How to proceed an order for our productds?

A: Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production.

Q3: Can you do the design for us?

A: Yes. We have a professional team having rich experience in sandblasting machine design. Just tell us your ideas and we will help to carry out your ideas.

Q4.Do you have any MOQ requirment.

A:Different products have different MOQ,please contact us for details.

Q5. High Quality

A:All the Products will be pass test before delivery.
