2020 New Waterproof Polystyrene Styrofoam XPS Tile Backer Board

2020 New Waterproof Polystyrene Styrofoam XPS Tile Backer Board

Category: XPS Boards >>>
Supplier: Hangzhou,Tyco,Industrial,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Production Details

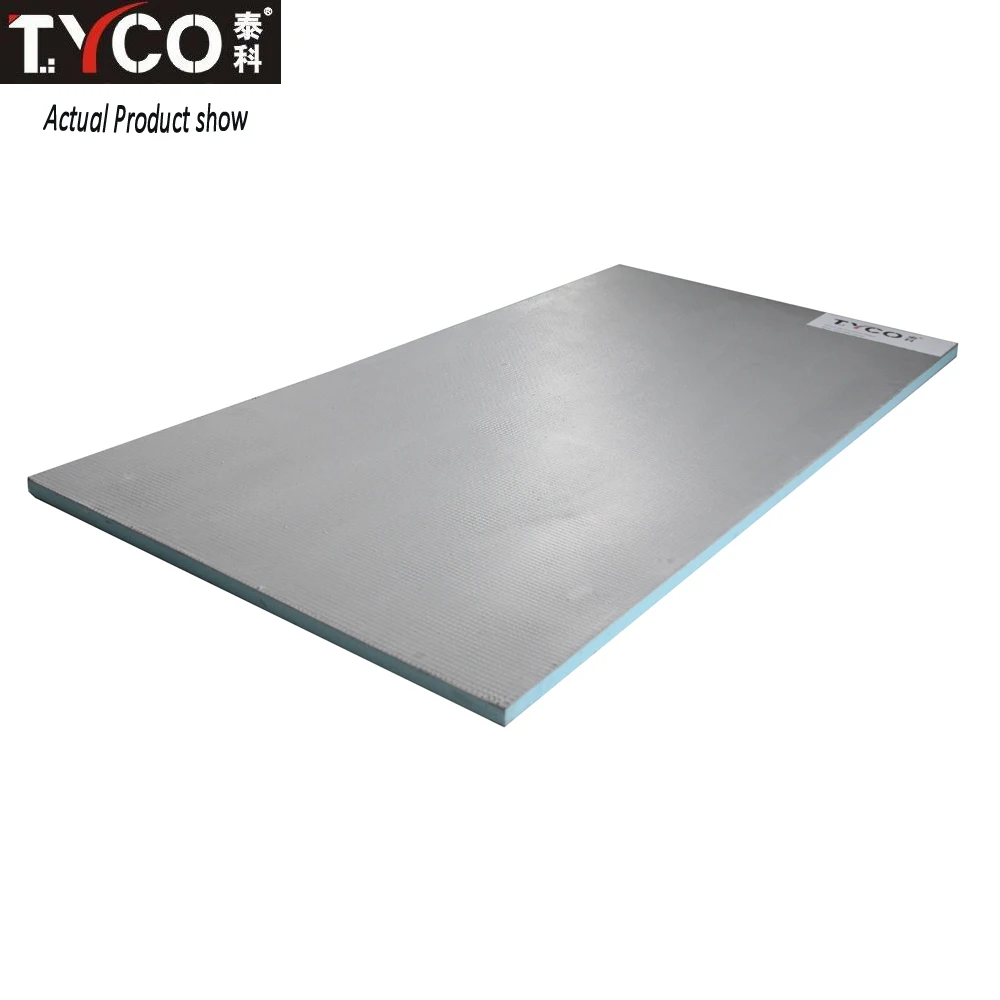

2020 New Waterproof Polystyrene Styrofoam XPS Tile Backer Board

>> Exceptional Stability

>> High thermal insulation

>> Light weight and workable

>> Replace wet finishes

>> High Compressive Strength

>> Easy-cutting and convenient to install

>> CFC and Bromine free

Size------Customized XPS Tile Backer Board is Acceptable

Thickness	Width	Length
4mm	600mm	1200/1250mm
6mm
8mm
10mm	600mm	2440/2500/2600mm
12mm	600mm
20mm	600/1200mm
30mm
40mm
50mm
60mm
80mm

Technical Data

		XPS
Density of core board	Kg/m³	38
Thermal conductivity, 90 days, 10°C	W/mK	0.03~0.036
Compressive strength at 10% deflection or yield, (vertical)	kPa	≥450Kpa
Water absorption	Vol-%	<=1.00%
Capillarity	nil	nil
Coefficient of linear thermal expansion	mm/mK	0.07
Temperature limits	°C	-50°C, +75°C

Application

2018 New Best Price Waterproof Polystyrene Styrofoam XPS Tile Backer Board

TYCO's production has good performance in heating system,bathroom waterproof and wall insulation.

Tile base for wet areas

Tile backer board in wet areas

Our Company

TYCO: professional manufacturer and exporter with more than 10 years experience
Area: 25000sqm
Products: XPS & EPS foam board, under tile backer board, shower tray, underfloor heating system, etc.
Certificates: CE, SINTEF, SGS, VTT, REACH, ISO 9001, PATENT, etc
Market: Europe, Southeast Asia, Oceania, etc
Locations: located at beautiful West Lake-Hangzhou,China, very close to Shanghai and Ningbo sea port .
Directions: From Shanghai Pudong airport 1 hour by car / 45minutes by train
