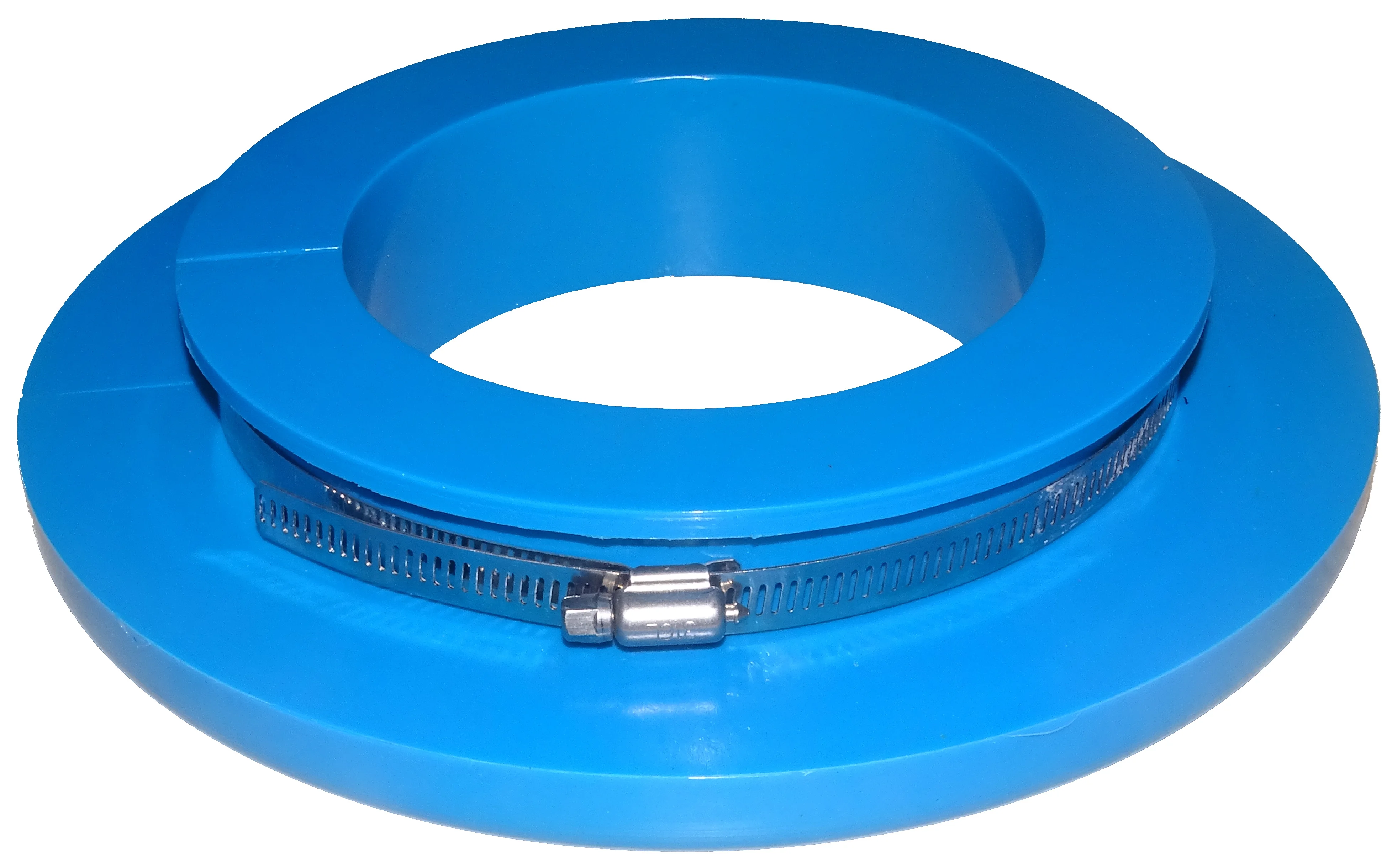

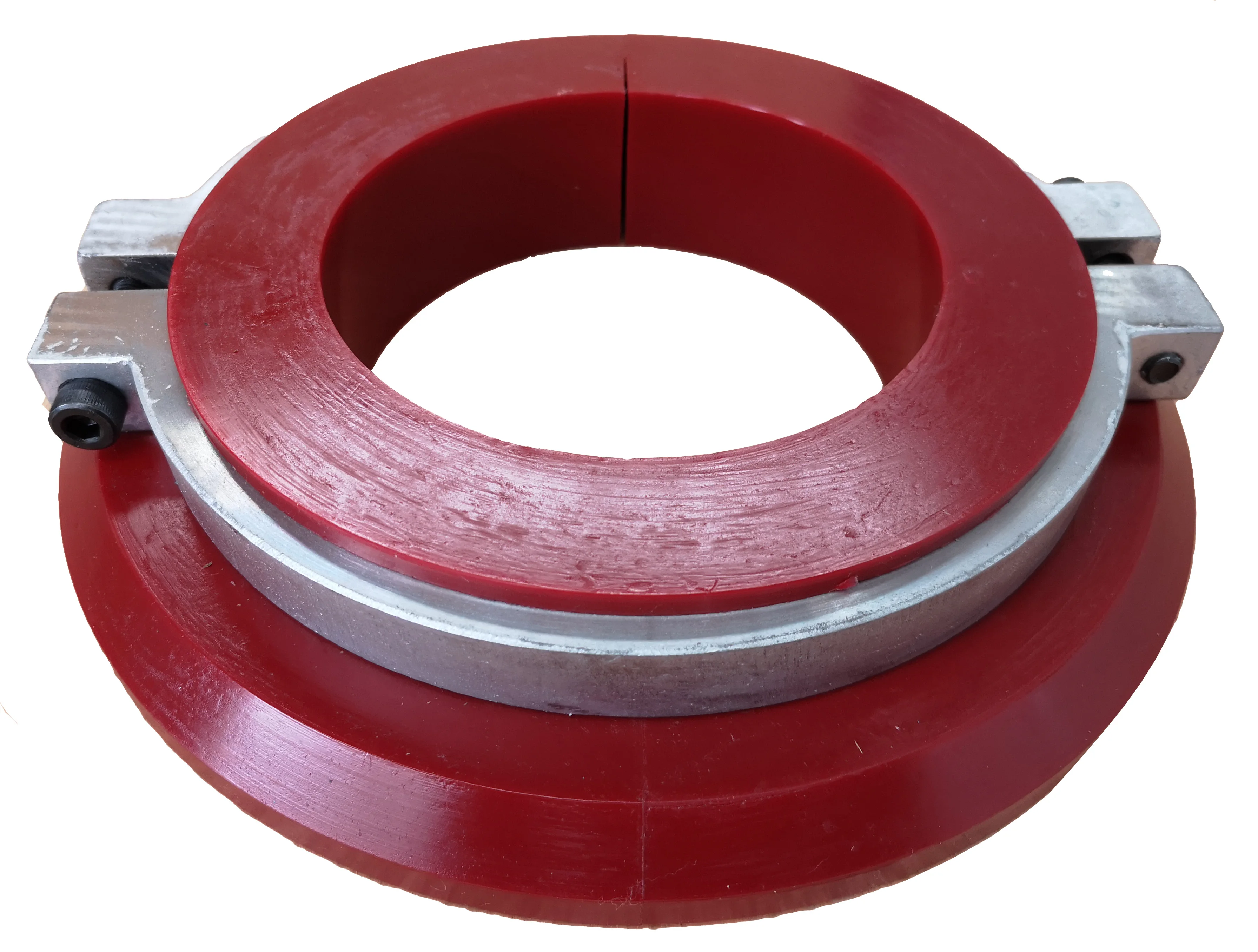

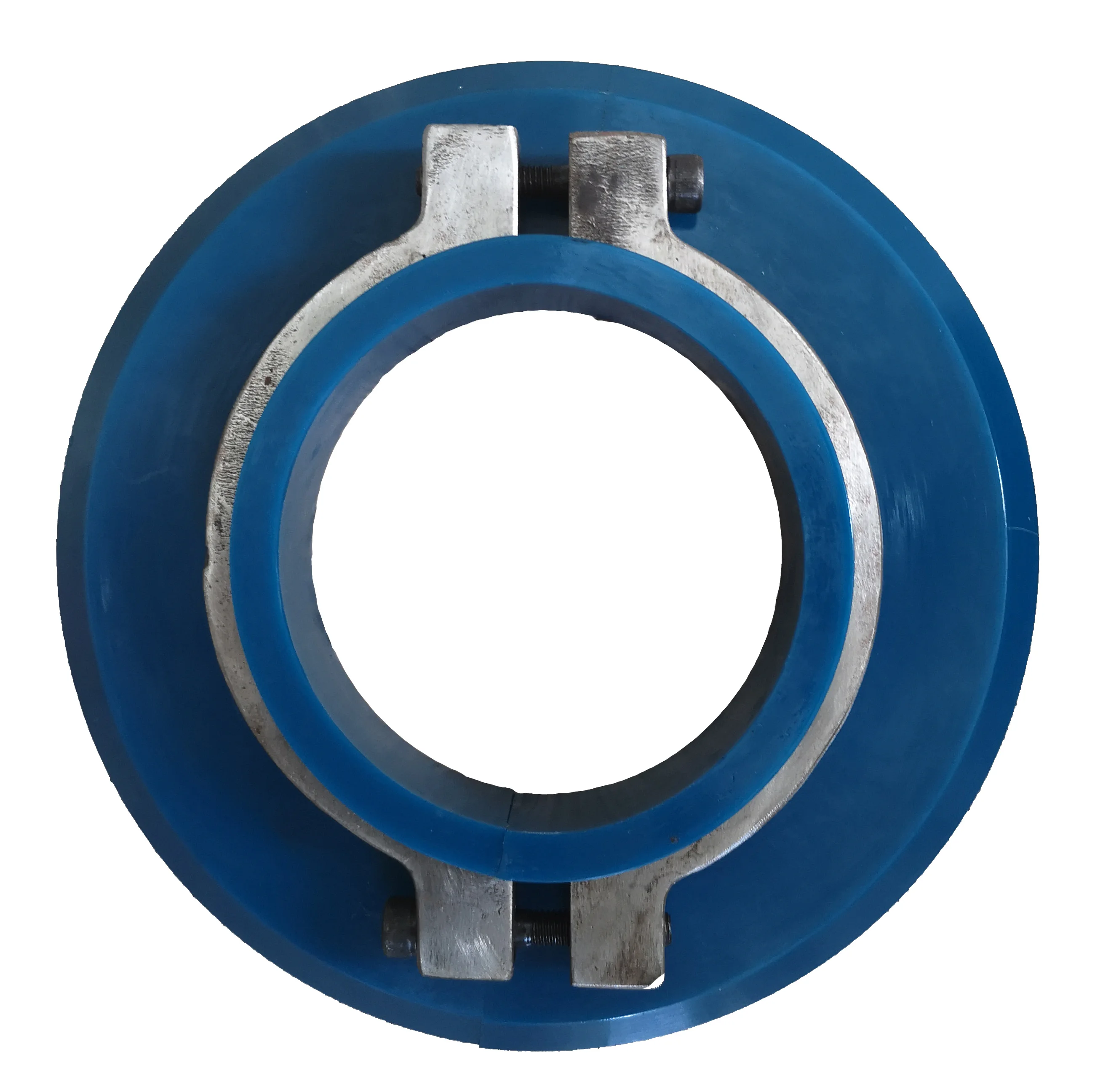

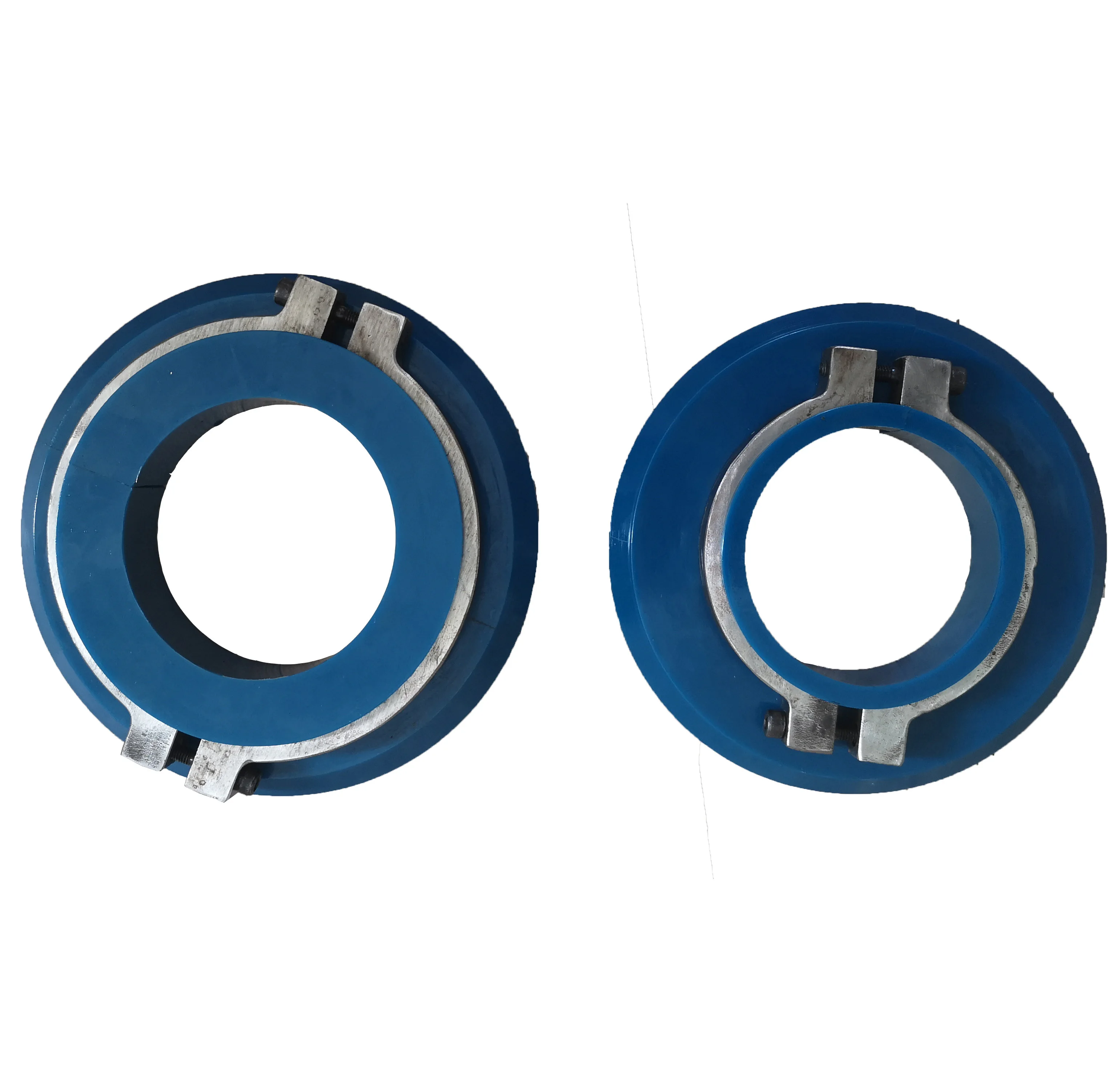

Poly Urethane MTD Conveyor Belt Tracking Disc Polyurethane Disc Tracker With Steel Clamp

The MTD Disc Tracker is a high performance economical means to track and align a wandering conveyor belt, suitable for most installations and applications.

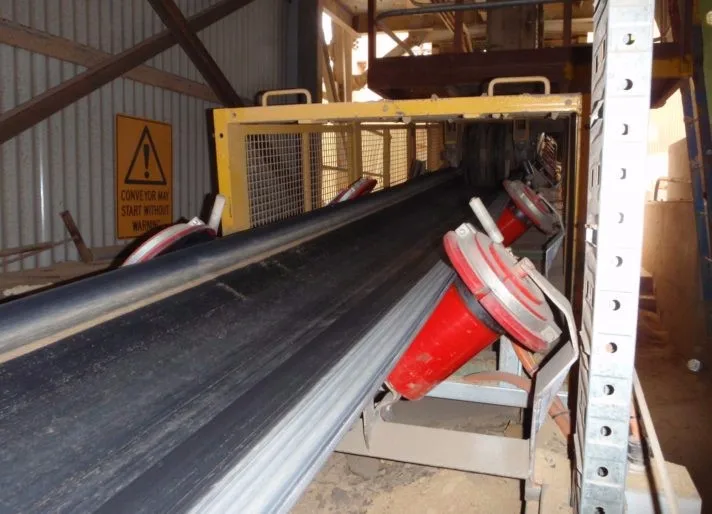

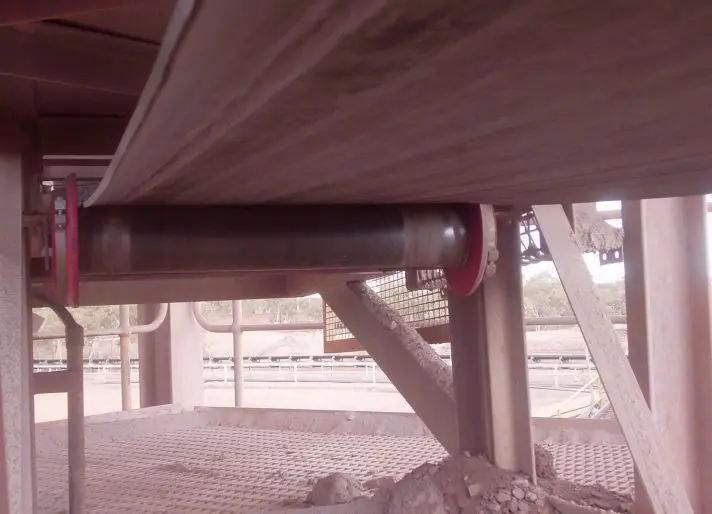

Polyurethane Tracking Disc fits both flat and vee return rollers as well as troughing rollers. Ideally they are located in pairs prior to the tail pulley to help align the conveyor belt, and so eliminating spillage from tracking belts. They can also be installed after the feed area on the troughing sets to help keep the belt aligned.

Features:

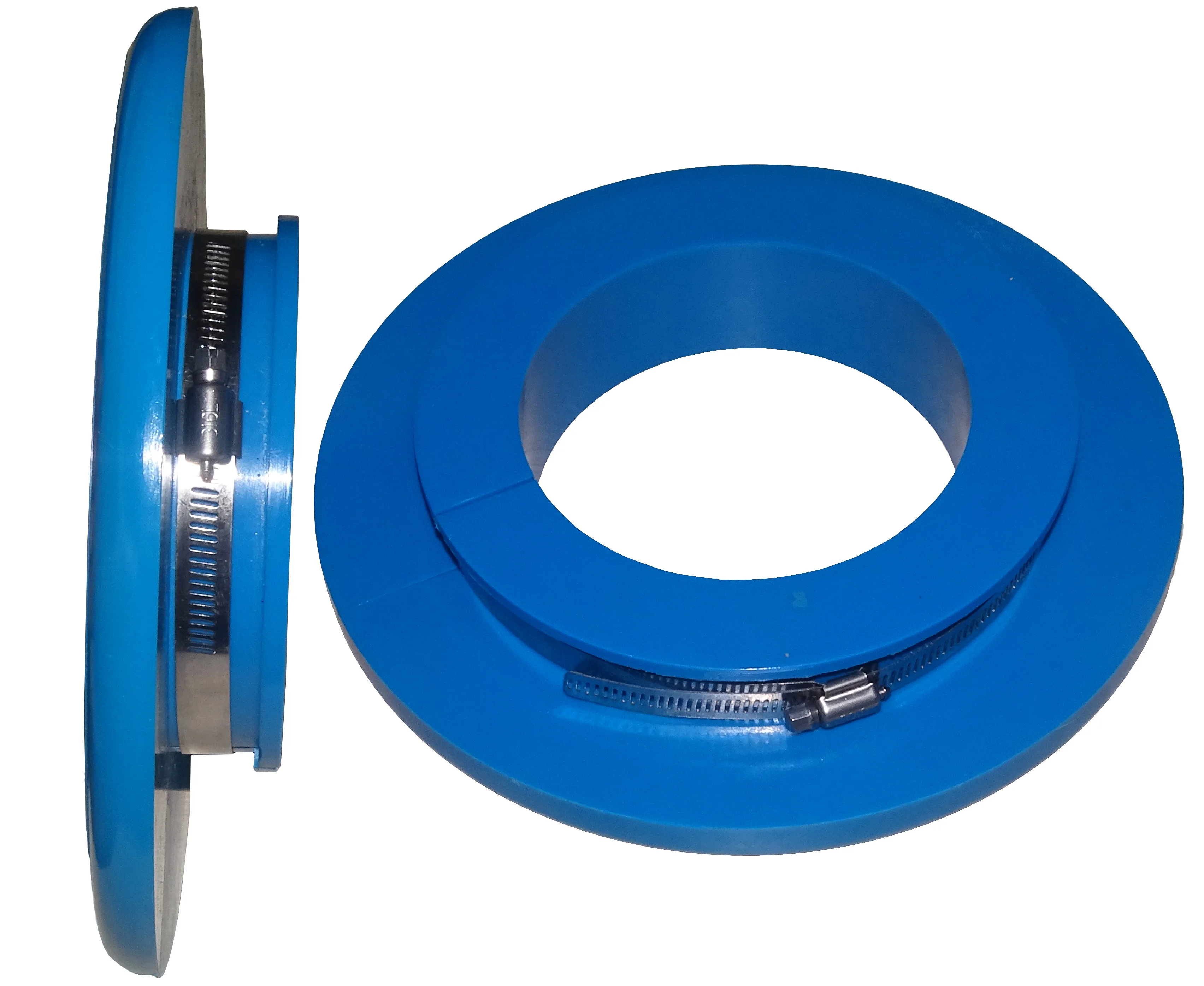

Easy installation – the disc has a split on one side to slip over the roller
No need to remove the rollers
High wear resistant grade of polyurethane used
No damage to belt edges

Specification:
To suit 100mm, 114mm, 127mm rollers.
