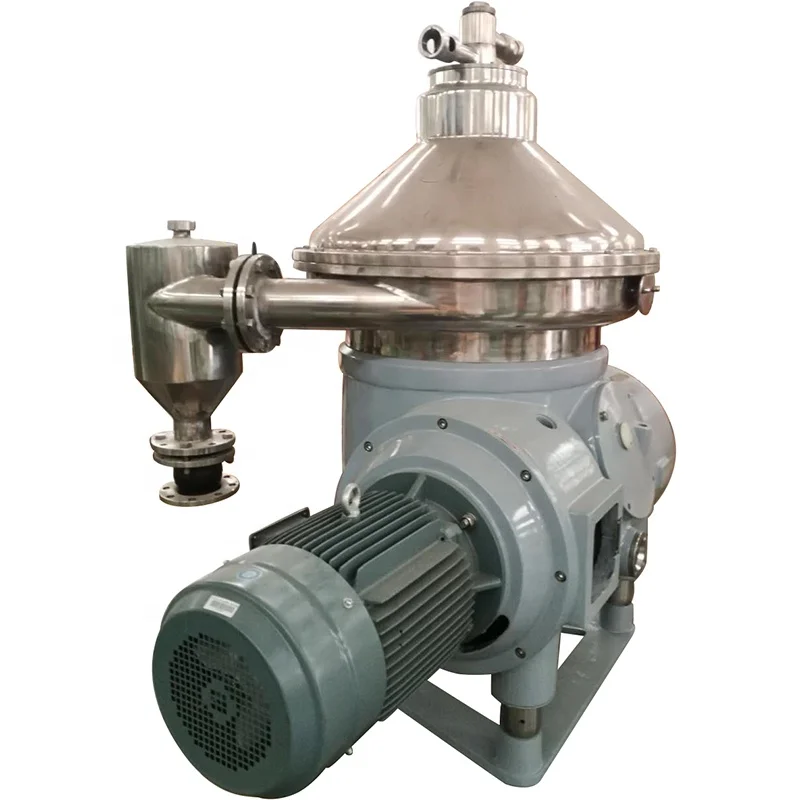

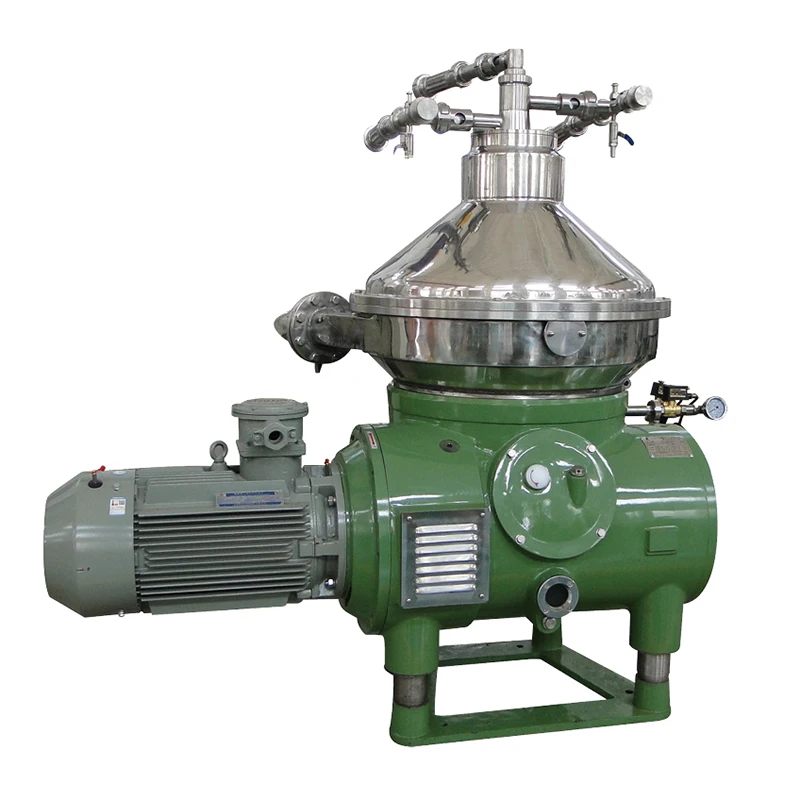

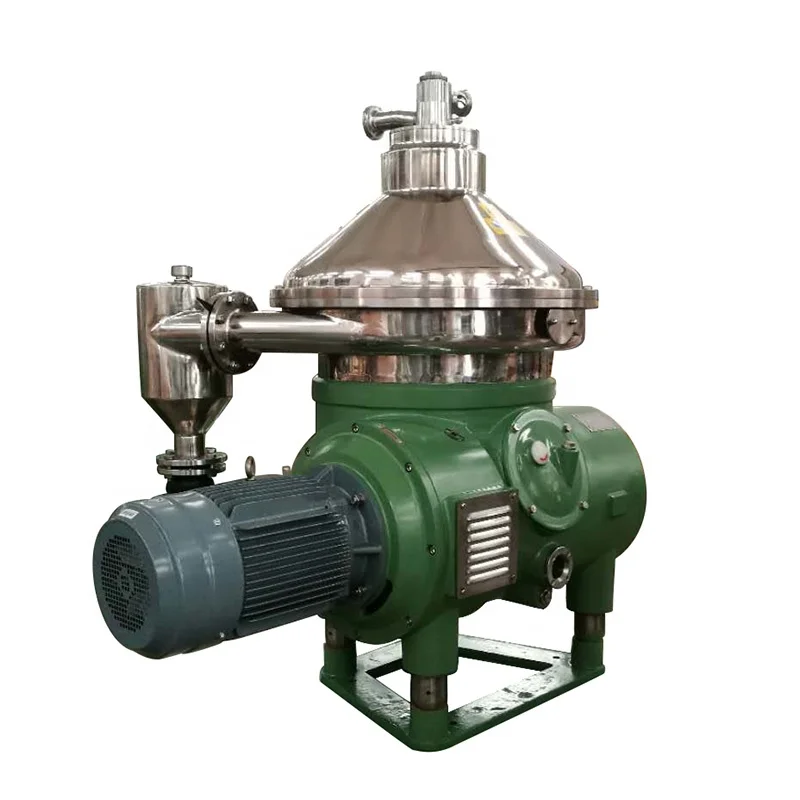

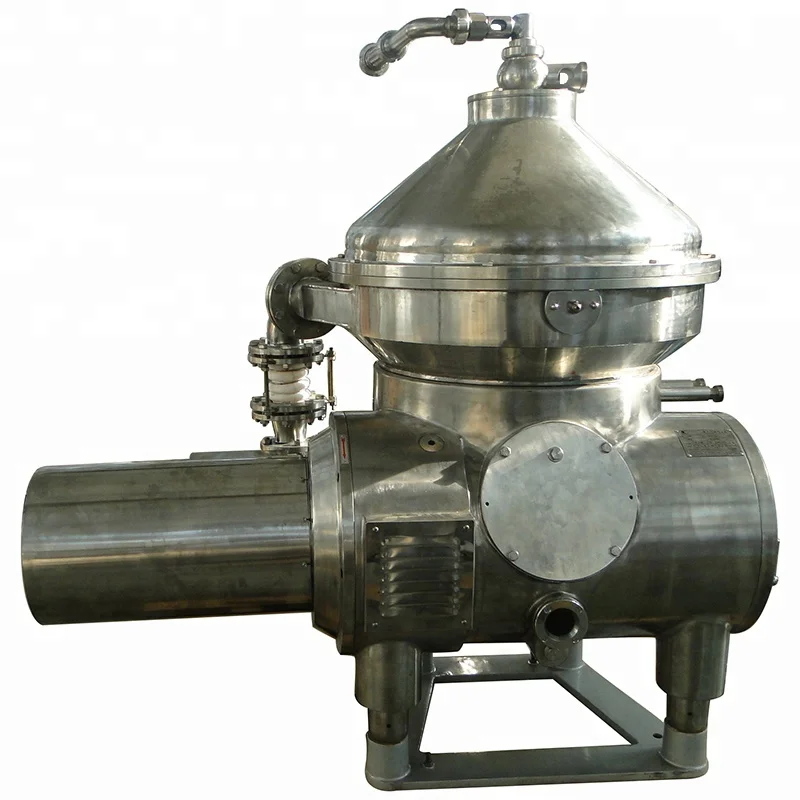

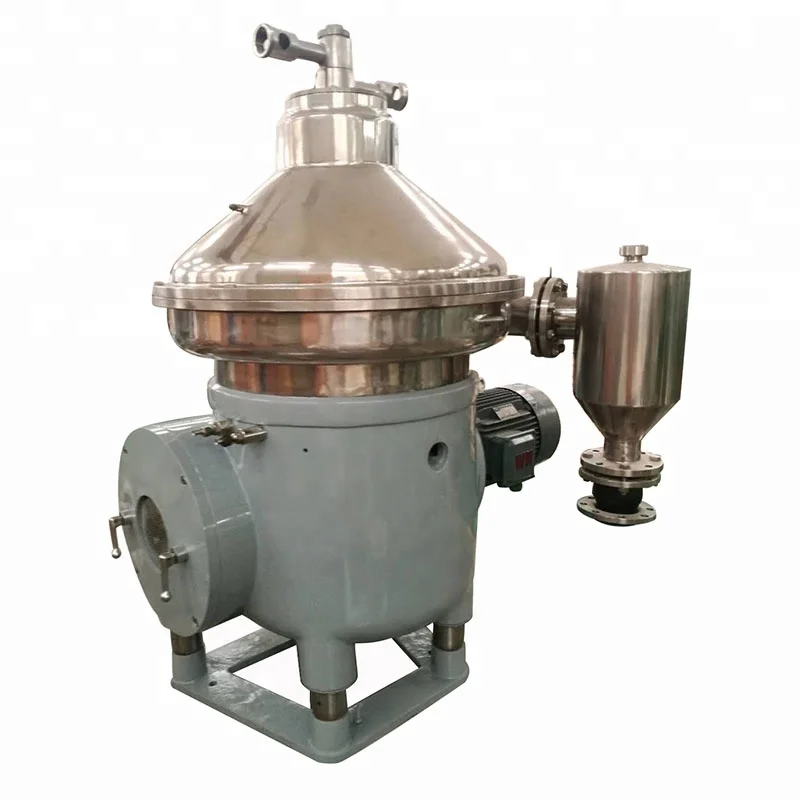

Industrial disc centrifuge machine for waste oil
- Category: >>>
- Supplier: Juneng Machinery (China) Co. Ltd.
Share on (60798695743):
Product Overview
Description
Product Description
Product Application
Huge amount of kitchen waste oil or illegal cooking oil ( commonly known as slops, swill, pigwash) can be treated and obtain biogas, biodiesel, organic fertilizer, high-protein feed and other products.
However, the mature technical is needed to support the oil-water-solid separation in this treatment processing.
Our technical engineers with their advanced design concept have been researched and developed the new special disk separator based on its hard separation feature of kitchen waste oil or illegal, and make the separation efficiency reaches to the extreme and super conditions.
However, the mature technical is needed to support the oil-water-solid separation in this treatment processing.
Our technical engineers with their advanced design concept have been researched and developed the new special disk separator based on its hard separation feature of kitchen waste oil or illegal, and make the separation efficiency reaches to the extreme and super conditions.
Product competitive advantage:
1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.
2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.
Separation technical parameter for fermentation liquor | ||||||||||||
Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) | ||||||
DHFY211 | 2000-5000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 | ||||||
DHFY214 | 4000-10000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 | ||||||
Certifications
Detailed Images
Main Features
Name: Drum
Brand: Ju neng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator. It gets power by fitting
with the vertical shaft through hi-precision taper. Each part of the drum is numbered before shipping, they shall not be
interchanged. The disk sets are assembled in sequence on the distributor, the disks and drum cover are held on the drum body by
the disk glands.
Maintain and Repair.
During warranty period, our engineer could service door-to-door if necessary, or customer could send the fault equipment to our factory It is free of charge.
Out of the warranty period, one shoud pay for the service.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
Operational Tenets of Juneng Group:
*Strategy: Being professional and devoted to build up core competitiveness
*Market: European quality, Chinese price
*Mangement: practical, standard and successive improvement
*Service: honest, responsable and timely
*Talent: merits, cooperation and caring
*Technology: technology leadership
Our philosophies of development:
* Based on continuous strengthen ourselves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (H) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
