  • Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader

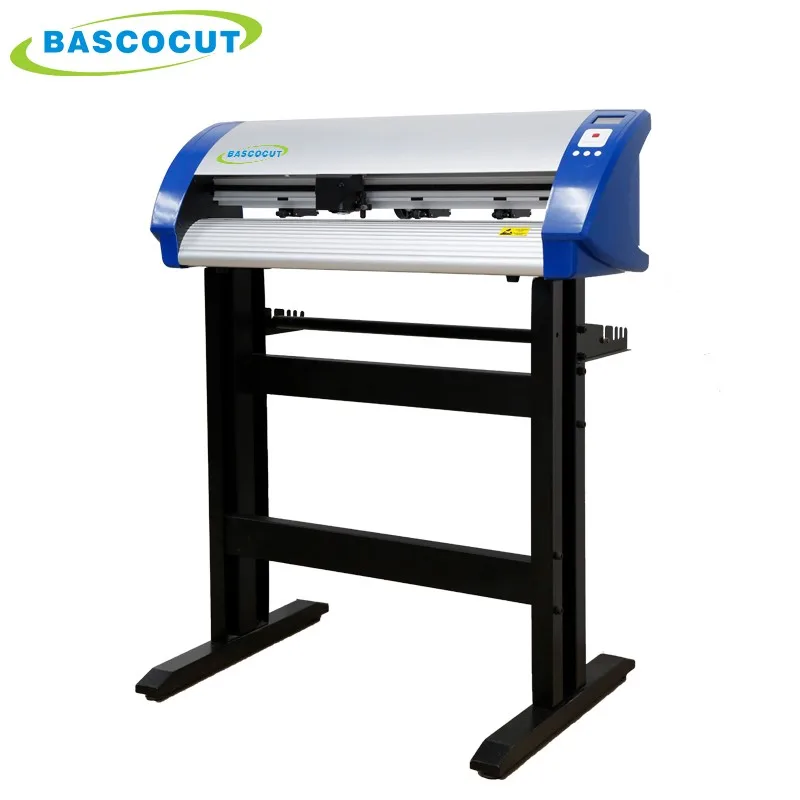

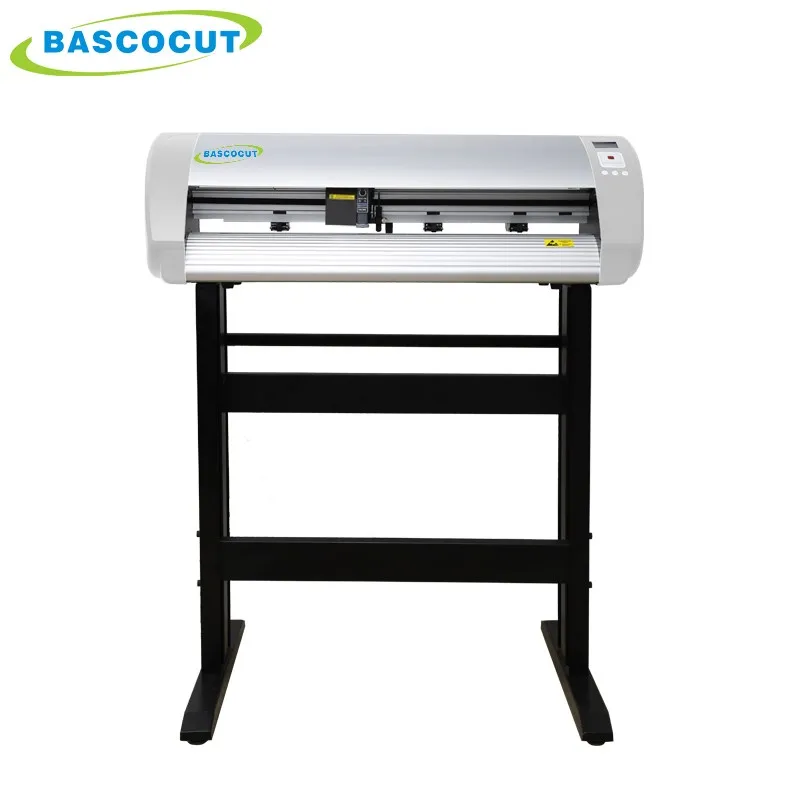

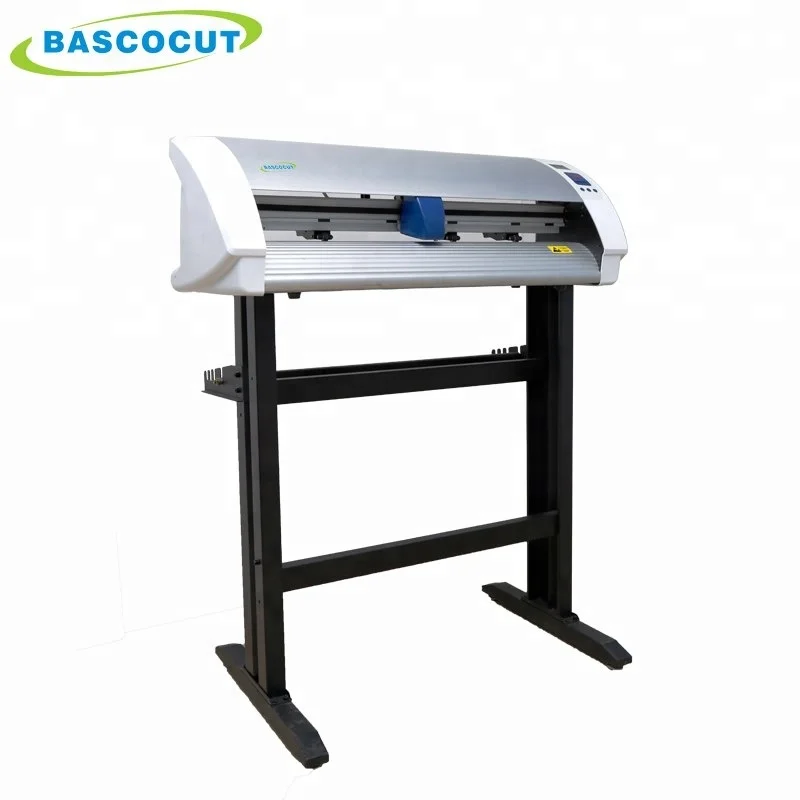

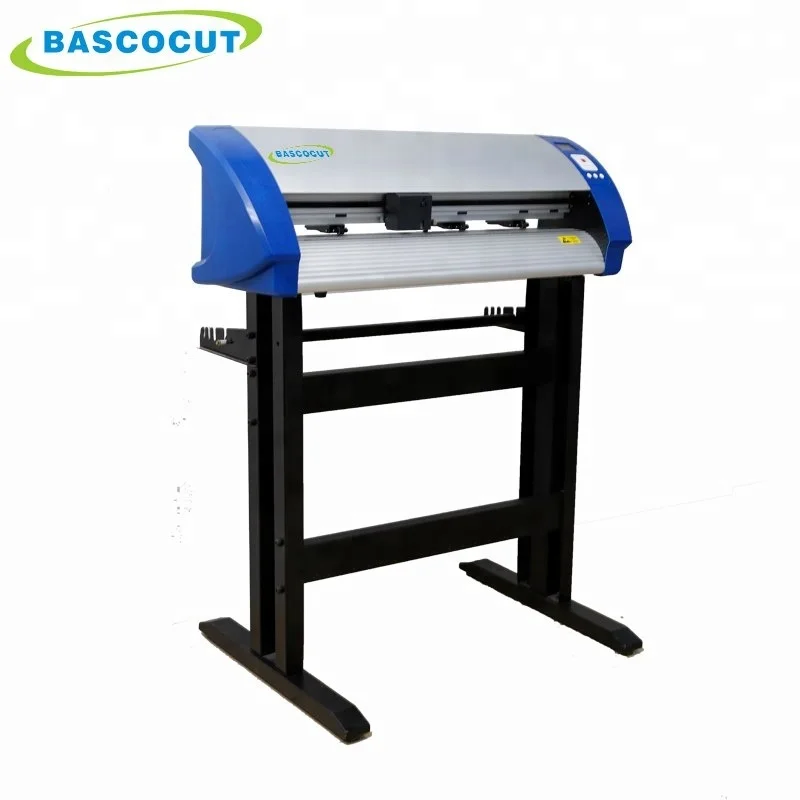

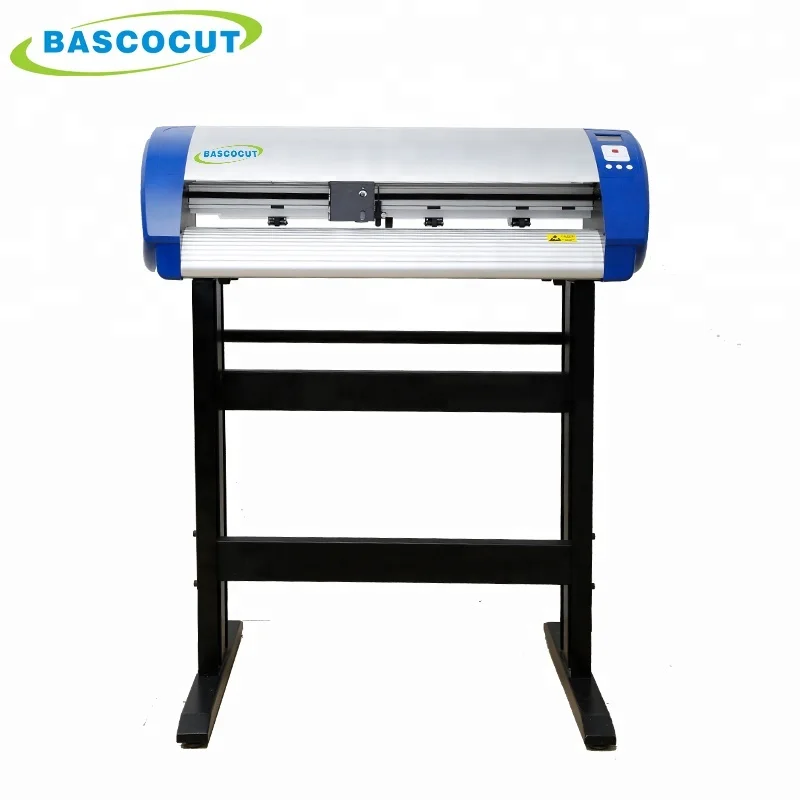

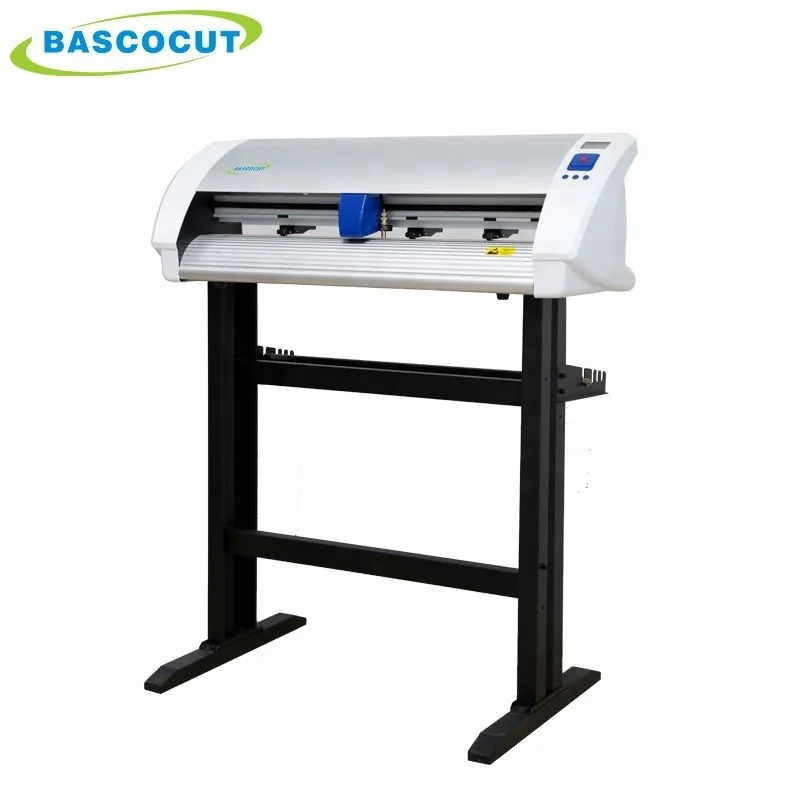

Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader
Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader

Bascocut 24 inch Latest Model Cutting Plotter With Optical Mark Reader

Share on (60798727747):


Price:$250.00 - $350.00

Quantity:


Product Overview

Description


Product Description

Features
1.High precision in cutting 2mm letter

2.Multiple interface: USB/U disk/Ethernet port/wifi(optional)

3.support all windows and mac system

4.1000g cutting force


\t
Model
\t
E-24XL
\t
Media way
\t
0ptional
\t
Main board
\t
32-bit ARM7 CPU 168 MHZ,128MB, High-speed CACHE memory
\t
Control panel
\t
9 industrial silicone buttons and 128*64 industrial screen
\t
Driver
\t
High speed, big power step motor, micro-step motor
\t
Maximum paper feed width
\t
790mm
\t
Maximum cutting width
\t
680mm
\t
Maximum cutting speed
\t
900mm/s
\t
Cutting force
\t
10-1000g(digital adjustment)
\t
Mechanical precision
\t
0.025mm
\t
Repeatable precision
\t
<0.025mm
\t
Type of plotter pen
\t
all types diameter 11.4mm plotter pen
\t
Plotter instruction
\t
compatible DM/PL,HP/GL
\t
Interface
\t
USB/U disk/serial port/Ethernet port /wifi(optional)
\t
Power supply
\t
AC220V/110V,50HZ
\t
Power consumption
\t
<80w
\t
Knife/blade
\t
imported hardness alloy steel blade
\t
Operating environment
\t
temperature: 5-35 degree, relative humidity: 30%-70%
\t
Package size
\t
1095*324*430
\t
Gross weight
\t
26kg
Detailed Images

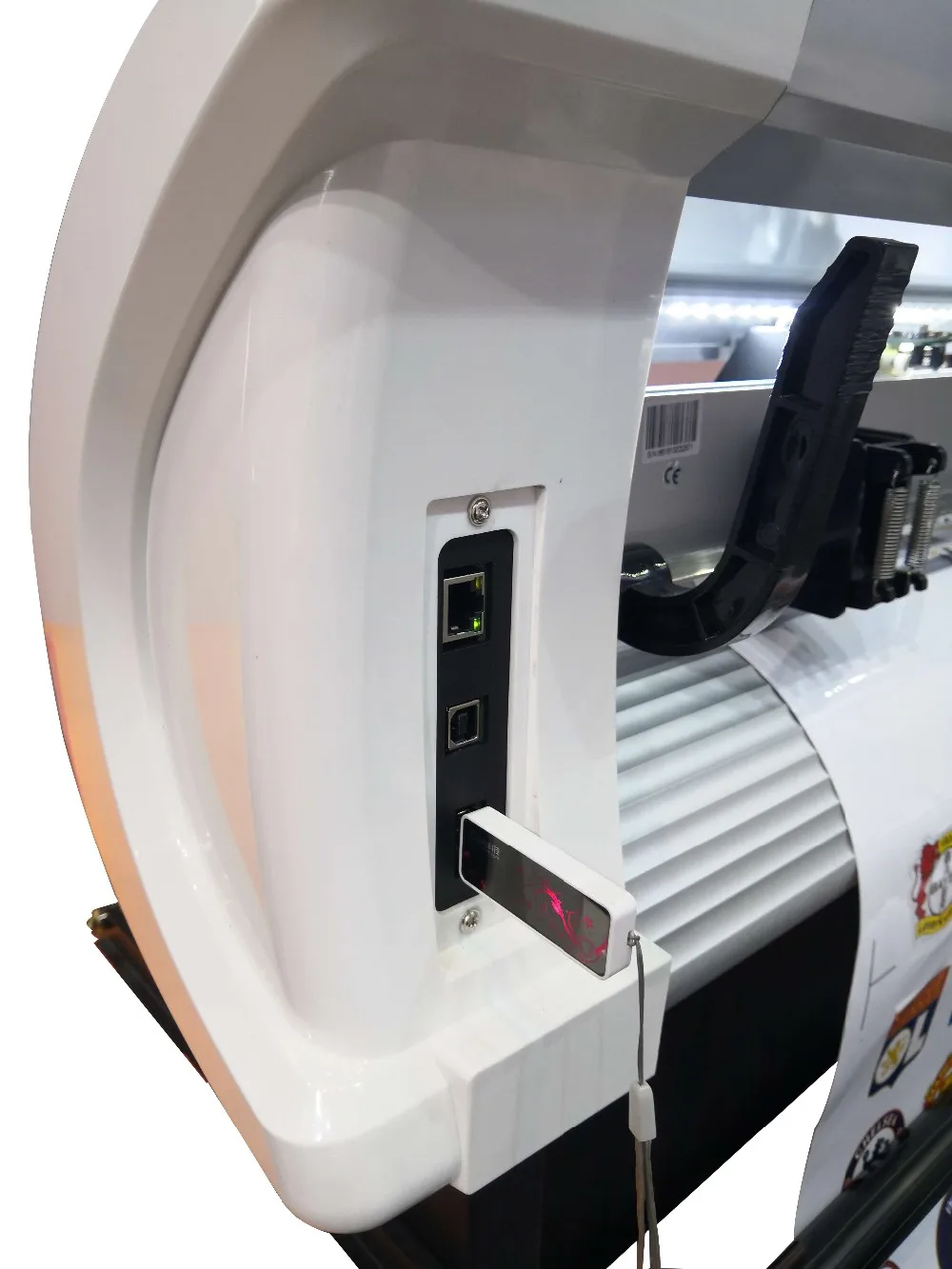

Multiple interface

1.USB(work offline)

2.U disk

3.Etherenet port

4.serial port, wifi, bluetooth (optional)


Step motor

1.ensuring the maximum speed: 900mm/s


2.keeping noise lower than 50db


1.high definition screen

2.double layer and industrial combination  buttons


3.laser light under the buttons

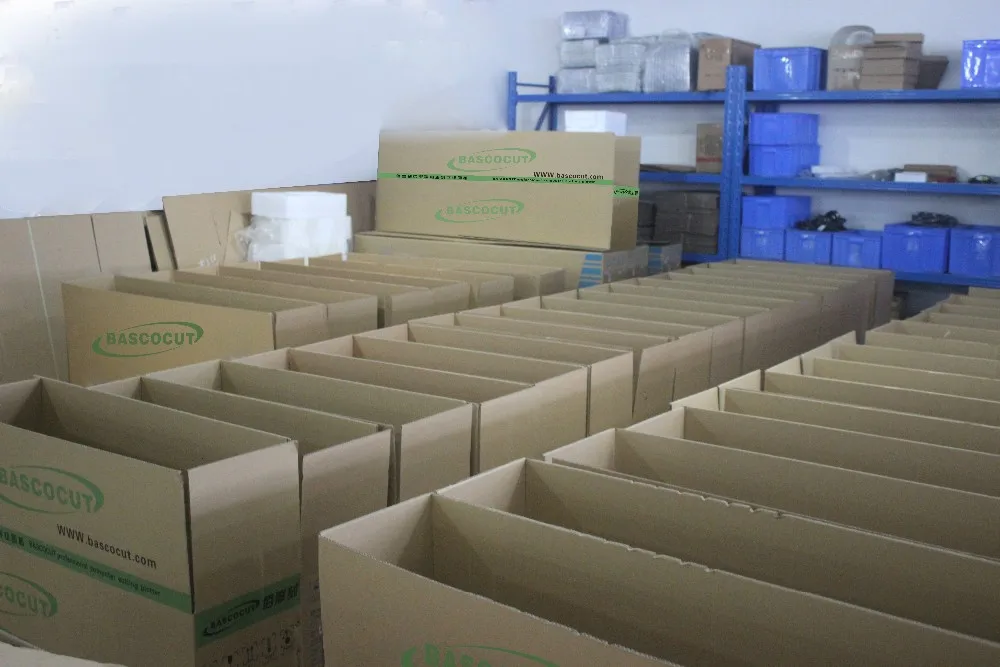

Packing & Delivery

package:standard exporting package,inside is double layer carton,outside is sick plastic package to keep dry and clean.


Delivery: by air/by sea(optional)

PS: if you just  need one or two machine, we usually send the machine by express delievery, just like DHL,UPS,TNT and etc.

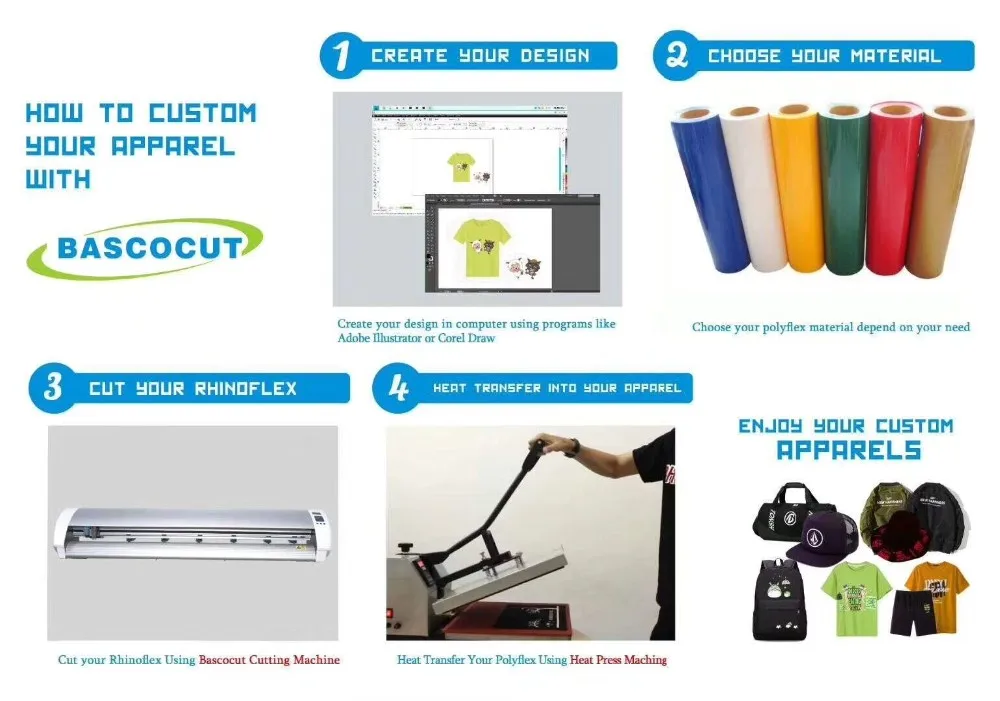

Application

1.what kind of material can cut?

sticker,  vinyl, pvc, heat transfer film, windows film,reflective film, and etc.

the cutting pressure can be adjusted . if your material is very hard, we can add the cutting pressure for you.



2.what kind of software can use ?

Flexi, Signmaster, Artcut, Adobe illustrator, Coreldraw and etc.



3.what system can compatible with?

All windows and Mac system



4.what machine can work with?

Printer, heat transfer machine, sublimation machine and etc

Cutting sample

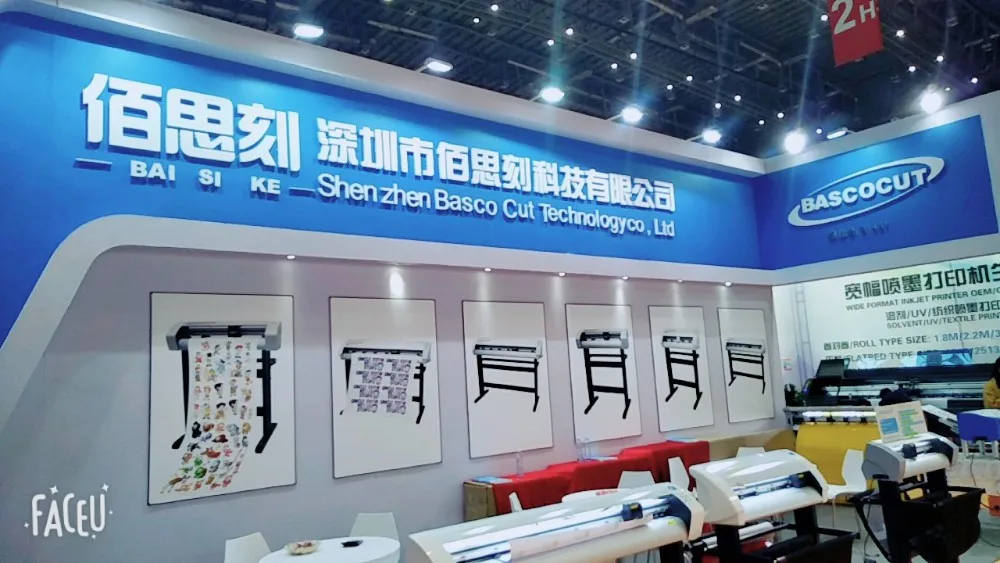

Exhibition photos

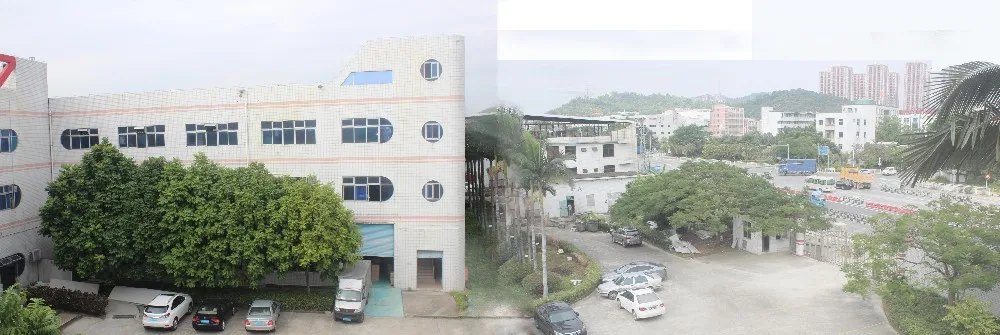

company profile

Shenzhen Bascocut Technology CO.,LTD

    Shenzhen bascocut technology company is specializing in manufacturing and exporting the professional cutting plotter/label cutter/flat bed cutter/ garment equipment and sign making product.we have a first class team , they are dedicated to the development and production of all kinds cutting plotter with location in the fantastic technology capital "Shenzhen".

 Our product mainly use for sign-making, heat transfer,electric film die-cutting, clothing drawing, printing package,and other field.supply all kinds of cutting machine and solutions to fit different demands.

  "Trusted by customer, to be preferred brand" is the target that our company pursues, we insist on the concept of customer-oriented and offering first class service, spreading the values that we create together. our company stick to own operation idea and continuously expand operating network and coverage. we are fully capable of becoming one of the best manufacturer in the cutting plotter industry with an experienced and professional team.
Our Service






one year guarantee, lifelong after sale services



1.months warranty, unconditional replace accessories according to warranty card.



2.We provide the consumable parts at agent price when you need replacement.



3.Provide the operation manual and video,so that you could learn more easy.



4.24 hours online service, free technical support with English languages.

Miss summer

Tel: +86 18988772643

Whatsapp: +86 18988772643

wechat: +8618988772643

Skype: +86 18988772643
