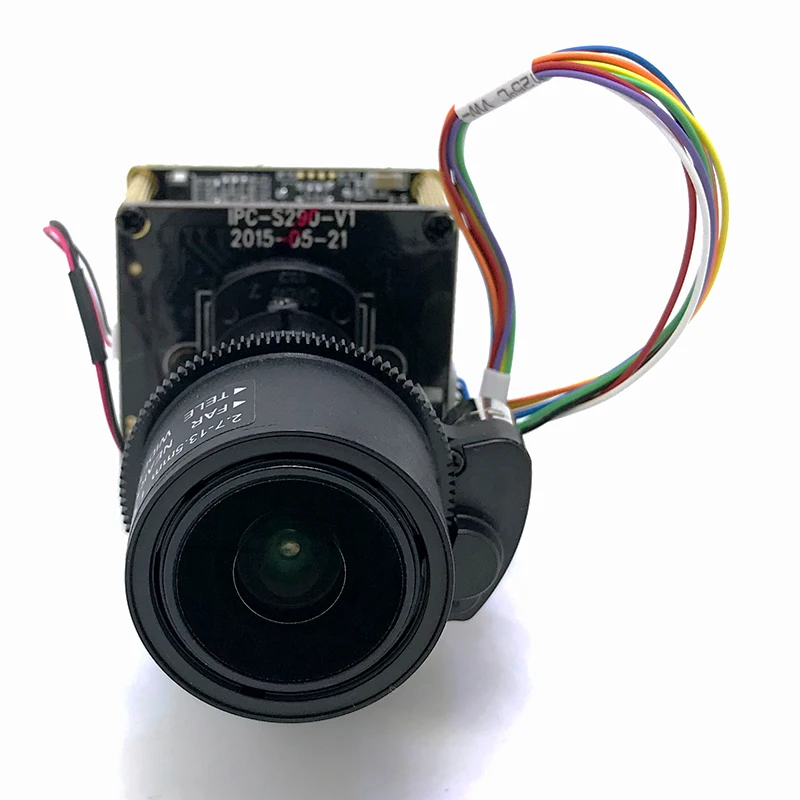

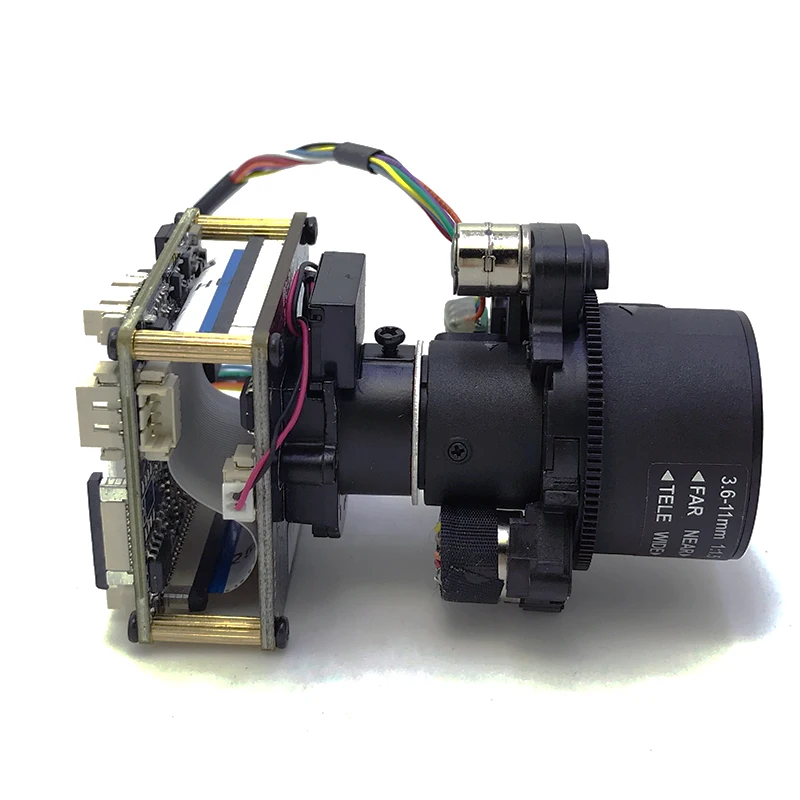

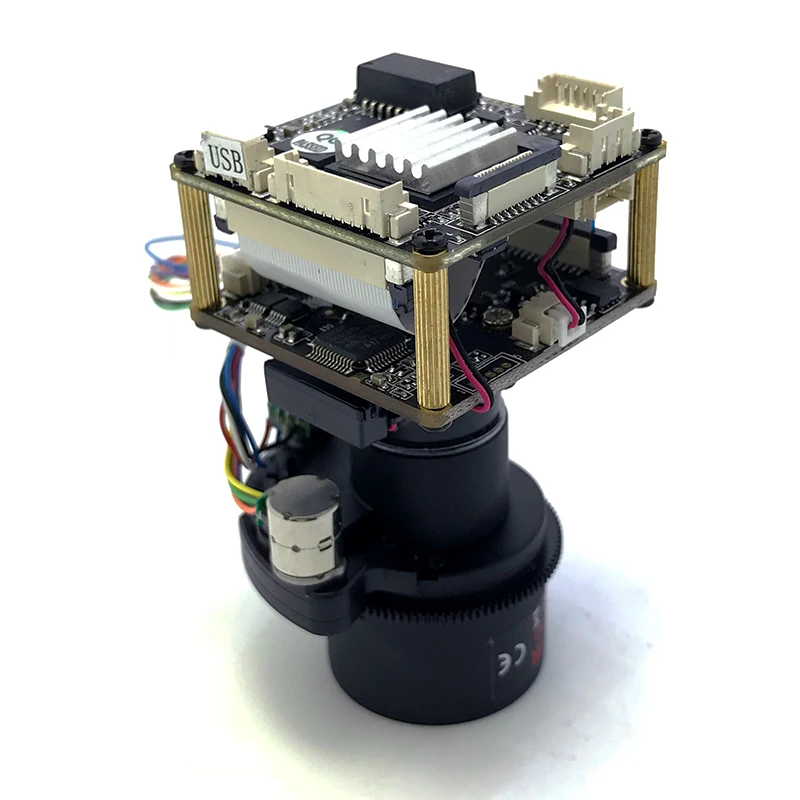

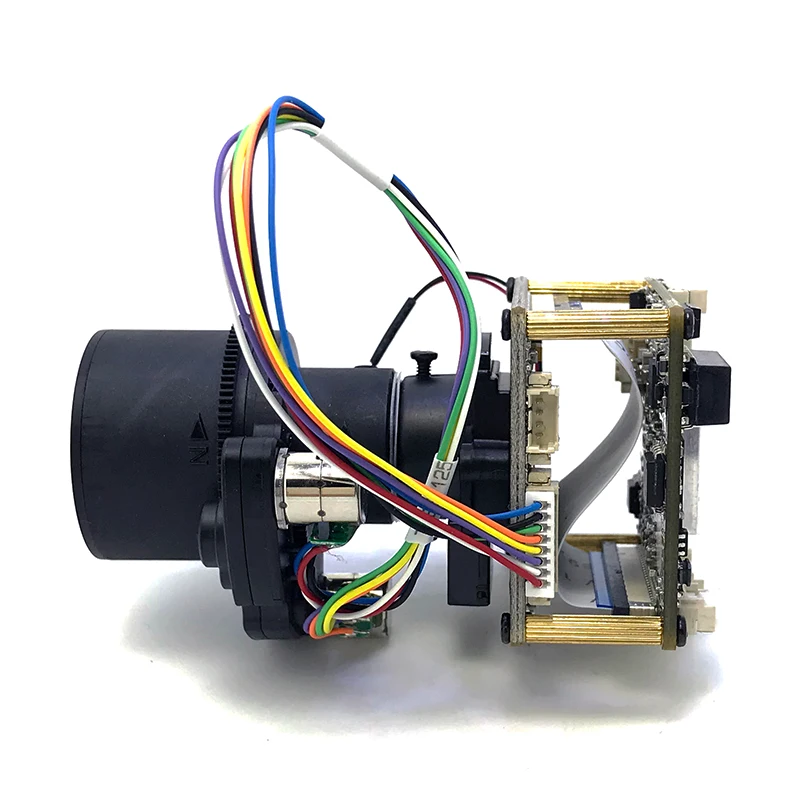

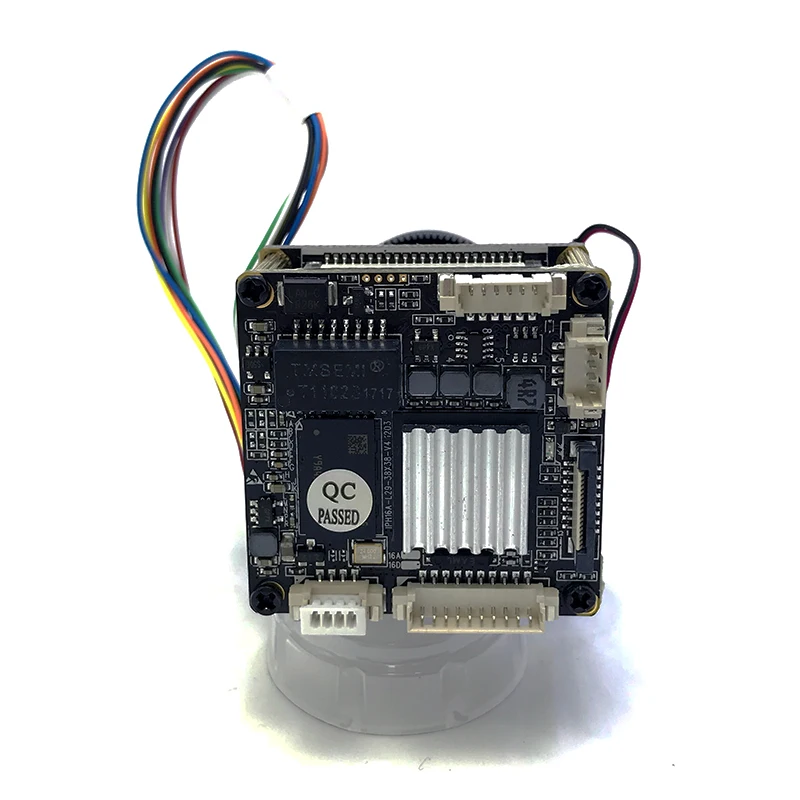

Auto Focus 5X Zoom Lens+2MP Starlight IP Camera Module starvis IMX291 Hisilicon 3516D IPC PCB board
Model: SIP-E291DML-27135
Highlights
Smart Stream,Smart Detect,Smart Control,Color Abnormal,Sound Abnormal,Brightness Abnormal,Video Abnormal,Cross-corder Detection,Regional Invasion,Left-behind Items
| Model | SIP-E291DML-27135 |
| Camera Type | Auto Focus 5X Zoom Lens+2MP Starlight IP Camera Module |
| Camera | |
| Image Sensor | 1/2.8" 2.13M-Effective Pixel Color CMOS Image Sensor IMX291 |
| DSP | Hisilicon 3516D |
| Effective Pixels | 1945 (H) X 1097 (V) Approx. 2.13M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Digital WDR >80db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Lens | |
| Lens Type | HD 2MP Auto Focus 5X Zoom Lens |
| E.F.L. | 2.7-13.5mm |
| Electric zoom | Support |
| Focus | Auto Focus |
| Format | 1/2.7" |
| Mount Type | Φ14 |
| Video/Audio | |
| Video Compression | H.265+/H.265/H.264/Mjpeg Dual-stream encoding |
| Resolution | Main Stream:1920X1080,1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| V2.4 | |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Support iPhone, iPad, Android View |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1CH Analog Video output, Support CVBS standard, PAL/NTSC Optional |
| RS485 | 1ch |
| USB | 1ch (Support 128G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Optional function# | |
| Memory Card# | Support Max 128G Micro SD/TF Card,1 ch alarm output |
| WIFI # | 802.11b/g/n |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
| #Remark: WiFi,POE,TF Card functions are optional,If need,please consult with us. | |
The POE Module(Optional):
38X38mm PoE module IEEE802.3af/at protocol
POE power: 12W (12V/1A)
POE: 1,2+/3,6- and 4,5+/7,8- adaptive transmission
The TF/Micro SD Card Slot Board(Optional)
> Expand the alarm output, TF Card storage,Only suitable for double board
Expansion TF Card, alarm out
Support 128G TF Card
Support 128G TF Card
The WiFi Module(Optional):
80mW, WIFI module (3dBi containing small antenna, feeder, SMA interface), IPEX antenna interface, support 802.11BGN
> Support SIP-E Series
> IP module USB interface expansion
> Use WIFI function, you can not use USB storage
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
