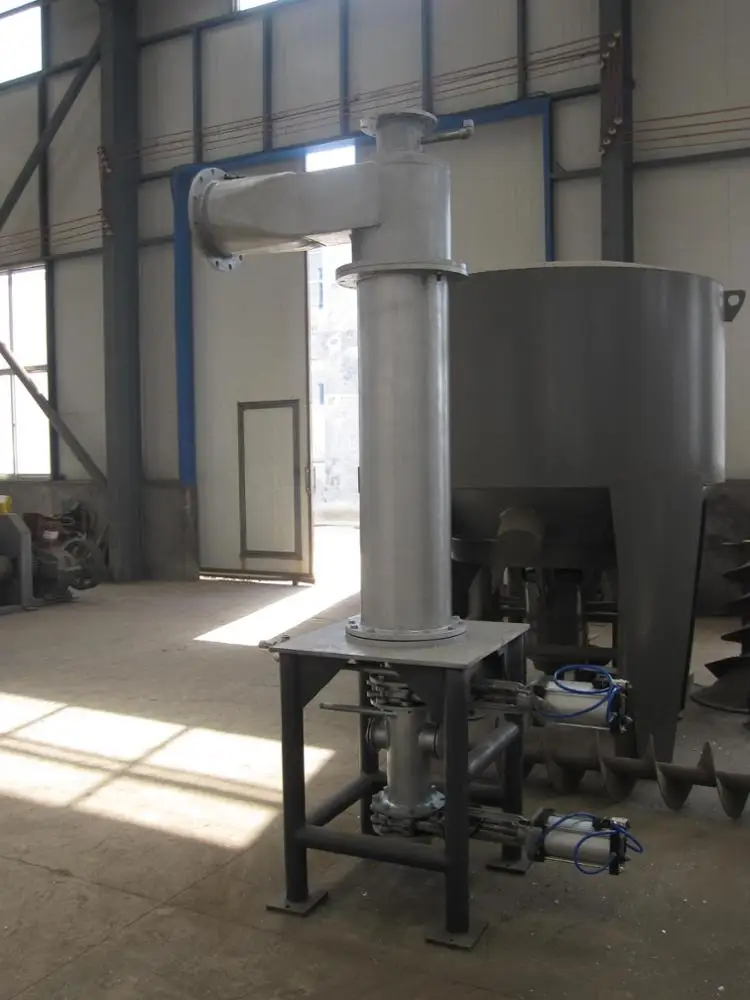

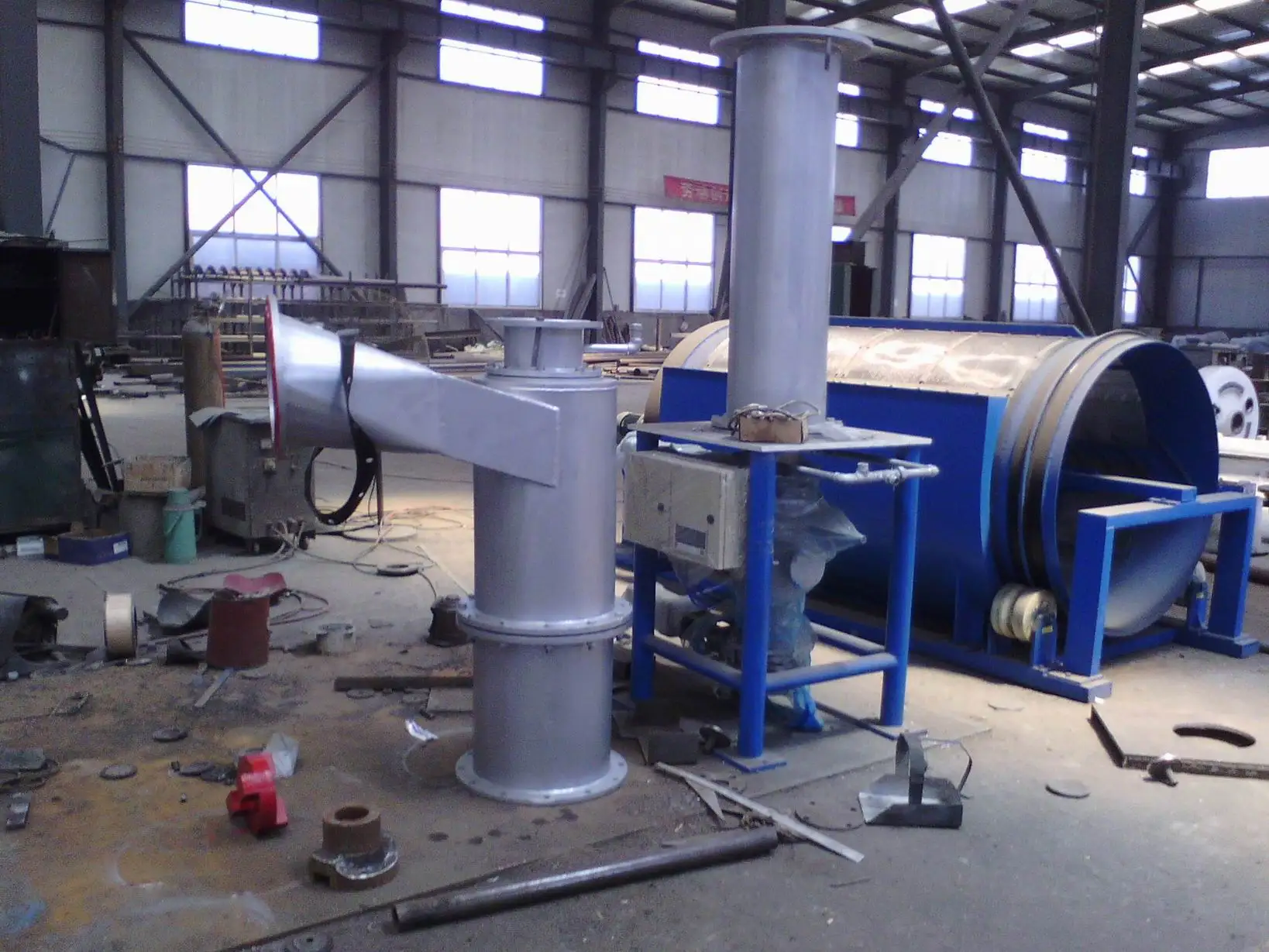

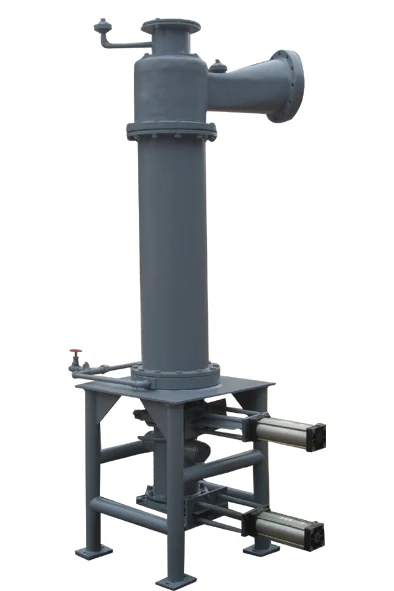

waste paper pulp making high consistency desander heavy impurity high density cleaner

Product Overview

Description

waste paper making high density cleaner







Function & application

It is a kind of machine separating heavy incidental from paper pulp using the different proportion between fiber and incidental to achieve the purpose of pulp paper purification.

Application

 The machine is used in pulp and paper making plant.

The machine is used in pulping stage.



Feature & benefit

1. No motor

2. Wear-resistent cone

3. Remove heavy impurities

4. National patent no.: 200730017299.2

5. Simple structure, small footprint, large capacity, easy to operate

6. Do not plug the slagging, and high purification efficiency

7. The pulp is only through the Cleaner, without tail plasma processing equipment

8. Fiber loss is zero, cone wear, long life, no drive, no power, installed in the slurry transport process can be achieved deslagging effect

9. Feeding pipe with a certain angle of inclination will form a strong force of vortex flow to separate the heavy impurity effectively.

10. Cone body is adopted alumina wear resistant ceramic which ensures long useful time.

11. Two-cone structure reduce fiber loss while raise heavy impurity separation efficiency.

12 .Controlled by PLC automatic system.





Technical specification



Model	Capacity (t/d)	Consistency (%)	Inlet pressure (mpa)	Outlet pressure (mpa)	Rinse water pressure(mpa)	Capacity (m3/min)	Inlet diameter (mm)	Outlet diameter (mm)
ZSC31	10-20	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	0.8-0.9	φ150	φ80
ZSC32	20-30	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	1.0-1.2	φ175	φ100
ZSC33	30-45	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	1.3-1.5	φ200	φ125
ZSC34	45-60	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	1.5-2.0	φ225	φ150
ZSC35	69-75	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	2.0-2.5	φ250	φ150
ZSC36	75-110	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	2.5-3.0	φ250	φ165
ZSC38	100-140	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	3.0-3.5	φ250	φ180
ZSC46	140-260	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	3.5-4.0	φ250	φ200
ZSC56	200-400	0.8-6	0.15-0.35	0.1-0.3	Inlet pressure+0.2	4.0-6.0	φ300	φ273









01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04. We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.





 01. Detailed installation manual and maintenance guideline are provided with the equipment.

  02. Technical training and site-commissioning are available for you.

  03.Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.





 01. How to buy your idea products?

  A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

02. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

03. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

04. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

05. How to keep your equipment from corrosion?

  A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

06. How do you manufacture your equipment ?

  A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

07. How to install after the equipment arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
