LR N006 устройство для печати чернил

Product Overview

Description

1. PRODUCTION:

 Gravure printing ink proofer can print gravure proofs quickly under the experiment conditions,and the method is closed to the actual printing.The gravure ink proofe is used to laboratory production,ink printability test and ink product research.It adopts flat intaglio printing work directly for quick proofing in a varity of flexible substrates(such as plastic film,paper,etc.).It is so easy to operate.The machine is supplied with a special version of the gravure proofing.

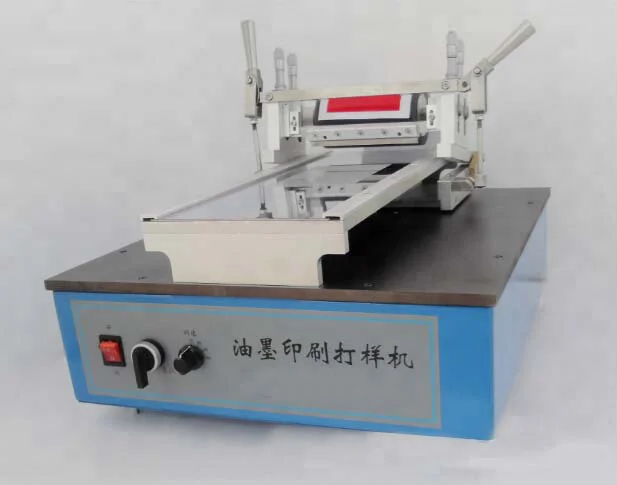

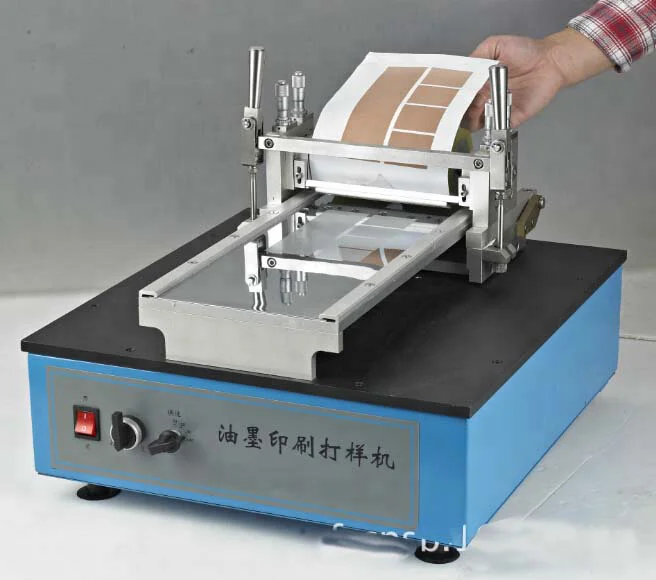

Gravure  Ink Printing Proofer

2.TECHNICAL SPECIFICATION

1.Electrical Power Source:220V

2.Frequency:50HZ

3.Sample size:120*240mm

4.Weight:26kg

5.Motor Power:120w

6.Roll/Hardness:76*130mm/shoreA55

7.Printing Speed:20/30/40/45m/min

8.Printing Length:95*149mm

9.Dimension:500*400*350mm
