Gold separating machine vibrating table for sale from Chinese factory
- Category: >>>
- Supplier: Ganzhou Li Ang Machinery Co. Ltd.
Share on (60798769033):
Product Overview
Description
\t\t\t\t\t\t\t\t\tShaking Table \t\t\t\t\t\t\t

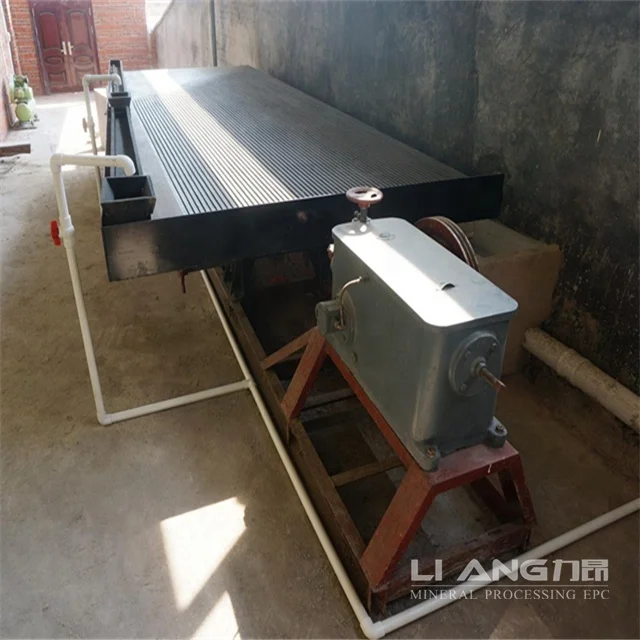

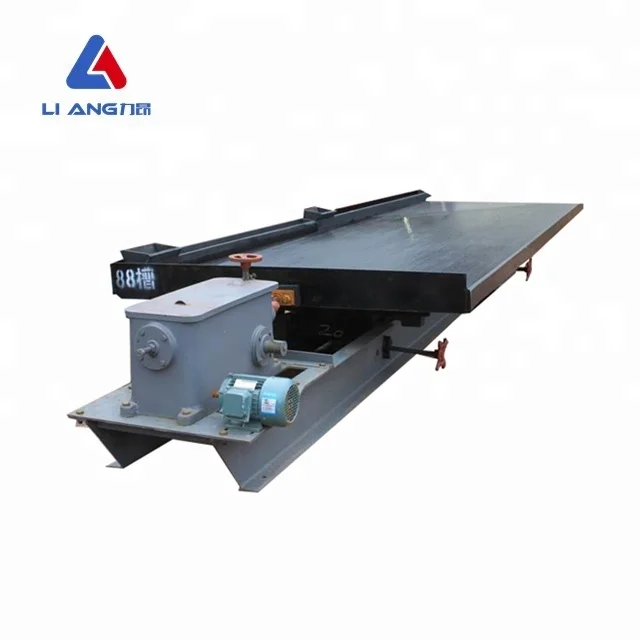

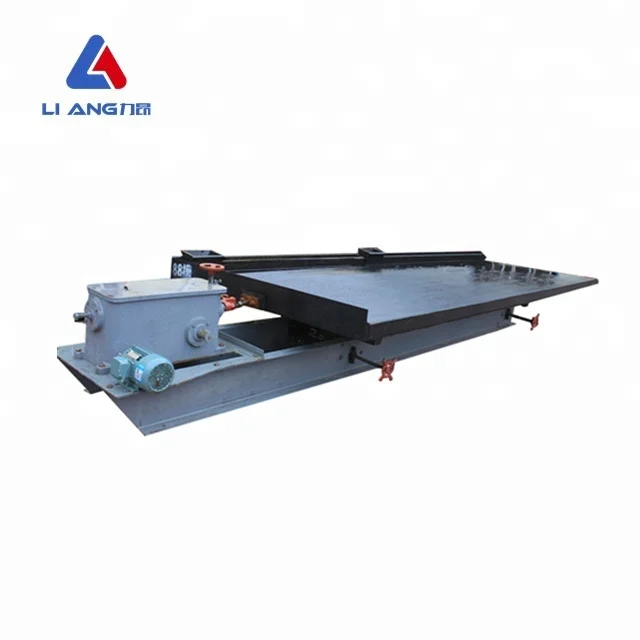

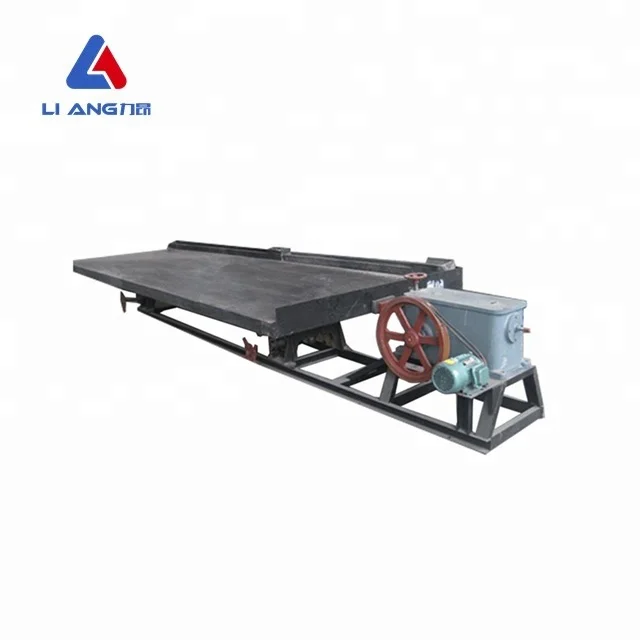

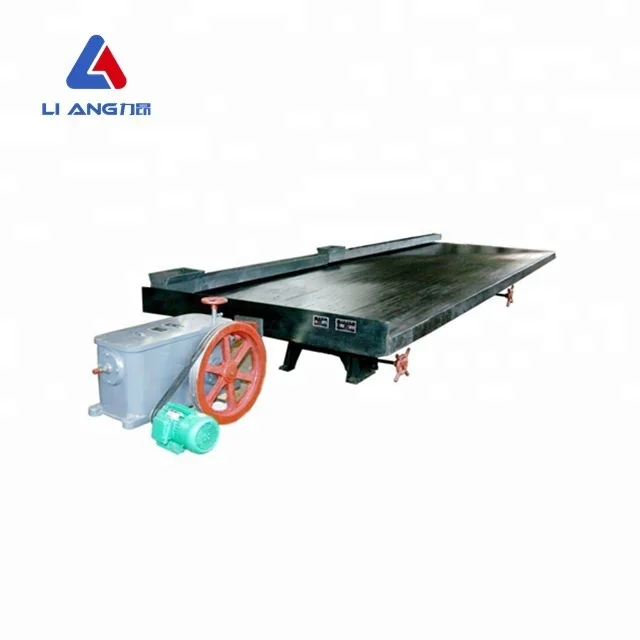

Gold separating machine vibrating table for sale from Chinese factory
Shaking table is one of the main equipment of gravity concentration.It is one of our flagship mining equipment
which enjoy very high, up to 95% high recovery ratio.It is widely applied on separating Gold, Silver, Tin,
Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury,
Copper, Aluminum, Niobium , other rare metals & the noble metal ore.
Working Principle:
Gold mining machine is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transerse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surfa-ce and fan-shaped zoning. Then different products can be collected.
You can find the shaking table have the following feature.
1.High recovery ratio,long working life.
2.Not compact structure because the spring is placed in the box.
3.Easy installation,simple and reliable operation.
4.Deck constructed of fiber glass.
5.Three different decks for your choice.
6.Adjustable stroke length and speed to maintain bed running in balance.
7.Can eventually get the concentrates and tailing.
1) Head Motion
6-S shaking table is furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil
reservoir for perfect splash lubrication.This advantage protects the moving parts, reducing operating and
maintenance costs to a minimum.
2)Feed and Water Box
A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck.
It gives a very even distribution of feed and water.
3)Support types
There are three supporting device types of the shaking table for your option,namely Traditionary type,10# channel
steel support or 28#channel steel support.
4)Decks & Riffles
Our model of 6S Shaking Table is 6S-4500, it has three distinct deck designs for your choice.
Normally we call them Coarse sand deck, Fine sand deck and Slime deck, which are 46/60/88/120/138 Riffles
available --the prices of different riffles are the same.
The coarse deck is designed for recovering particles size from 0.5 mm to 2 mm;
The fine deck is designed for recovering fine particles in the range of 0.1 mm to 0.5 mm;
The slime deck is designed for recovering super extremely fine particles from 0.037 mm to 0.1 mm.
According to different feeding positions, shaking table is divided into right-type and left-type.
Feed position of the right-type is on the right to its body; left-type is on the left.
The shaking table with different quantity of decks are available.Here is the gold shaking table with two decks.
The gold shaking table in different color are also available.We can provide them as per your requests.
If you order less than 5 sets of shaking table,the shaking table would be packed in iron frame,which makes sure of
their safety during the international transportation.
Due to the big size ,the shaking table is packed in two Iron frame packages ,one for support frame,transmission box,electric motor and the other for table .
If you order more than 8 sets,we can ship the gold shaking table by 20" or 40"container.
20″ GP container can hold 12 sets gold shaking table.
40″ HQ container can hold 24 sets gold shaking table.
12 sets of shaking table is on the left, the other 12 sets on the right.
Related Products
Lab Shaking Table
It is applicable for separations of fine-
grained and micro-grained rare
metal,ect,in the laboratory.
Lab melting furnace
It's the best choice for melting some of metals,such as gold,silver,stainless steel,copper,aluminium,etc.

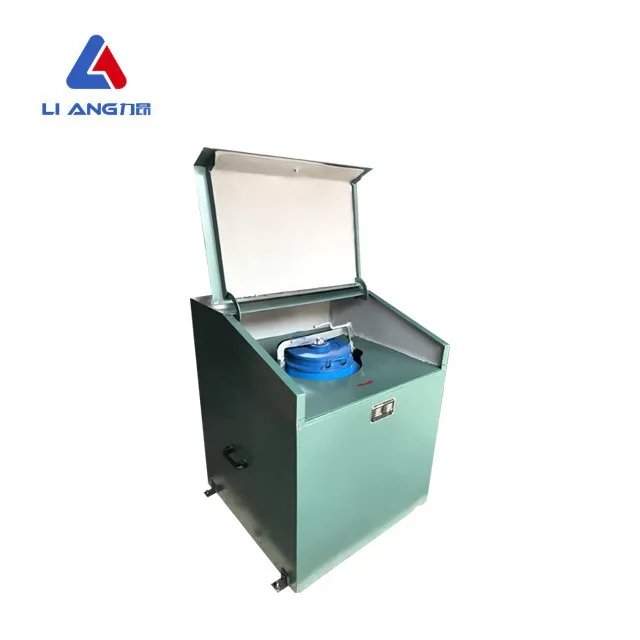

Lab pulverizer
It is a kind of small lab grinding
machine to grind the material of
sample ore into powder.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Ganzhou Li Ang Machinery Co.,Ltd. was founded in 1988.
We specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw
crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore
washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill
&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab
hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab
vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead,
zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency,
third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!
Pre-Sales Service:
1.We can help you select equipment model and design resonable and complete production line flow according to
clients's requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients' requests.
4.We can supply the technical parameters of the equipment.
After-Sales Service:
1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.
3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical
personnel and meet some other requirements if you need on site.
5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide
trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.
Q1: For providing you the suitable quotation we need to know the following information:
1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.
Q3. What warranty do you give for your machine?
A:---We can supply spare parts .
---The quality assurance date we give is one year for the main parts after commissioning.
---We provide lifelong maintainence and technical support.
Q4.What is your Payment Terms?
A: We usually the follwoing payment terms.
Q5:What's your means of transportation?
A:We have these means of transportation as below.
Q6. What is your delivery time?
A:Pls find the answers as below.
