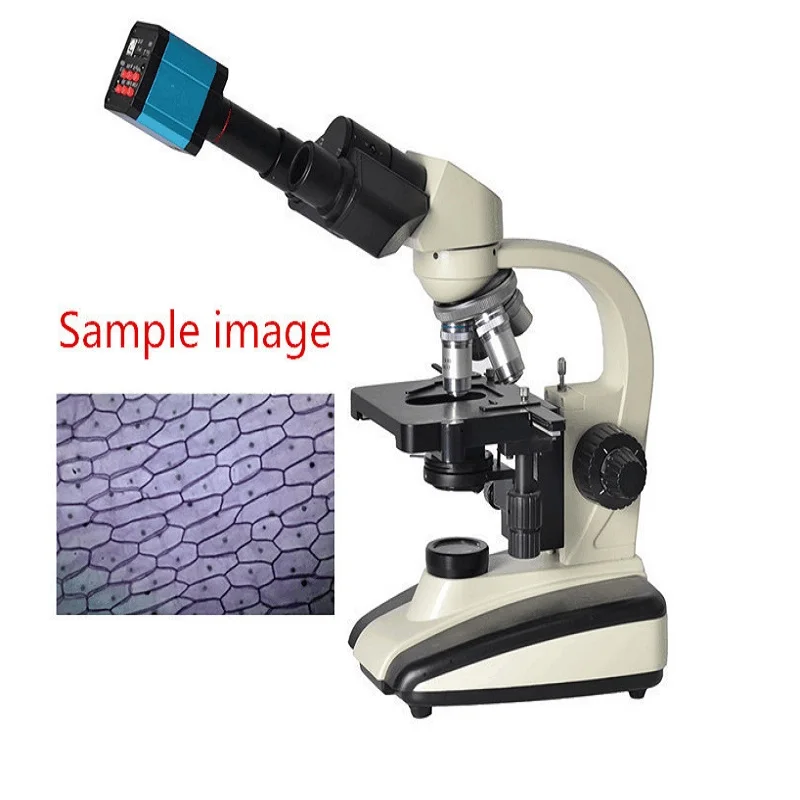

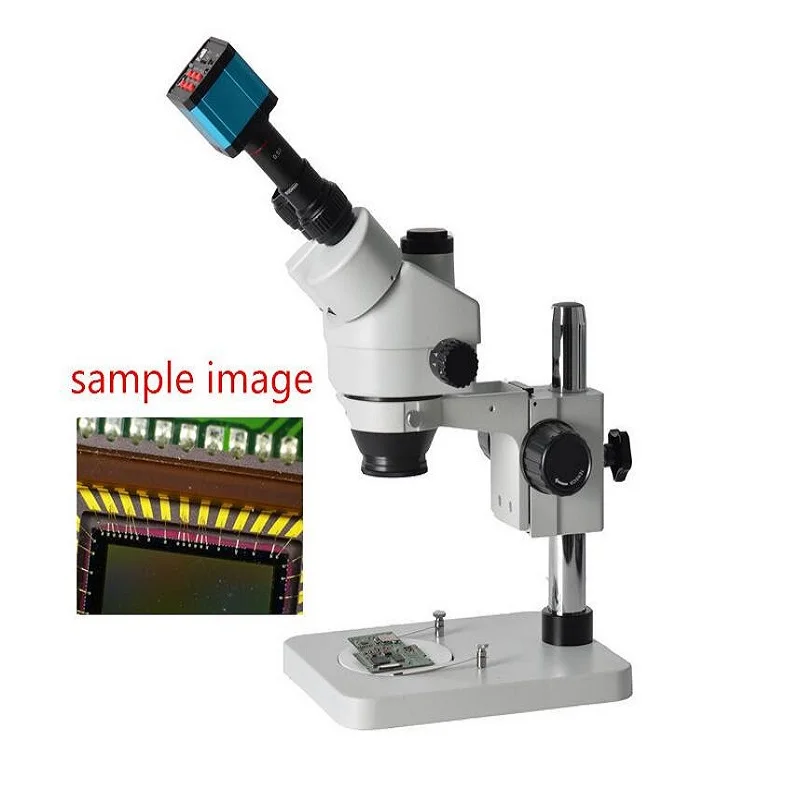

14MP HD HDMI Compatible USB industrial camera trinocular stereo microscope 0.5x electronic eyepiece adapter industrial camera
- Category: >>>
- Supplier: Shenzhen Hayear Electronics Co. Ltd.
Share on (60798799458):
Product Overview
Description
14MP HDMI-Compatible 1080P HD USB digital Microscope Camera+0.5X Adapter lens
Note: For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI-Compatible ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
Product Description
Features:
Model: Camera with HDMI-Compatible USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43umx1.43um
Frame rate:60fps
Definition:FULL HD

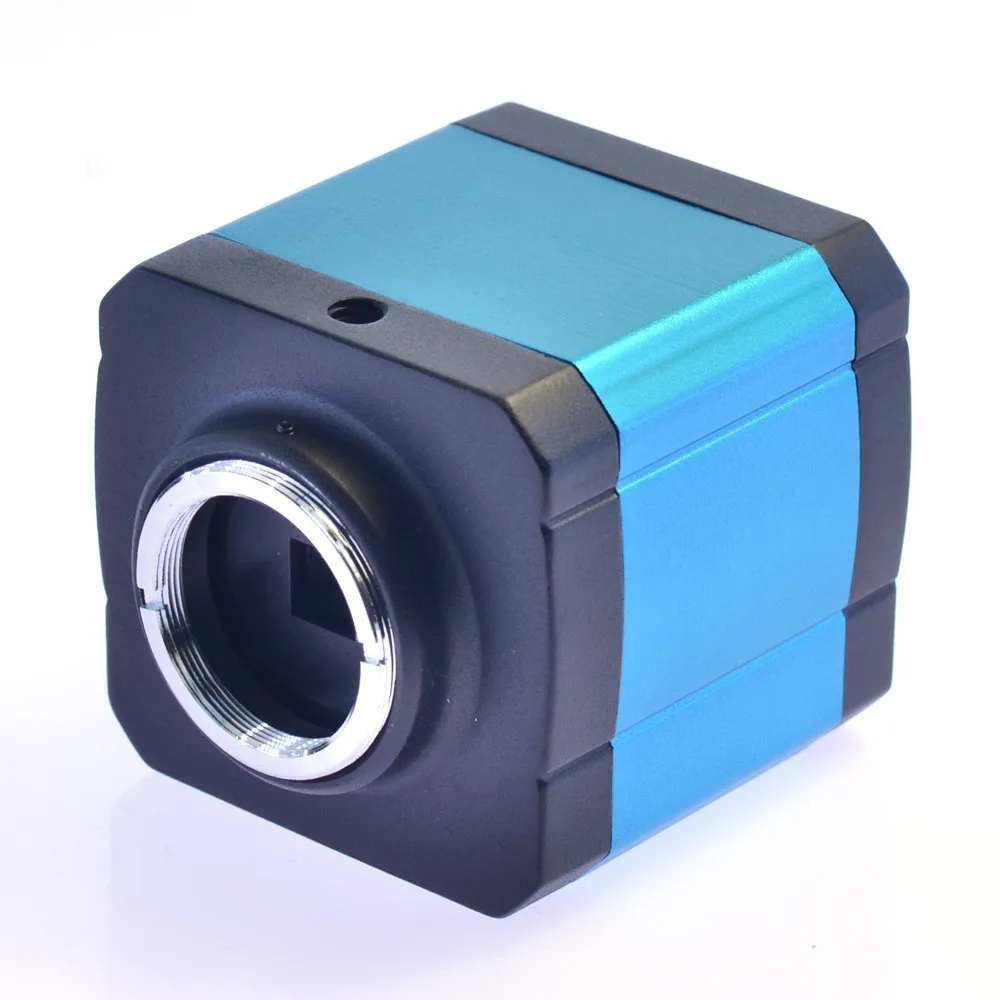

Housing:metal
Lens:C mount
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G

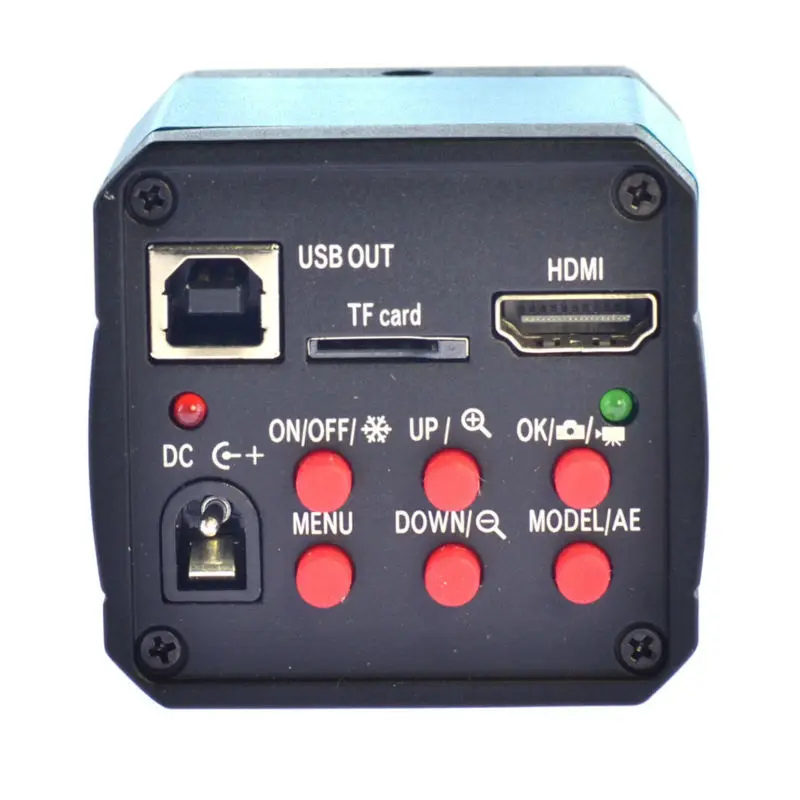

HDMI-Compatible interface:Standard HDMI-Compatible output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

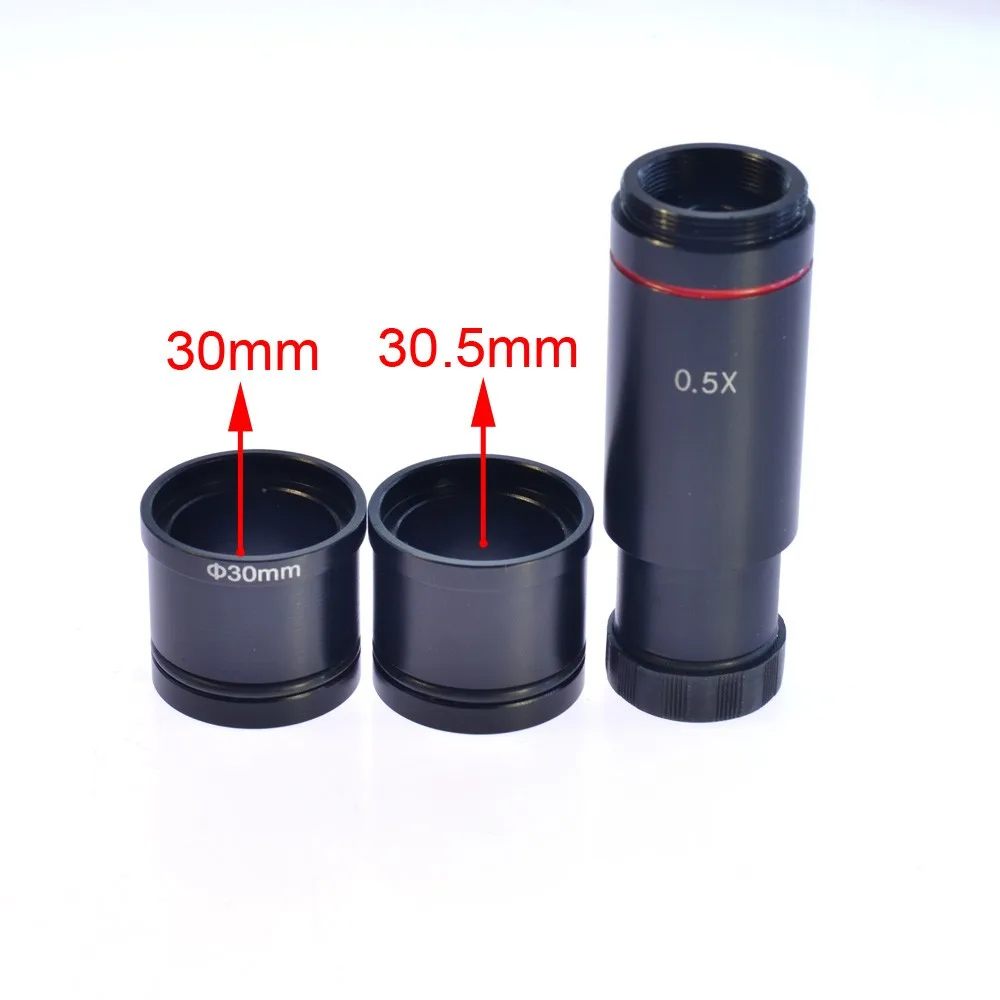

Description of the adapters:
Material: Metal
C-mount threads: 32TPI-UN-2A
Built-in 0.5X reduction lens
This 0.5X C-mount adpater is for microscope .
It can be used in all eyepiece position with 23.2mm or 30mm or 30.5mm.
Of course, it can be used in phototube and trinocular tube with 23.2mm or 30mm or 30.5mm.
Detail Images:
Packaging & Shipping
Shipping: China post, E-packet, DHL, EMS, Fedex and so on.

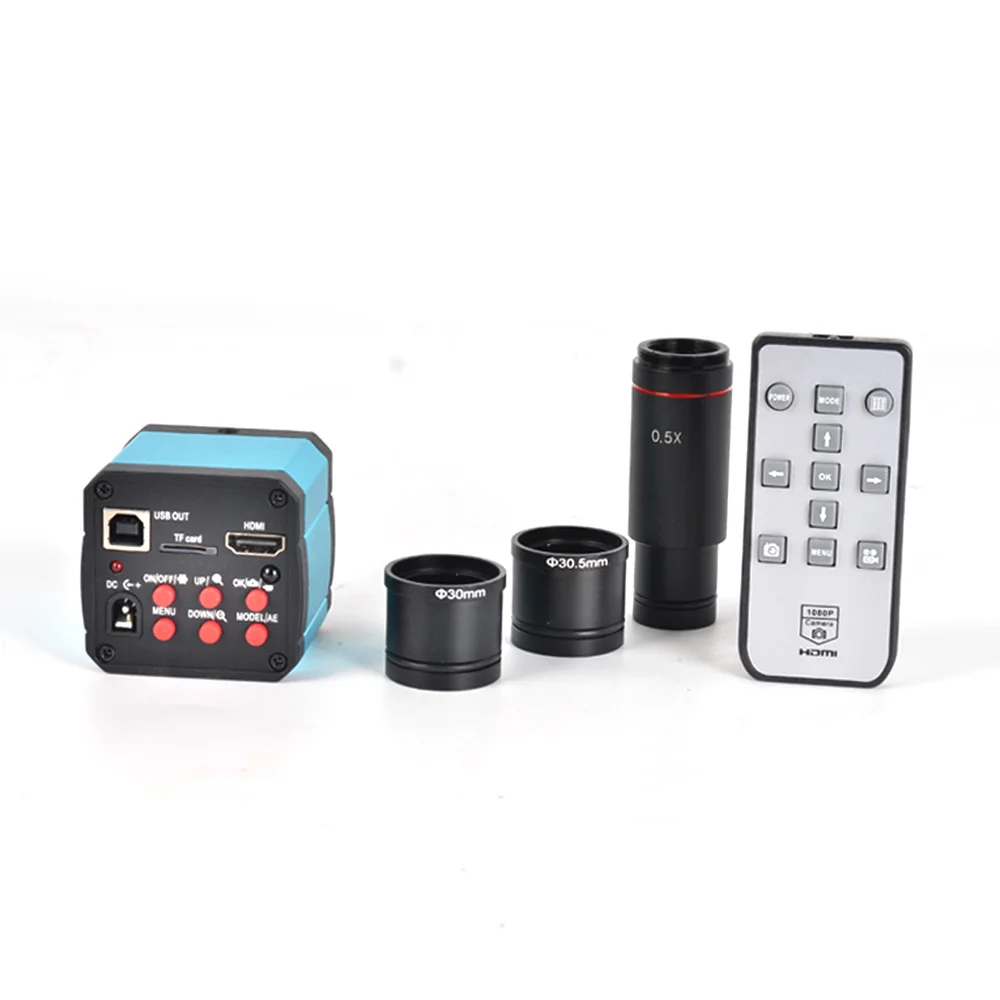

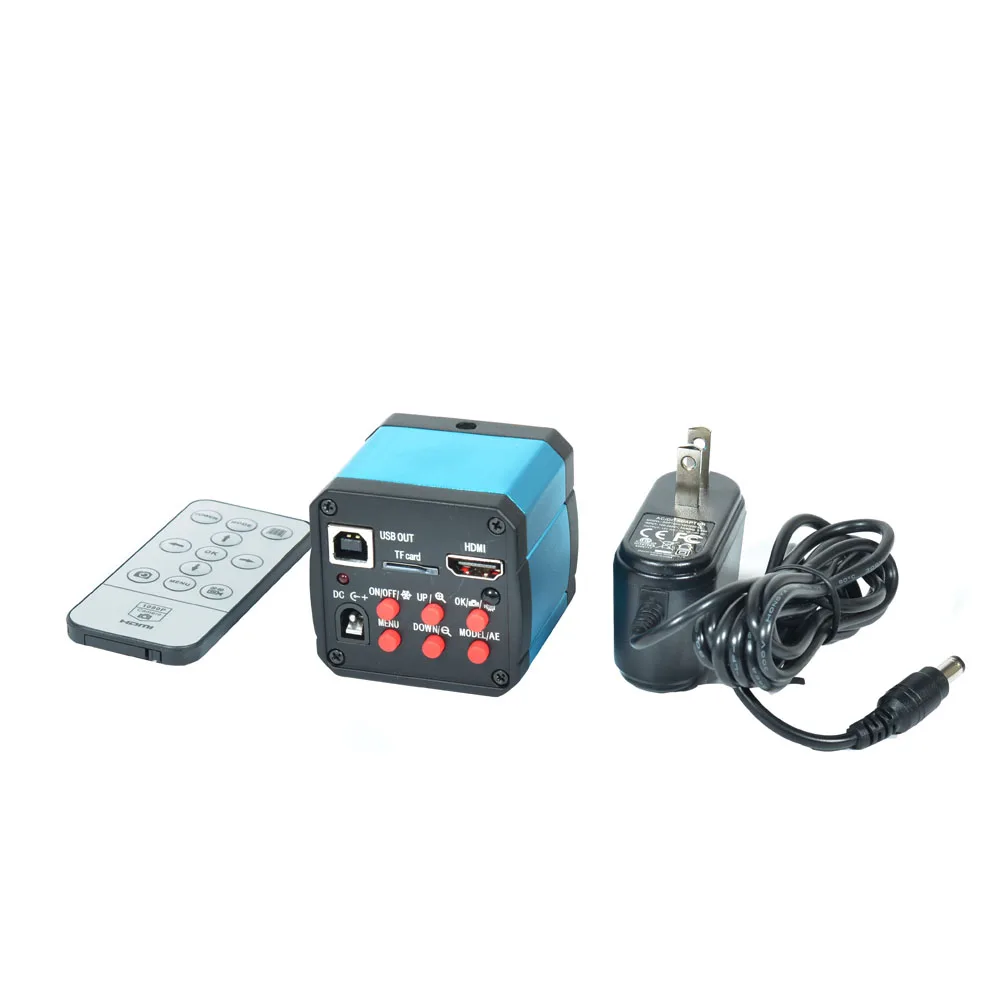

Packaging:
1 x HDMI-Compatible Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 0.5x lens
1 x 30.0mm adapter
1 x 30.5mm adapter
