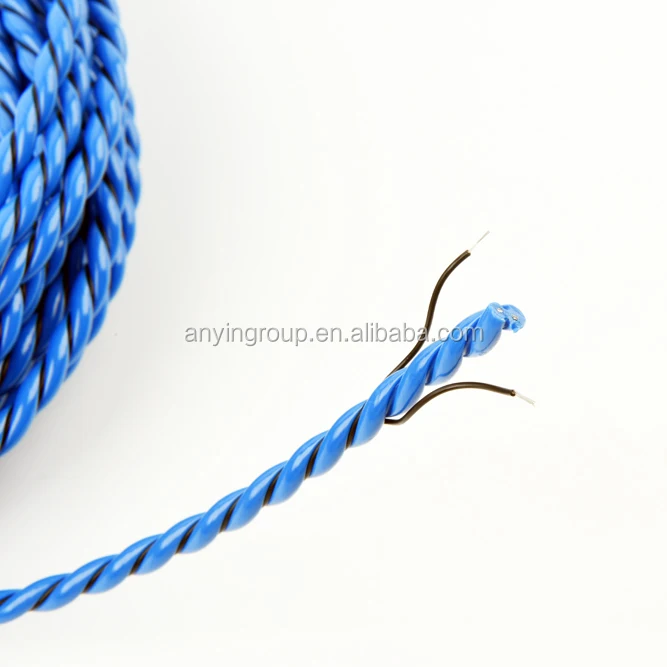

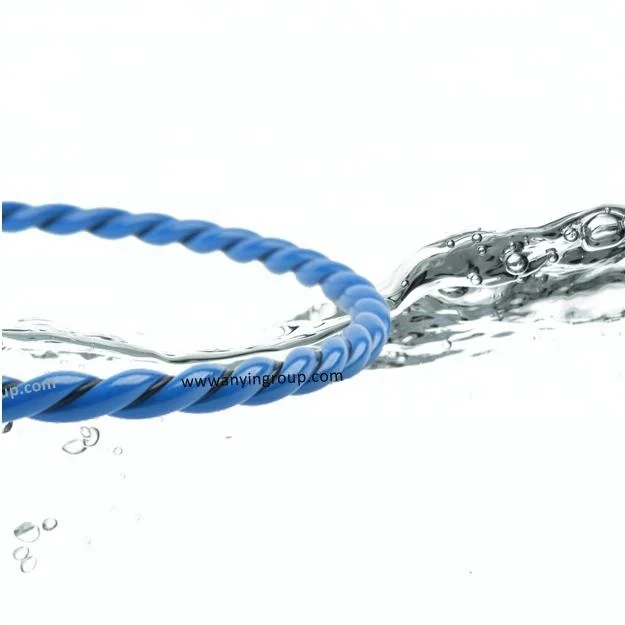

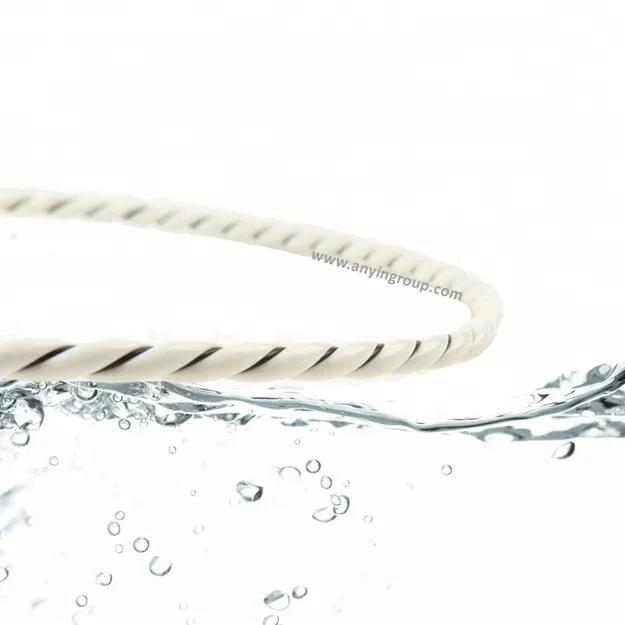

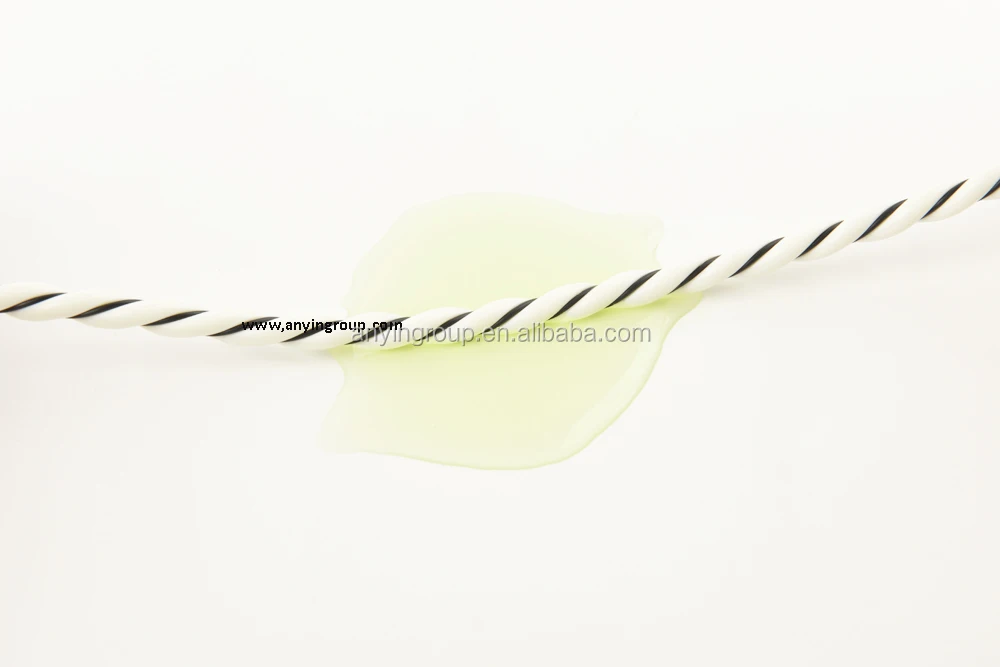

2 Pins water leak detection sensor cable/water leak sensing cable
- Category: >>>
- Supplier: Shenzhen Anying Technology Co. Ltd.
Share on (60798817148):
Product Overview
Description
Product Description
Iterm: 2 Wires water alert sensor cable/water leak detection cable/water leak sensor cable
| Cable diameter | 0.24 in(6.0mm)nominal |
Sensing wires | 2*30 AWG with jacket of conductive fluoropolymer |
| Carrier | Fluoropolymer |
| Cable weight(50 ft/15m length) | 500g |
| Cable color | High-visibility yellow |
| Breaking strength | Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg) |
| Cut-through force | >50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min |
| Abrasion resistance | >65 cycles per UL719 |
| Maximum continuous operating temperature | 70degree |
| Leak size to alarm(tap water) | 2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length |
| Drying time | Cable dries and resets within 15 seconds fo removal from standing water
|
| Standard cleaning method | Wipe with clean damp cloth |
The conductive-polymer technology and fluoropolymer construction make A-LC1B sensing cable mechanically strong and resistant to corrosion and abrasion.The cable is constructed of two sensing wires, embedded in a fluoropolymer carrer rod.The alarm module constantly monitors the sensing cable for continuity.The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments
2018 New Non-addressable 2 wire water flood sensor cable/rope

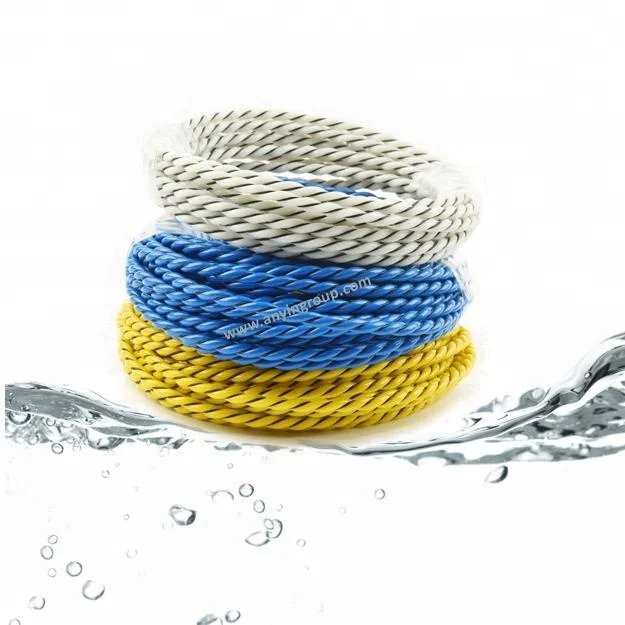

3 Colors for the Water Leak Sensor Cable(Please contact us if you need to customize the color)
Any length can be offered according to your projects (Standard length is 15m per pcs for your reference)

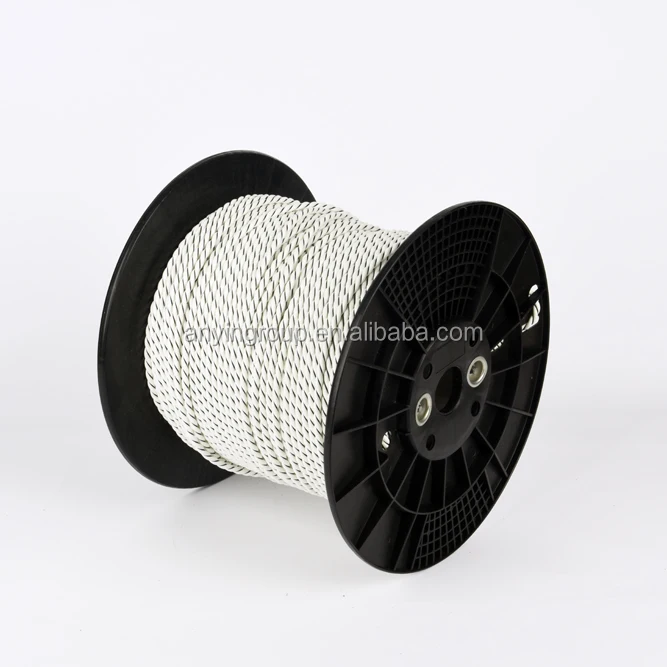

It comes with 300m around for each roll, any meters or rolls available to order !
Connector for the 2 Wires Water Sensor Cable (please contact us if you need it customized)
Full set for the Non-Locating Water Leak System: Leak Detector A-LC1A + Leading wire A-LLW68 + Sensor Cable A-LC1B
Parameter
- Cable diameter: 0.24 in(6.0mm)nominal
- Sensing wires: 2*30 AWG with jacket of conductive fluoropolymer
- Carrier: Fluoropolymer
- Cable weight(50 ft/15m length): 500g
- Cable color: High-visibility yellow,blue, white
- Breaking strength: Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
- Cut-through force: >50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min
- Abrasion resistance: >65 cycles per UL719
- Maximum continuous operating temperature: 70degree
- Leak size to alarm(tap water): 2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length
- Drying time: Cable dries and resets within 15 seconds fo removal from standing water
- Standard cleaning method: Wipe with clean damp cloth
Features and benefits:
Non-Locating Water Leak Sensor Cable A-LC1B
AnYing@ sensing cables detect the presence of water at any point along their length. Installed with Non-locating module(A-LC1A),the cable senses water intrusion and triggers an alarm.
Distributed sensing
A-LC1B sensing cables provide distributed leak detection and location over a wide range of areas.The cable is available in a variety of lengths to provide as much coverage as needed.
Design flexibility
A-LC1B sensing cable is supplied with factory-installed plastic connectors that plug together. The cable is designed of a range of applications,including data center subfloors,telecommunication rooms HVAC equipment locations,pipes,electrical vaults,storage areas,tanks,and roofs.The cable is small,lightweitht,and flexible,allowing easy installation.The smooth design allows for quick drying.
Advanced technology
The conductive-polymer technology and fluoropolymer construction make A-LC1B sensing cable mechanically strong and resistant to corrosion and abrasion.The cable is constructed of two sensing wires, embedded in a fluoropolymer carrer rod.The alarm module constantly monitors the sensing cable for continuity.The rugged cable construction exposes no metal,and enables the cable to be reused even in corrosive environments.
