3000K 4000K 6000K Dimmable Suspended LED Linear Light Hanging Office Lighting Fixture LED Linear Lamp
- Category: >>>
- Supplier: Shenzhen Yizhongxing Lighting Limited
Share on (60798854539):
Product Overview
Description
Specification
Measurement: | ||
Product name | LED Linear Light - 5075 (U type) | |
Product Model No | LS5075-PZ | |
Housing material | 6063-T5 | |
Surface treatment | Powder coated or Brushed aluminum | |
CCT | 3000K,4000K,6000K | |
LEDs | 2835SMD (SANAN chip) | |
LEDs Life Span | 50000H | |
Input Voltage | 100-277V/200-240V 50/60HZ | |
Power supplier | Flicker-free | |
Luminous Efficacy(lm/w) | 100lm/W | |
Color Render (CRI) | RA≥80 or RA≥90 | |
Power factory(PF) | ≥0.9 | |
Optional features : | 0-10V dimming, DALI dimming,CCT dimming | |
IP Rated | IP20 | |
Beam Angle | 120° (Degree Beam Angle) | |
Working Temp(℃) | Surrounding Ambiance Temperature -25°~40°Degree Celsius | |
Body Material | aluminum,PC,ABS | |
Color Option(shell) | Silver,White,Black | |
Certification | CE, RoHS | |
Limited Warranty | 3 Years | |
Standard specifications :
Model | Size | Watts | Voltage | CRI |
5075LS20W06-PZ | L605*W50*H70 | 20W | AC200-240V/100-277v | Ra>80/90 |
5075LS40W12-PZ | L1200*W50*H70 | 40W | AC200-240V/100-277v | Ra>80/90 |
5075LS60W18-PZ | L1795*W50*H70 | 60W | AC200-240V/100-277v | Ra>80/90 |
5075LS80W24-PZ | L2390*W50*H70 | 80W | AC200-240V/100-277v | Ra>80/90 |
Feature
1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.
Graphs/profile
Installation methods
Seamless and linkable.

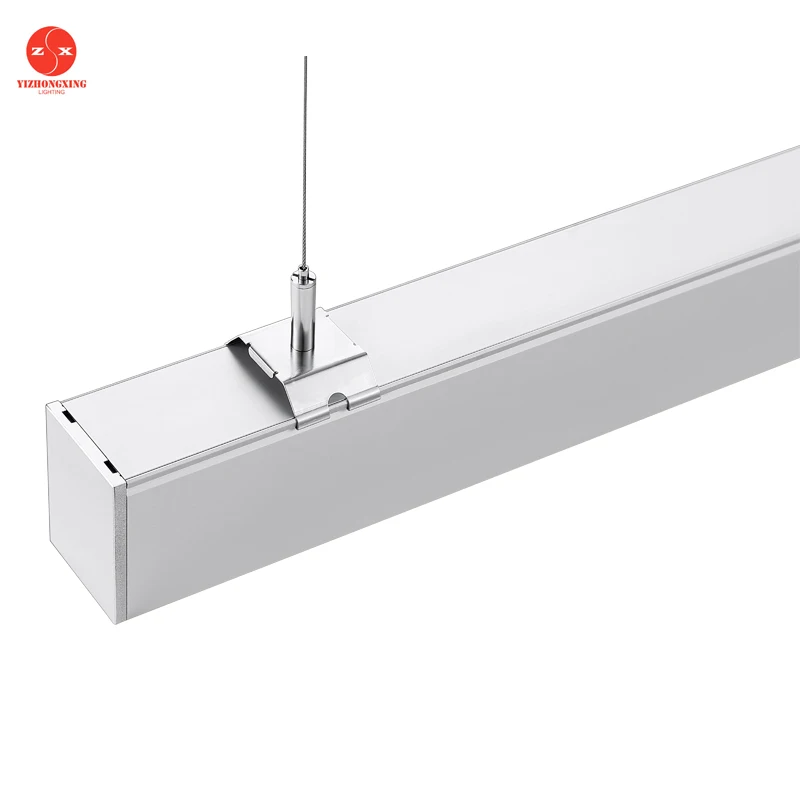

1.Suspened wire
2.Ceiling mounted

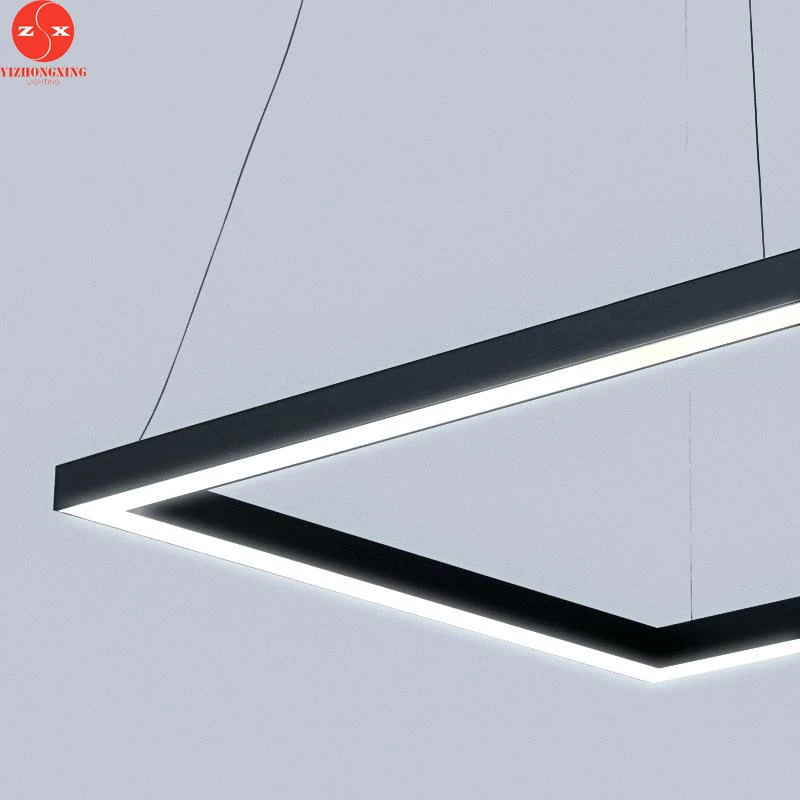

3.Different angle corner option to make different shapes
Packing & Delivery
model | pcs/carton | outer box size | weight/carton |
7575LS20W06 | 9PCS | 655×282×184mm | 18KG |
7575LS40W12 | 9PCS | 1250×282×184mm | 31 KG |
7575LS60W18 | 6PCS | 1847×282×122mm | 31KG |
7575LS80W24 | 6PCS | 2444×282×122mm | 37.5KG |
Applications
Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store
etc.
Certifications
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
