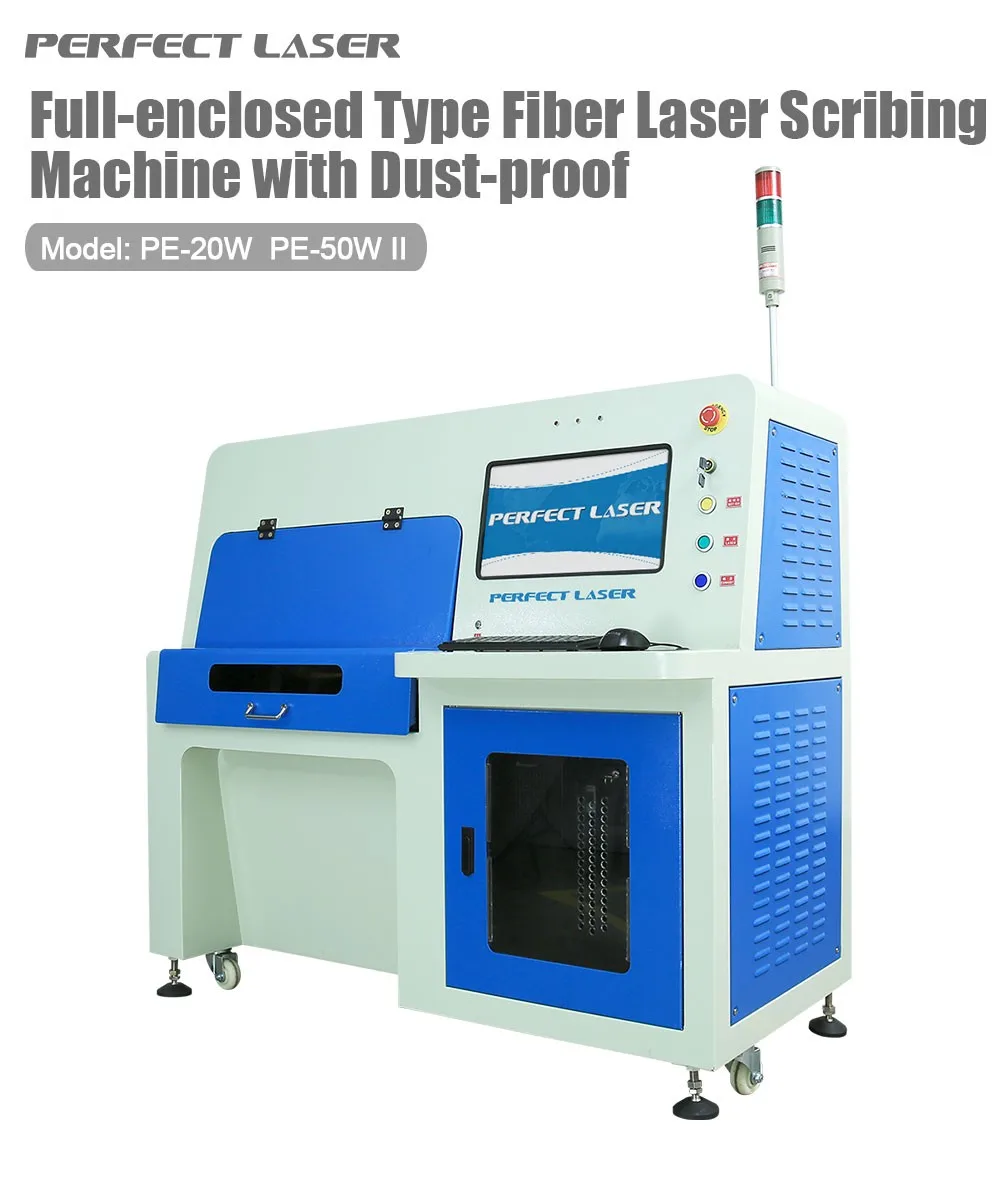

Perfect Laser is a company dedicated to producing customer-satisfactory laser dicing machines. Wafer Laser Scribing Machine model PE-20W/50W(II) with Cabinet has been introduced. The wafer laser scribing machine reconfigures the worktable processing section, open workbench handles the area, and the upper and lower materials are more convenient. Removing spare parts from the worktable is more accurate and not easily deformed. In addition, the laser scribing machine can serve the modification of the laser scribing solar battery motor, the operation is more stable, the cutting noise is smaller, and the design is more humane.

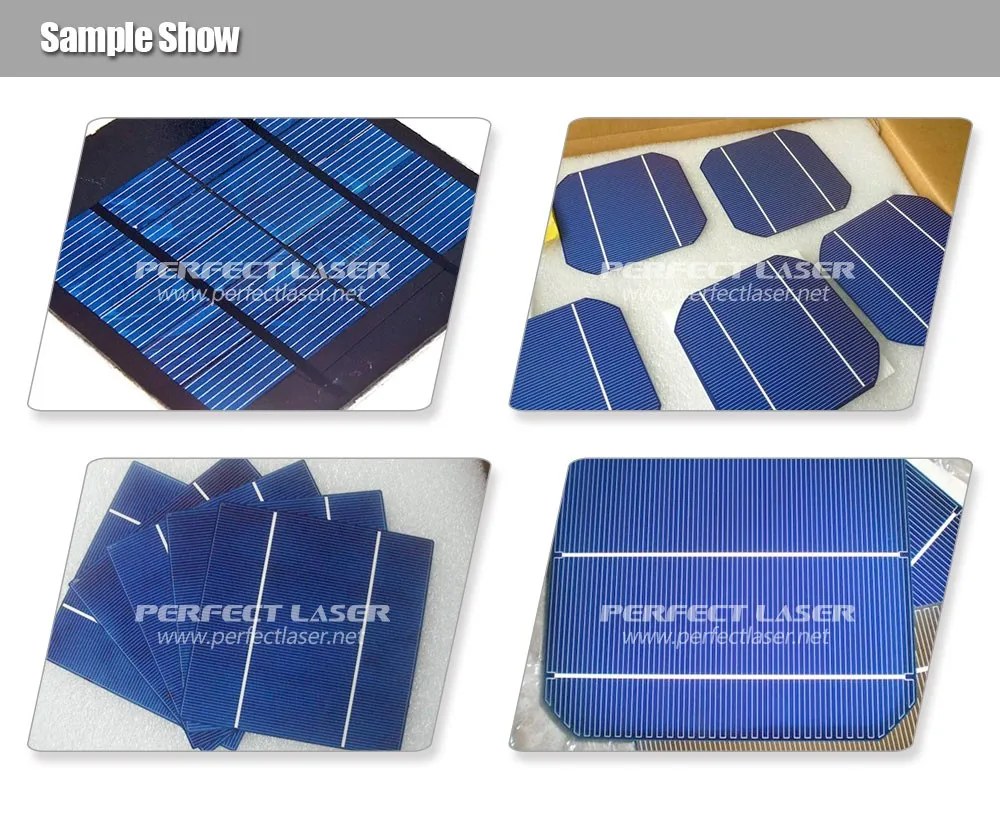

Samples
1.This solar panel making machine is fully enclosed design, with dust cover, it can avoid environmental pollution, to prevent the operator's vision damage.
2.Software upgrade: the solar panel making machine support the arc interpolation,circular arc cutting more smoothly.
3.The wafer scribing machine upgrade: covers an area of space smaller after modification, operating more accord with human body engineering.
4.Refactoring workbench processing part, open-type workbench processing area, up-down material more convenient. Removed spare parts from the workbench tablet, higher precision and not easy to deformation.
5. Improvement the screw parts of solar cell laser scribing machine: screw lead increased, so as to expedite the processing speed, guarantee machining accuracy.
6. Direct plug-in light path design of the solar cell cutting machine, higher machining precision, better effect .
7.Serve motor modification: run more smoothly, smaller cutting noise,more humanized design;
8.Authoritarian flat dust removal device, The processing effect of the solar cell cutting machine is better.
9.Improved the laser signal control section of the solar cell cutting machine, software runs more stable and fast.
Technical Data
Model specification
PE-20W/50W(II) wafer laser scribing machine
Laser wavelength
1064nm
Laser power
20W or 50W
Scribing line width
50um
Scribing speed
240mm/s
Scribing precision
±10um
Workbench wide
200×200mm
Temperature control precision
0.5℃
Working power supply
220V/50Hhz/1.5KVA
Workbench
Cell automatic adsorption, dust removal
Cooling way
High precision and constant temperature circulating water cooling professional integration

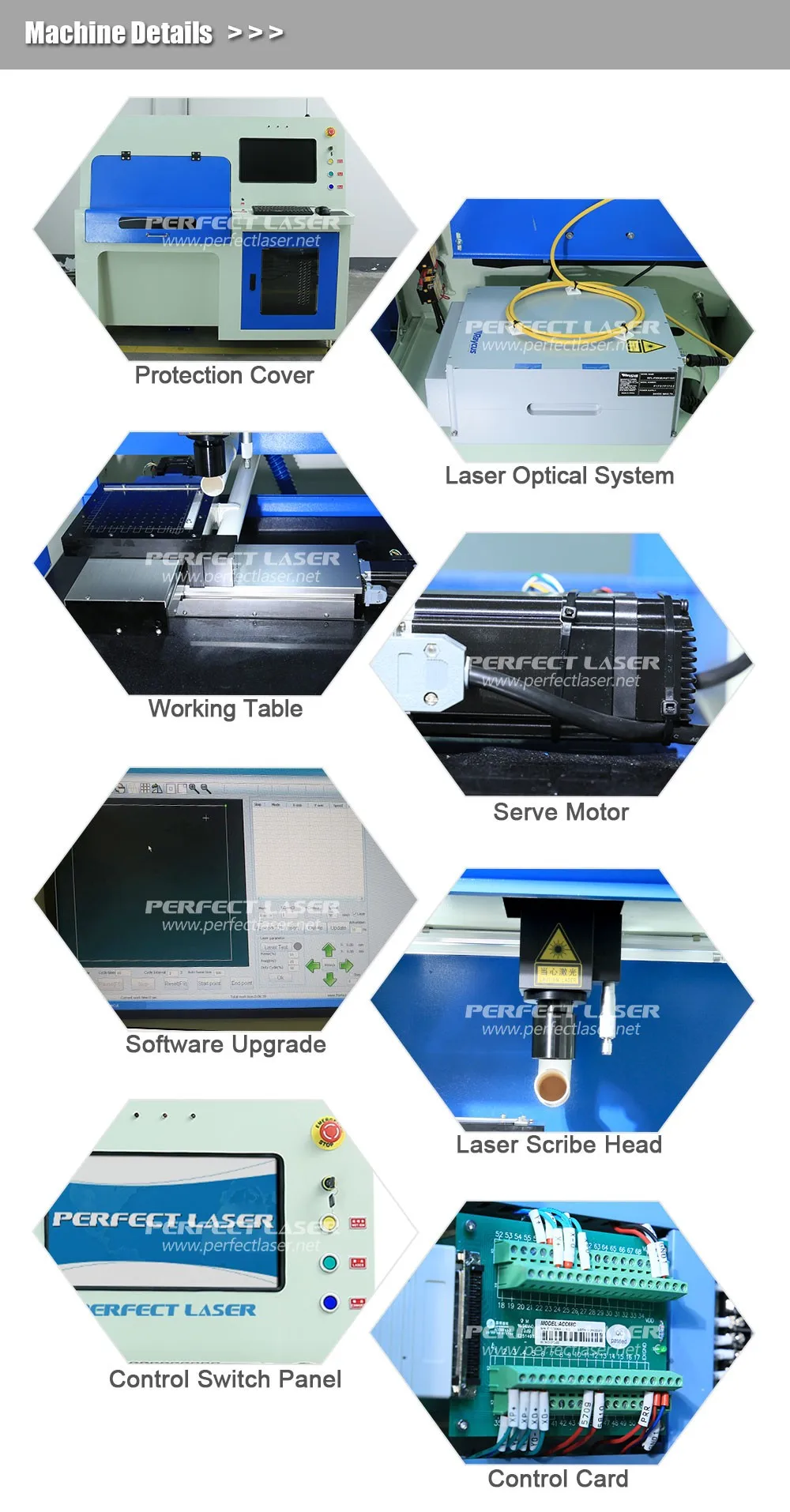

Detailed Images

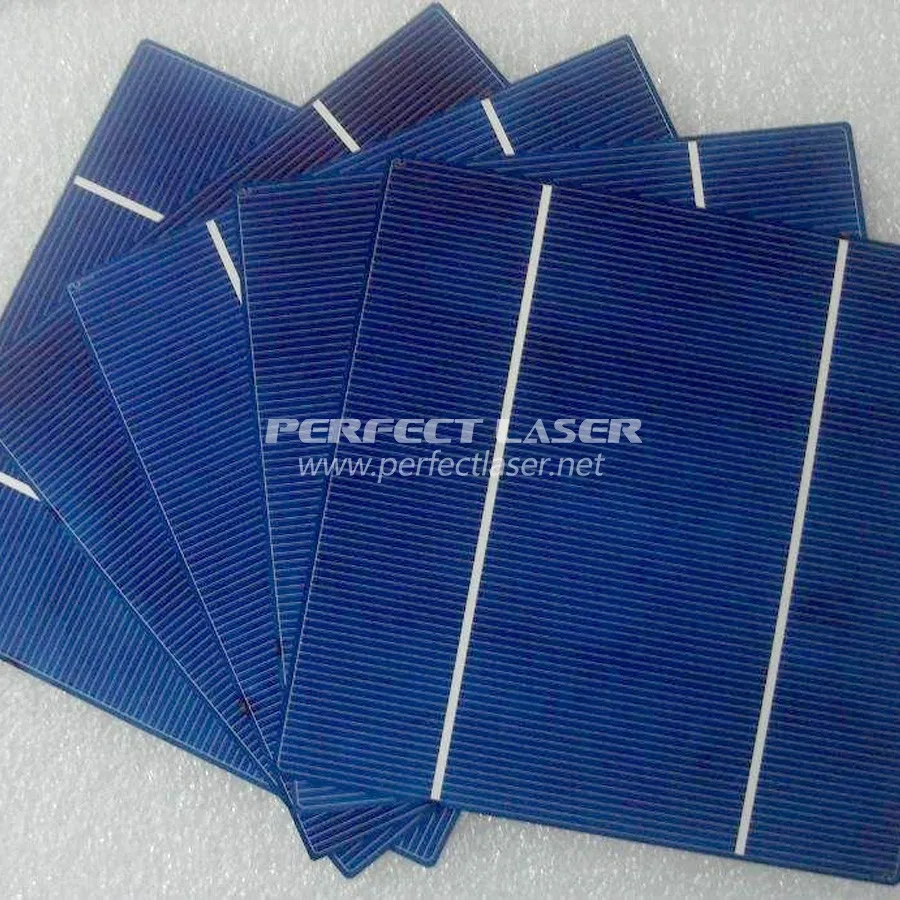

This wafer laser scribing machine is widely used in solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).
Quality Control
Certifications
For certificate, We have 1. CE certificate, which is needed in exporting to European 2. TUV certificate, 3. Certificate for high-tech enterprise which is not easy to authorised by governemnt in our city 4. Patents---we have got 8 patents in this industries. 5. Other certificate of honor from govenments. All other certificates if you need in importing, we can also supply according to you.

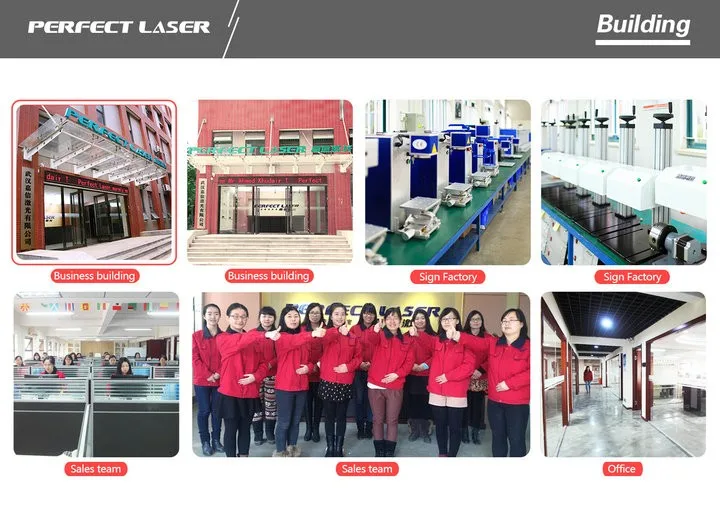

Company Introduction
