EFC Speed Governor Control Unit 3062322 for Diesel Generator Engine
- Category: >>>
- Supplier: Chongqing Orange Technology Co. Ltd.
Share on (60798976014):
Product Overview
Description
Product Description

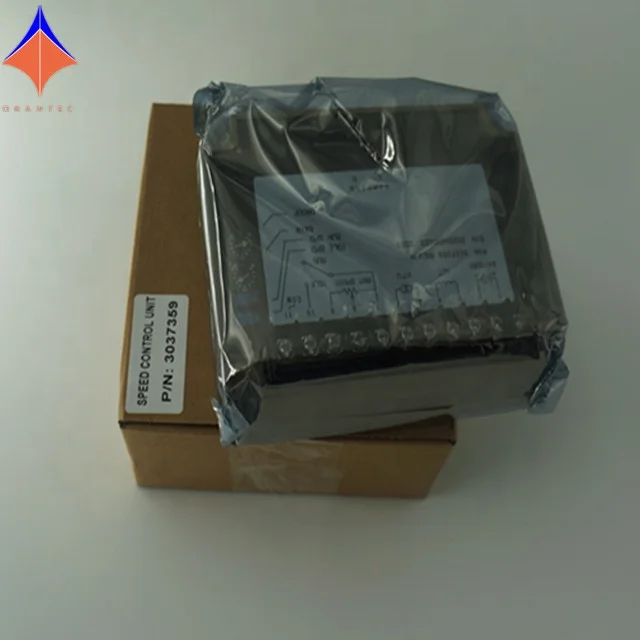

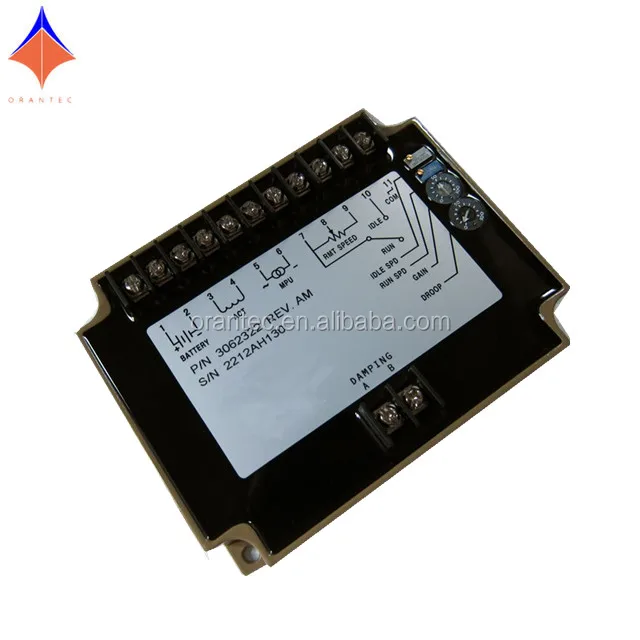

EFC Speed Governor Control Unit 3062322 for Diesel Generator Engine
Governor Control 3062322 is an engine fuel pump governor speed controller designed by all electronic devices for CUMINS actuator, the speed controller has fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel. And it’s Use with FP5186 Fuel Injection Pump.
Specification:
RPM Stability <±0.25%
Speed Range 1KHz ~ 6.5KHz
Thermal Stability Max ±0.7%
IDLE Regulation 260 ±20Hz
DROOP Regulation Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity 148Hz / 1V., ±10Hz
Impedance 1MΩ
Working Temp Range -40 ~ 85 °C
Working Humidity Range Maximum 95%
Stocking Temp -55 ~ 92 °C
Shocking 20-100HZ 500mm/Sec.
Voltage 12 or 24V
Grounding Pole Negative pole
power Supply 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
Signal 2 ~ 120V RMS
Other related speed controller:

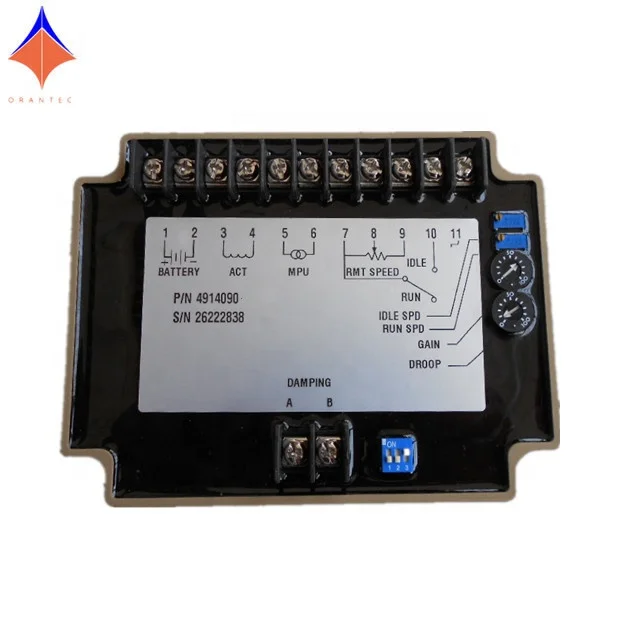

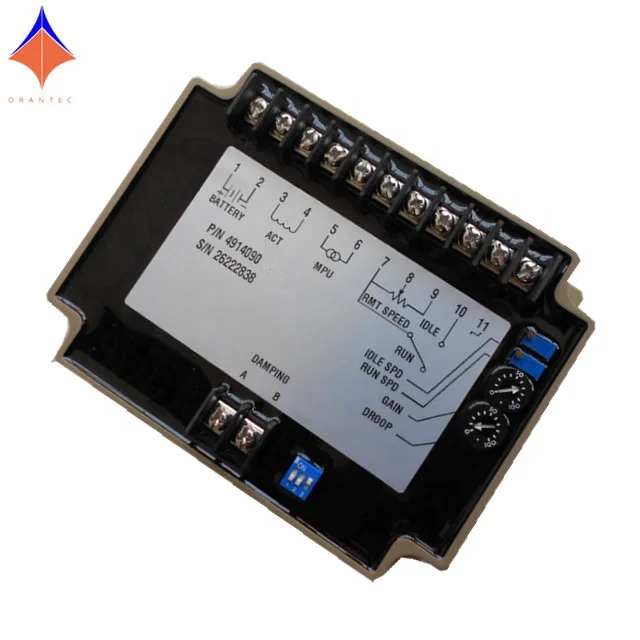

4914090

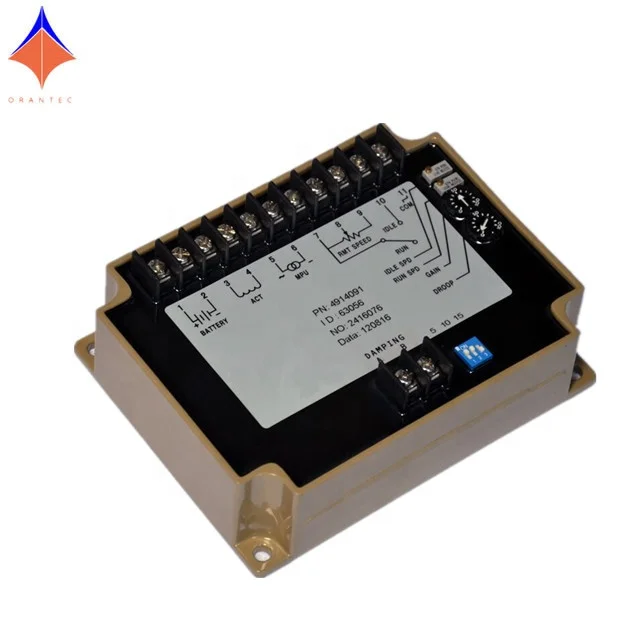

4914091
4913988
3044195
3062323
3032733
3044196
3062322
3098693
3037359
RPM Stability <±0.25%
Speed Range 1KHz ~ 6.5KHz
Thermal Stability Max ±0.7%
IDLE Regulation 260 ±20Hz
DROOP Regulation Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity 148Hz / 1V., ±10Hz
Impedance 1MΩ
Working Temp Range -40 ~ 85 °C
Working Humidity Range Maximum 95%
Stocking Temp -55 ~ 92 °C
Shocking 20-100HZ 500mm/Sec.
Voltage 12 or 24V
Grounding Pole Negative pole
power Supply 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
Signal 2 ~ 120V RMS
Other related speed controller:
4914090
4914091
4913988
3044195
3062323
3032733
3044196
3062322
3098693
3037359
MODEL | Weight: | PACKAGE SIZE: | PACKING |
3062322 | 1KG | 155mm*155mm*55mm | CARTON |
