Zhengzhou Dingchen 2T/D tissue paper 1092mm making plant

Product Overview

Description

1092mm 2T/D Tissue Paper Making Plant

I.Technical parameter

1.Raw  material :waste paper

2.Output paper :toilet tissue paper

3. Output paper weigh :14-19g/m2

4.Net paper width :1200mm

5.Cylinder width :1450mm

6.Capacity:2T/D

7.Working speed :130-150n/min

8.Designing speed :180m/min

9.Rail gauge :1800mm

10.Drive way :AC frequency converter ,section drive

II.Main structure and characteristic of main part

1.Cylinder mould section:φ1500mm×1450mm×1800mm stainless steel plate cylinder mould 1 pcs , φ400mm×1450mm×1800mm couch roll 1 pcs , rubber shore hardness 38℃±2



2.Dryer section:φ2500mm×1450mm alloy dryer 1 pcs , φ400mm×1450mm touch roll 1 pcs , rubber shore hardness 92℃±2 , pneumatic loading device,double layer exhaust hood.

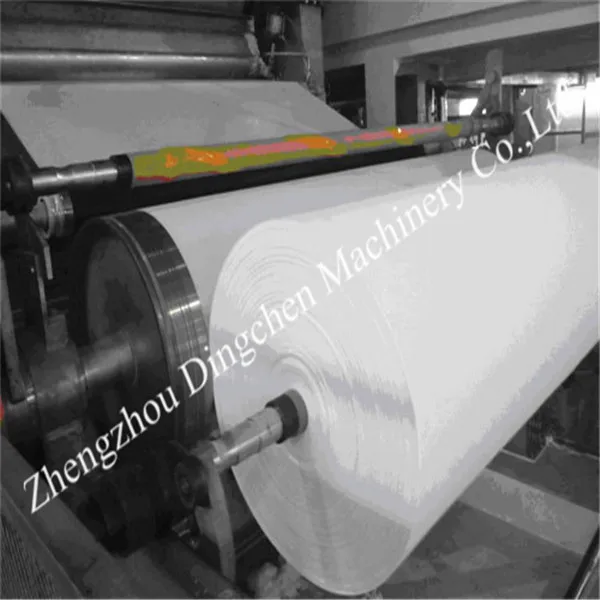

3.Winding section:φ600mm×1450mm winding cylinder 1 pcs , model 250 reduction gears 1 set

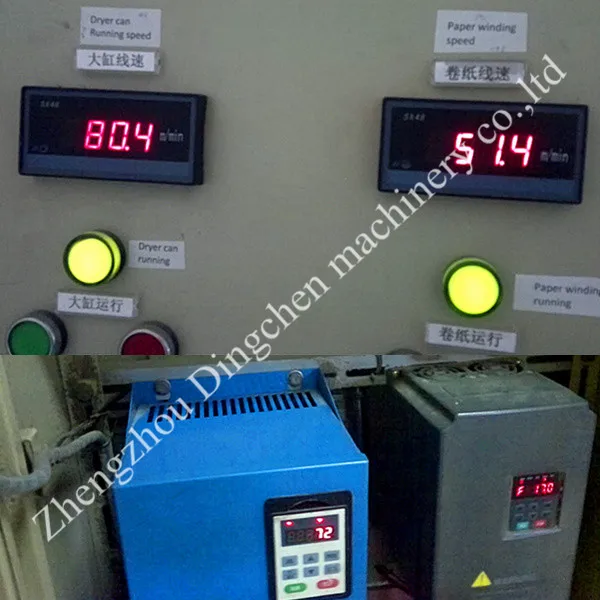

4.drive&control section :AC frequency converter , section drive



Welcome to visit our factory !
