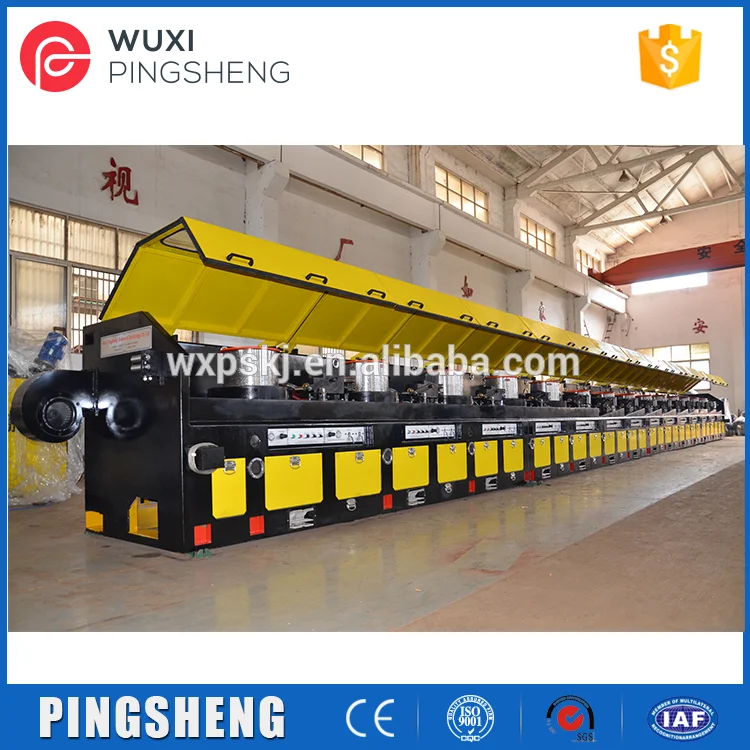

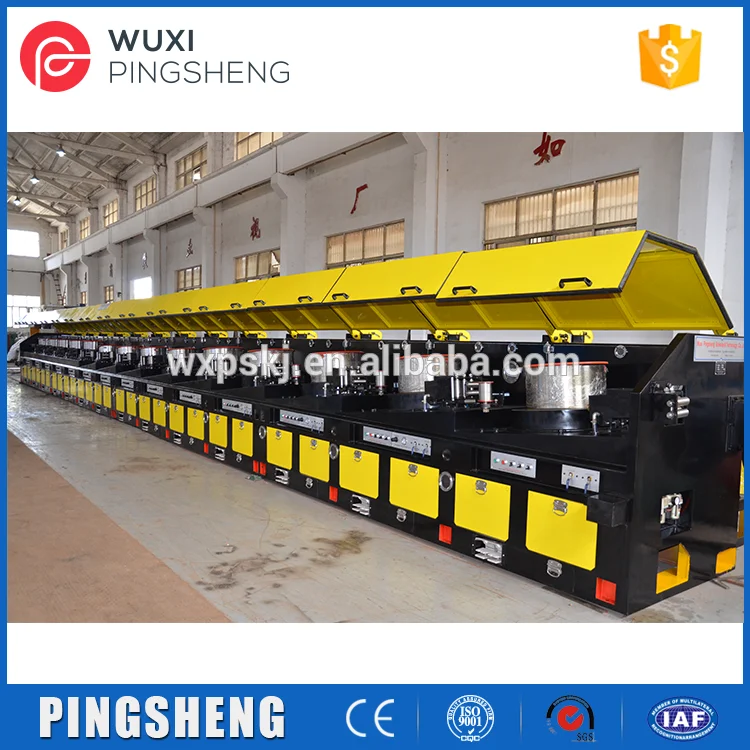

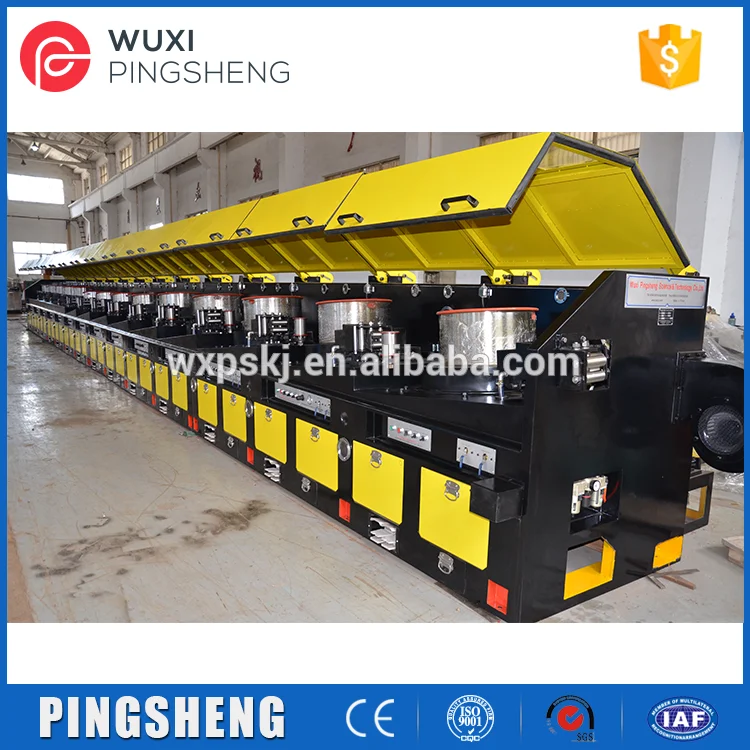

14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm
14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm

14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm

Share on (60799012753):


Price:

Quantity:


Product Overview

Description


14 Blocks fiber steel wire straight line wire drawing machine for final products 0.6mm to 1.2mm

Product Description



SPECIFICATIONS FOR FIBER STEEL WIRE DRAWING MACHINE

Items
Unit
LZ9/1200 -1000
LZ9/1000 -900
LZ10/800 (700)
LZ10/600 (560)
LZ10/450 (400)
LZ5/560+9/450(400)
Capstan diameter
mm
1200-1000
1000-800
800(700)
600(560)
450(400)
560, 450(400)
Drawing dies
Times
9
9
10
10
10
14
Inlet wire diameter
mm
Φ14-10
Φ10-8.0
Φ9.0-6.5
Φ6.5-5.5
Φ4.5-2.5
Φ5.5
Outlet wire diameter
mm
Φ5.0-3.5
Φ3.5-2.8
Φ2.8-2.0
Φ2.0-1.7
Φ1.4-0.8
Φ0.8
Drawing speed
m/s
5-6.5
6-8
8-10
12-15
14-20
20-28
Tensile strength
Mpa
≤1300
≤1300
≤1300
≤1300
≤1300
≤550
Total reduction rate
%
87.24
87.75
90.53
90.53
90.32
97.88
Average reduction rate
%
20.45
20.80
21
21
20.83
24.11
Motor power
Kw
110-75
90-45
75-37
37-22
15-7.5
22-15

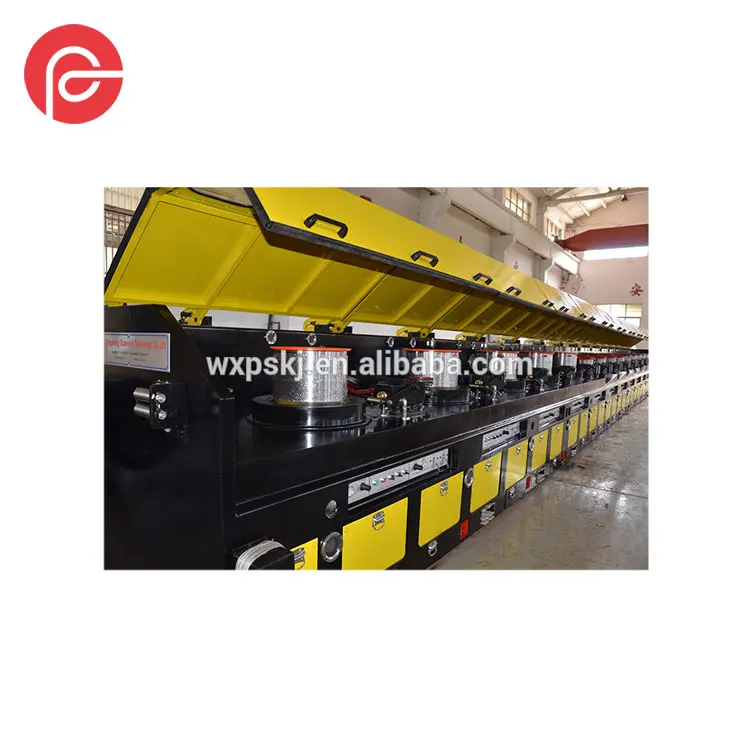

Product Display
