Transocean factory price sticker self adhesive plane labeling head match assembly line for flat shape product
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (60799012928):
Product Overview
Description
welcome to send sample to us
In order to ensure zero-risk purchase of this machine, we have standard model in stock, welcome customers to send samples to us, free trials, and take video to you for confirm. Place an order after you appropriate.

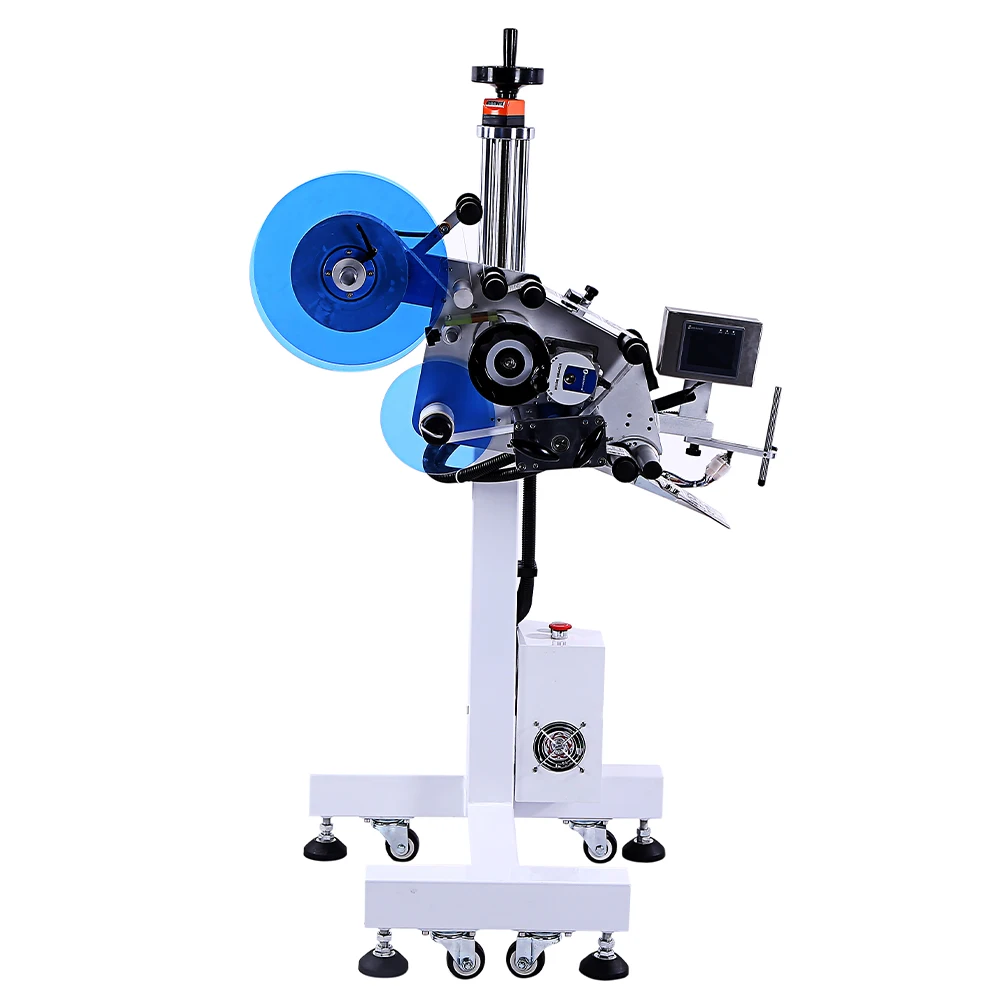

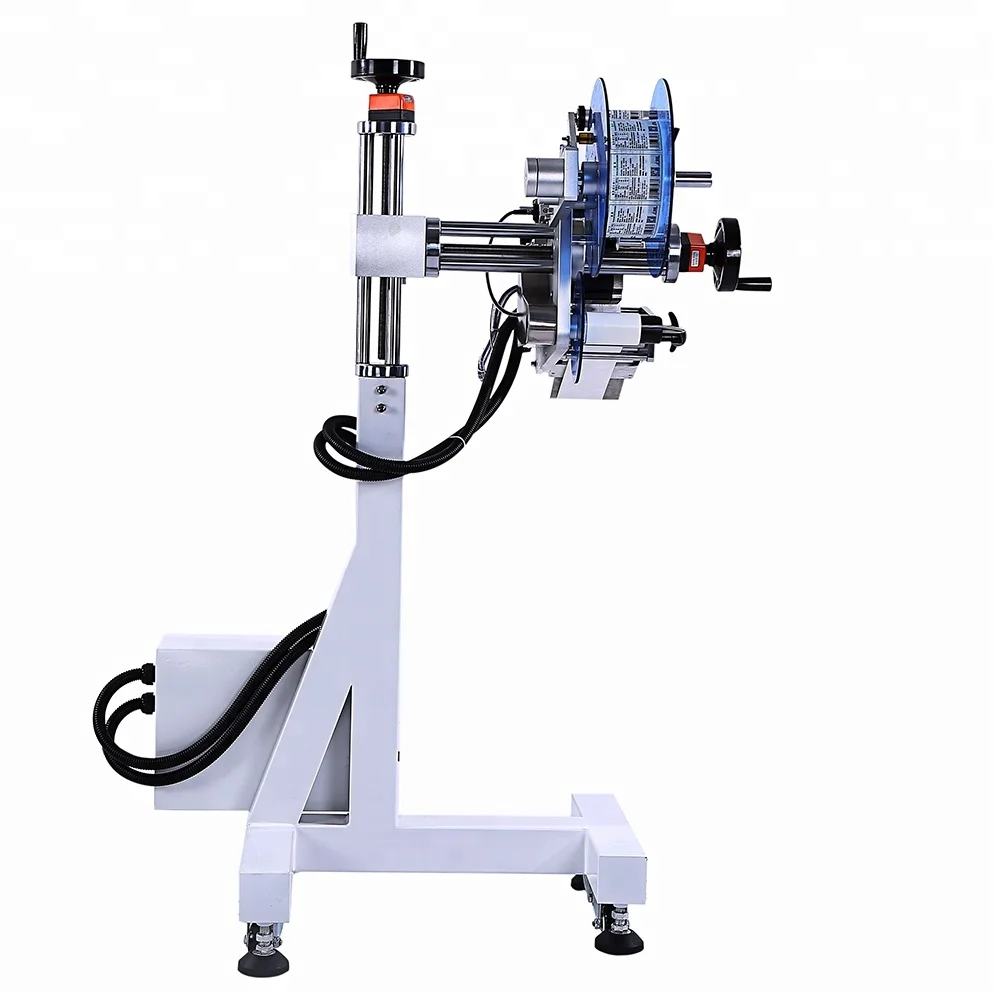

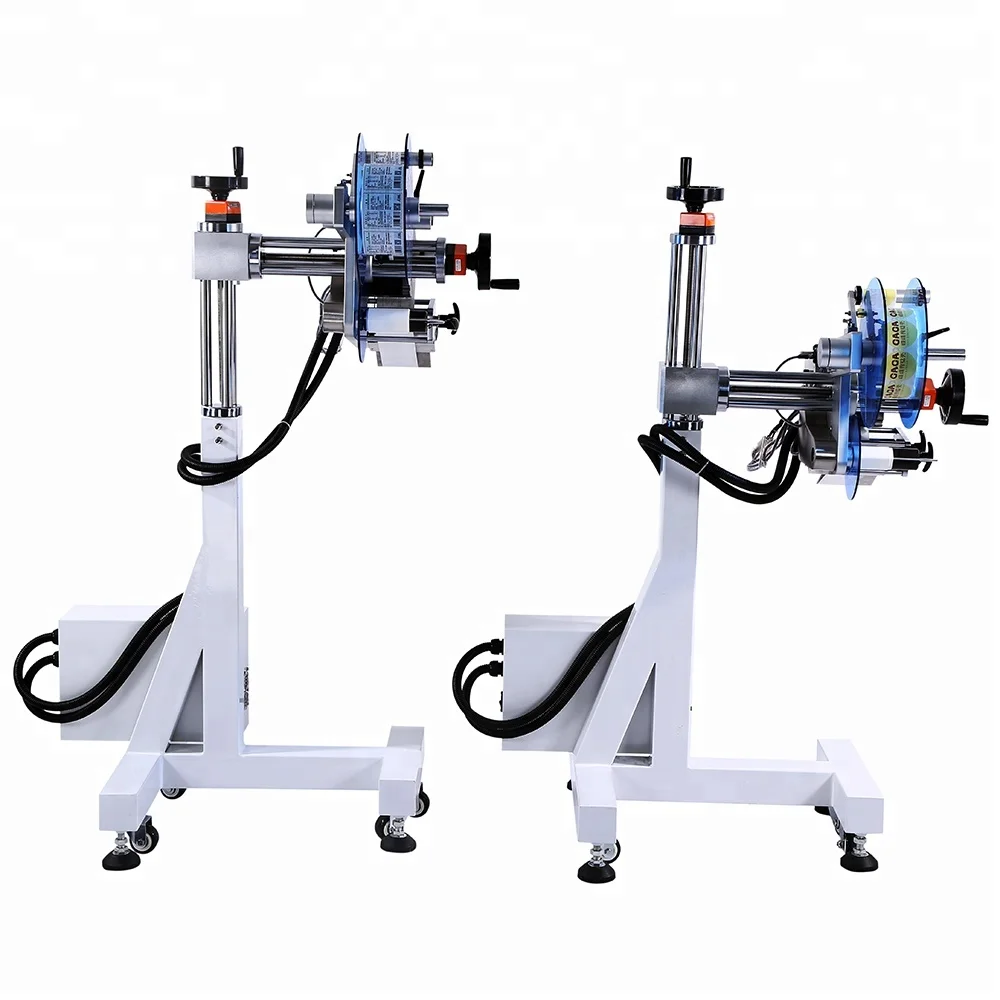

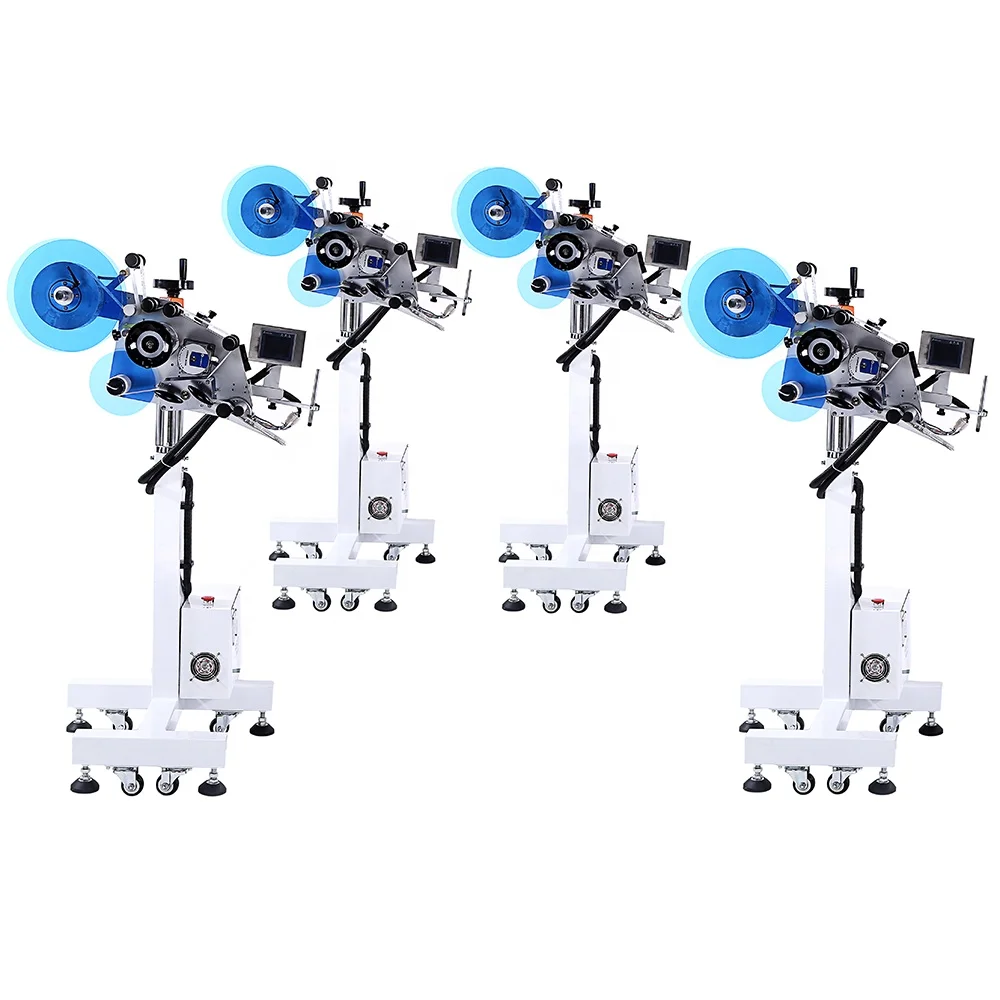

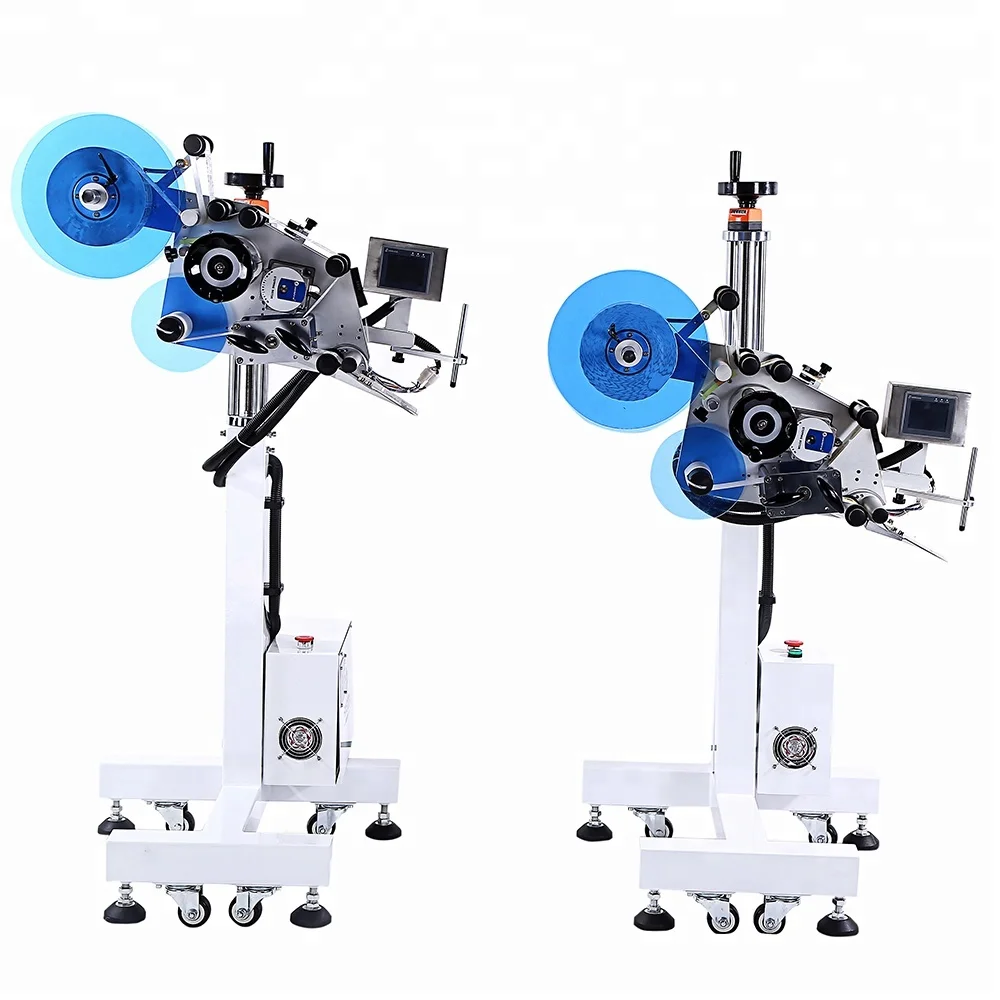

TY-202 Automatic assembly line plane labeling head
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2) Match to customers' workshop of assembly line for palen labeling.
3) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
SPECIFICATIONS | ||||||
Labeling accuracy | ±1mm (excluding products, labels, error) | Labeling speed | 40--200pcs/min (related to the product and label size) | |||
Apply the product size | Customers should tell us the assembly line of height, width and speed | Apply label size | Length:6-250mm; Width: 6-130 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | ￠76mm | |||
Apply labels outside diameter | ￠240mm | Voltage | 220V | |||
Power consumption | 335W | Net size (length*width* height) | Machine size: 870*920*1610 mm Packing size: 920*970*1670mm | |||
Weight | About 82Kg | |||||
Connect to assembly line
Can be connected to the customer's assembly line, the labeling head match the line for labeling, suitable for flat and curved label
Apply to product
Can be connected to the customer's assembly line, the labeling head match the line for labeling, suitable for flat and curved label
testing object sensor
Imported Panasonic product sensor, more accurate to test label
Can meet side labeling
The header can be designed vertically to achieve side labeling of the product.
Electric control box
stainless steel material, beautiful and generous, sturdy and durable.

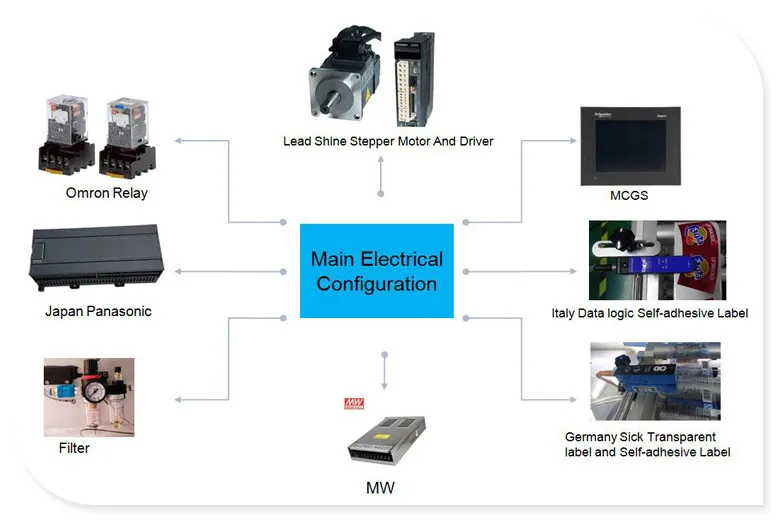

import label sensor
1. Germany Sick and Italy Data logic of self-adhesive label sensor. (standard model)
2. Germany Sick and LEUZE sensor not only can
use for self-adhesive label, but also can use for transparent label. (price calculated separately).
Color touch screen
Color touch screen in English, Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.
Hot coding machine
1. The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
2. ours coding can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
3. Ribbon specifications: 30*100mm-2 rolls
4. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation.
For example: a, A, E, /, =, -, &. And so on.
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
This item is an additional feature added.Price calculated separately
pay before send out the good or see the scan bill of lading.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases
if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5 days, standard model with in stock. By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
TY-805
Automatic plane top labeling machine
TY-808
Automatic card/bag labeling machine
TY-808
Automatic card top and bottom labeling machine
TY-801
Semi-Automatic front and back labeling machine
TYRY-0806R
OPP labeling flat bottle labeling machine
TY-901
Automatic double side labeling machine
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify believe that buy from us, you not only get quality Product but also best service together.
