Benchtop Roll-to-Roll Tape Casting System with Heating Bed, Electrostatic Dust Remover, and Heatable Calender

Product Description

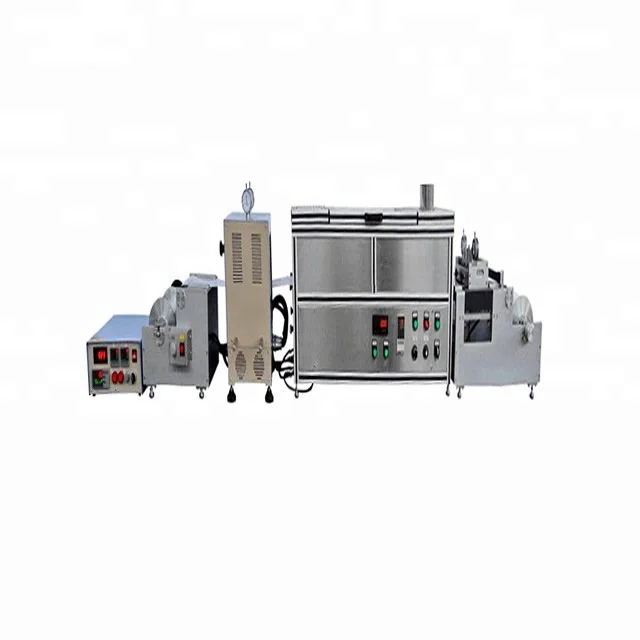

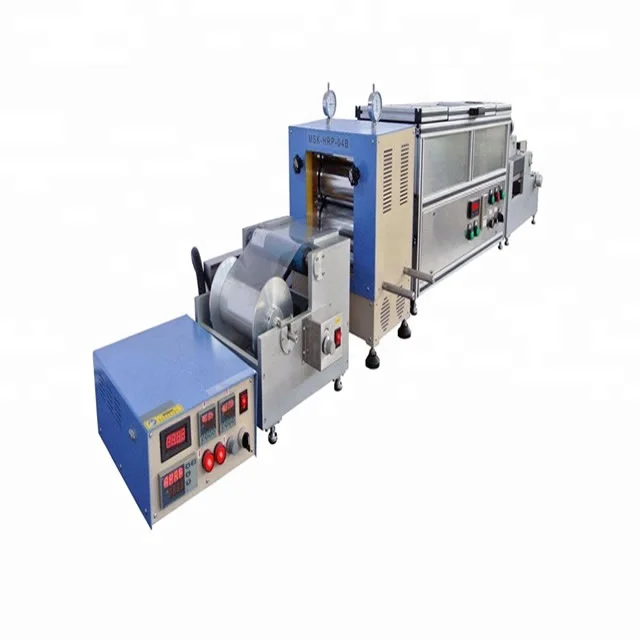

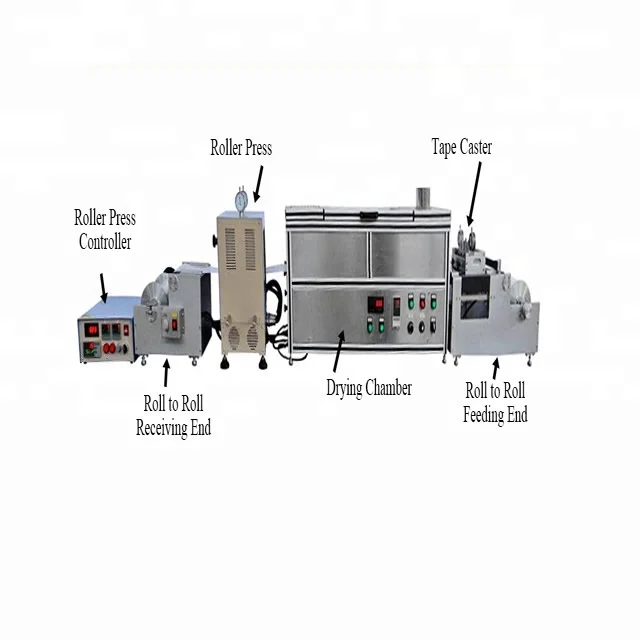

TN-AFA-HRP-150 is a benchtop roll-to-roll electrode coating system. Such system features electrostatic dust remover for particle-free coating environment. The pressure adjustable calender allows the substrate to be compressed right after the bake-out. The roll-to-roll fashion enables the continuous treatment process: substrate feeding, tape casting, bottom heated drying, oll pressing, reeling the processed electrode. It is ideal for coating applications such as lithium-ion battery electrode slurry, solid state electrolyte film, and ceramic film research.

Specification

Features	R2R fashion enables the automatic substrate feeding and receiving Doctor blade is included for tape casting Bottom heated bed provides uniform heating and drying for the coating slurry Pressure adjustable rolling press, upto 200C, 2 tons Electrostatic dust remover provides particle-free coating environment
Working Voltage	208 – 240VAC, 50/60Hz, Single phase
Max. Power Consumption	1.7 KW
Coating Method & Precision	Tape casting is done with a doctor blade on a flat plate:  Doctor Blade Coating technique Coating Thickness Precision: 10 microns. One 150mm blade is included. MSK-AFA-HRP-150 can take blade up to 180mm width.
Coating Performance	150mm with included doctor blade. Max. coating width: 180mm with optional doctor blade. Max. substrate width: 200mm  Speed: 100~800mm / minute adjustable Thickness: 0~5mm adjustable Max. Coating Length: Depending on the coating and substrate thickness. (The slurry consumption)
Drying Chamber	100°C Max bottom heating bed The casting flatbed is enclosed by a 1000mm long drying chamber. A 1.5 KW heater enables continuous-flow heated circulation through the drying chamber.

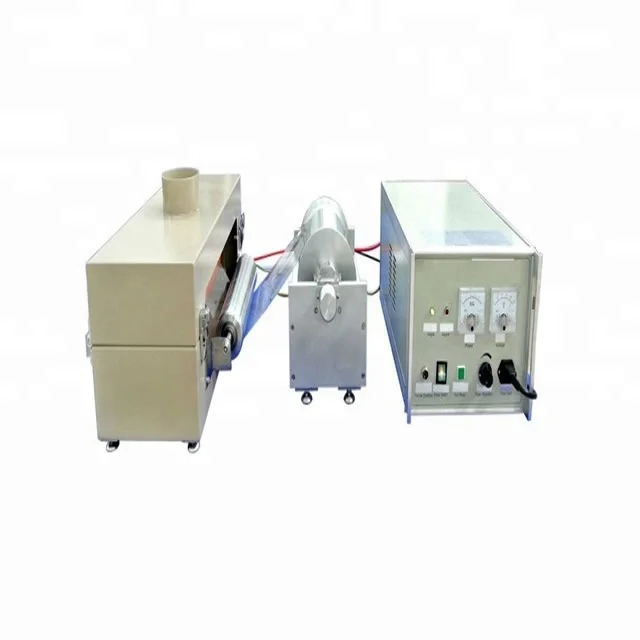

Static Dust Removal System	The use of static system helps eliminate the dust particles accumulated on the substrate and ensure a dust-free coating environment.
Heatable Roll Pressing System	Effective calendering width: 200mm High strength hardening steel with hardness RC > 52  (Attention: It is not suitable for calendering materials with RC > 45) Roller surface is plated by Cr for anti corrosive property Roller Size: 96 mm Dia. x 220mm W Temperature Upto 200C max.,  Pressure Upto 2T
Roll Pressing Performance	Roller Gap: 0~2 mm adjustable Dial Gauge Accuracy: 0.01mm Pressure: 0~2T (Note: the actual calendering force is dependent on the material physical properties such as hardness and thickness. The rolling gap thickness will also affect the applied force.)
Roller Heating System	Two digital temperature controller with 30 segments programmable for control two rollers separately 150oC suggested (200°C maximum) Max Heating Rate: 4°C/minute Power of Heating Elements: 1600W Temperature Control Accuracy: +/-5°C
Dimensions & Weight	2400mm L *400mm W *450mm H with dust shield closed. 2400mm L *400mm W *700mm H with dust shield opened. 300 kg
Compliance	CE Certified
