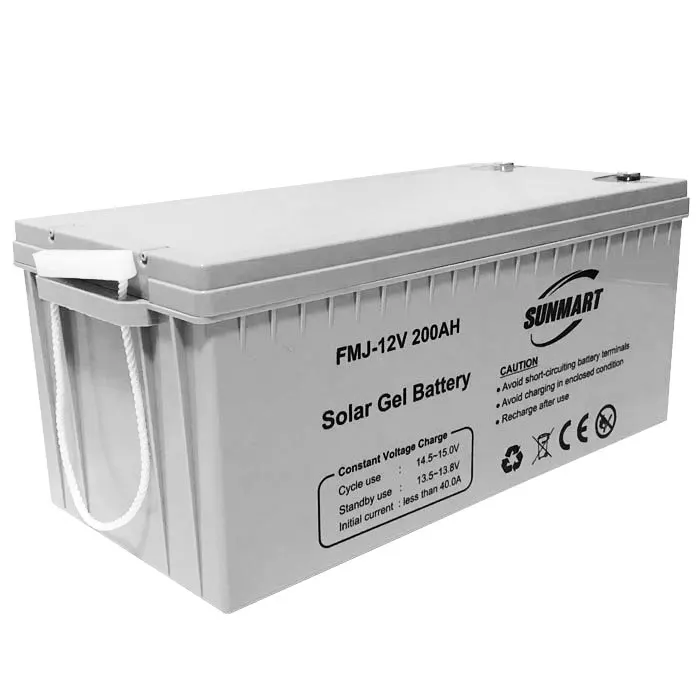

12V200AH Solar Inverter Battery 12V200AH GEL Battery for solr/wind system

Product Overview

Description

12V200AH Solar Inverter Battery 12V200AH GEL Battery for solr/wind system



Features :

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

5.High purity raw material: ensure low self discharge rate

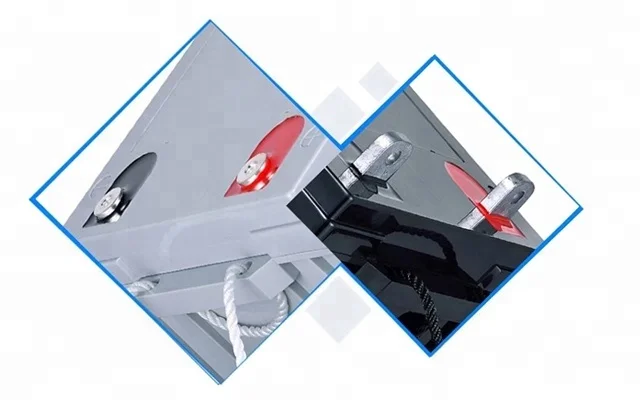

6.Silver-coated copper terminals, brass insert terminals and lead terminals improve theelectric conductivity



Application:

1. Alarm systems                                                   2. UPS

3. Access control equipment                                 4. Security systems

5. Emergency power systems                               6. Children Toys

7. Communication equipment                               8. Medical equipment

9.Electric powered vehicle                                   10.Golf cars and Bugy

11.Wheal chair                                                     12.Power tool

13.Control system                                                14.Vacuum cleaner



Technical Specifications:

Model	FMJ12-200
Designed life	8 Years (Floating) or > 750 Cycles @ 50% D.O.D
Capacity (25℃)	20HR (10.5A)		10HR(20A)		5HR(34A)		1HR(110A)
	210AH		200AH		170AH		110AH
Dimensions	Length		Width		Height		Total Height
	520mm		240mm		245mm		245mm
Approx. Weight	56KG
Internal Resistance	Full charged at 25℃: 0.004 Ohm
Self Discharge	3% of capacity declined per month at (25℃)
Capacity Affected By Temp.	40℃	25℃		0℃		-15℃
	102%	100%		85%		65%
Charge voltage  (25℃)	Cycle use			Float use
	Constant Voltage 14.1-14.4V, Initial current is smaller than 80A			Constant Voltage 13.5-13.8V, Initial current is smaller than 30A







Applications:

Production Process:

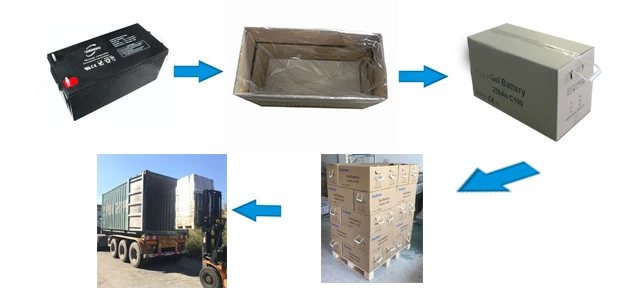

Packing and delivery :









Certificate:



FAQ:

Q1: what kinds of battery do you have?
A1 : based on the application, main products include battery forsolar power system, ups,car ,toys, e-bike, telecom, medical equipment , wind power , emergency light and call ,LED light,etc. if based on the technology, we have AGM, GEL ,Deep cycle ,deep cycle gel , opzv and opzs series

Q2: Do you have your own factory?
A2: Yes, we have more than 10 years experience.

Q4: Would your factory like to accept customers logo?
A4: Yes! We can produce the battery with OEM.

Q5: What is your best price of your battery?
A5: The battery price we offer you depends on quantity and the cost price


Q6: Why should I choose your company?
A6: A. our belief : assured long-lasting quality,reliable long-existing service.
      B. our competence: quality and technology is our forever competitive advantage,
           wins us a good reputation.
      C. our dream : supply every customer with the suitable high quality battery to seek long term
           business cooperation.
      D. our honor : our batteries served as the power supplier for 2010 singapore youth olympic
          games for their reliable quality and stable high performance.
