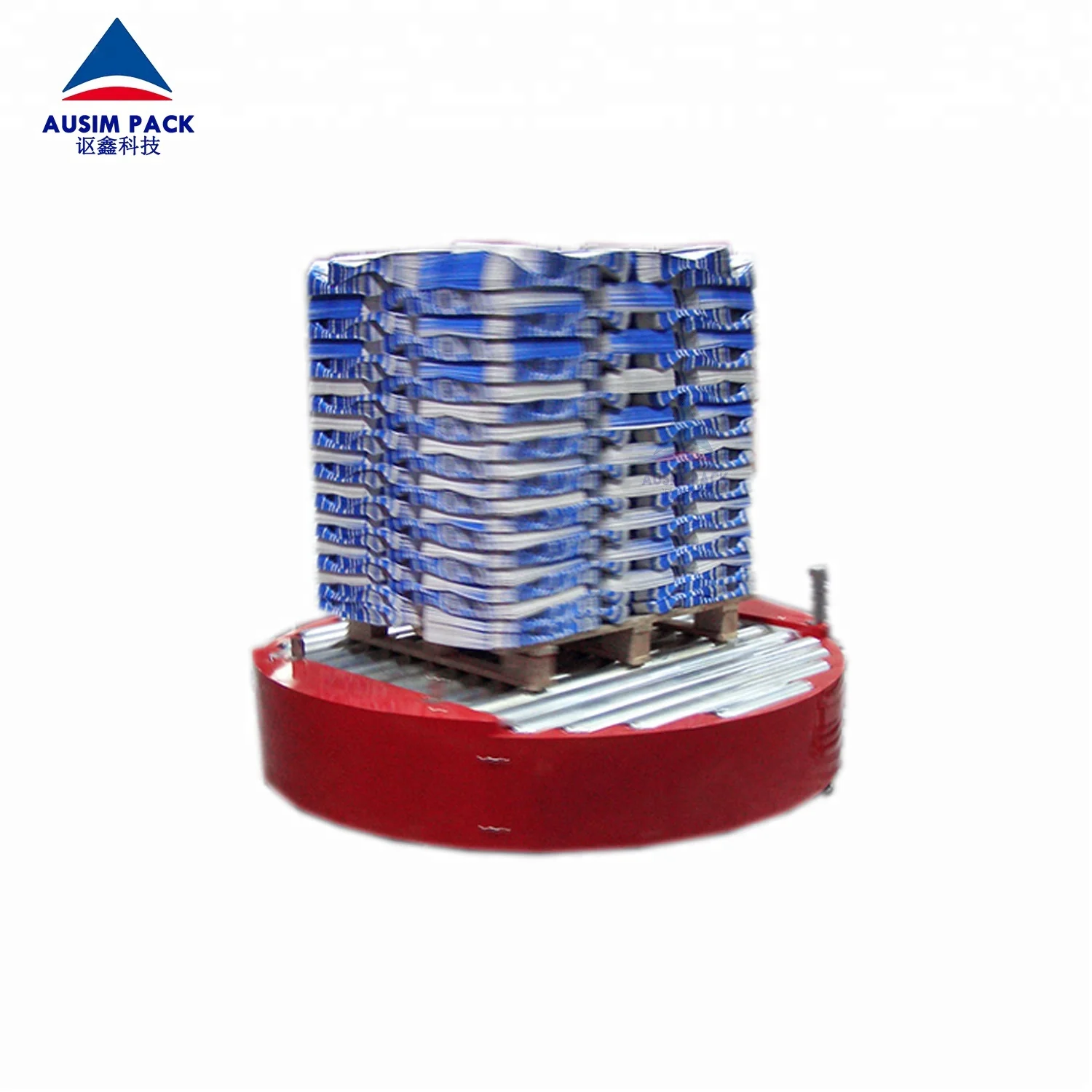

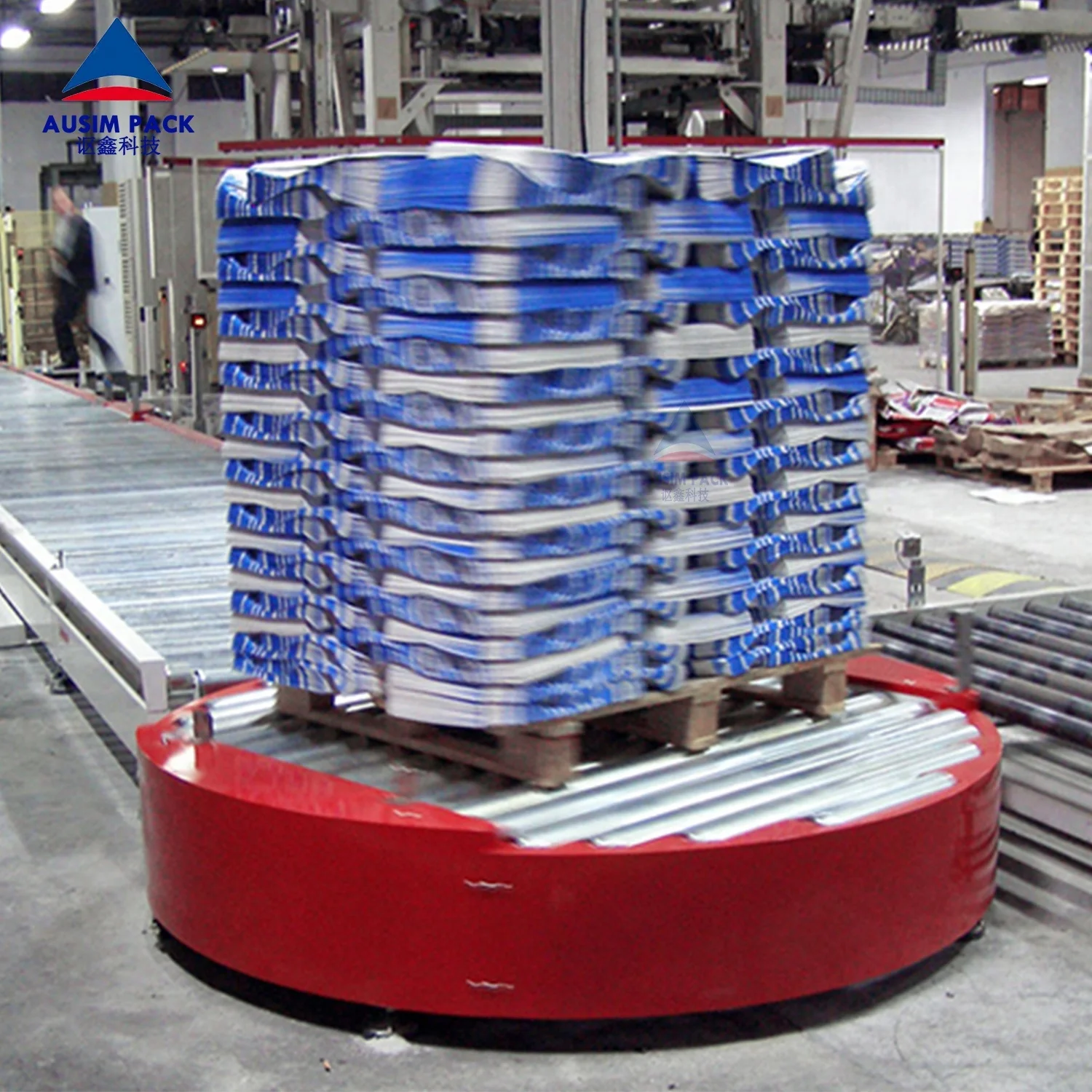

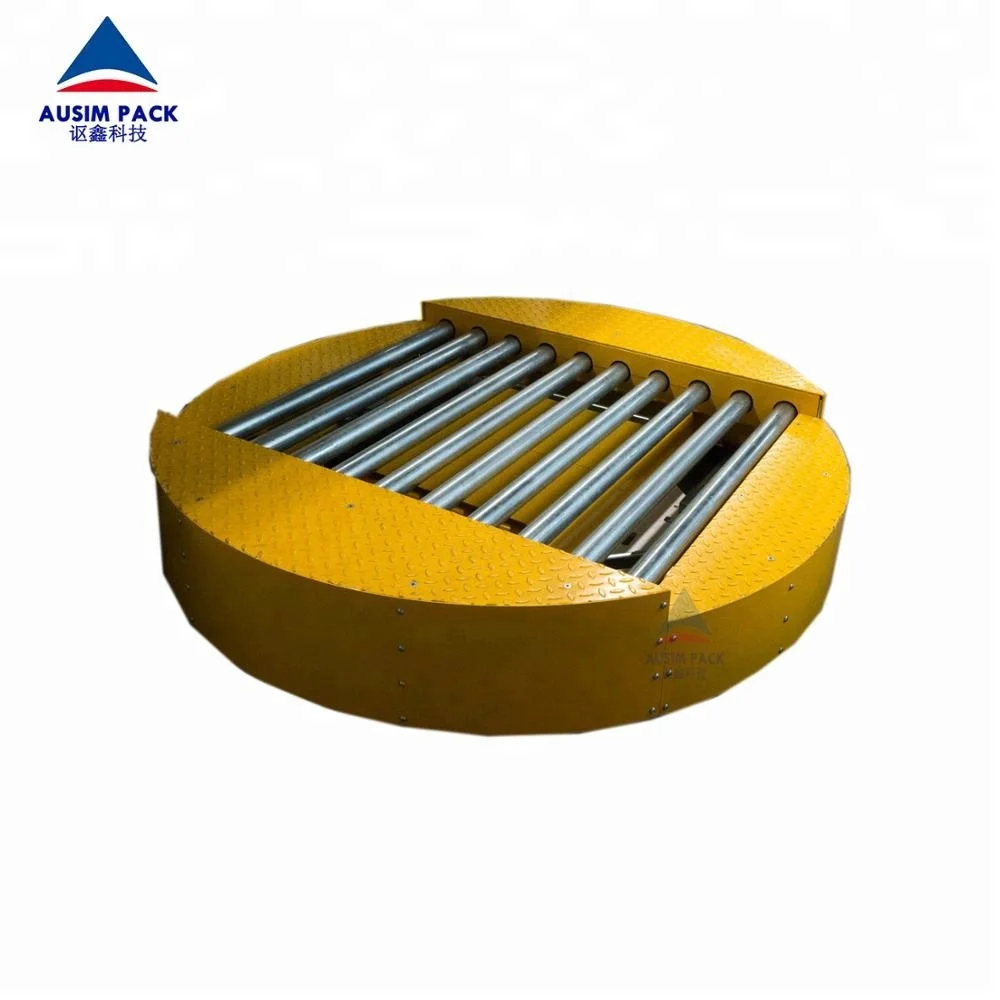

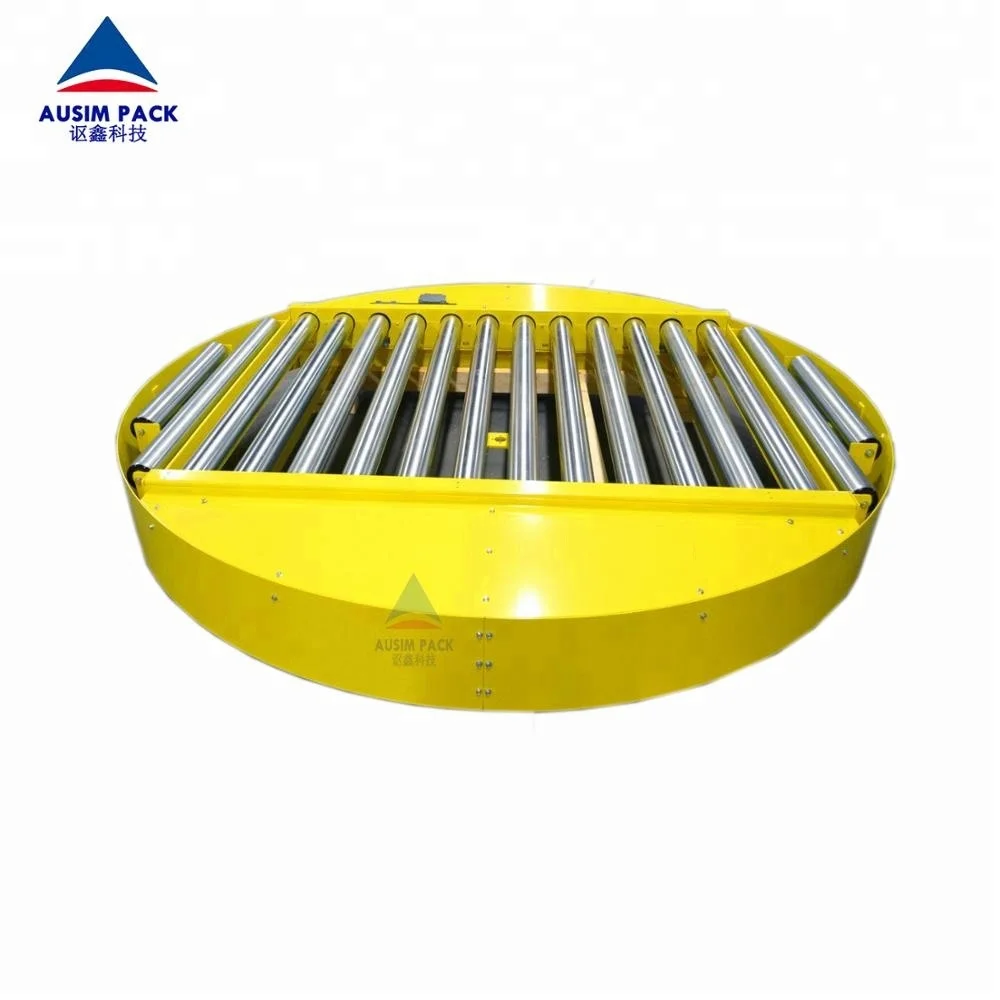

High Quality Grade Heavy Duty Turntable Conveyor With Roller Chain Slat Table For Pallet

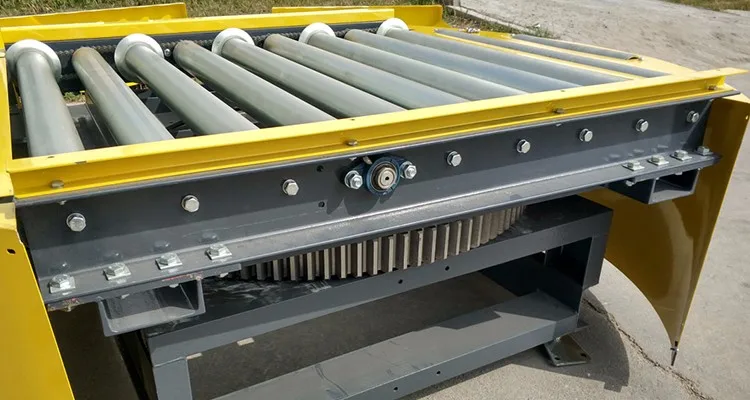

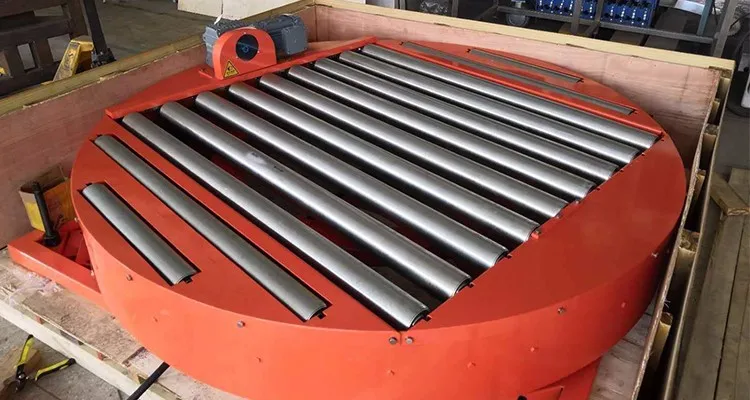

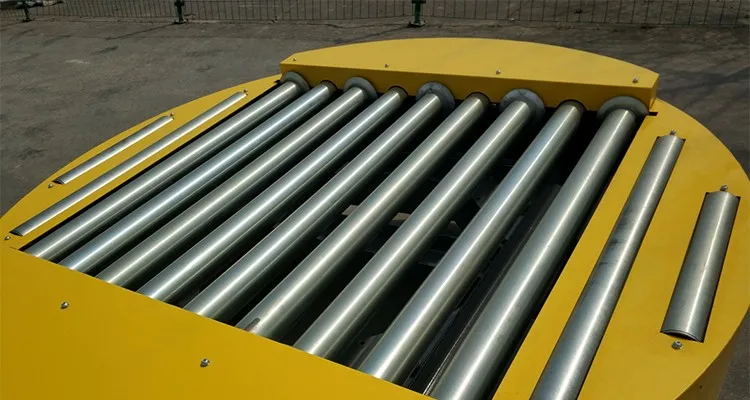

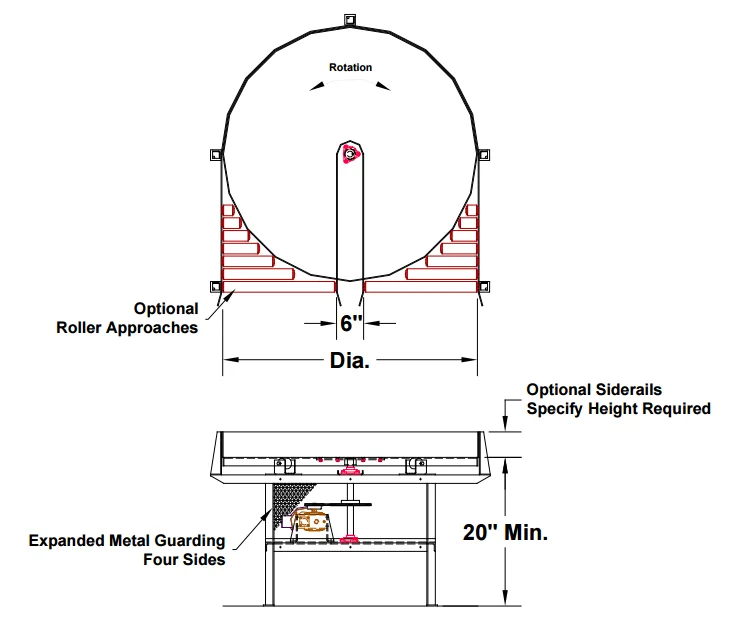

When your plant layout requires a directional change in the smallest possible space of your conveyor system, you should consider using a AusimPack Powered Turntable. The turntable conveyor can be used for product sortation, accumulation as well as directional changes. The AusimPack Turntable is available in sizes ranging from 2' diameter to 12' diameter. The standard table top is 7 gauge construction with angle iron supports. The top is driven by either chain and sprockets or air operated cylinder. The unit is furnished with expanded metal guards on all four sides. The unit can be supplied with chain and sprocket drive, air operated for 90 degrees rotation or no drive for manual indexing. Tops can be fitted with gravity roller or chain driven live roller conveyor to suit your application.

1. 90/180degree rotate for change pallet running direction optional

2. it can connect with pallet conveyor

3. heavy weight up to 2.tons

4. Revolving support structure that will more strong&stable

5. roller both side have apron that can be guide pallet running

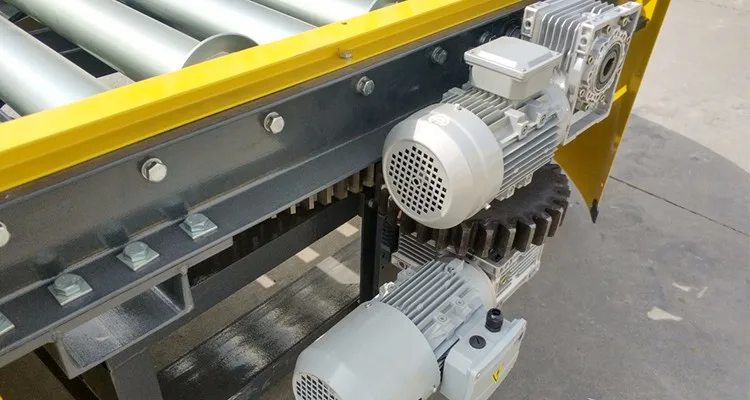

6.Taiwan CPG OR SEW Motor Optional

7.Mitsubishi Or Simens Inverter

8.Roller Spacing:100-150mm customized as pallet dimension

9.Conveyor speed:15M/min

10.Turntable diameter:2Meters

11.Frame Material: Galvanized steel with powder coat paint +SS304 protection guard

12.Working table 600mm+

13.2.5 R.P.M At Outside RIM

                   standard supports

                             structure supports

                        Micro adjust supports

                             casters

                     fixed sidetrails

        single axis adjustable sidetrails

               skatewheel sidetrails

                        working table

                         emergency stop

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

A: We are second packaging machine manufacturer in shanghai and workshop in Hangzhou city .and we provide perfect OEM and after-sale service.

A: We freely invite customer to watch video through our link on the youtube, we have to send customer installation video after placed order to us already .

A: there are two ways for customer ,one is visiting us to check all equipments and test by customer, another one is test and inspect by someone from customer.

A: We accept T/T And L/C only.
