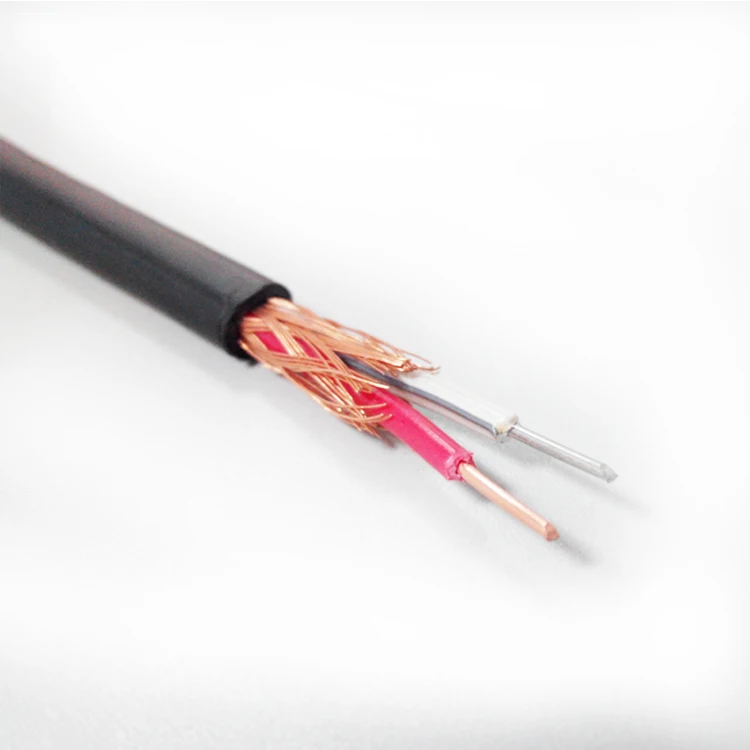

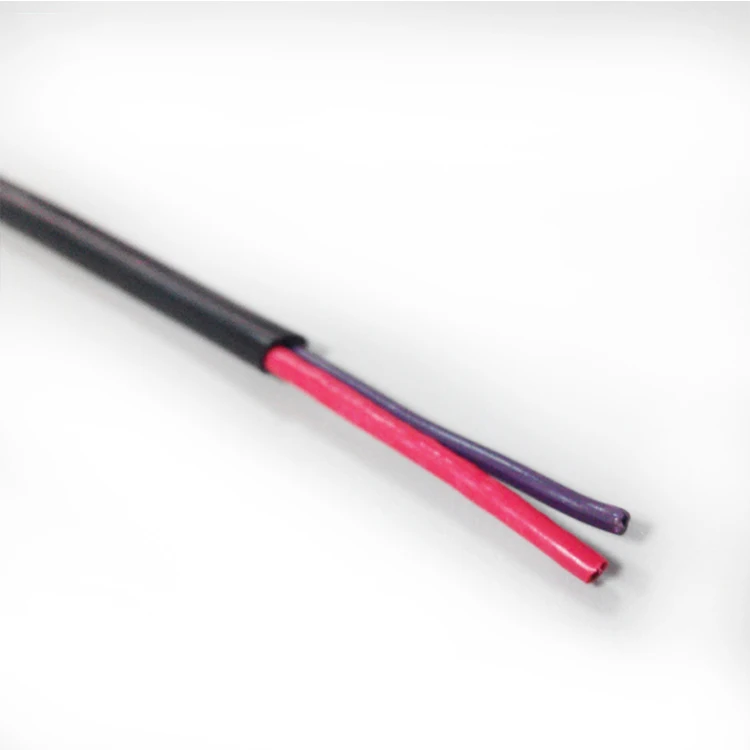

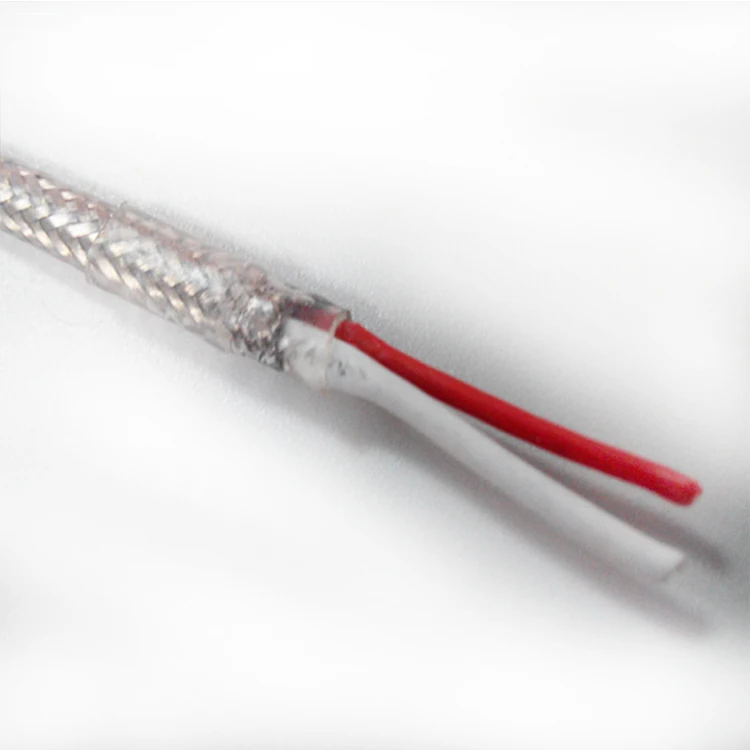

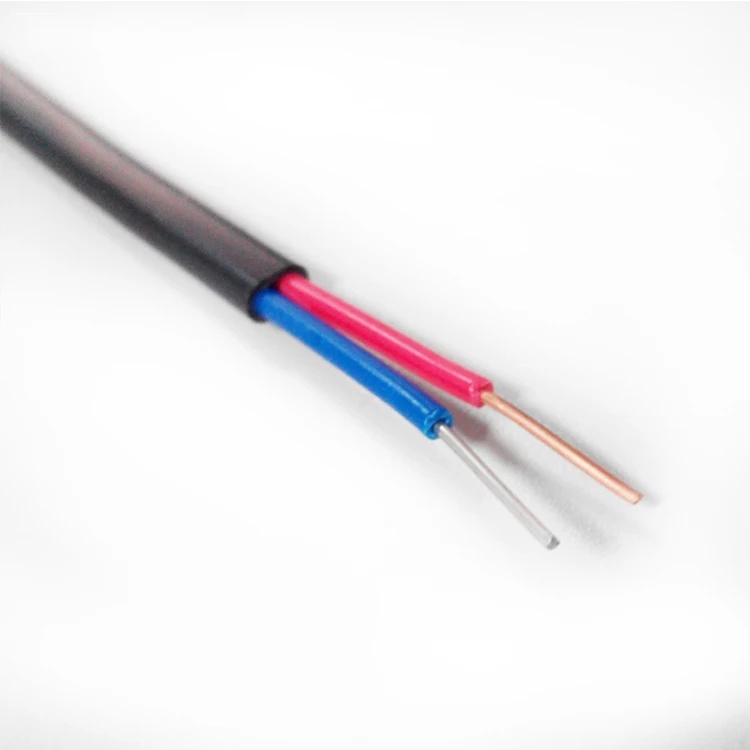

New Design Braided Thermocouple Wire For Sensor

Thermocouple compensation wire is specialized for connecting thermocouple with display instrument or control system,

including SC,KX,KC,NX,NC,EX,JX,TX,CC,DC types, the temperature range is -40~250℃.

Thermocouple compensation wire do help in thermocouple measurement accuracy

1.    Thermocouple:K,J,E,T,N,S

RTD:Cu,Ni

2.    Conductor dimension

Conductor square meter:0.2mm²(20AWG),0.5 mm²(24AWG),1.0 mm²,1.5 mm²,2.5 mm²

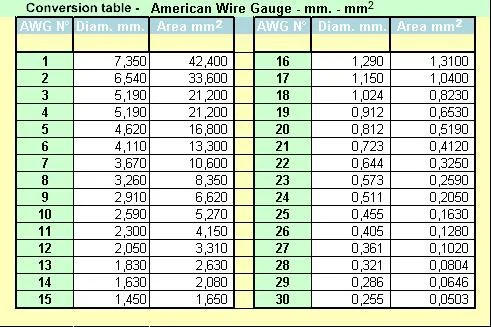

AWG standard

3.     Insulation layer material

V:PVC              0~105C

F:PTFE          0~260C

B:Fiberglass    0~180C

4.    Jacket layer material

V:PVC           0~105C

F:PTFE           0~260

B:Fiberglass     0~180C

5.     Shield material

P:Cu

     P1:Tinned brass
