Diesel gasoline fuel Magnetostrictive Probe Automatic Tank Gauge System(ATG)


SUPER SEPTEMBER DISCOUNTING!!!


we will refund payment to you in case of bad quality.



Please Attention


 We never said we are the best quality or the cheapest price,  but we always sure we are the right supplier, because we can offer:

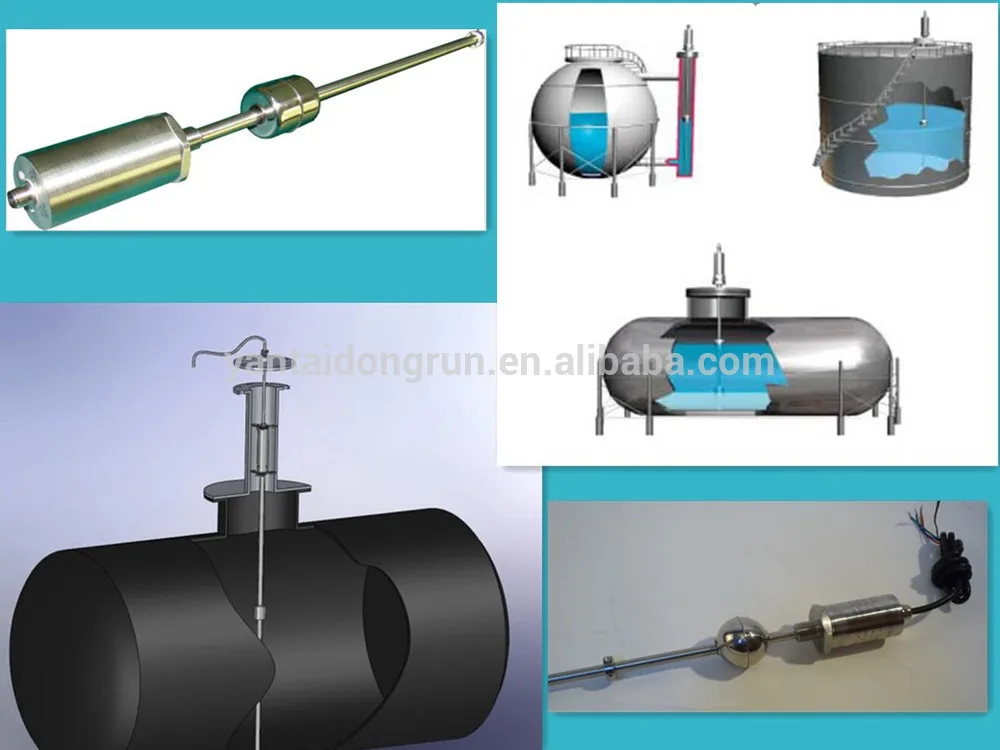

please attention.png1.jpg











Product Description


 Series DRCM-99 Automatic Tank Gauge System adopts magnetostrictive principle and belongs to a new generation of measuring instruments. The output is a absolute value, does not require periodic re-calibration and maintenance. Series DRCM-99 provide customers with current, voltage, ModBus, Profibus and other signal output and provide effective solutions in different applications. It can be widely used to measure and control liquid level of various tanks in petroleum, chemical, water, pharmaceutical, beverage, food and other industries. It also can be applied in measurement and monitoring of hydrological measurements, water treatment and other environmental and industrial measurement process.

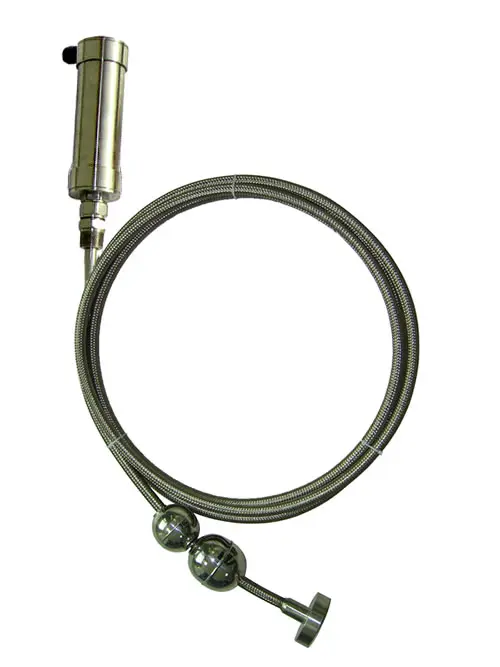

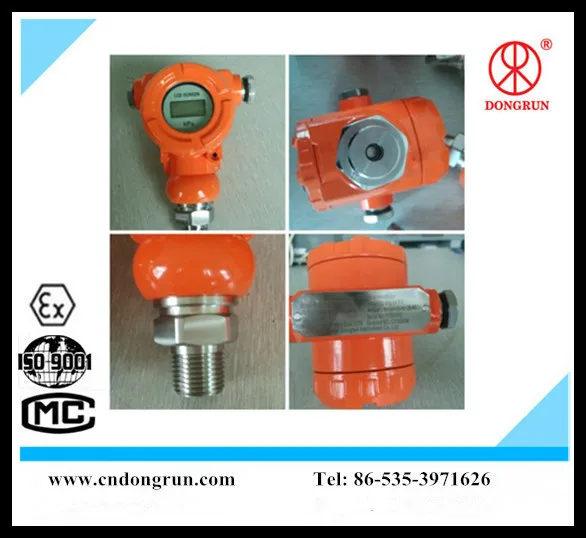

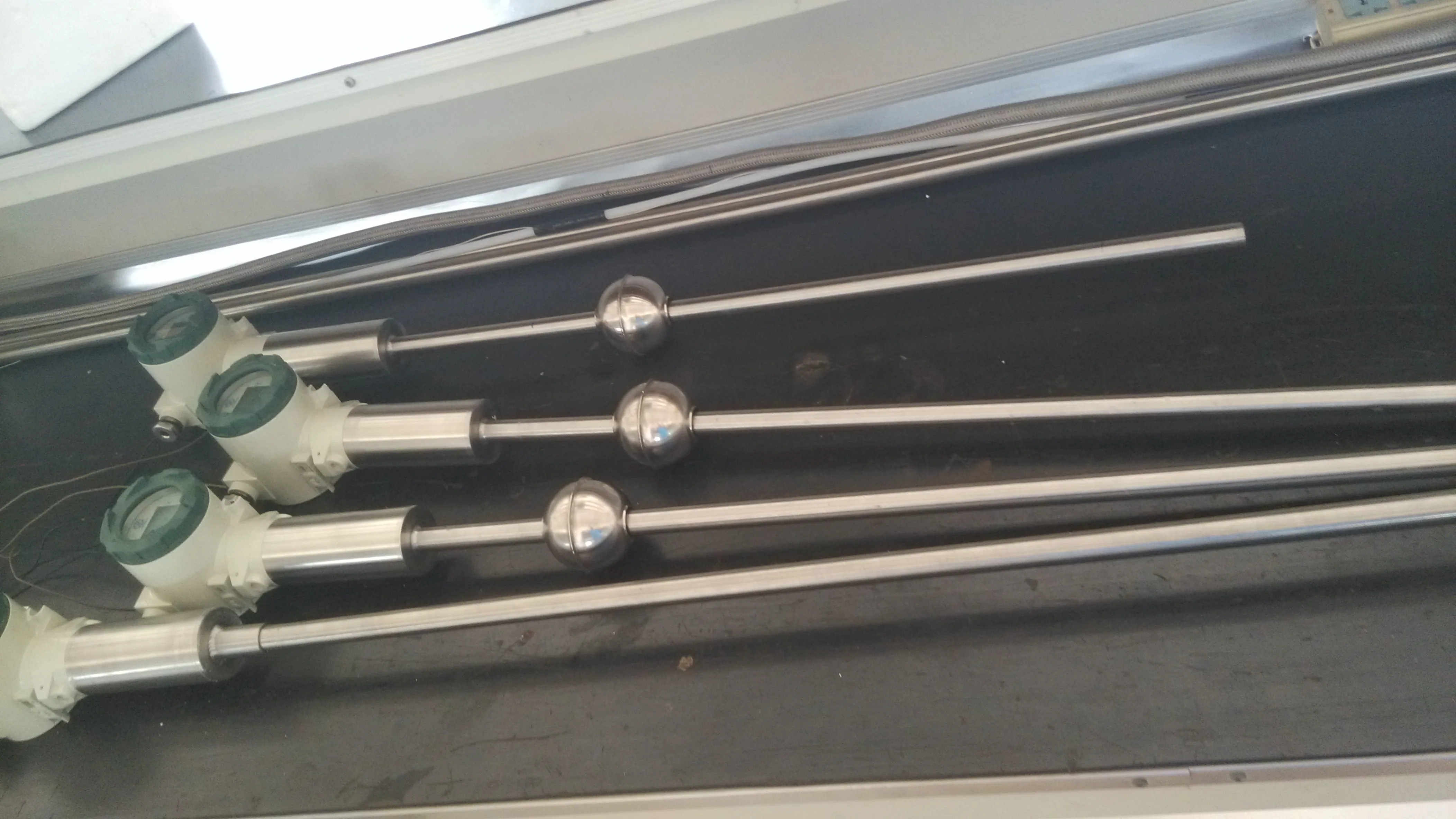

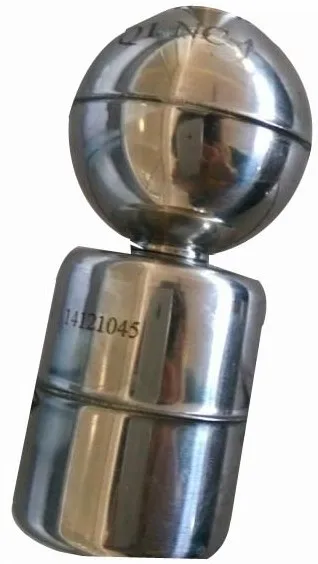

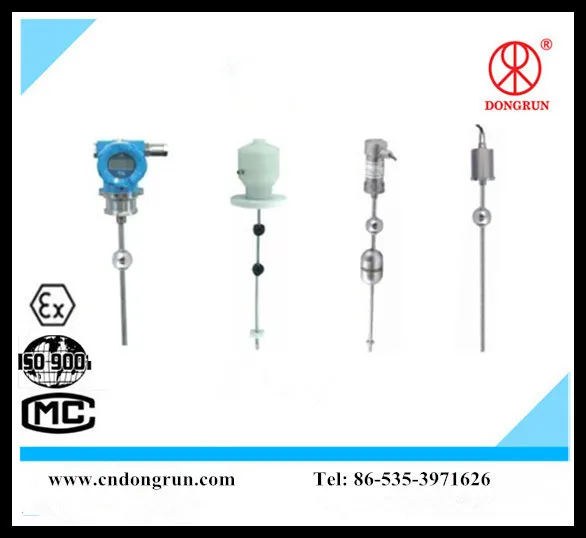

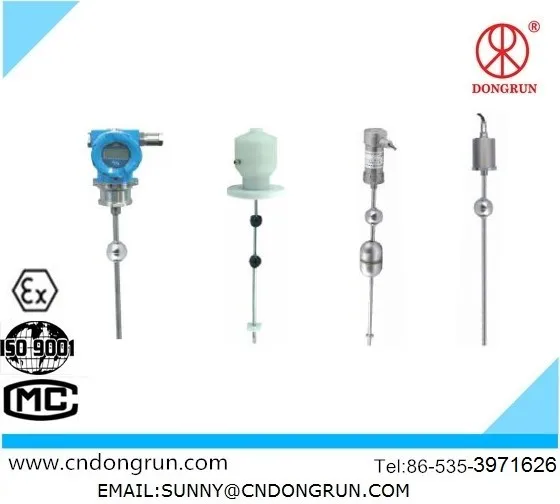

Product Display



























Features


Features of Automatic Tank Gauge System


 1. Simple structure, easy for installation .


 2. No signal drift


 3. No need for periodic calibration or maintenance.


 4. High accuracy, no wearing parts and reliable and durable.


 5.  Multiple choices of signal output mode


 6. Flexible cable types apply for the large range





Specifications


Automatic Tank Gauge System performance










































































Measurement output



Standard type:2-wire4-20mA(HART protocol can be selected.)


Digital type:ModBus, Profibus, multi-parameter( level, interface, temperature ( up to 5 points)


 Liquid level measurement Liquid level, interface, liquid level+ interface
 Measurement range 0. 50m to22m
 Accuracy The maximum between 0. 01 %F. S. and +0. 5mm
 Temperature outputUp to 5 single points temperature
 Temperature range -50 ~ +20
 Temperature accuracy ± 0. 25
 Power Supply 18-36VDC
 Output signal 4-20mA ,ModBus, Profibus
Explosion-proofExiaIICT6
 Ambient humidity 0-100% R.H.(not frost)
 Working temperature Electronic unit:-4 0  ~ +80  ;waveguide:-40  ~  +125
 Operating pressure Rely on the pressure the float can withstand
 Electronic Cabin Cast aluminum/304 stainless steel
 Probe materia 304/316L /304+PTFE or FEP
 Process connection Thread or flange connection

 Electrical interface



1/2” NPT thread

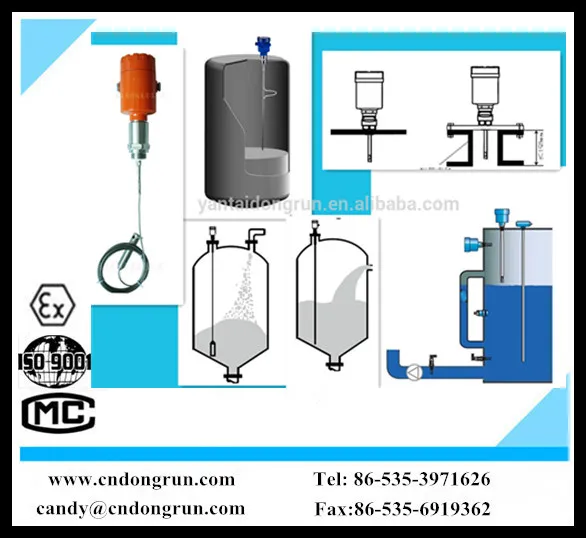

Product Installation


 3

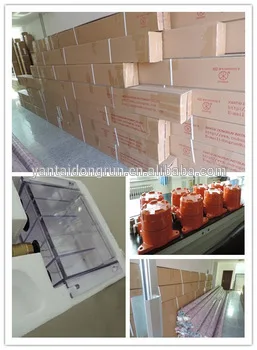

Packaging & Shipping


 Magnetostrictive level sensor


Packing Details : one unit in single carton.


Delivery Details : 7 working days after receiving the 100%  payment.


All kinds of transportation are accepted.


1

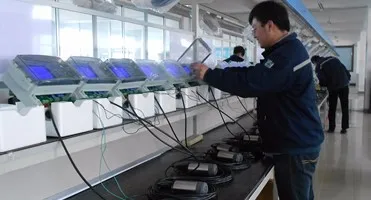

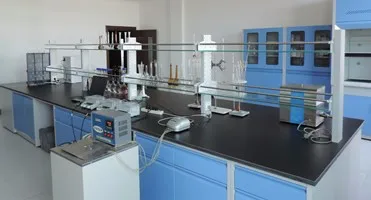

DORUN Workshop&Exhibition





1.jpg  .jpg

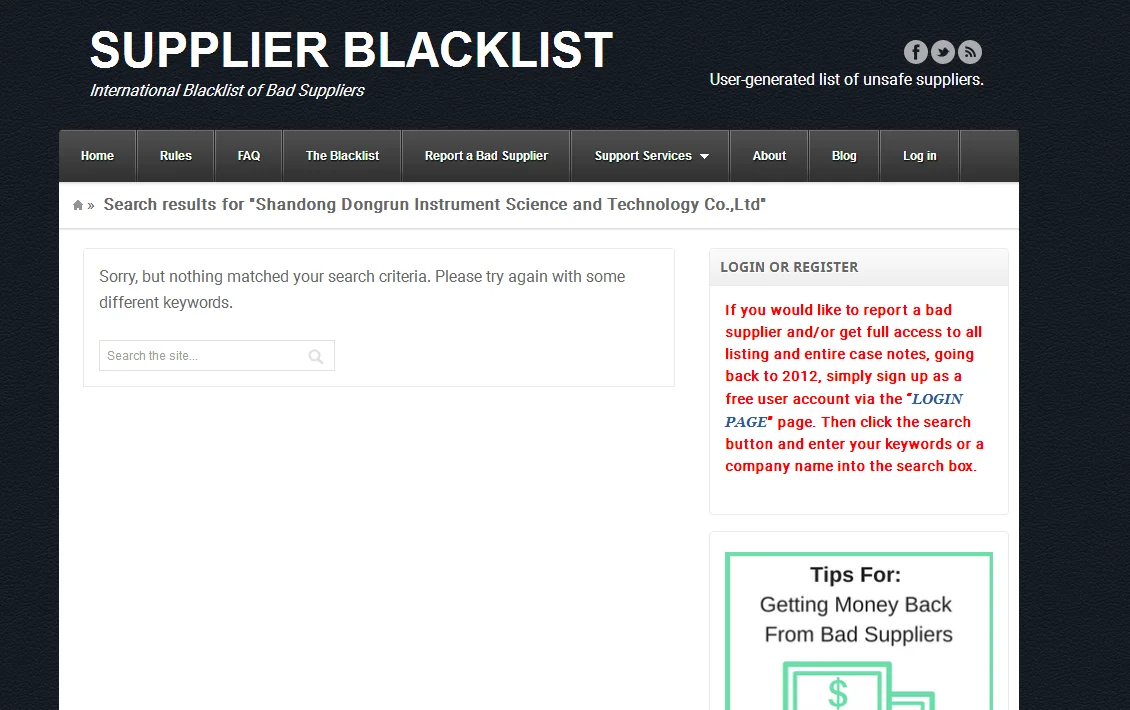

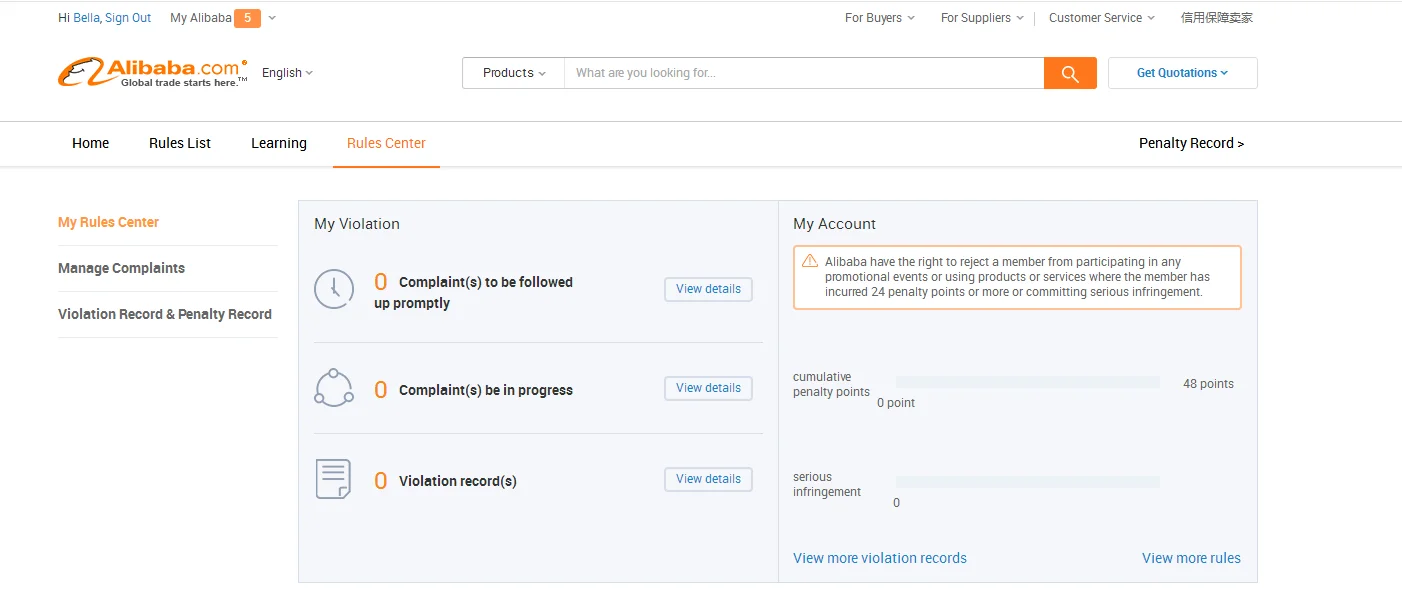

No any bad records, check China blacklist
