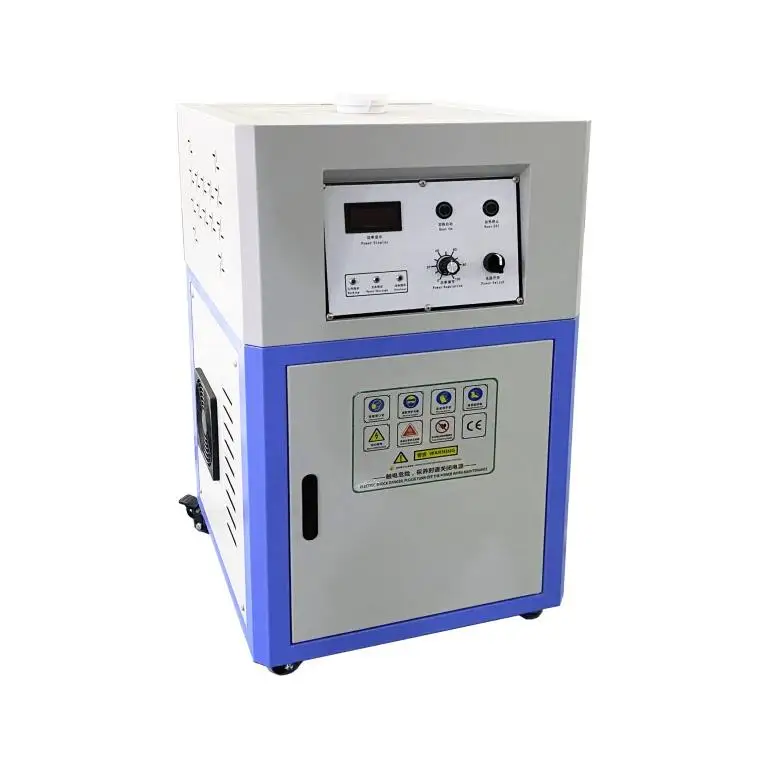

3 15 kg Electric Melt Furnace High Quality gold silver copper Induction Furnace
- Category: >>>
- Supplier: Zhejiang Cooldo Electromechanical Equipment Co. Ltd.
Share on (60799245536):
Product Overview
Description
DESCRIPTION
3-15 kg Electric Melt Furnace High Quality gold silver copper Induction Furnace
3-15 kg Electric Melt Furnace, which is suitable for melting precious metal like gold,silver,copper,zinc.etc. With speedy melting time could be realized within 1-5min. Based on the latest and most advanced IGBT induction technology, this small Gold Melting Kit can saves 15-30% energy than KGPS,100% full load,with low power consumption. the power supply varies from 5kw-25kw for this series furnace.
Feature:
1: CDOCAST Electric Melt Furnace can quickly smelt various metals, the smelting speed is 5 minutes

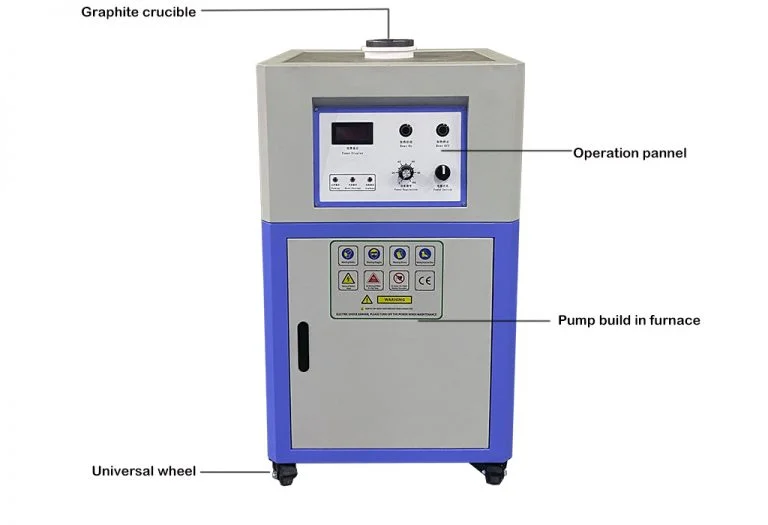

2: Graphite crucible is adopted and quartz protective sleeve is coated which greatly extends the service life of the crucible
3: Comes with The ability to work continuously for 24 hours which can meet the needs of large smelting capacity
customers
4: The color & size of the machine can be customized according to customer needs.
4: The color & size of the machine can be customized according to customer needs.
5: There is no need for an engineer to go onsite for installation . CDOCAST provides operating videos and complete instructions for use. users can learn how to use the machine in 30 minutes

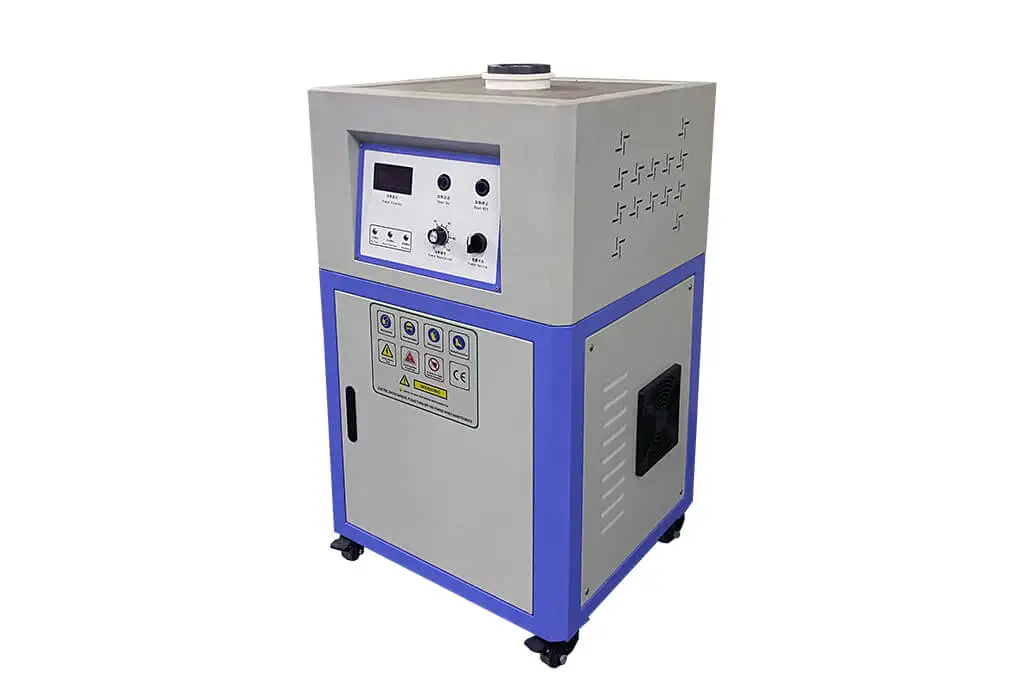

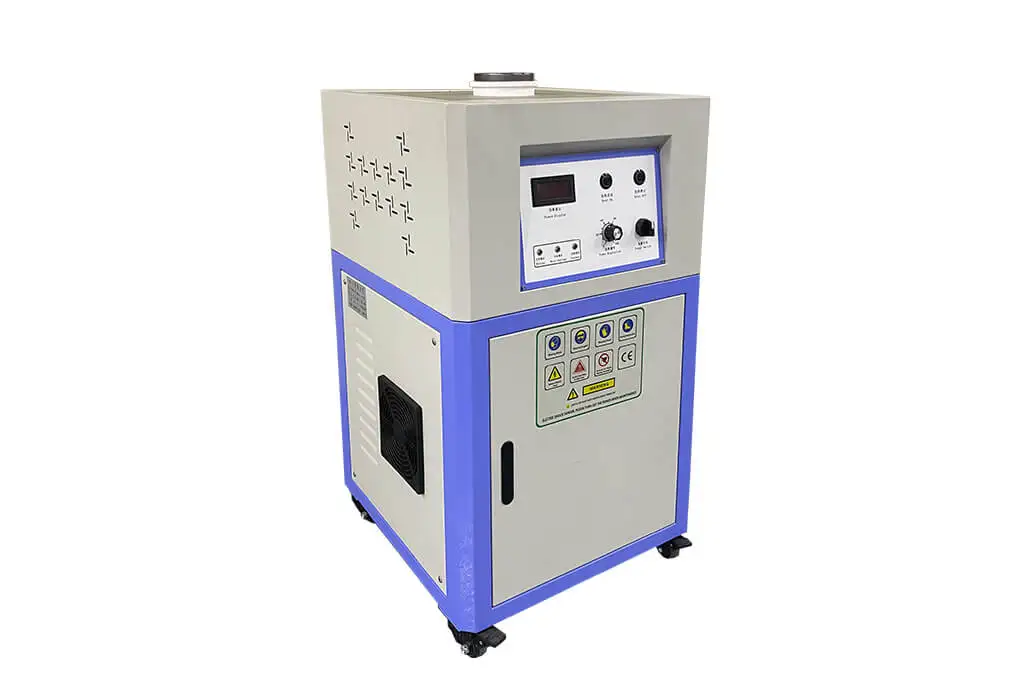

3-15kg Electric Melt Furnace

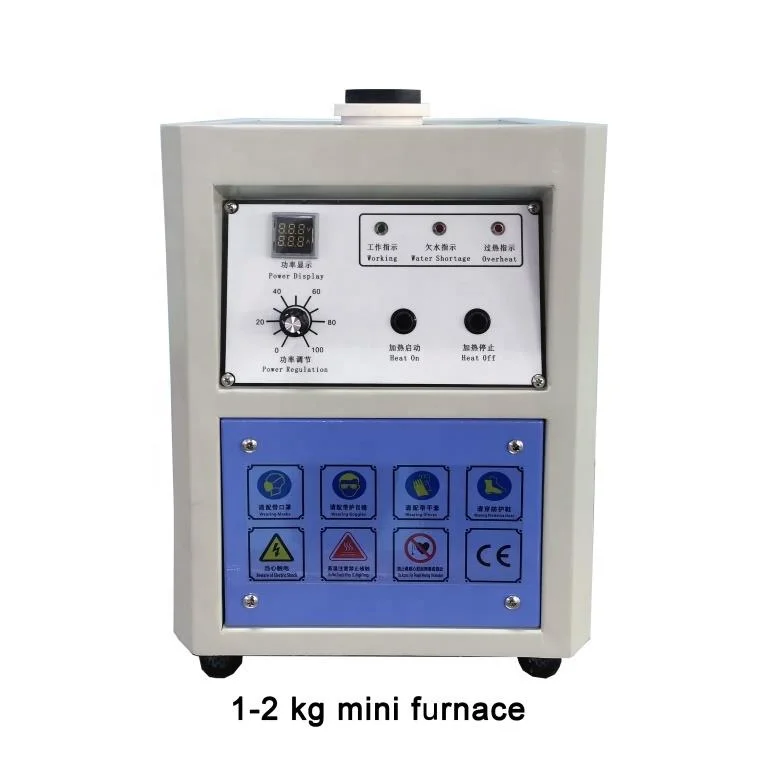

1-2kg mini gold melting furnace
Parameter
Model | CDO-FL26 | CDO-FL27 | CDO-FL28 | CDO-FL29 | CDO-FL30 | ||||
Applicable metal | Gold, Silver, Copper, Brass, Bronze, and their alloys | ||||||||
Voltage | 3P, 380 V, 50/60Hz | ||||||||
Power (adjustable) | 15kw | 20kw | 20kw | 25kw | 25kw | ||||
Weight | 72kg | 75kg | 78kg | 78kg | 78kg | ||||
Max Capacity | Gold: 4 kg Silver:2kg | Gold: 5kg Silver:2.5kg | Gold: 6kg Silver:3kg | Gold: 8 kg Silver:4kg | Gold: 10 kg Silver:5kg | ||||
Melting Time | 2-5min | 3-6min | 3-6min | 5-8min | 5-10min | ||||
Dimension (LWH) | 500*500*860mm | ||||||||
Max temperature | 1800℃ | ||||||||

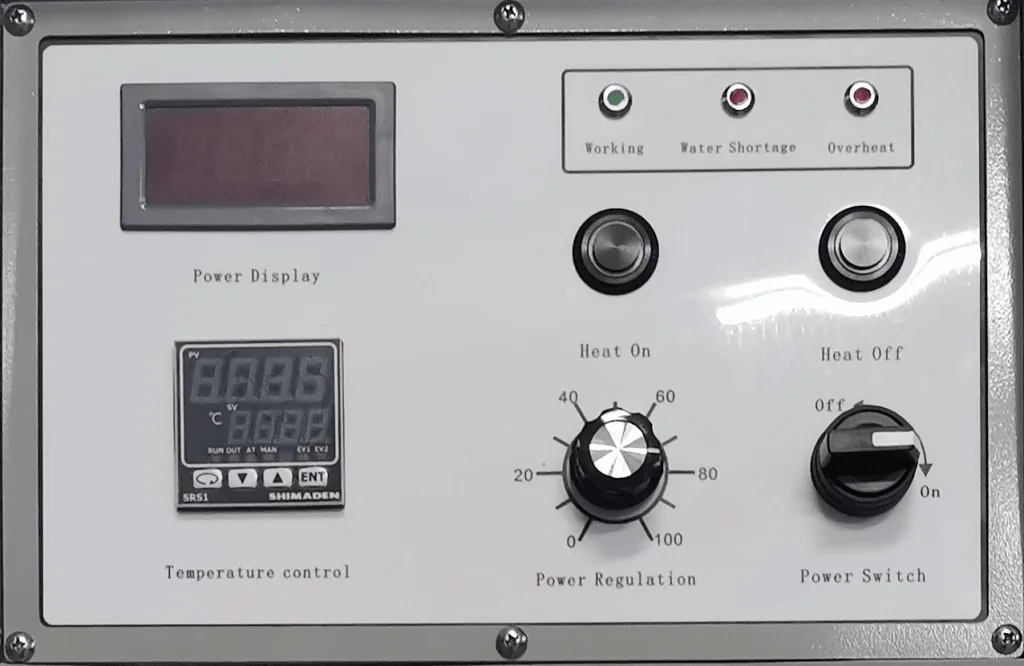

Temperature control k-type | Optional | ||||||||
Water pump | Equipped | ||||||||
Crucible size | Graphite crucible：Φ85*Φ60*136.5mm Quartz sleeve：Φ100*Φ80*136mm | Graphite crucible：Φ100*70*135mm Quartz sleeve：Φ120*Φ90*135mm | Graphite crucible：Φ105*70*155mm Quartz sleeve：Φ120*Φ94*153mm | Graphite crucible：Φ115*Φ78*183mm Quartz sleeve：Φ132*Φ106*180mm | Graphite crucible：Φ125*Φ90*183mm Quartz sleeve：Φ143*Φ112*182mm | ||||

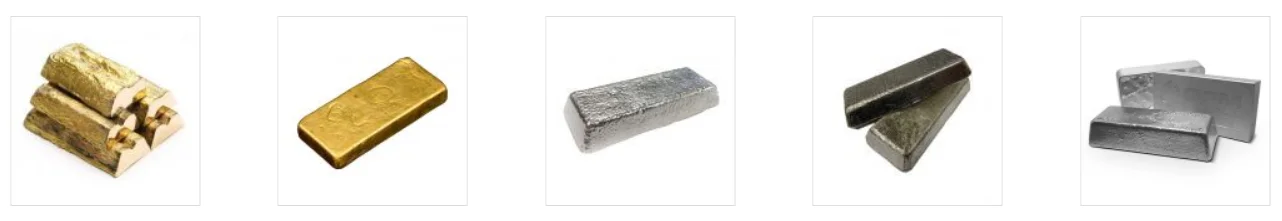

Application
Related Products
Click picture for more details！

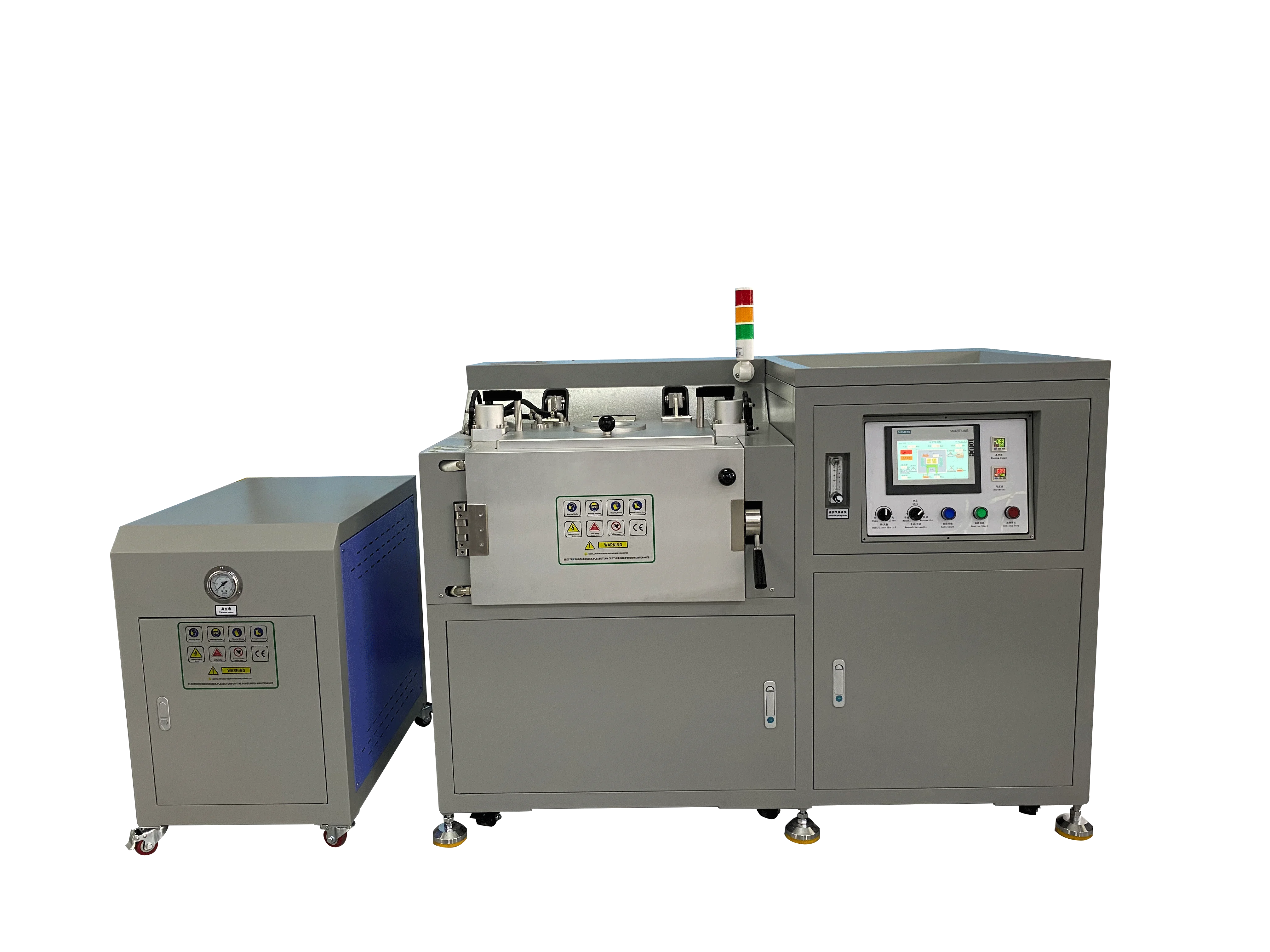

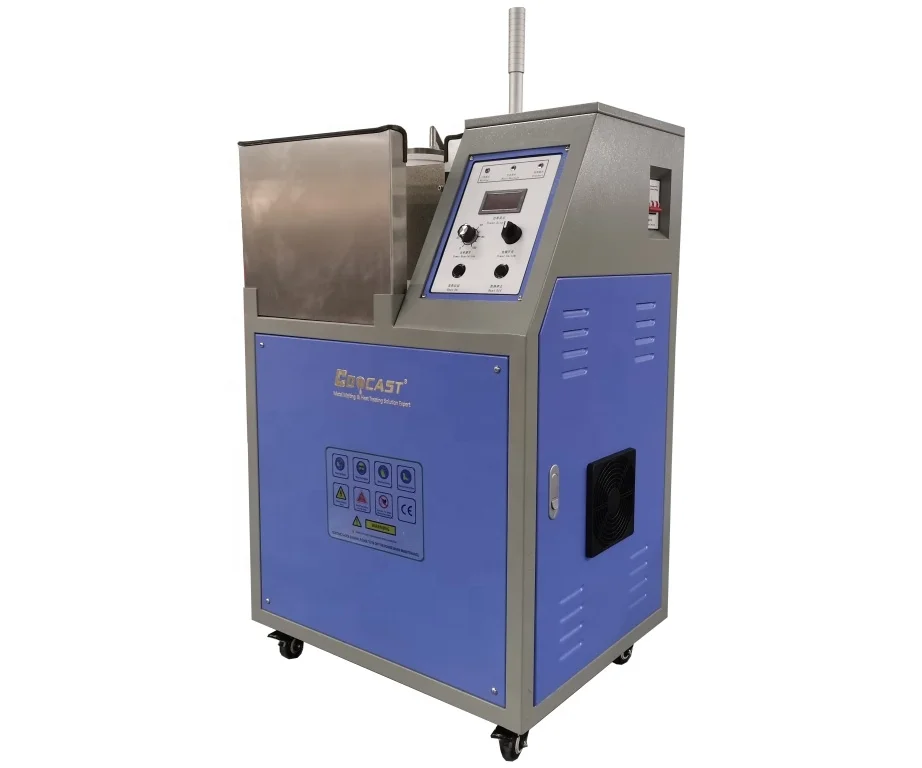

1-2kgGold Melting Furnace 4-20 KG Gold Induction Melting Furnace Gold Bullion Making Machine
Packing & Delivery
Factory
Customer Photos
FAQ
1. What is your advantage compared to others?
2. If our machine meets fault, how could you help us to solve it?
3. what is your warranty?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
