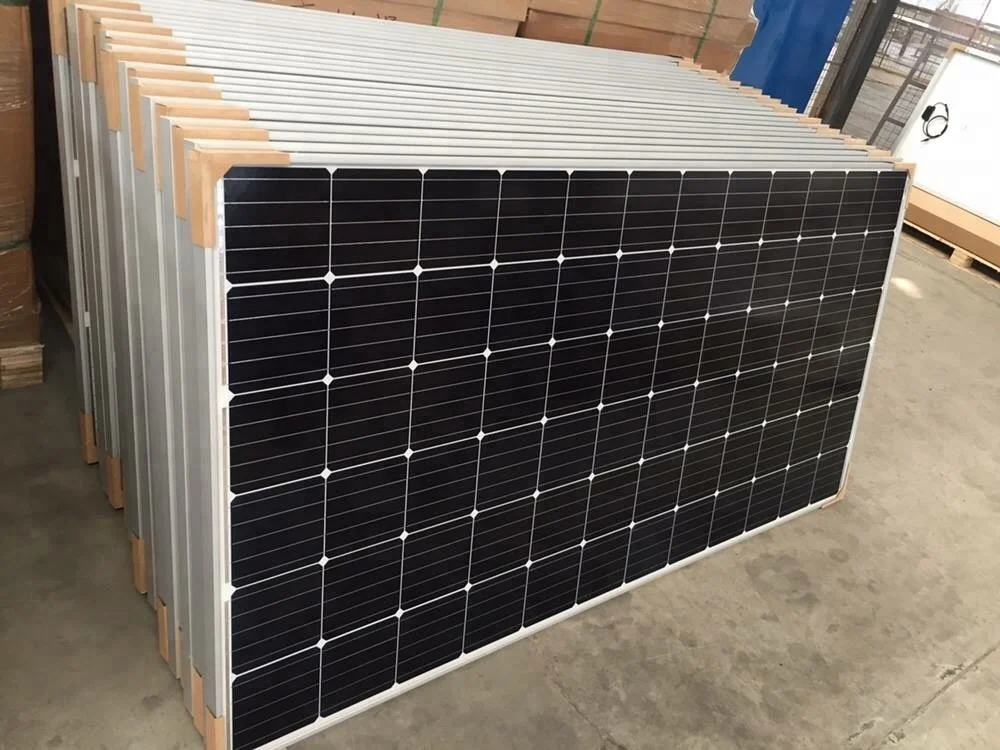

A grade 350w 360w 380w 36v mono solar panel PV solar power panel price

Product Overview

Description

                   350W 360W 380W Mono solar panel

1.Technical Parameters

Electrical Characteristics
ITEM NO.	M72-350	M72-360	M72-380
Maximum Power at ST(Pmax)W	350WP	360WP	380WP
Maximum Power Voltage(Vmp)V	38.39V	38.59V	40.5V
Maximum Power Current(Imp)A	8.90A	8.90A	9.39A
Open Circuit Voltage(Voc)V	47.13V	47.29V	48.9V
Short Circuit Current(Isc)A	9.48A	9.55A	9.75A
Cell Efficiency(%)	20.20%	20.70%	20.7%
Module Efficiency(%)	17.80%	18%	18%

2.Detailed&Production

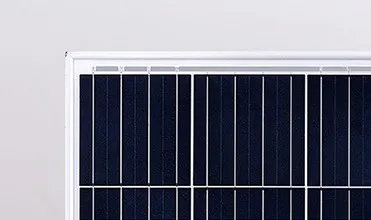

Glass > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years (30 years optional)

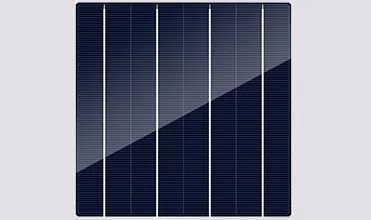

Solar Cell > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID

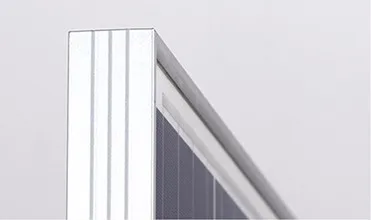

Frame > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serrated-clip design tensile strength > Seal-lip designglue injection

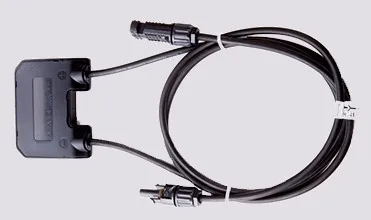

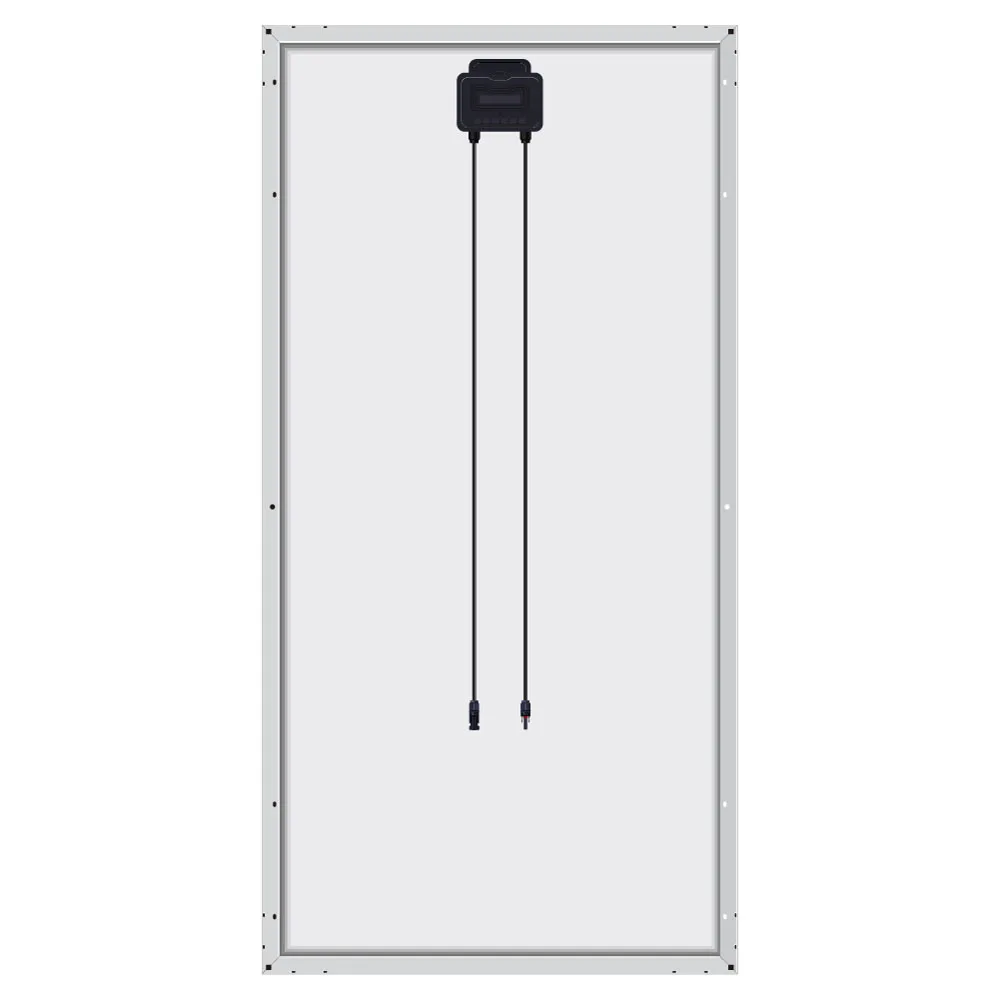

Junction box > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP67 protection level > Heat dissipation > Long service life

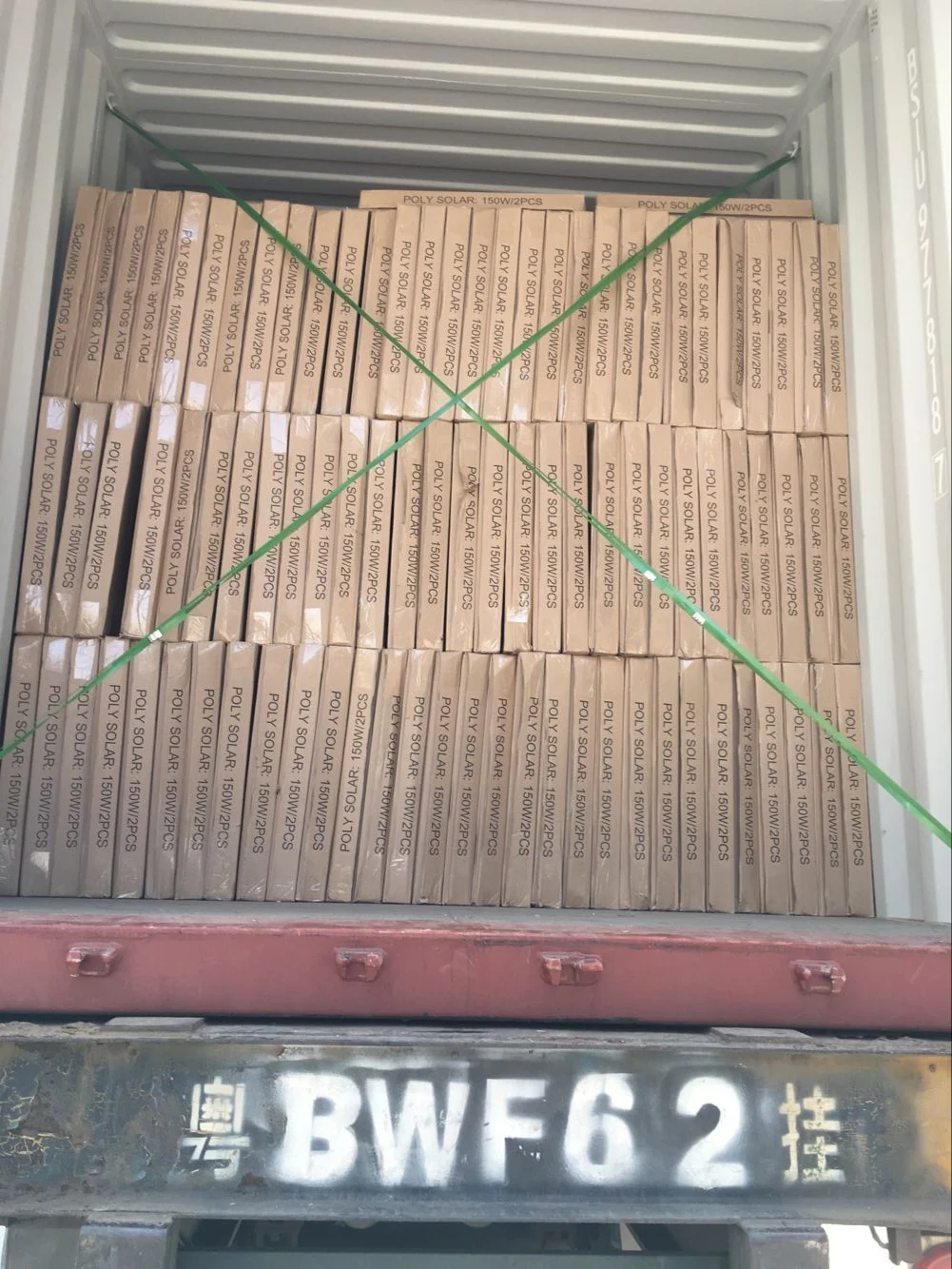

3.Package:

Package 1: No package: 20GP : 360PCS  40HQ:900PCS



Package 2 2pcs in one carton box  20GP :330PCS 40HQ :720PCS

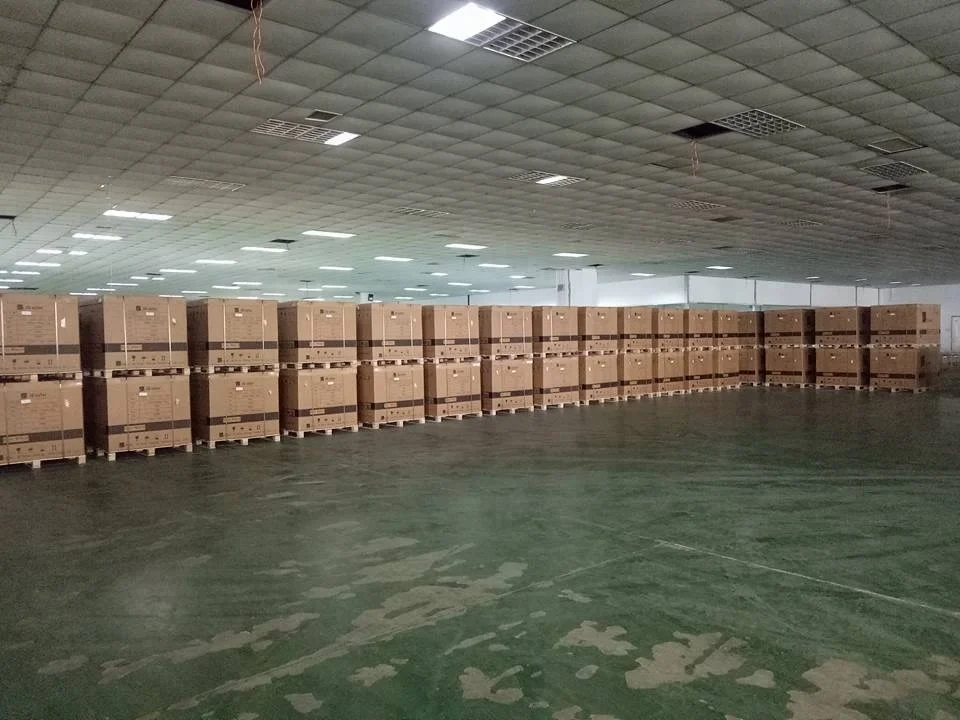

Package 3 27pcs in one pallet  20GP :300PCS 40HQ:700PCS

 4.Factory :

5.Certification :



 6.Project :

7.Payment :

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container



8. Related Products





9.FAQ

1.Q:Are you factory ?
A: Yes , welcome to visit my factory .

2.Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3.Q: Do you provide free sample?
A: Yes , pls contact with me to get more detail .
4.Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM , accpect MIX Order and Min order .
5.Q: tell me the standard of package?
A: Plywooden box pallet or carton box pallet.
6.Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
7.Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have professional engineers team, they can teach you how to install a solar system.
