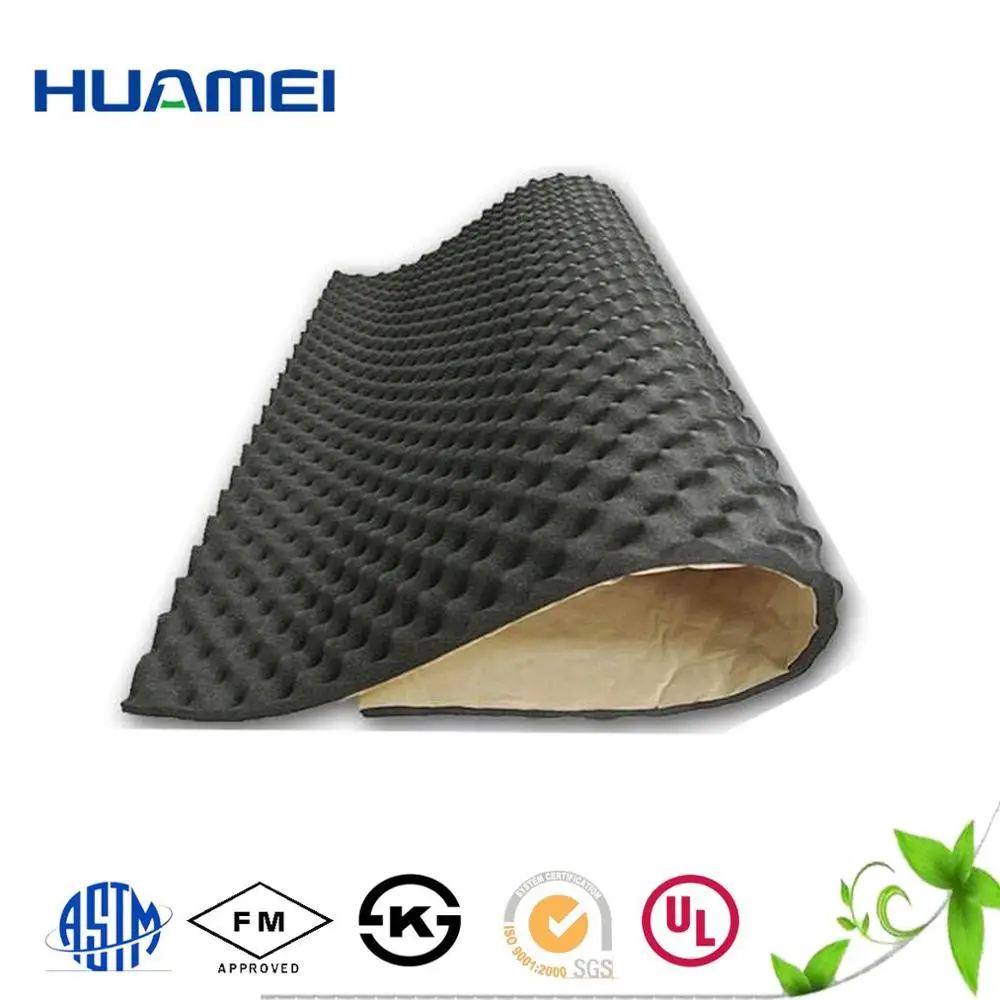

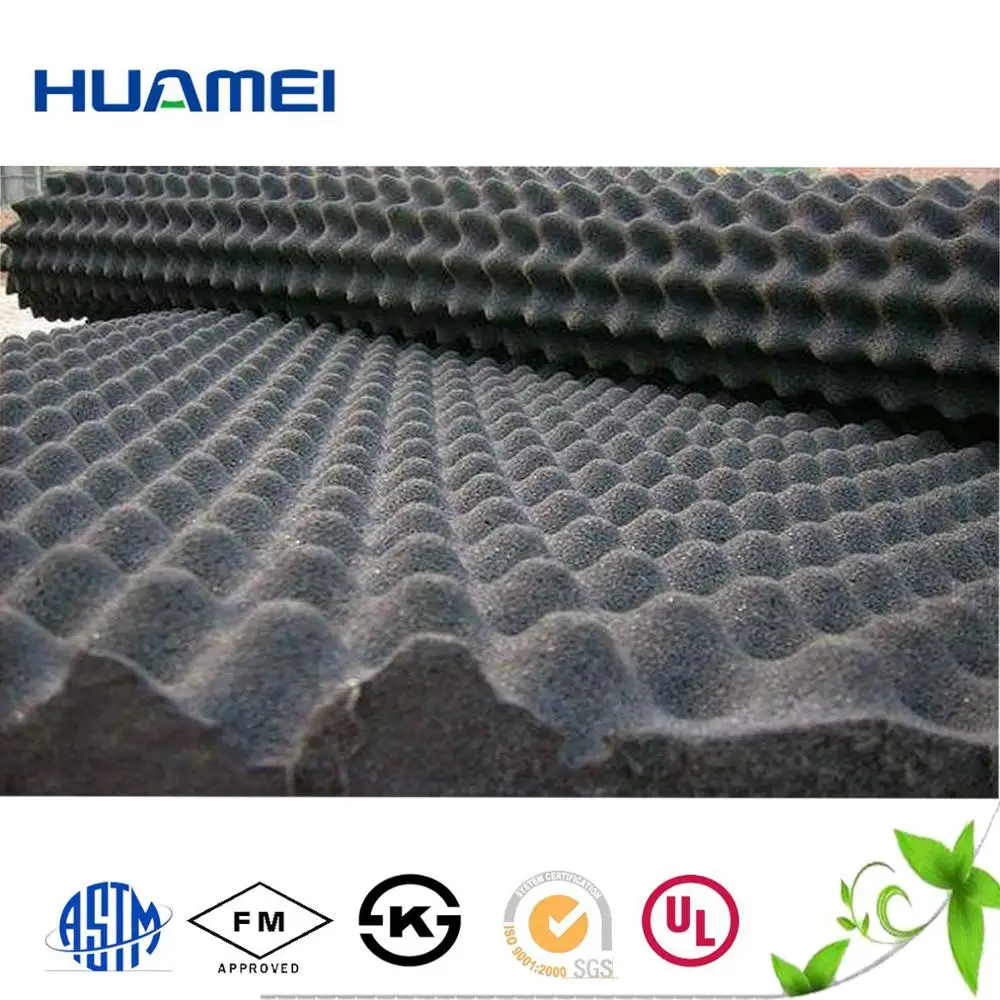

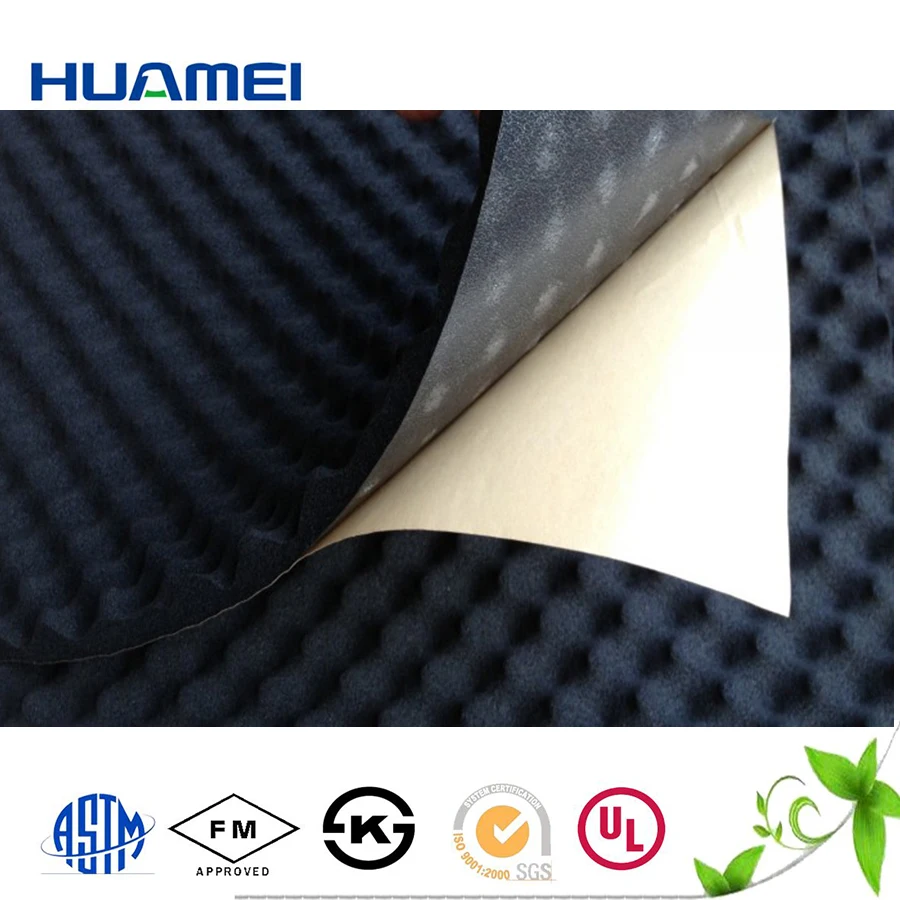

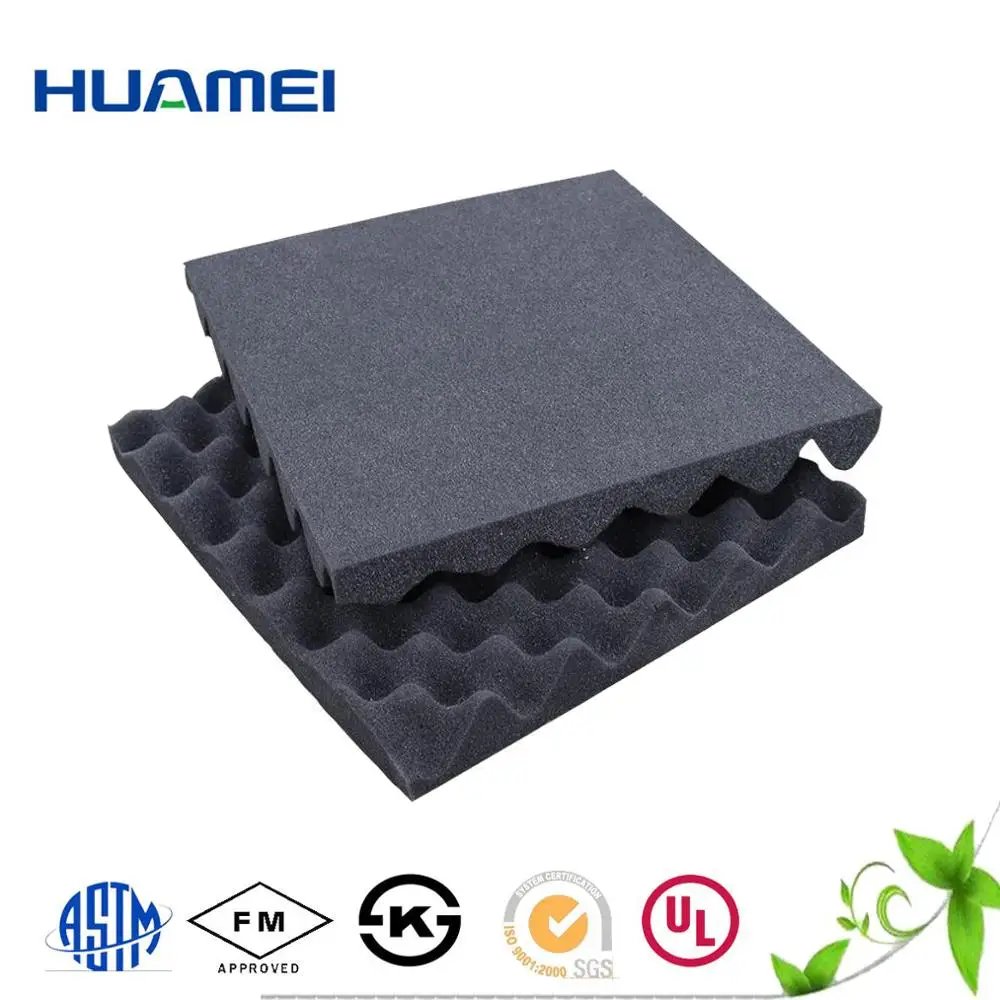

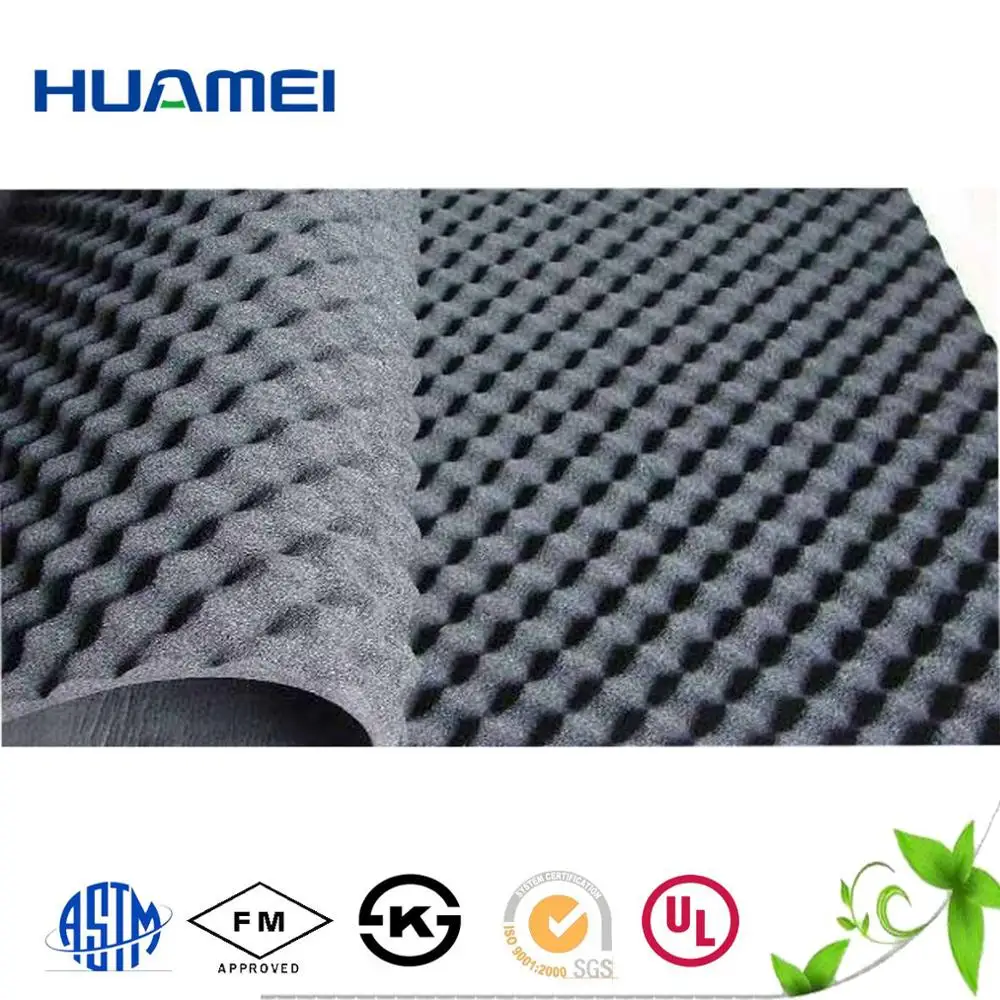

- sound proofing foam egg crate/sound absorbing egg shell PU foam
sound proofing foam egg crate/sound absorbing egg shell PU foam
- Category: >>>
- Supplier: Huamei Energy-Saving Technology Group Co. Ltd.
Share on (60799266619):
Product Overview
Description
Huamei Rubber Foam
Specifications of Acoustic Insulation foam.
| Thickness | in (mm) | 1/2" to 2 -1/2" (13mm to 65 mm) |
| Length and Width | in (mm) | According to actual situation |
| Packing | Carton or By Roll |
Our products
Specification & Data
| Standard Specification of Sheet | |||||
| Thickness | 10mm | 15mm | 20mm | 25mm | 30mm |
| Length | 16m | 16m | 8m | 8m | 8m |
| Width | 1m ,1.2m ,1.5m | ||||
Note :
1.The above specifications are those in common use ;special specifications are available at customer’s request .
2. Rubber foam sheet and tube are normally in black .Other colors are available at customer’s request .
3. It is recommended to use sheet where outer diameter of tube exceeds 89mm .
4. Multilayer packing is recommended where the thickness of heat insulation materials needs to be greater than 25mm .
5. The width of sheet are available at customer’s request for a scope of 1m to 2m .
2. Rubber foam sheet and tube are normally in black .Other colors are available at customer’s request .
3. It is recommended to use sheet where outer diameter of tube exceeds 89mm .
4. Multilayer packing is recommended where the thickness of heat insulation materials needs to be greater than 25mm .
5. The width of sheet are available at customer’s request for a scope of 1m to 2m .
| Item | Unit | Specification | Standard | |
| Density | Kg/m3 | 50-55 | GB/T 6343 | |
| Temperature | C | -40 -110C | GB/T 17794 | |
| Flammability | Class-0 | BS476Part7&Part6 | ||
| Oxygen index | % | ≧40 | GB/T 2406 | |
| SDR | ≦65 | GB/T 8627-1999 | ||
| Conductivity factor -20C 0C 40C | W/M•K | ≦0.031 ≦0.034 ≦0.036 | GB/T 10294 | |
| Water vapor permeability | Factor | ≧1.0×106 | GB/T 17146-1997 | |
| Coefficient | g/(m.s.pa) | ≦1.96×10-11 | ||
| Water absorption ratio in vacuum | % | ≦10 | GB/T 17794-2008 | |
| Dimension stability 105±3C ,7d | % | ≦10 | GB/T 8811 | |
| Crack resistance | N/cm | ≧2.5 | GB/T 10808 | |
| Compression resilience ratio Compression ratio 50% Compression time 72h | % | ≧70 | GB/T 6669 | |
| Anti-ozone | Not cracking | GB/T 7762 | ||
| Aging resistance | Slightly crumpling ,no cracks ,no pin holes ,not deforming | GB/T 16259 | ||
APPLICATION
At HUAMEI we have worked with a number of industries, in the CN and internationally, supplying the products and services needed for specific applications. That’s why our range of sponge rubber products has been used in many applications, some of which include:
Defence industry
Aerospace industry
Motorsport industry
Marine industry
Medical industry
Our Company
Huamei Group.
Huamei Energy-saving Technology Group Co.,LTD is a professional manufacturer since 1990, production and sales of rubber foam insulation ,glass wool, rock wool .Huamei products are widely used in Beijing Olympic National Stadium Bird’s Nest, Shanghai World Expo, and other famous Projects, and to be exported to Europe, South America，Australia, Southeast Asia，Africa ,and other countries.
Our Exhibition
Our Service
Why Choose us.
1.Production---We are professional manufacturer
2.Technology--- Adopt international advanced technology,high product purity.
3.Service---Any inquires will be replied within 24 hours. Perfessional sale and technical term.Long export and market experience.
4.Quality---We have passed FM Approved，CE certificate， ASTM, BS 476， ISO9001, ISO14001, ISO18001,Test report and Certification.
FAQ
1. Are you manufacturer of trade company?
We are manufacturer of rubber foam and glass wool, More than 20 Years
2. What's the MOQ. Can i get a sample of free?
We can offer sample of free, Pls bear the freight.
The MOQ, According to the actual situation
3. How long we can get the goods?
Produce and loading within 3-5 days, When we got the payment.
4. Can we do the OEM , Or do the Huamei Brand?
We will offer the OEM.
Do the Huamei brand, we can offer long-term support.
