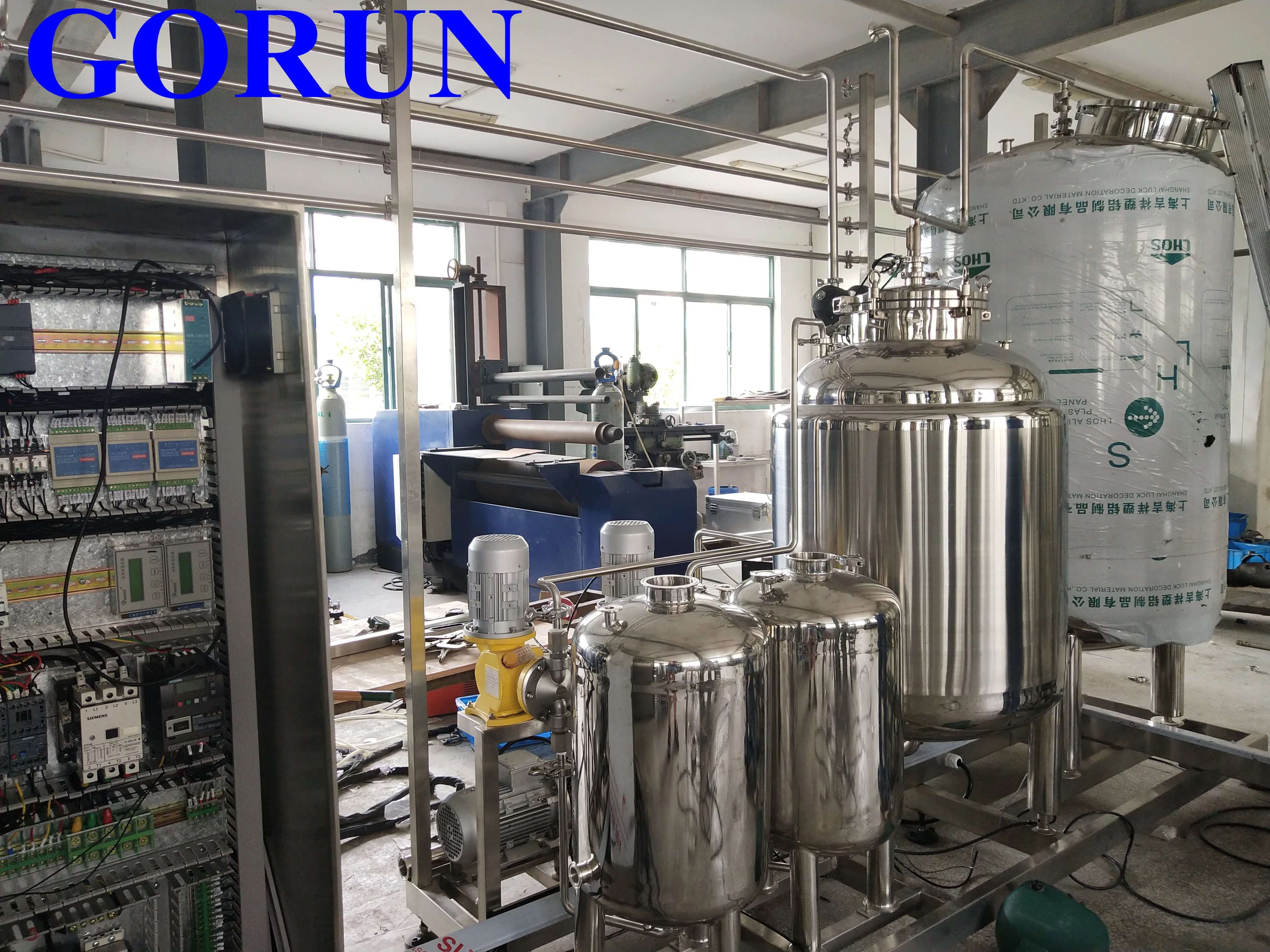

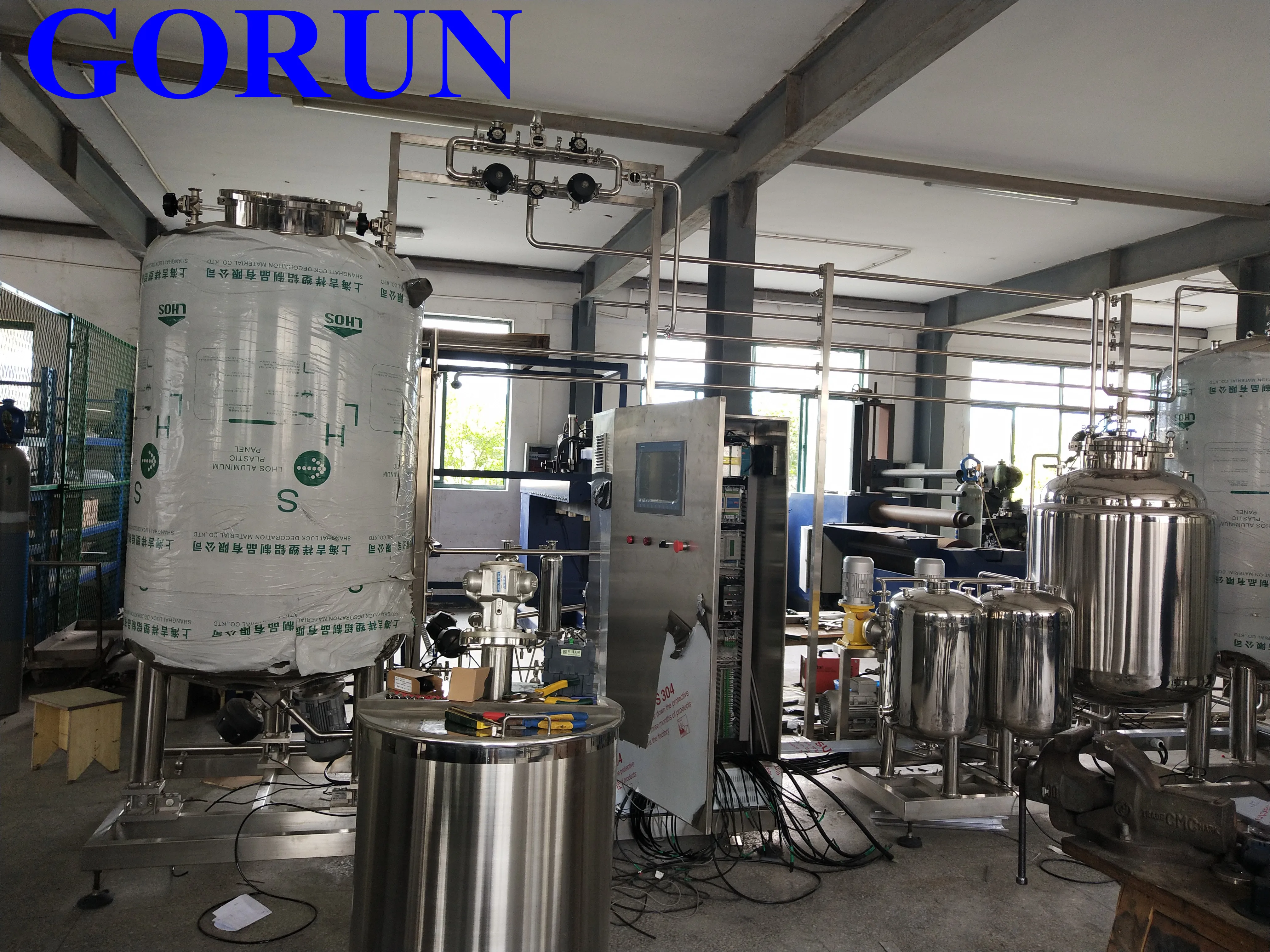

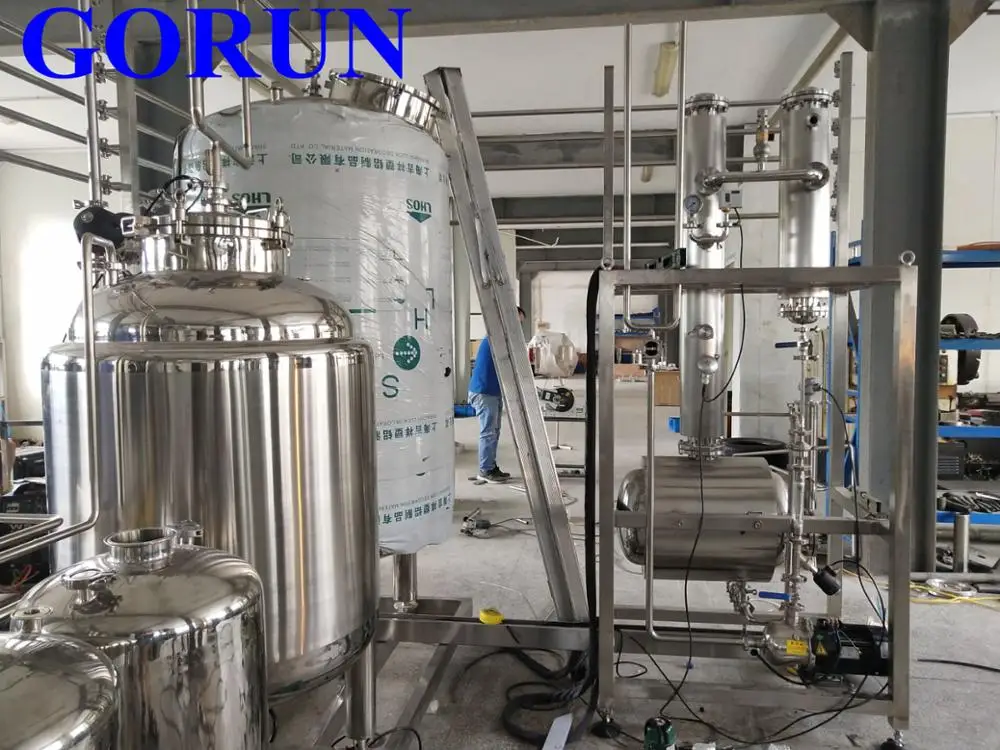

Chemical dispensing unit pharmaceutical laboratory filter unit

The system mainly controls the sub-process
Concentrated gamete process: after the feeding of the concentrated preparation tank, the control process of adding injection water, stirring, self-circulation and water temperature of the concentrated preparation tank is performed automatically.
Dilute gamete process: complete the liquid delivery, stirring, volume control, water temperature control and other operations from the concentrated preparation tank to dilute preparation tank.
Canning process: after the liquid preparation is completed, the control process of transporting the liquid from the dilute dispensing tank to the canning machine is realized.
Cleaning subprocess: according to the user's requirements, the realization of small clearance, large clearance automatic control operations.
Sterilization process: according to the requirements of the user, the sterilization process of the tank or the tank and pipeline is automatically completed.
Dilute distribution tank switching control: when dilute distribution tank 1 is finished in canning, automatically and quickly switch the canning process to the automatic process of dilute distribution tank 2.

Product Process

Mixing Type

                 Emulsifier                            Bottom Emulsifier Head              Magnetic Agitator

The Liquid Distribution System For Tank
Mixing Type(speed)	Advantages & Appilcation
Paddle(0~120rpm)	Suitable for low viscosity liquid.such as milk,beverage,beer etc.
Scrape(0~80rpm)	Petrochemicals, pesticides, fine chemicals, high polymer, pharmaceutical, food, cosmetics, dyes, paints, water treatment and other industries.
Frame(0~120rpm)	Suitable for stirring porridge-type material
Anchore(0~120rpm)	Suitable for stirring medium viscosity material
Emulsifier/Bottom Head (0~2800rpm)	Food (dairy) products, beverage, pharmaceutical, chemical and other industries, the material for mixing, emulsifying effect
Magnetic agitator (0~2000rpm)	Well sealed, no pollution, no leakage. Pharmaceutical, fine chemicals, cosmetics, biotechnology and other industries

Application

Our Company

Brief Introduction
    Shanghai Geyuan machinery technology co., LTD. deprived from 1993,Is committed to the design, production and installation and commissioning of equipment in medicine , food, chemical industry and electronics industry for more than 23 years.

     It mainly includes stainless steel tanks water treatment equipment, complete reactor and tank, CIP online cleaning and process automation control and pipeline installation.

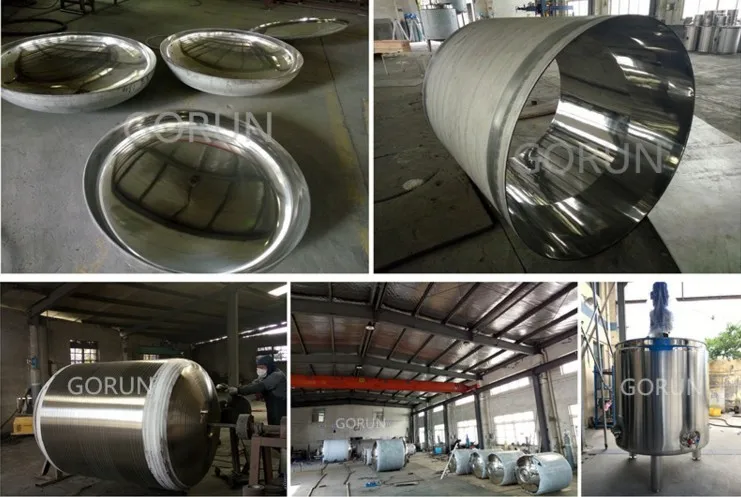

Workshop

Customers

Fair show

Main products

1.Stainless Steel Tanks(mixing tank, emulsifying tank,

 fermentation tank, storage tank, )

2.Water purification system

3.CIP Online cleaning system

4.Shell and Tube Heat Exchanger

5.Jacketed Cooking Kettle.

6.Sanitary pump series. etc.

Want more...

Our Service

Pre-sale service:

♦ We would like to supply you all the details you need.
♦Provide drawings according to your requirements after we get your company information.
♦ Make customized products according the drawings.

After-sale service:

♦Provide lifetime after-sale technical support.
♦If necessary,our technicians can go to debug the machine with air ticket,visa,accommodation and labor cost provided by your party.
♦ You can consult any relevant questions by phone,E-mail and communicate online.

Packing & Delivery

Packing: Plywood or wooden cases (customer required ) for Paint Production Plant/paint Making Machine/paint Mixing Tank

Delivery: About 15-45 working days after your payment for Paint Production Plant/paint Making Machine/paint Mixing Tank

FAQ

Are you manufacturer or trading company		Gorun is a professional manufacturer and trading company
What kind of equipment you can supply		Stainless steel,filter catridge& housing,water purification&CIP system and other customized products
Can we use our own design		Yes,every design is welcome. Please give us your requirements.(Customized)
How long will the warranty be		12 Months
How about your packaging and shipping time		Packaging: neutral plywood and wooden box packaging according customers' requirements. Delivery: normally 15-45 days after payment and we promise we will delivery as soon as possible.
What the payment terms		L/C,D/A,D/P,T/T,West Union/Money Gram/Paypal and others

Related Products

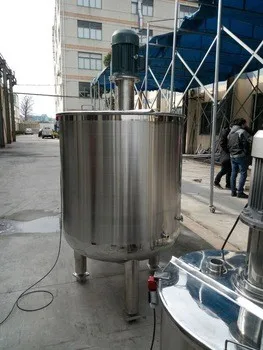

 Mixing tank

Used in pharmaceutical,  chemical, industrial, food  and beverage industry.

               Tilting Jacketed Kettle

Mainly used for concentration of liquids in pharmaceutical, chemical, industrial, food and becerage industry.

 CIP Cleaning Sytem

   Customized Automatic          Cleaning in place system      of single tank, double tank    or multiple tank type
