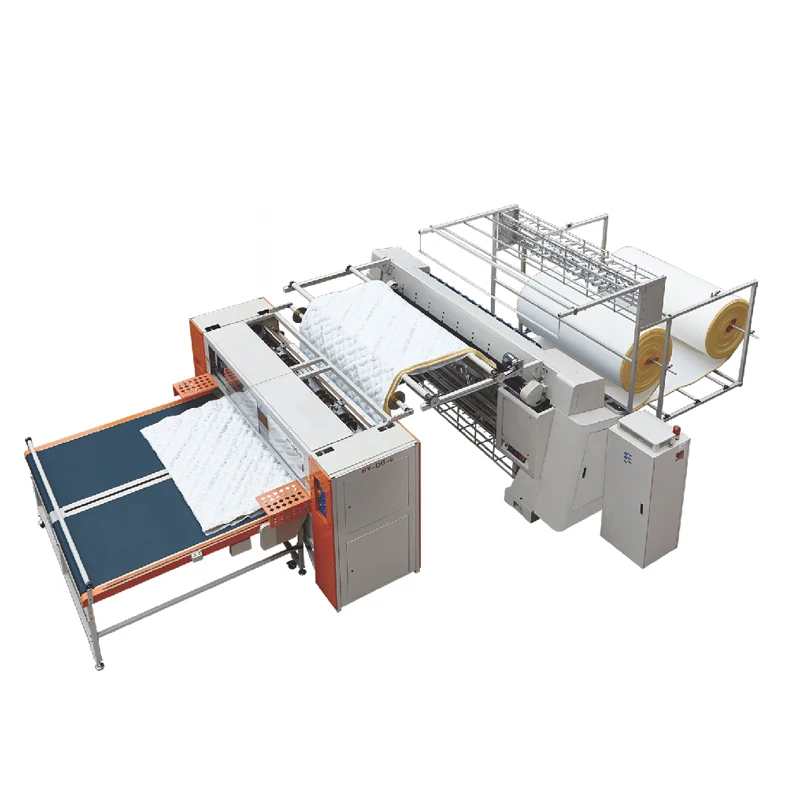

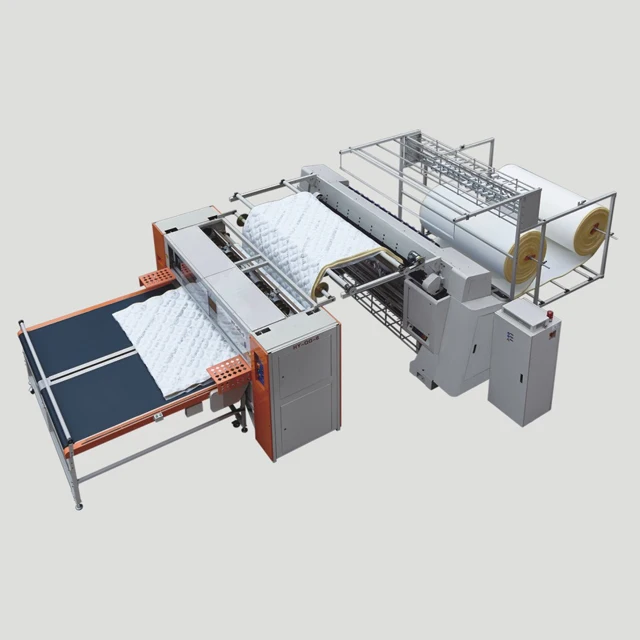

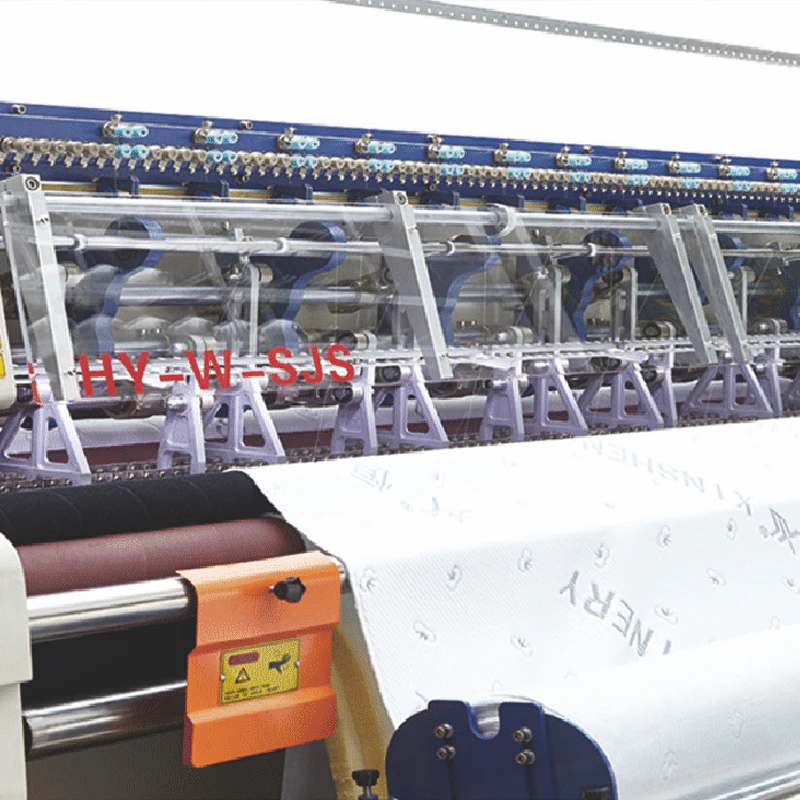

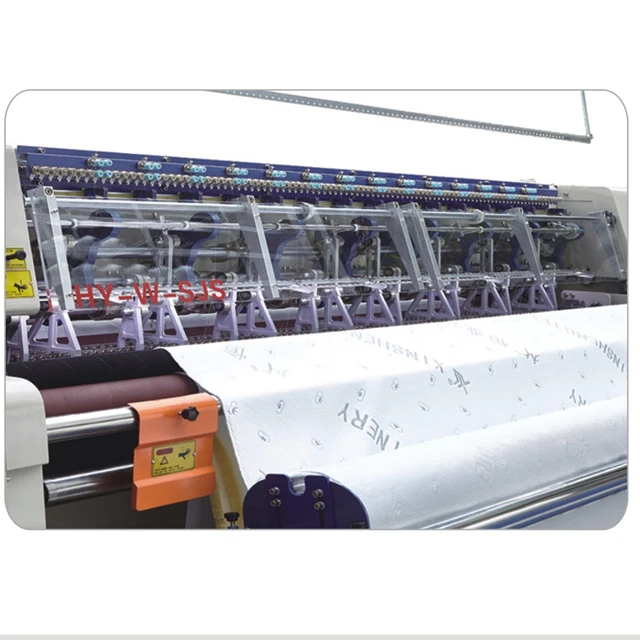

HY W SJS high Speed Chain Stitch Multi needle mattress Quilting Machine

Product Overview

Description

Technical Characteristics:

1.      Height of press can be adjusted by pneumatic device;

2.      New type retainer frame structure,with the advantages of low noise;

3.      Optimized the mechanical structure make the higher speed and more production;

4.      The practical patented product “moving needle plate”will make the quilting patterns more elegant;

5.      More tight thread stitches make the quilting pattern with stronger third dimension;

6.      Needle bar and press plate are controlled by a double-swinging device with out cam avoiding lubrication and dirtying of material;

7.      Multi-span and independent patterns(360 180 patterns are available);

8.      Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment;

9.      CE certification;

10.  Outstanding features such as high rigidity,high running speed,low vibration and noise;

11.  CNC precision control system;

12.  Easy preparation of CAD drawings extremely precise;

13.  Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes;

14.  Fault detection function for ease of determining the running state of the machine at any given time;



Technical Specification:

Dimension(L*W*H)	4700*1150*2050mm
Quilting width	2550
Space between needles	25.4
X-axis movement displacement	350
Thickness of quilting	≤80(for all patterns)
Stitch length	3-8
Speed of operation	60-300(m/hour)
Model of needle	24/180 23/160 22/140 21/130
Quilting speed	600-1200(RPM)
Total power required	7KW
Voltage	380V/50HZ  220V/60HZ
Gross weight	5000KG
