Diesel Blasting mine drilling rig rotary APCOM 380V Blasted Mining Drilling Rig Mine ZEGA kaishan bolter drill rig
- Category: Mining Machinery >>>
- Supplier: Shanghai APCOM Compressor Machine Co. Ltd.
Share on (60799419343):
Product Overview
Description

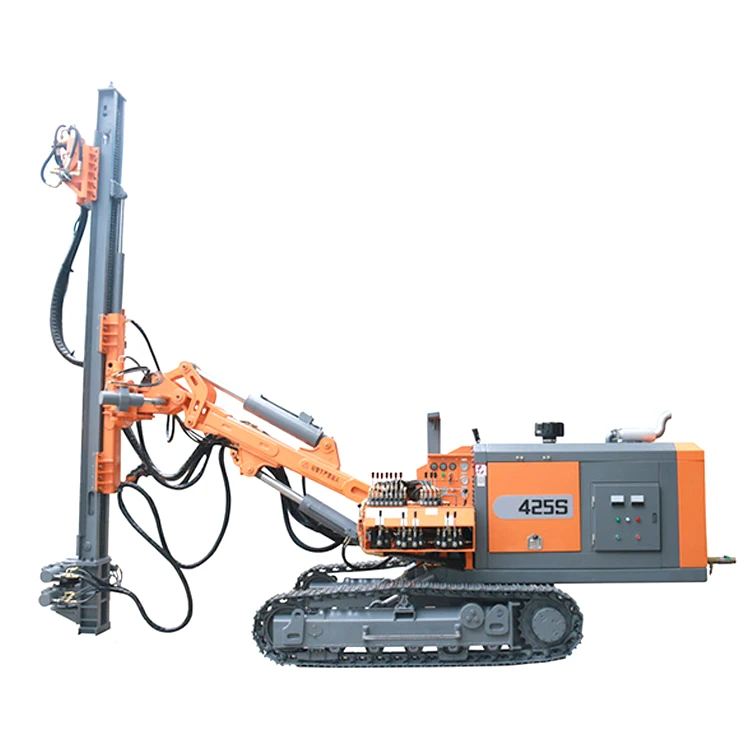

ZAYX-425S Anchor Rig
Drilling range | crude oil engine | ||||
Aperture range/hole: | 105-203mm | Model number: | YCD4T22T-105A(1TG330) | ||
Hole depth: | 60m | Factory: | Jade wood | ||
Drill rod: | φ76*3m | Rated power: | 70KW | ||
Supporting impact device: | HD45A | Speed: | Max.2000rpm | ||
electric motor 1 | electric motor 2 | ||||
Model number: | YJT-250M-4 B35/55KW/SF1.3 | Model number: | YJT-180L-4 V15/22KW/SF1.2 | ||
Factory: | Jiang Tian | Factory: | Jiang Tian | ||
Rated power: | 55KW | Rated power: | 22KW | ||
Speed: | Max.1450rpm | Speed: | Max.1450rpm | ||
propeller | Gyration head | ||||
Propeller length: | 5250mm | Torque (max): | 5600N.m | ||
Advance compensation: | 960mm | Slewing speed: | 60-160r/min | ||
Propelling force: | 35KN | Drill arm | Single straight arm | ||
Propulsion method | Oil cylinder chain | Transport size | |||
Speed of advancement (max): | 3180mm | Total weight: | 8000KG | ||
Pulling force (max): | 26m/min | Length * width * height | 6900*2270*2700 | ||
Anchor Drill Rig
For more videos, click "Products Video" on the ZAYX-T425 drilling rig details page. Go to glance over "ZAYX-T425"
ZGM-1240A

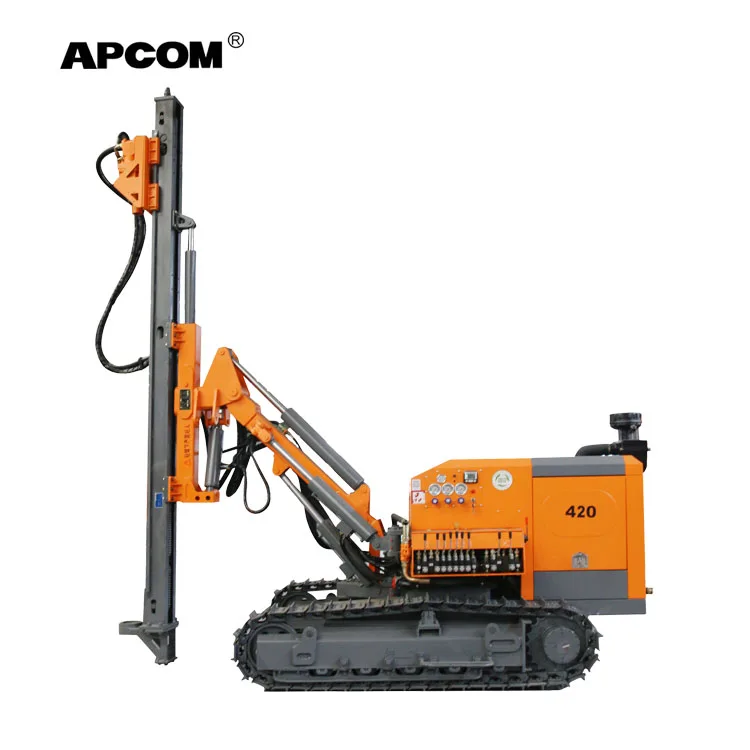

ZAYX-420S

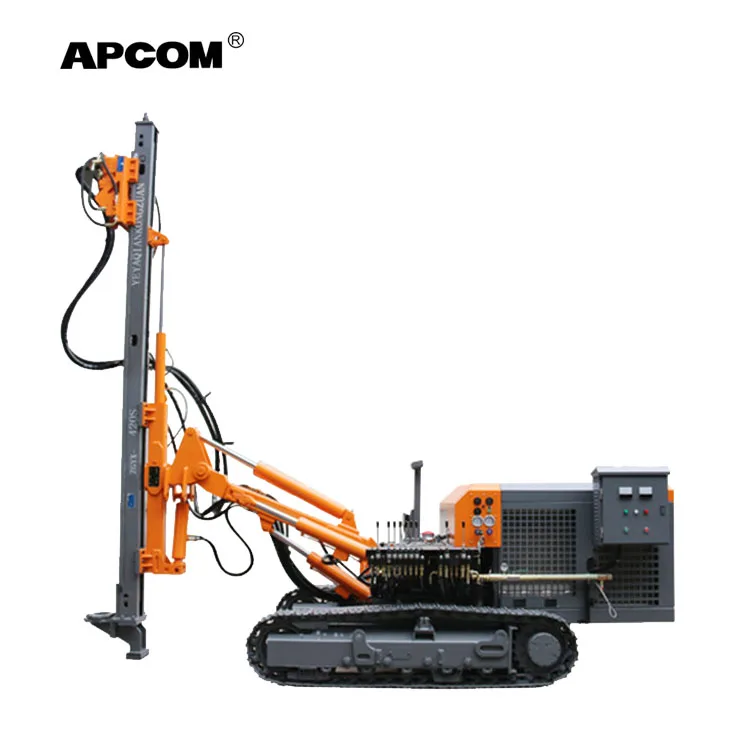

ZAYX-425S
ZAM-1240A | ZAYX-420S | ZAYX-425S | |
Diesel engine power | / | 60kw | 70kw |
Moter power | 45kw | 45kw | 55kw |
Max bolter hole high | 4.0 m | 3.6 m | 4.5 m |
hole depth | 25 m | 60 m | 60 m |
Integrated Rig Parm
ZAYX-421T & ZAYX-452
High Current Price Ratio
High Efficiency
High Quality
High Quality
An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.
Integrated DTH Surface Drill Rig With Air Compressor | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-421T | YUCAI 140KW | 10m3/min 15bar | 80-100mm | 25m | No | |||||
ZAYX-452+ | YUCAI 191 KW | 15m3/min 17bar | 108-127mm | 25m | No | |||||
ZAYX-423 | YUCAI 162KW | 11m3/min 15bar | 90-115mm | 25m | Yes | |||||
ZAYX-453 | YUCAI 230KW | 16m3/min 17bar | 90-138mm | 25m | Yes | |||||
ZAYX-454 | Commins 266KW | 20m3/min 18bar | 110-152mm | 28m | Yes | |||||
ZAYX-455 | Commins 287KW | 20m3/min 24bar | 138-165mm | 35m | Yes | |||||
ZAGA-470 | YUCAI 294KW | 20m3/min 24bar | 138-178mm | 40m | Yes | |||||
Top Hammer Drilling Rig | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-422T | Commins 93KW | 3.4 m3/min 7bar | 42- 89mm | 15 m | yes | |||||
ZAYX-423T | Commins 119KW | 4.7 m3/min 9bar | 64-102mm | 17 m | yes | |||||
ZAYX-424T | Commins 179KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
ZAYX-425T | Caterpiller 168KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
Cummins Engine Drill Rig
Cummins Engine Blasting Drilling Rig for Mine | ||||||||||||||||
Model Click on | Borehole Diameter | Drill depth | DTH Hammer | Pipe | Cummins Power | Cummins Model | Air Compresor | Automatic Rod Change | ||||||||
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine | ||||||||||||||||
Model Click on | Hole | Depth | Drill pipe | Compresor | Cummins Power | Impactor parameter | Note | |||||||||
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 189 6700 9313
WhatsApp: +86 181 6701 6615
Drill Rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) Automated hydraulic drilling rig ,7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Anchor surface drilling rig , 3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Water well surface drilling rig, 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig, 28 products found:
16 products separate drilling rig
4 products integrated drilling rig no cabin
8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
