led lens pick and place machine LED 2206P/LED 2208P

Share on (60799443875):


Price:RUB 2,142,285.60 - RUB 2,677,857.00

Quantity:


Product Overview

Description

Product Description

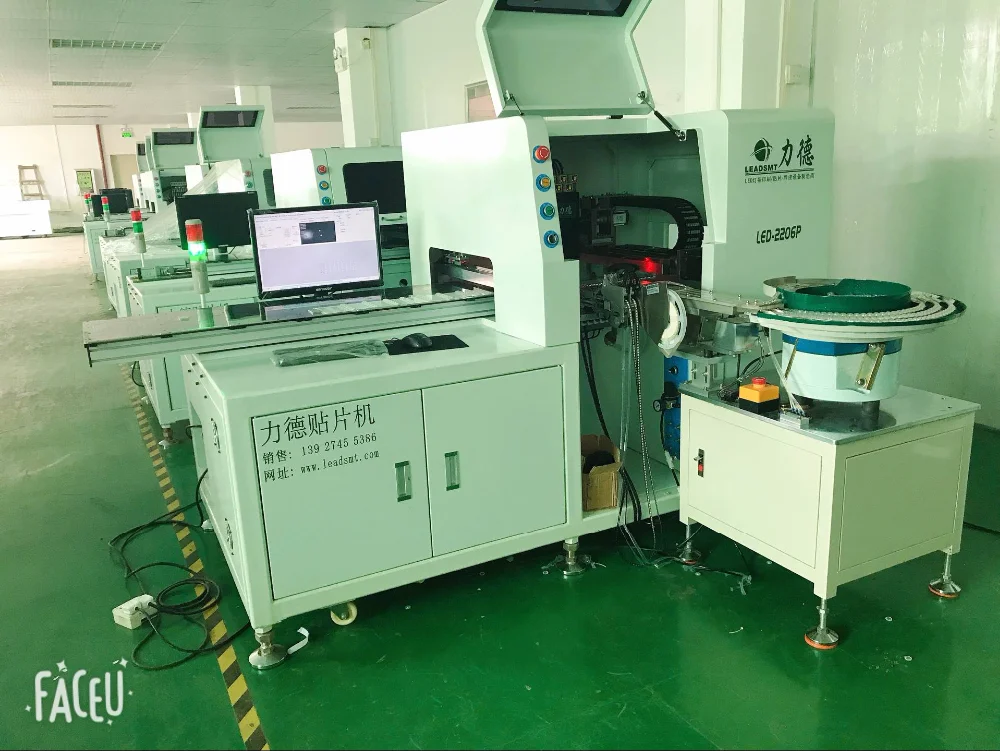

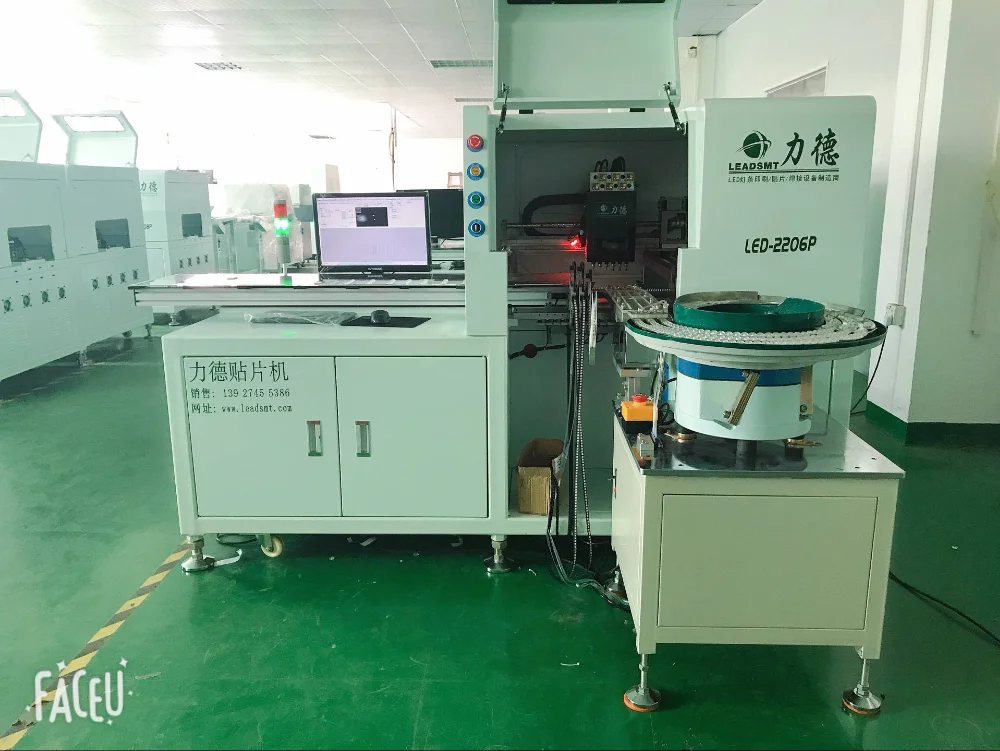

                                                                      led lens  pick  and  place  machine

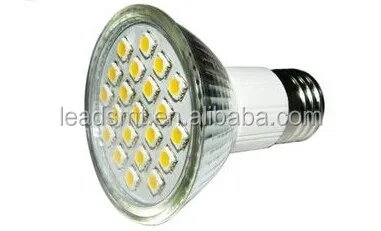

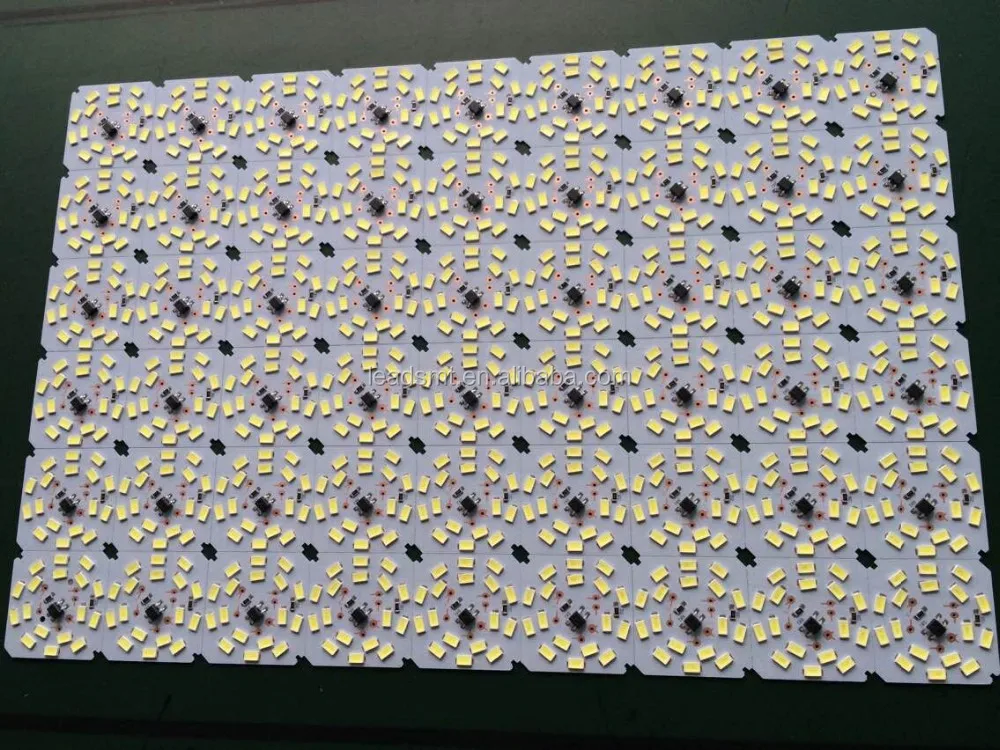

1.this  pick  and place  machine  is  for led  lens  and  led  chips .
2.no limitation  of  PCB  shape .
3, mounting heads 6/8  pcs

contact person :   alice : whatsapp /mobile ;  0086 139 2458 9253  / wechat id  smt9171    skype :  jiangting97

SPECIFICATIONS FOR lens pick and place  machine


Mounting Nozzle Heads
6/8 Pieces,each nozzle can rotate 360 degrees
135.5/2150
PCB Sizes available
50*50-1200*400mm
637/1800
Normally stable speed
32000CPH / 40000cph
6.494


Position accuracy
±0.005
5.9/4.0
Maximum Speed
45000 cph / 60000 CPH (pick together and place together mode)
<=35
Programming Method
.1.graphic input with Key and mouse 2.Intelligent Mark Points Scan

3.CAD Gaber file data Import .
11.3


Feeder No.and type
Normally can loading 12/16 Pcs 8mm feeders, ( with 8mm ,12mm ,16mm, 24mm,32mm feeders optional/ lens feeder
50.1
Power supply
220V ,50/60Hz, 1KW ,single Phase (With experience to offer solutions for Other countries with different voltages)
161
Weight & Dimensions
About 800Kgs /L2000*W 1000*H 1500(MM)
125
exhibition
Detailed Images

Machine Parts

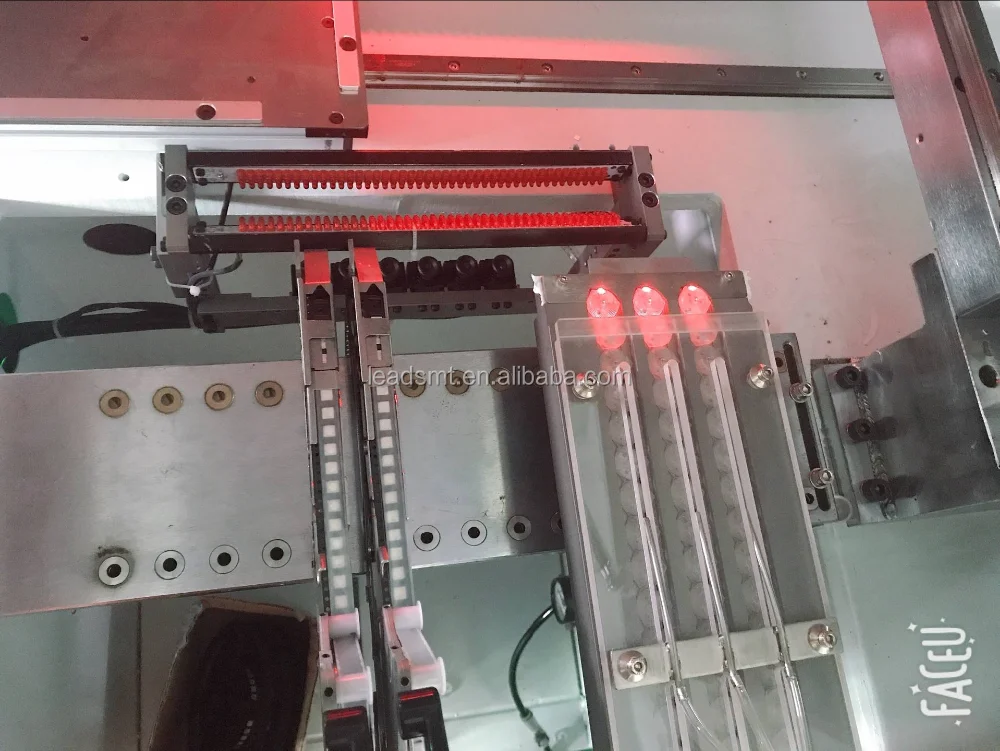

Name: lens  feeder

Brand:leadsmt

Original:china

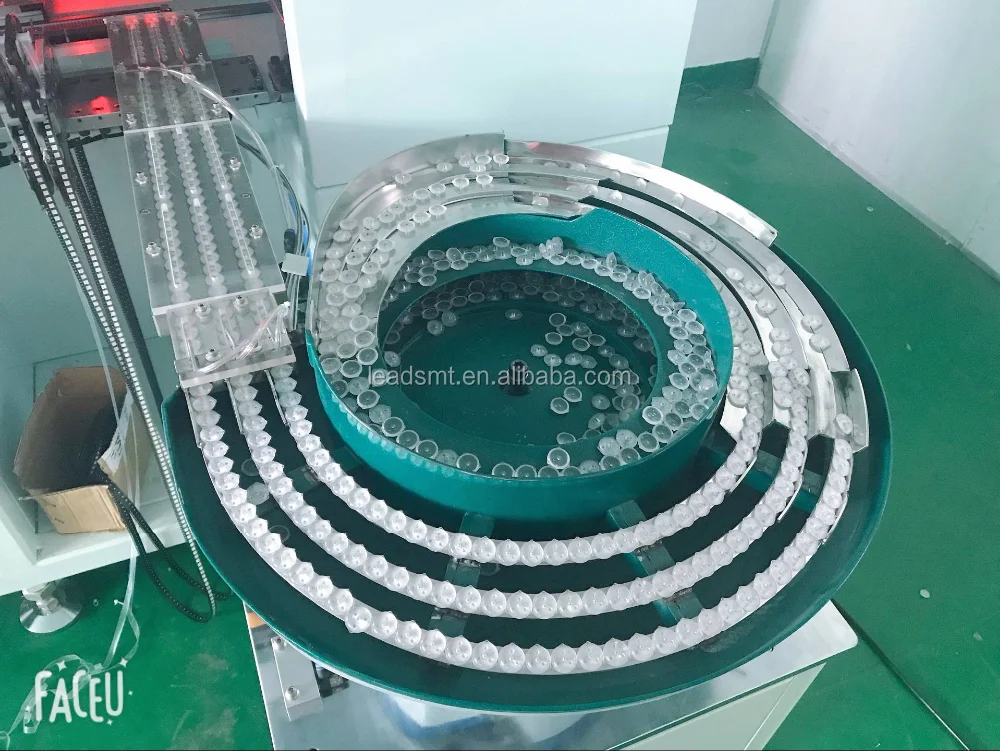

this  lens  feeders to load  lens

Main Features

Name: vision camera
Brand:sony
Original: jAPAN
INCREASE  PRECISION

Machine Parts

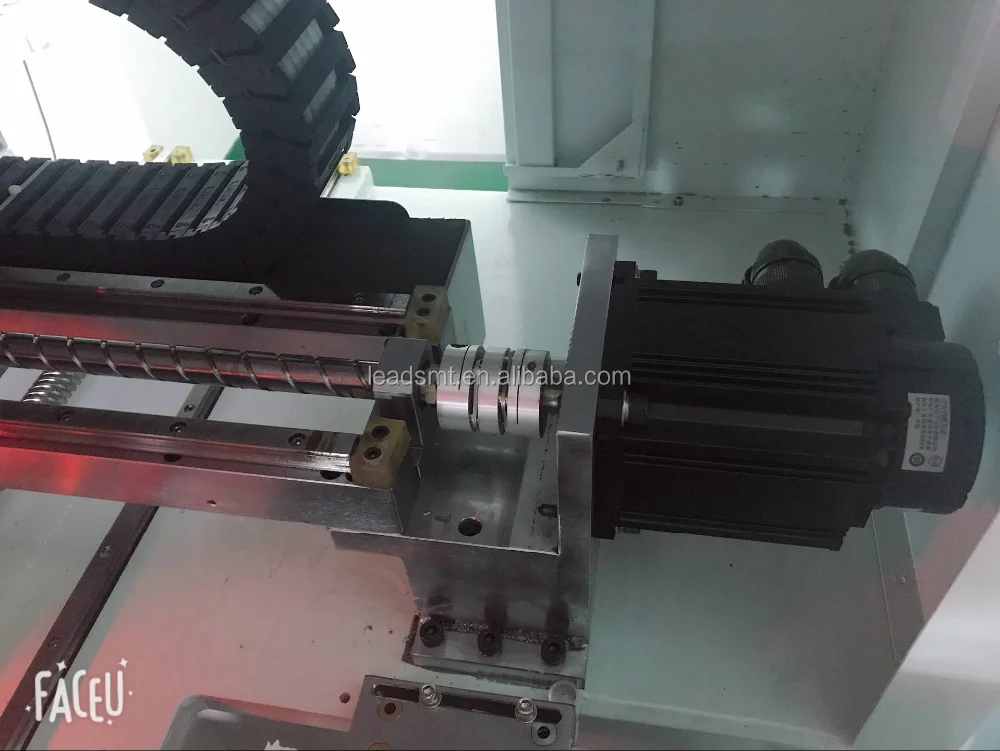

Name:SERVO MOTOR
Brand: PANASONIC
Original: jAPAN

Main Features

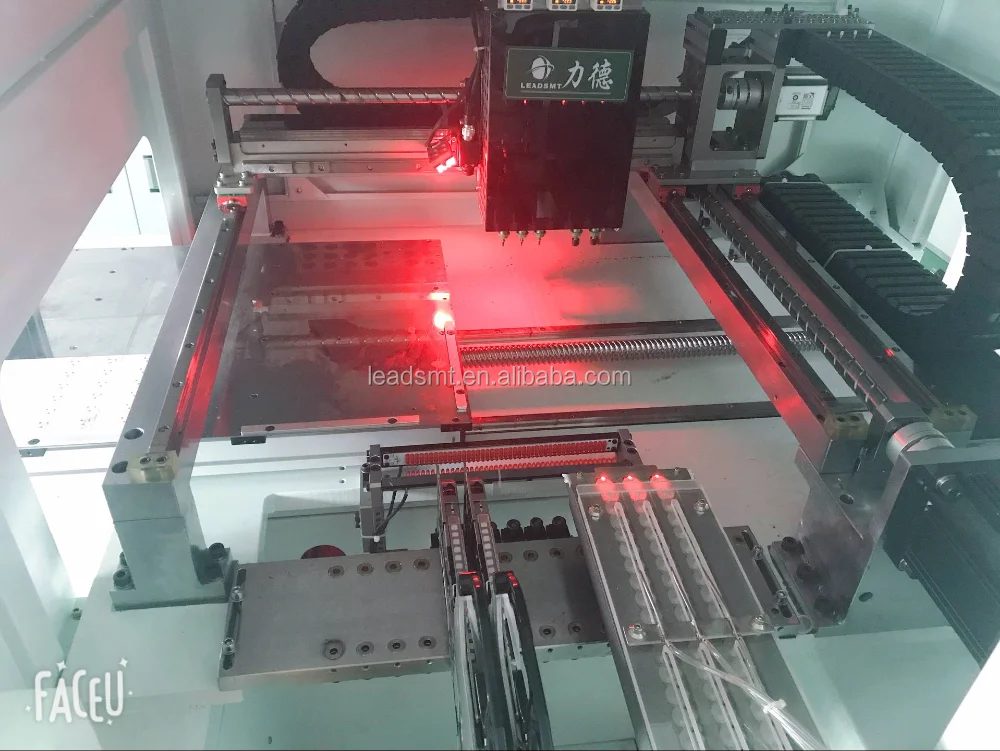

Name:  LENS  NOZZLE
Brand: JUKI
Original:  JAPAN
LENS NOZZLE  NEED  CUSTOMIZE  ACCORDING TO  YOUR  LENS

Our Service

Pre-Sales Service

STUDY IN OUR  SHENZHEN  FACTORY

After-Sales Service

*  INSTALL AND  TRAINING  IN FOREIGN FACTORY

Packing & Delivery
Packaging
Size
L2000*W 1000*H 1500(MM)
Weight
806 KG
STANDARD


Packaging Details
standard  export  packing
