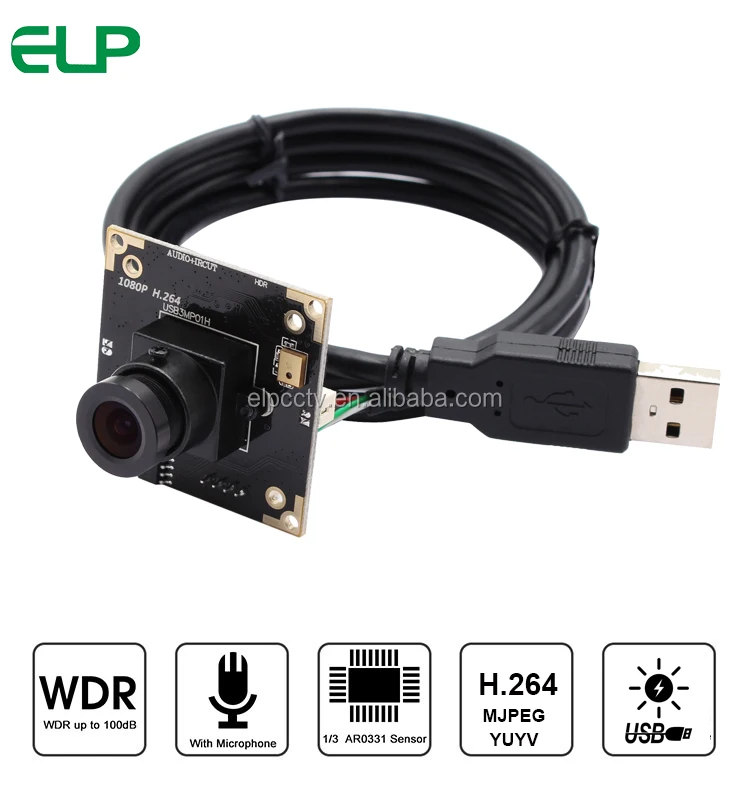

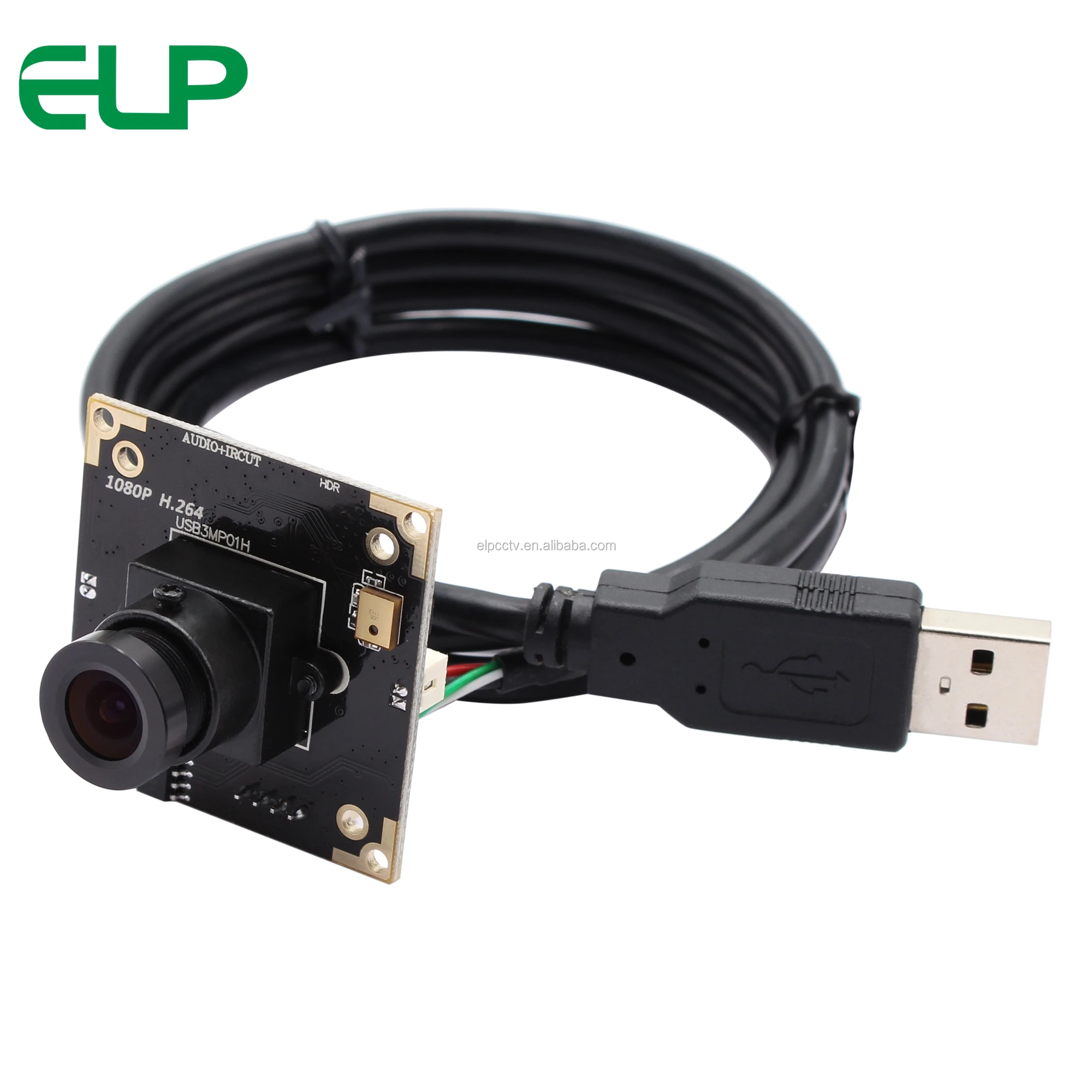

ELP Web Cam WDR H.264 HD 30fps 3mp Audio Camera PCB Mini Board Industrial Camera Module Wide Angle with 2.9mm lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60799466211):
Product Overview
Description
Company Information

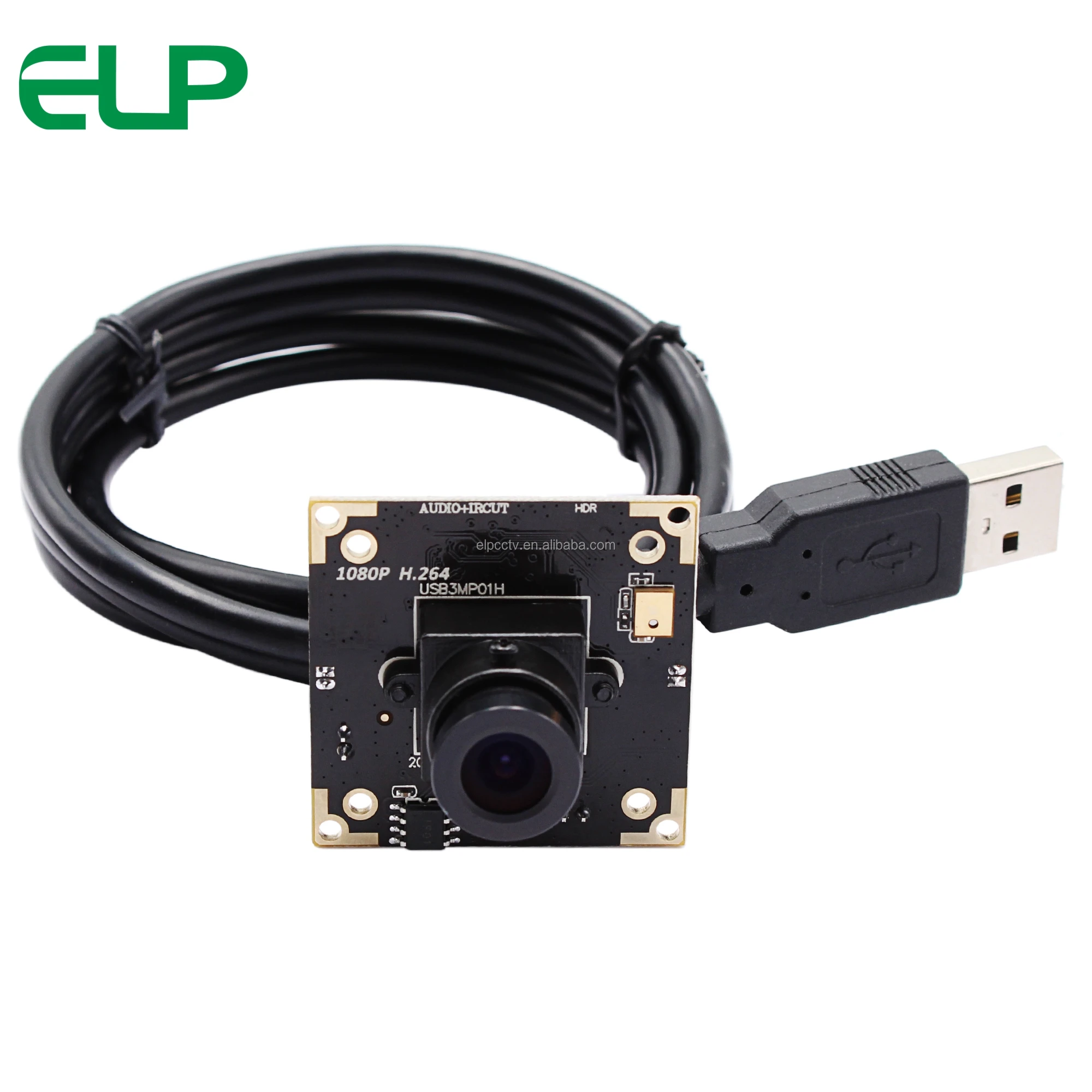

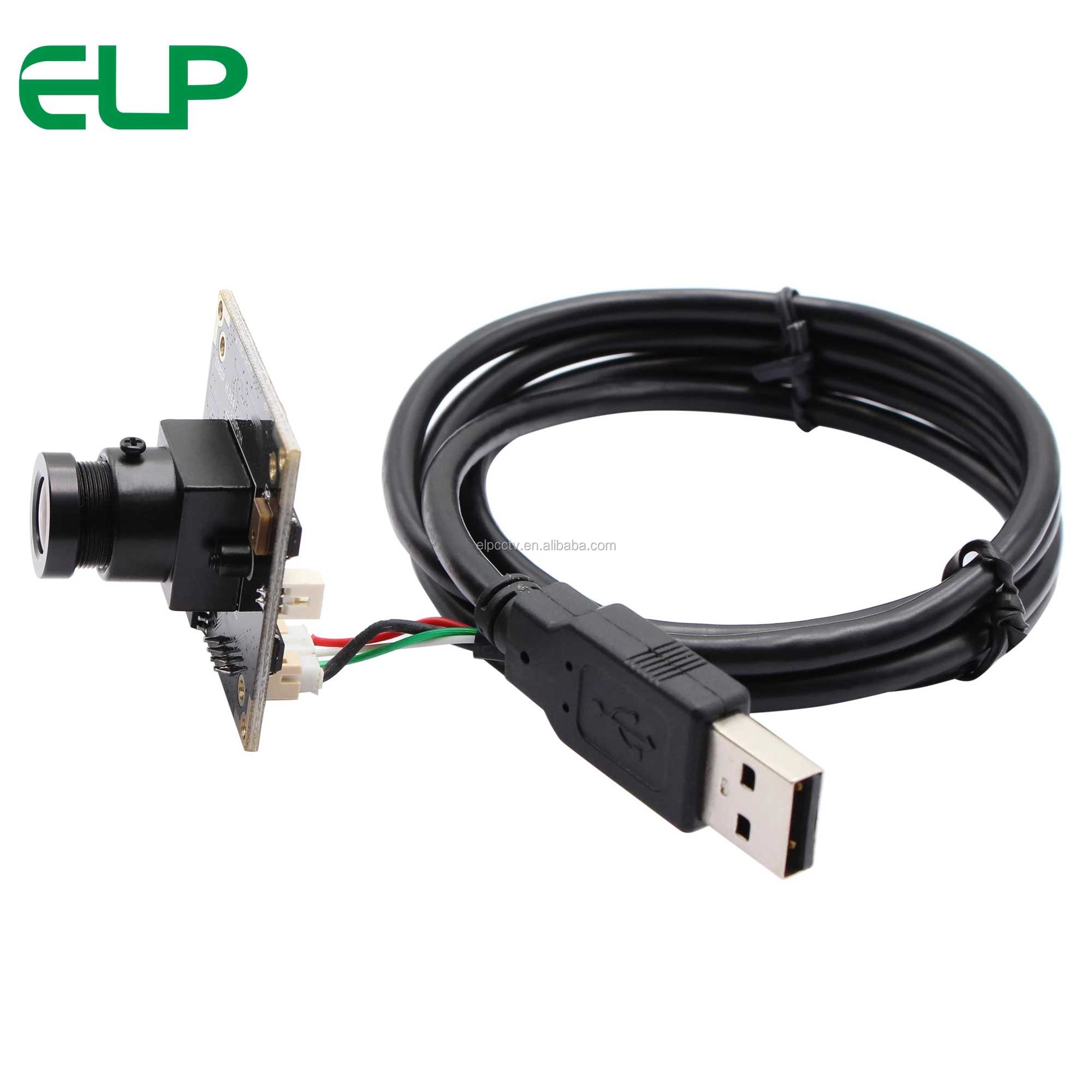

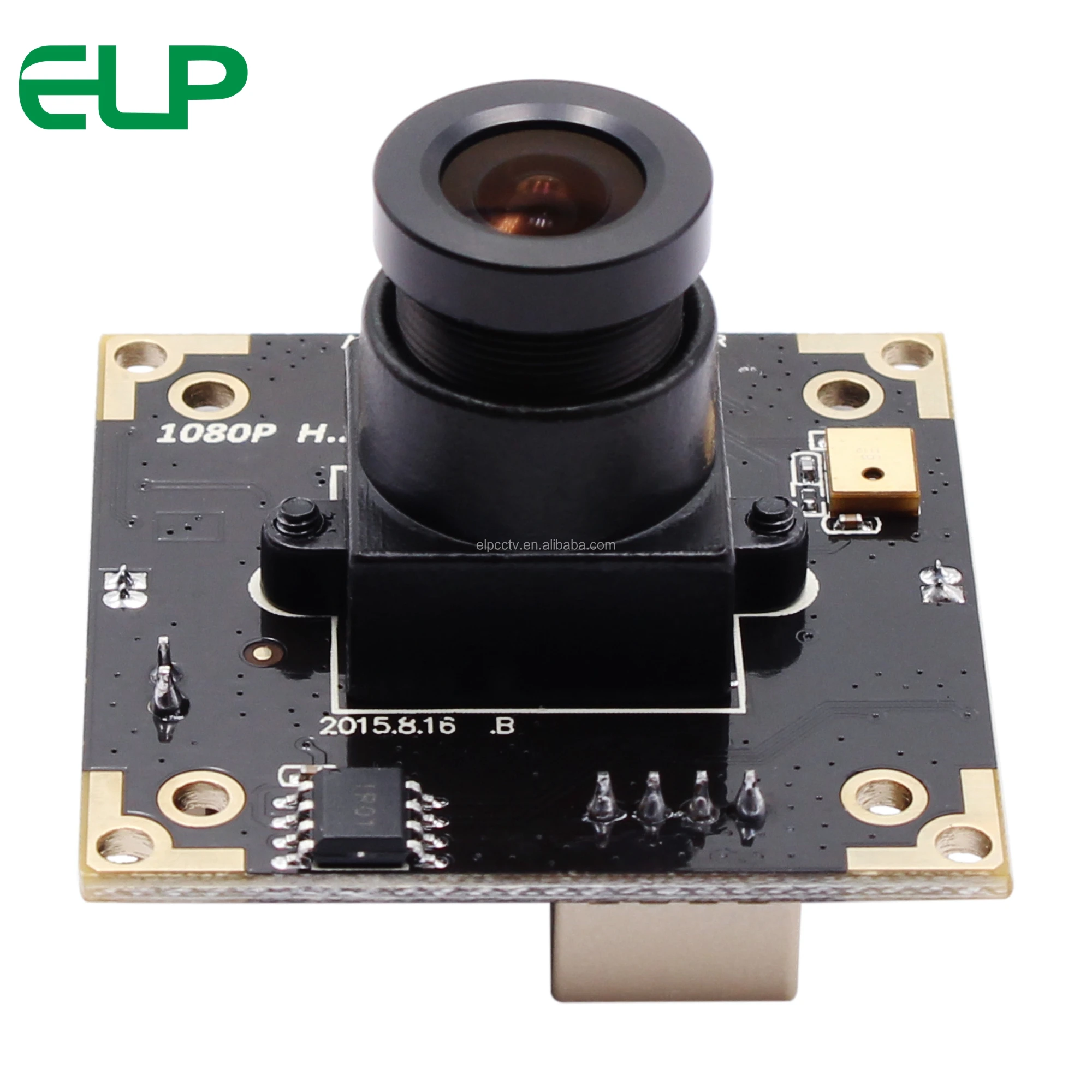

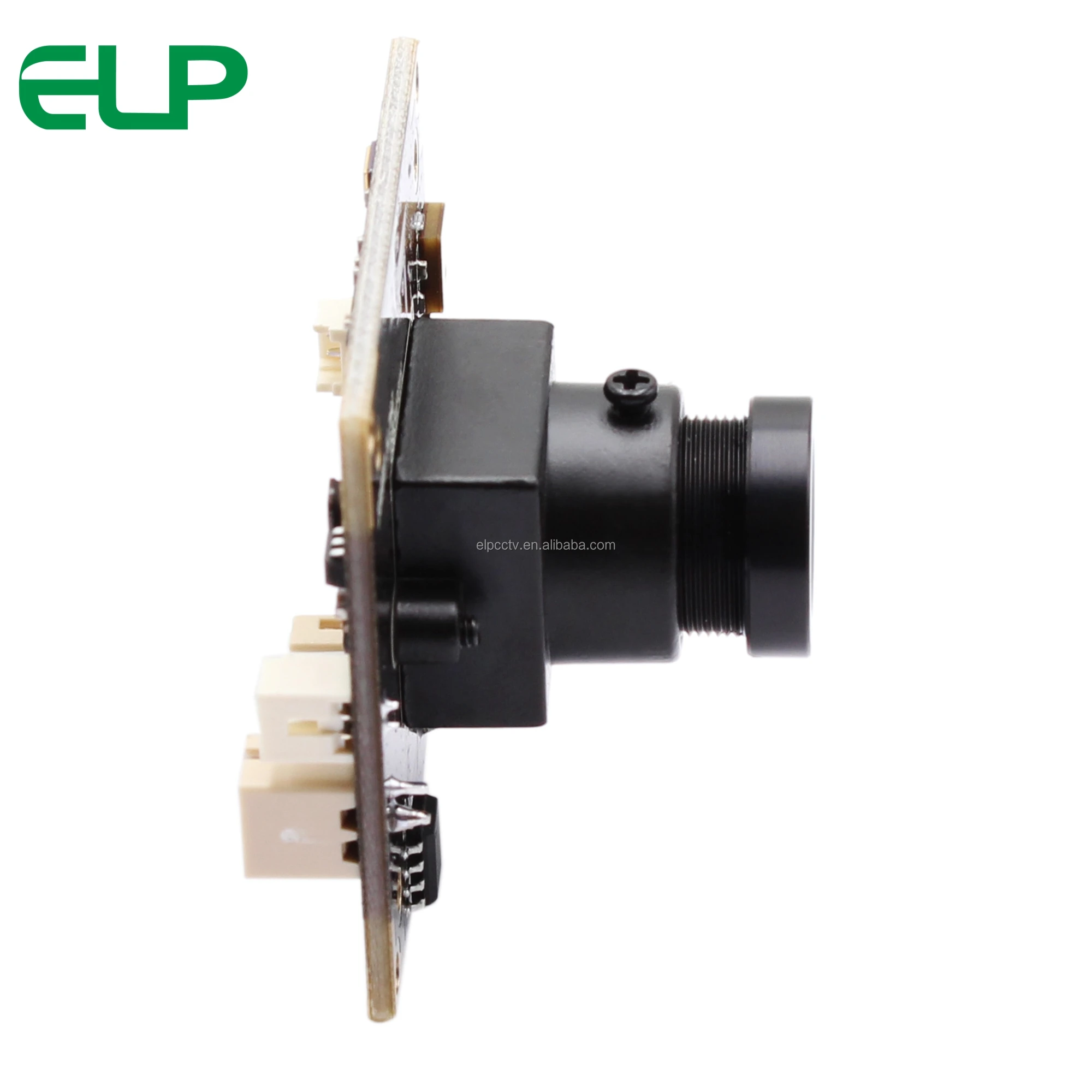

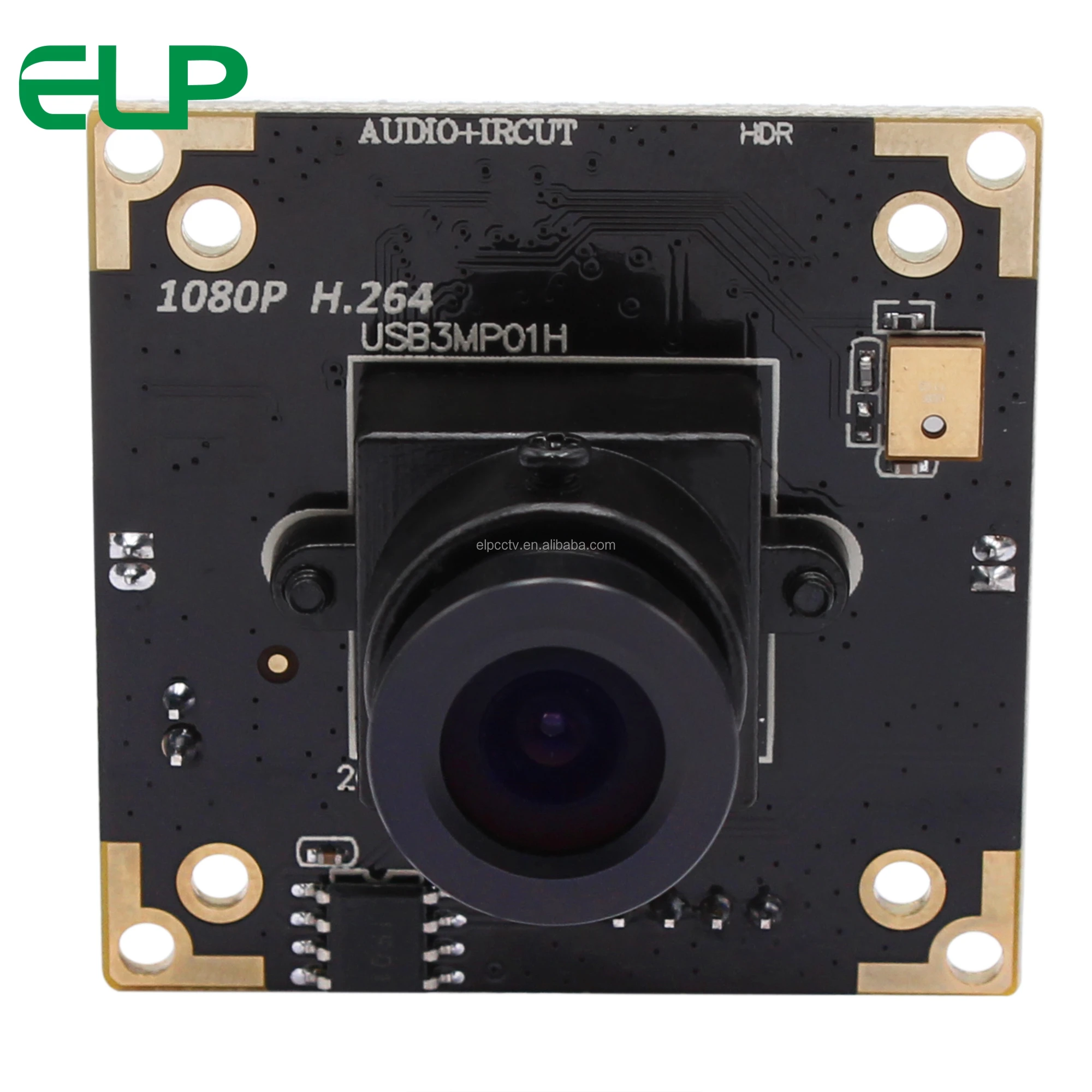

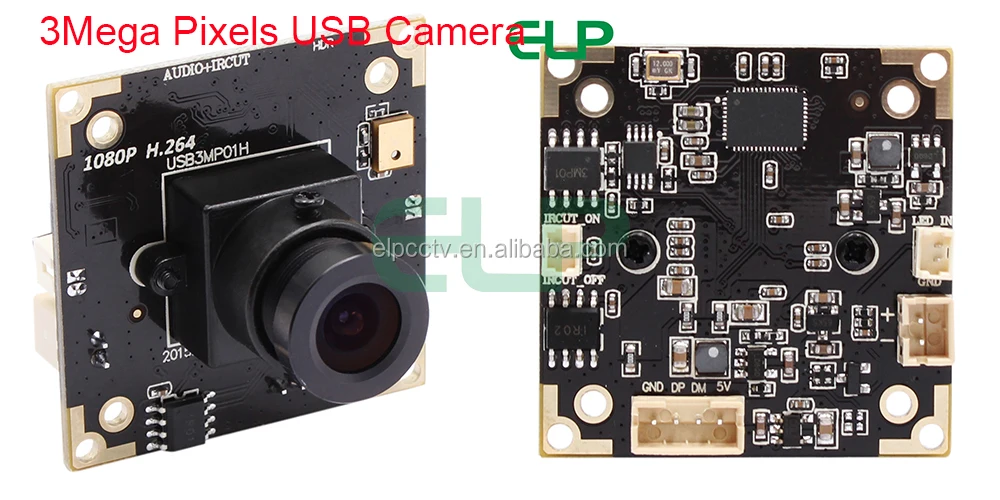

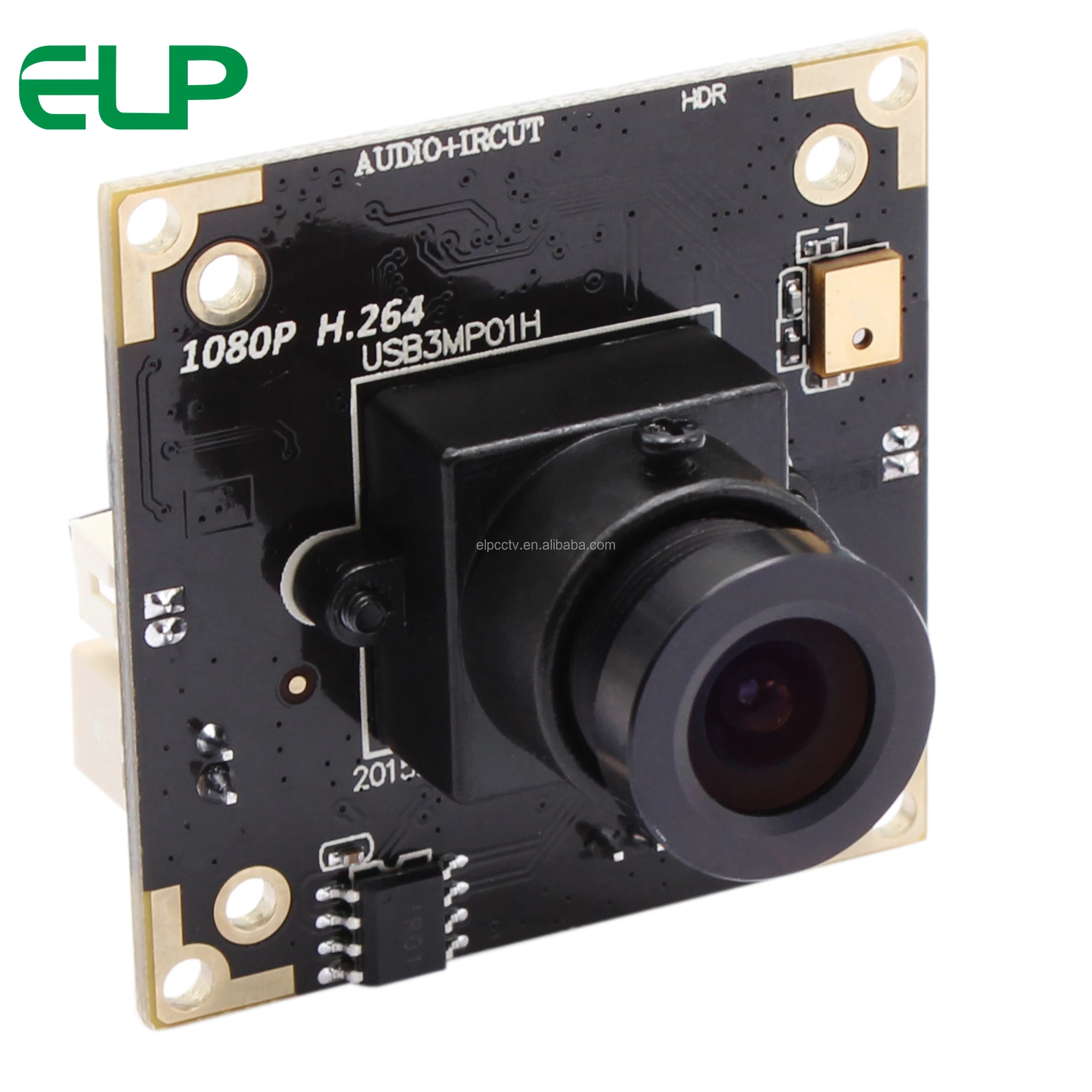

ELP Web Cam WDR H.264 HD 30fps 3mp Support Microphone PCB Mini Board Industrial Camera With 25mm lens
Model: ELP-USB3MP01H series, is 3.0megapixel 2048X1536 High resolution USB cameras, feature as WDR dynamic range up to 100dB,H.264 Format, compatible with system Linux Android Windows etc.
Why Use H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Better effect for WDR/HDR camera when facing strong light
Product Description
Mian Features

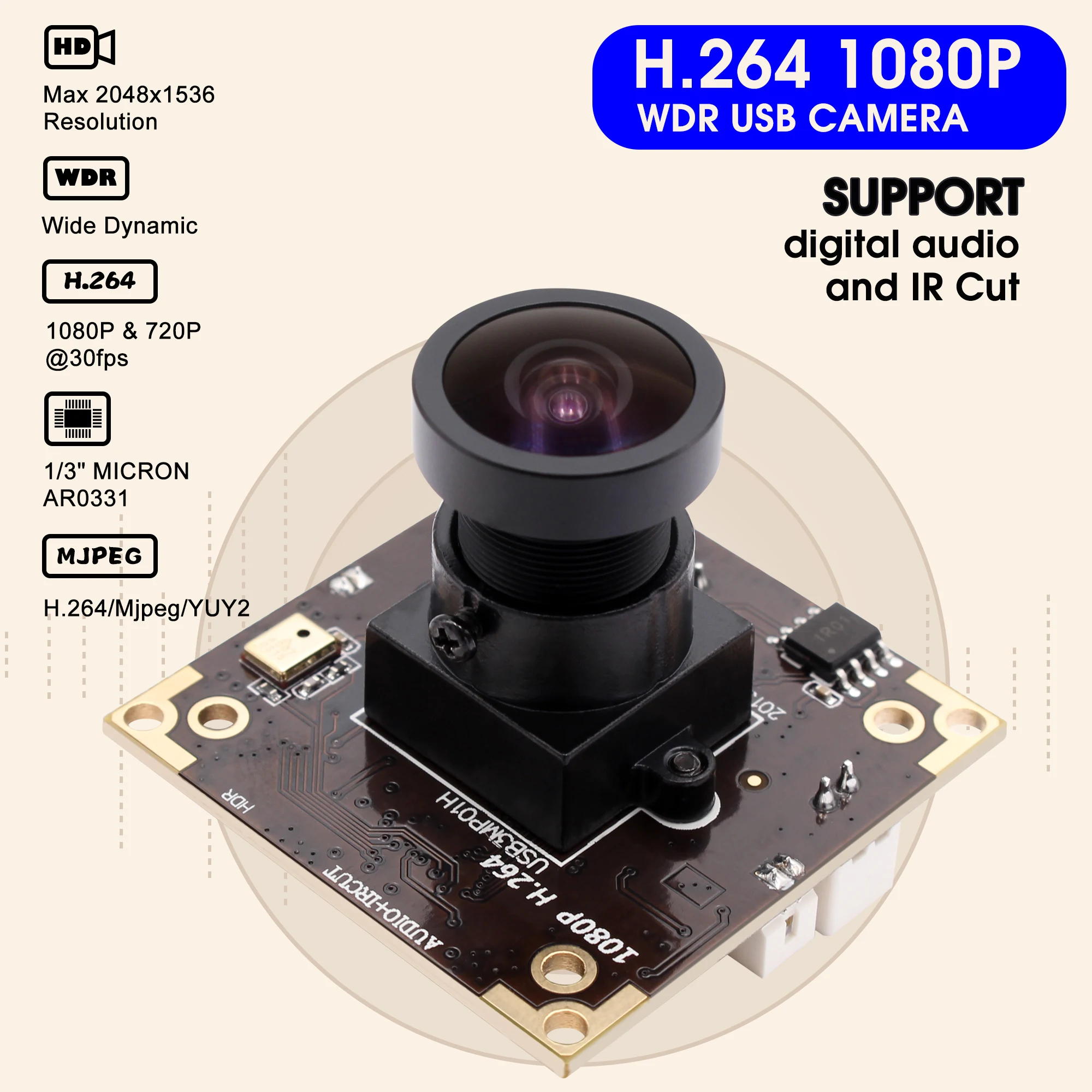

*3Mpixels, Highest resolution 2048X1536
*1/3inch AR0331 CMOS Sensor
*WDR function, Dynamic Range up to 100dB
*With H.264/MJPEG/ YUY2 High profile compression.
*Can drive 1920*1080 30FPS
*Come with microphone on the board which support single channel and dual channel.
*With 2P-2.0mm socket for connecting IR LED Board for night vision
*USB 2.0 High speed port
*Camera with UVC, Support Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above
Specifications
| Model: ELP-USB3MP01H-L25 | |||
| Resolution & frame | H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps MJPEG: 640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps YUV: 640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@ 5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps | ||
| Dynamic Rangde | Up to 100 dB | Picture format | H.264 /MJPEG / YUV2(YUYV) |
| Sensor | AR0331 | Lens Parameter |
25mm lens |
| Sensor Size | 1/3 inch | Cable | Standard 1M/ Optional 2m,3m,5m |

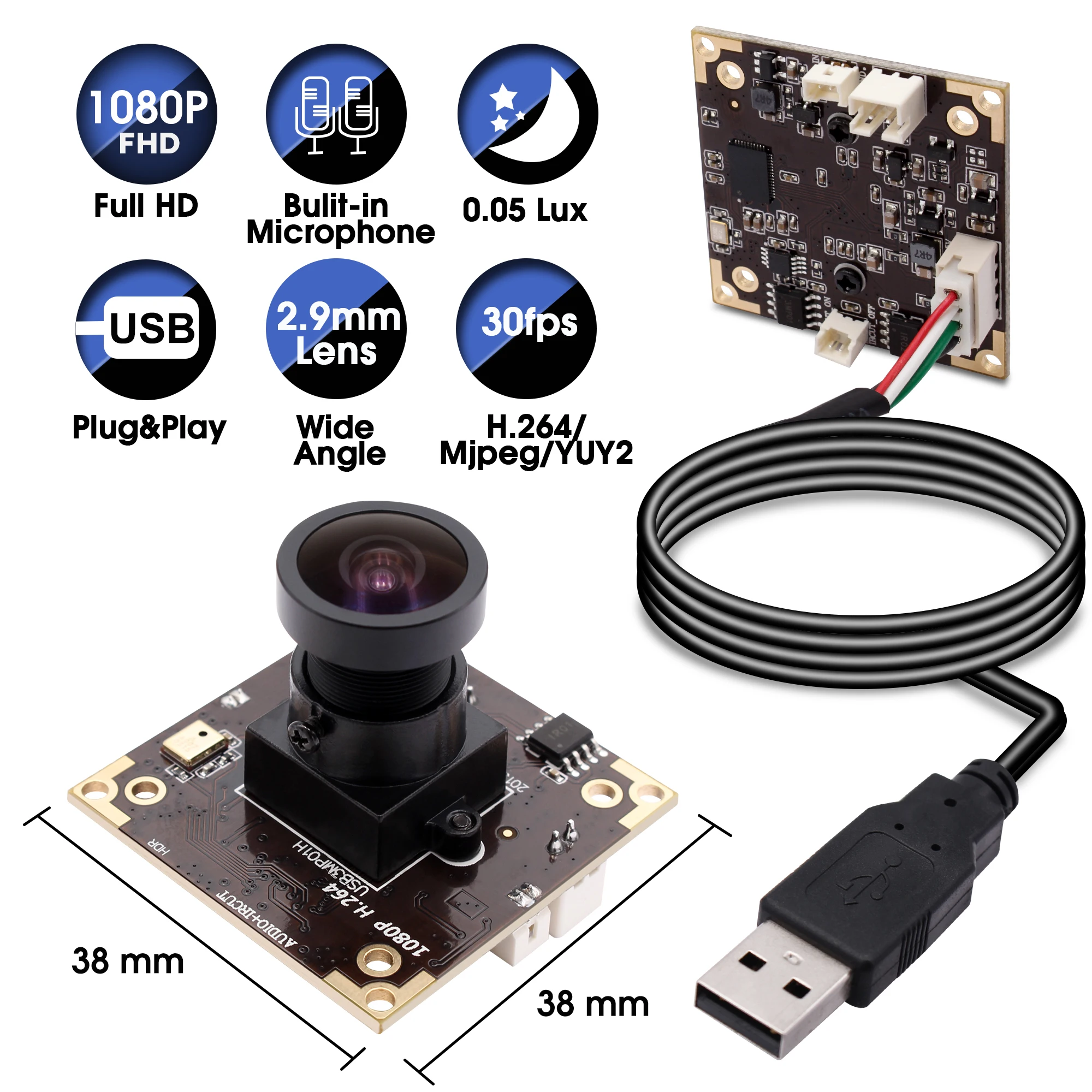

| Pixel Size | 2.2μm x 2.2μm | Board Size/Weight | 38X38mm/ about 30g |
| Image Area | 3888μm x 2430μm | Sensitivity | 2V/lux-sec@550nm |
| Max. Resolution | 1920(H)X1080(V) | Shutter Type | Electronic rolling shutter &GRR |
| S/N Radio | 39dB | Connecting Port Type | USB2.0 High speed |
| Mini illumination | 0.05lux | OTG protocol | USB2.0 OTG |
| AEC,AEB,AGC | Support | Free Drive Protocol | USB Video Class(UVC) |
| Power Supply | DC 5V | Work Temperature | -10~70 Degree |
| Operating Voltage | 140mA~220mA | Storage Temperature | -20~85 Degree |

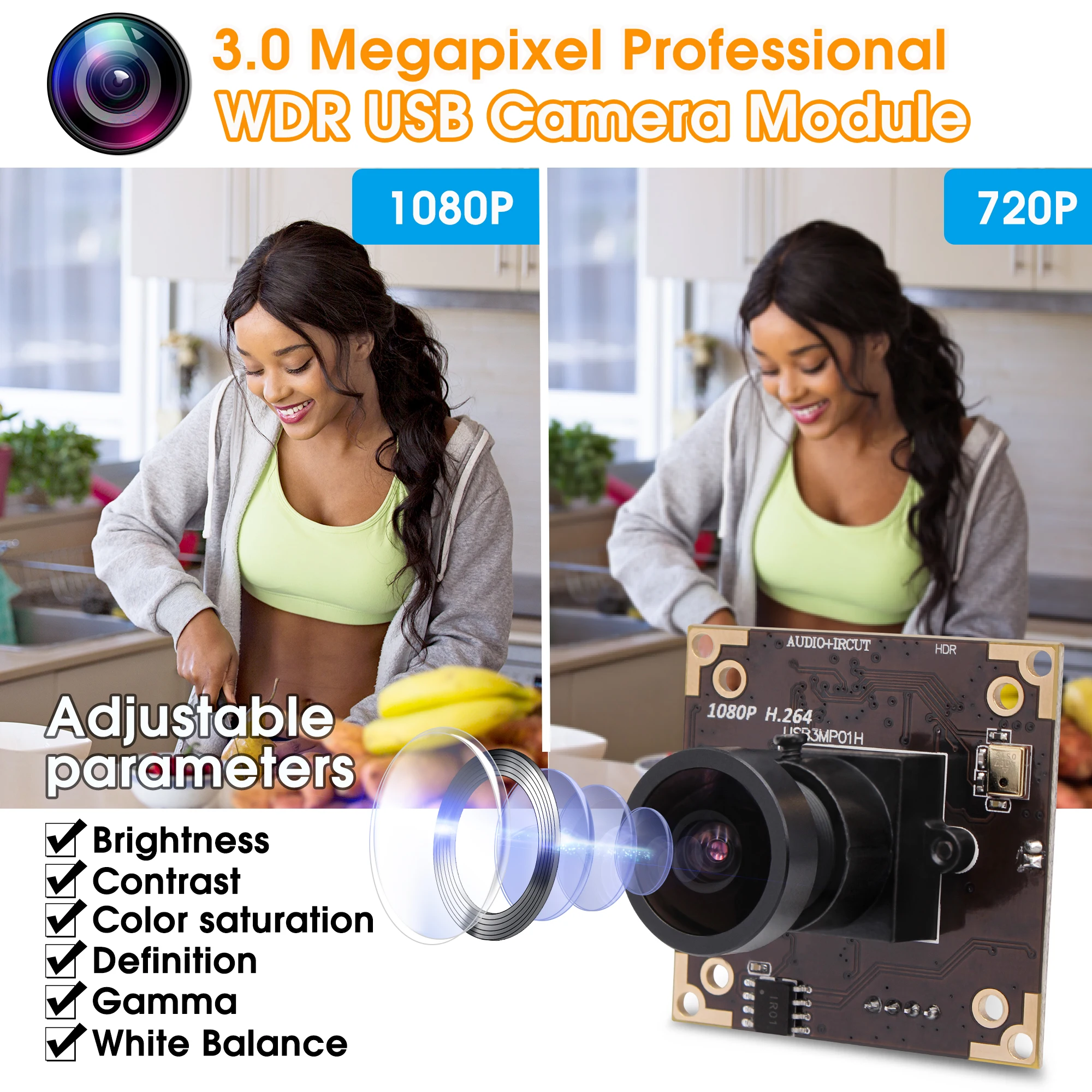

| Digital audio | High quality digital MIC, support single, dual channel | Adjustable parameters | Brightness, Contrast, Saturation, Backlight Contrast, Exposure |
| IR CUT Connect | Support 2P-1.25mm socket | LED board power connector | Support 2P-2.0mm socket |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
Camera Display
Sample picture by WDR USB Camera (fisheye lens)
Applications
Typical application
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
