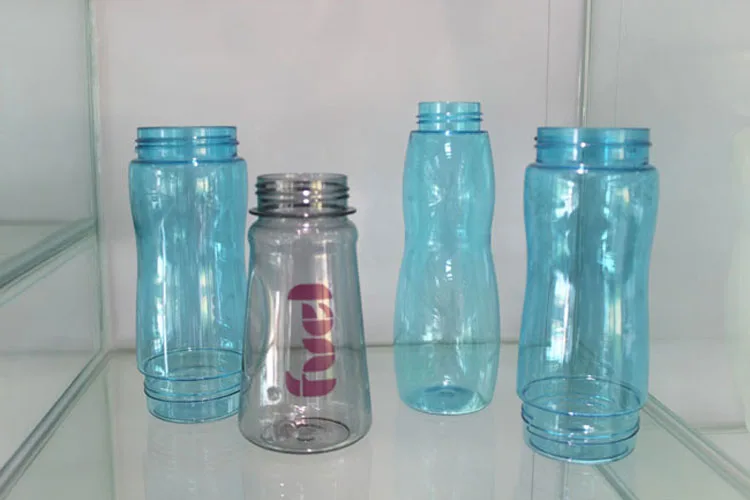

Chinese factory price rotary stattion full automatic injection stretch blow molding machine for sports water bottles

Product Overview

Description

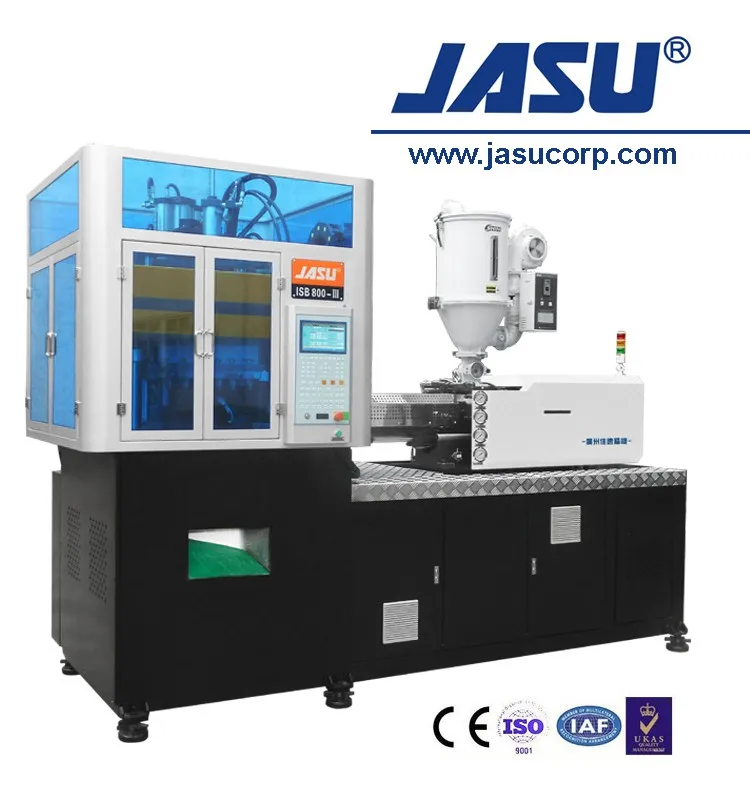

ONE STEP INJECTION STRETCH BLOW MOLDING MACHINE ISB800N-3

ISB800N-3  Main Specification		Main Devices Brand
Material	PC,PP,PET,TRITAN,PMMA,PS	Servo Motor and Oil Pump	Phase (Italy) and Eckerle (Germany)
Screw Diameter	40mm	Sealing Parts	Yuken(Japan), TAIWAN
Screw L/D Ratio	20.5:1	Hydraulic Valve	Yuken(Japan), TAIWAN
Screw  Speed	0-190	Air Valve	AirTAC
Theoretical Injection cavity	238cm3	Air Cylinder	AirTAC
Injection Pressure	174Mp	Controller (PC)	JASU, TAIWAN
Max.hydraulic Pressure	140kg/cm	Photosensor	Carlo,China
The actual injection quantity	225g(ps),8Oz	Safety delay	Schneider (ShangHai
Screw Stroke	190mm	Servo Motor for Turntable	TECO, Taiwan
Blow Clamping Force	80kn	Gear Reducer	SESAME, Taiwan
Clamp Tonnage	400kn	Low-voltage components	Joint Venture
Wheel Diameter	800mm	Hydraulic hose	China
Max.Height Of Bottle	15-220mm	F.R.L	China
Open Vertical Mode Trip	570mm	Hydraulic joint	China
Max.Pump Pressure	16Mpa	Blowing valve	AirTAC(TaiWan)
Servo Motor	22kw	Low-pressure cylinder	AirTAC(TaiWan)
Electric power	8.9kw	low-pressure valve	AirTAC(TaiWan)
Tank volume	400L	PLC	JASU(TaiWan
Dimension of Machine	4.2*1.75*3.55m	Air switch	Schneider(Shanghai)
Machine Weight	5T	Display screen	JASU(TaiWan)



Compare with One-step and Two-step:



Molding	Process	Structure	Manpower/Energy/Space	Product Quality
One-step	From preform to product	One machine	Little	Not affect by damp and less pollution; Various kinds of shape
Two-step	Injection and blow molding are two separated process	1.Injection molding machine 2.Preform transiting machine 3.Reheating, stretch and off-moulding machine	More	Easy affect by damp and polluted; Singleness shape



Q1: All of your products are made by your self or compacted via purchasing the others?
A1: We have independent technical team who focus on making machines; all the products are made by our technical team.
Q2: What is the ability of your factory?

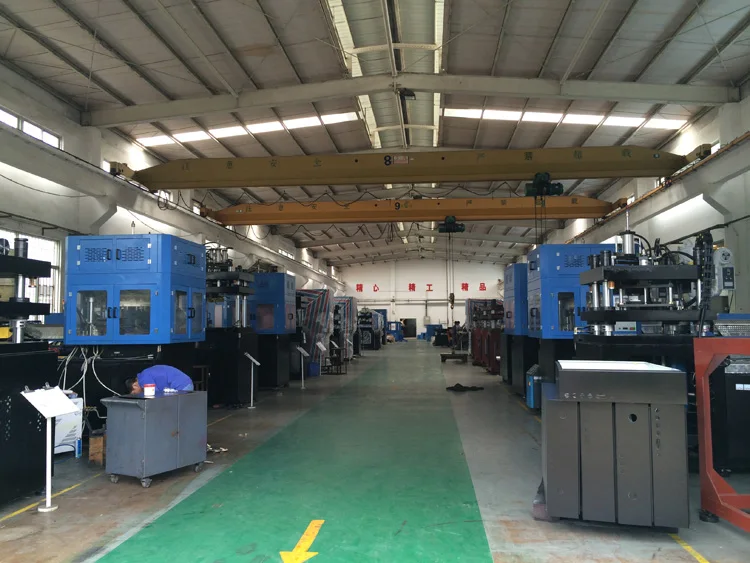

A2: About blow molding machine, we could produce 30 sets machine per month
Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system
Q5: How do you make the quotation for clients?
A5: The price depends on quality and performance but the clients should be satisfied us at first

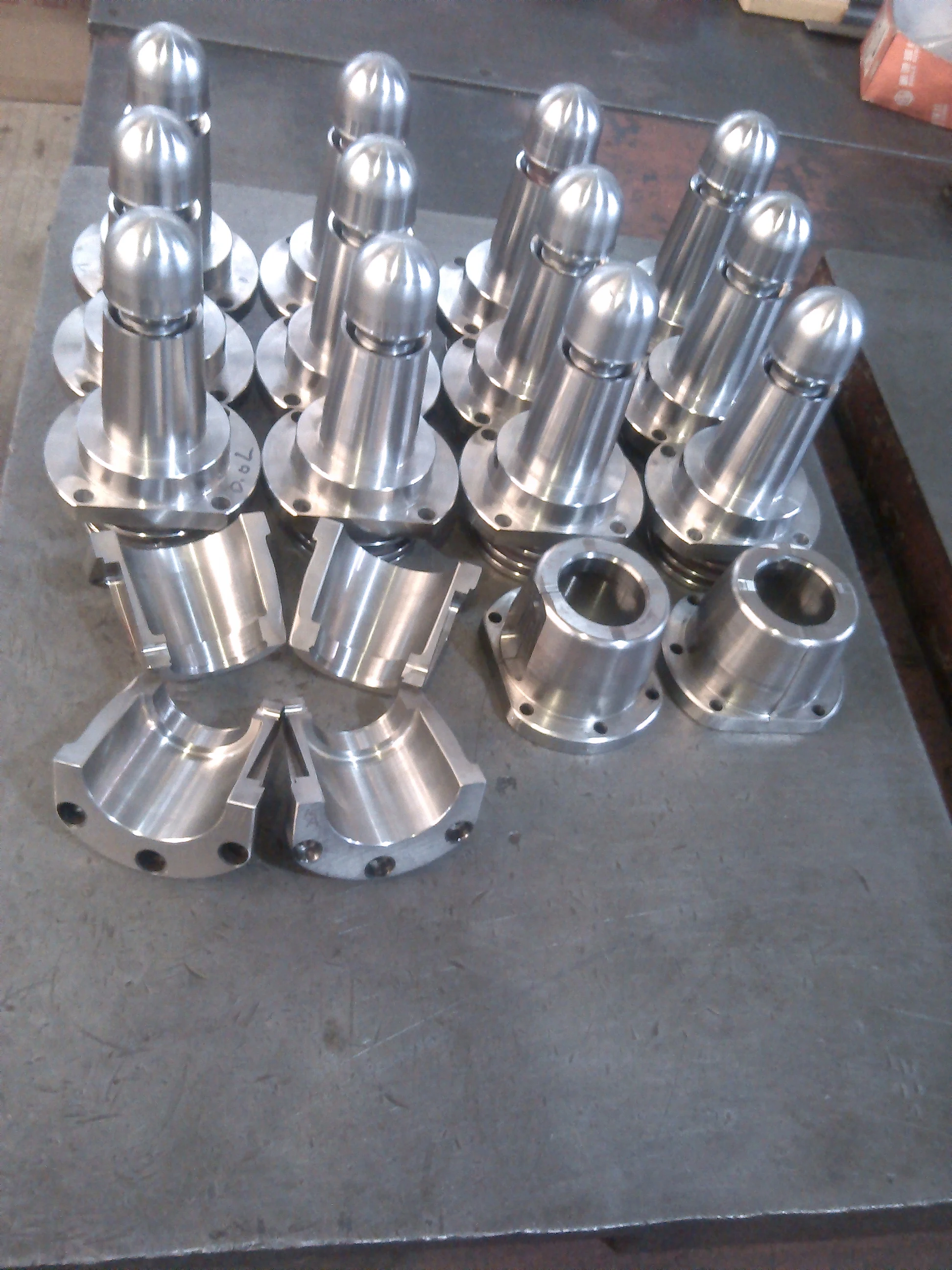

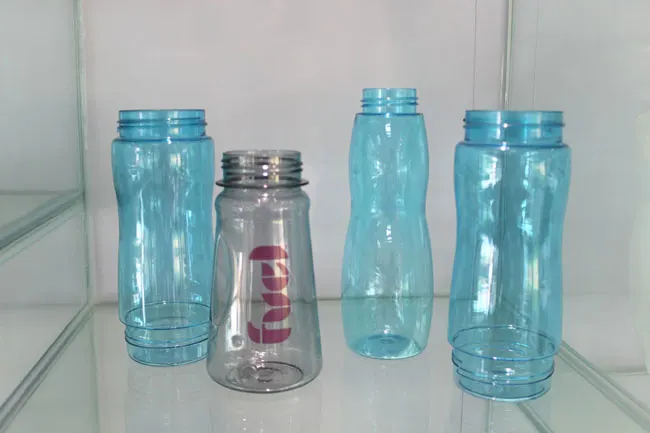

Customization(shape, thickness, transparency ect.) for JASU one step automatic injection stretch blow molding machine Tritan water bottle moulds is possible, if you have any needs for our service, please don't hesitate to reach us
