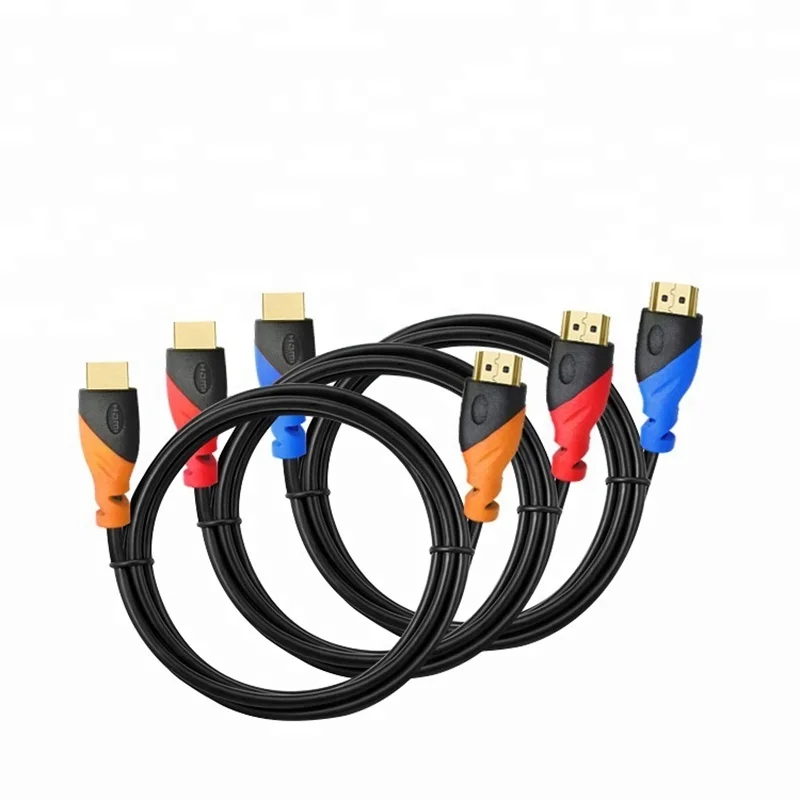

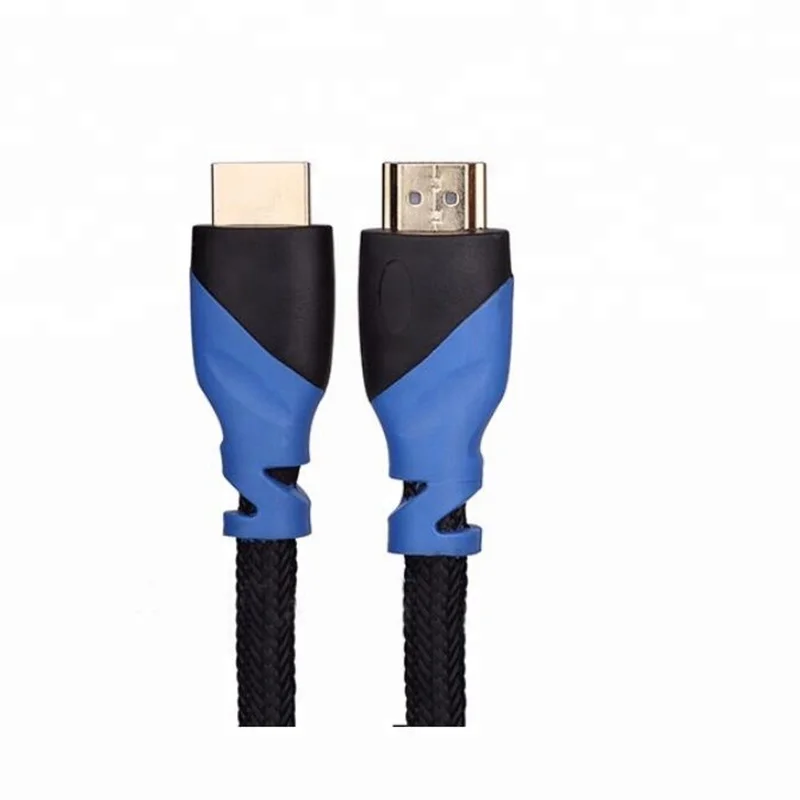

High quality 1.5m 3m 5m 10m 24k Gold Plating 19 1 bare copper 4K 60hz 2.0 hdmi cable for tv box

Conductos

bare copper

Insulation

Outer Jacket with protective nylon sleeve. (color optional)

           Contacts

                           24K Gold Plated

Connectors

HDMI Type A Male to Type A Male

Available lengths

1.5m-100m

Available terminations

HDMI,19PIN,Male to Male, Version 2.0v, up to 1440P

Available gauge

 OD:7.3/8.0/9.0mm

Certification

RoHS,UL,CE,CE

Shielding

AL+ ML+ Braiding+ Ferrite(optional)

AWG

22/24/26/28/30/32

ELECTRICAL

Quality Control

operation according to regulations & rules in ISO9001:2008

Voltage

DC300V 5M ohm/10ms

Insulation Resistance

10M min

Contact Resistance

2 ohm max

Working Temperature

-25C-80C

Data transfer rate

10.2Gbps Max

Differential Impedance

100±10Ω(TDR)

FEATURES

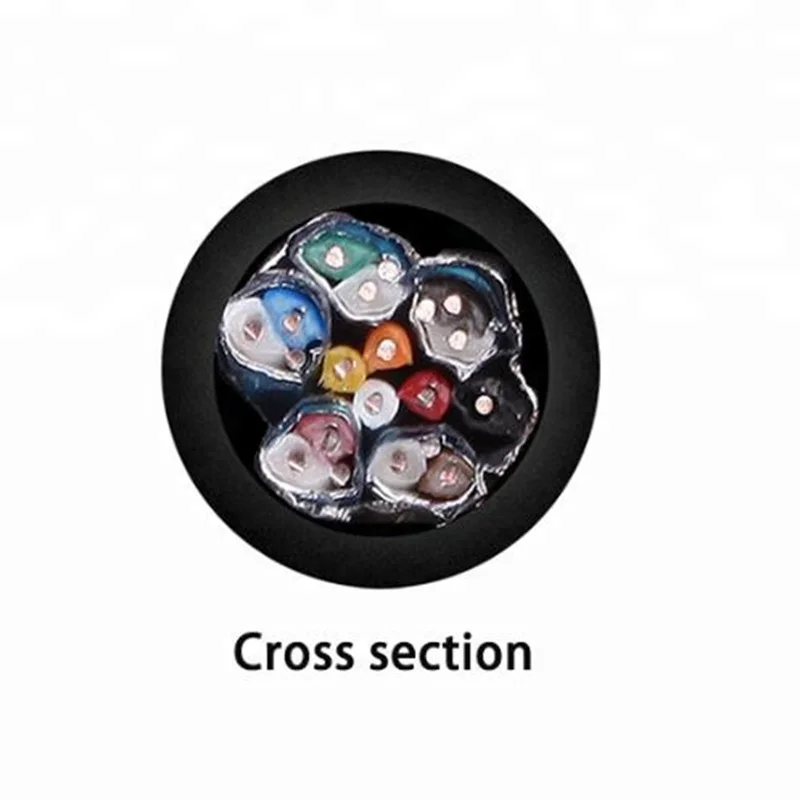

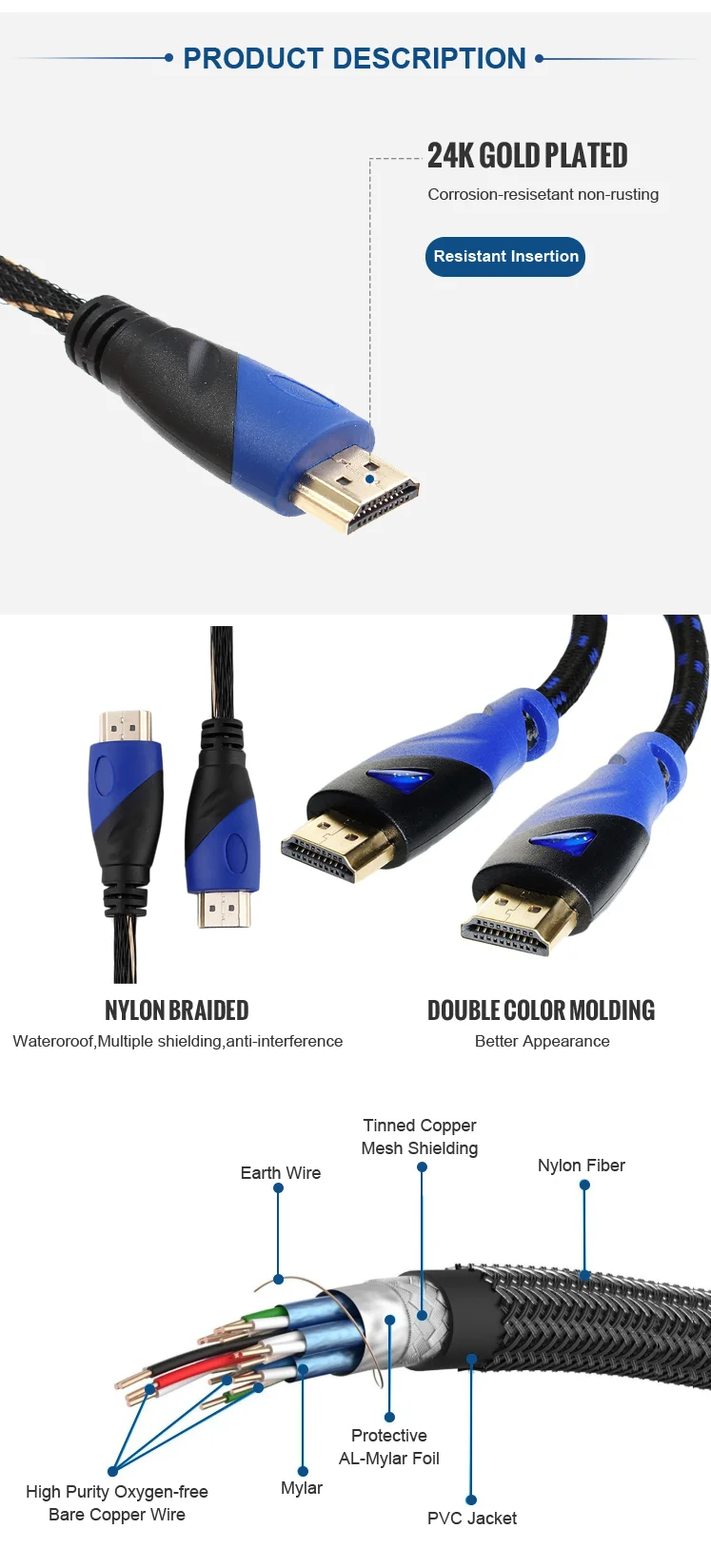

1, Center conductor: high quality digital signal delivered by oxygen-free copper

2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.

3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference

4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.

5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.

6, High density triple shielding for maximum rejection of EMI and RFI

7, Transfer speed: 10.5Gbps

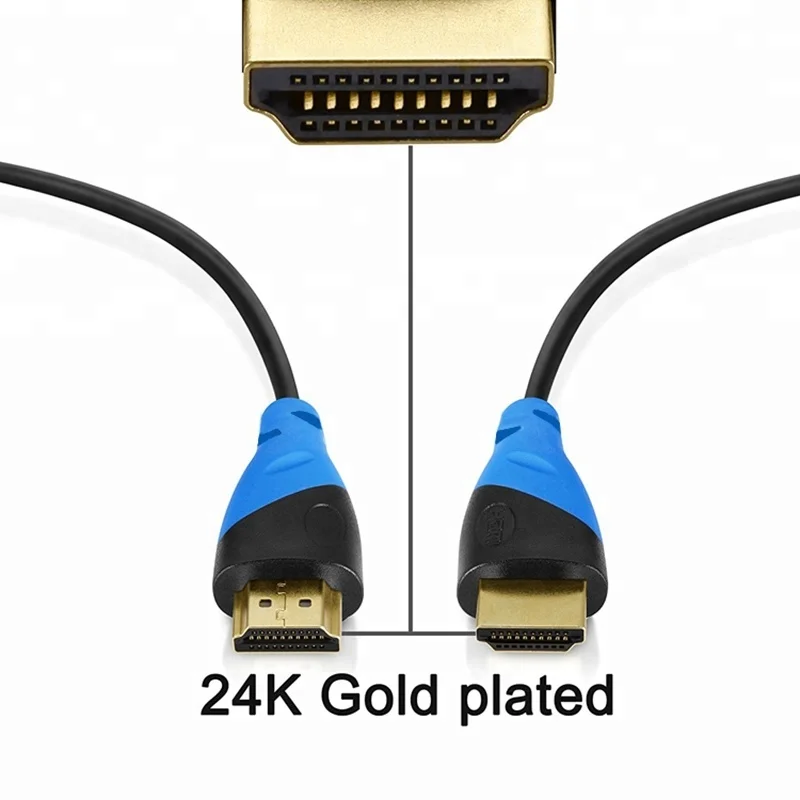

8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance

9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chro
