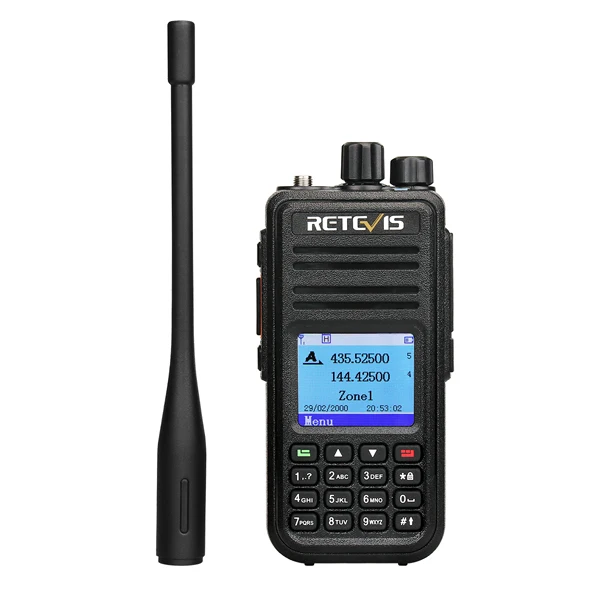

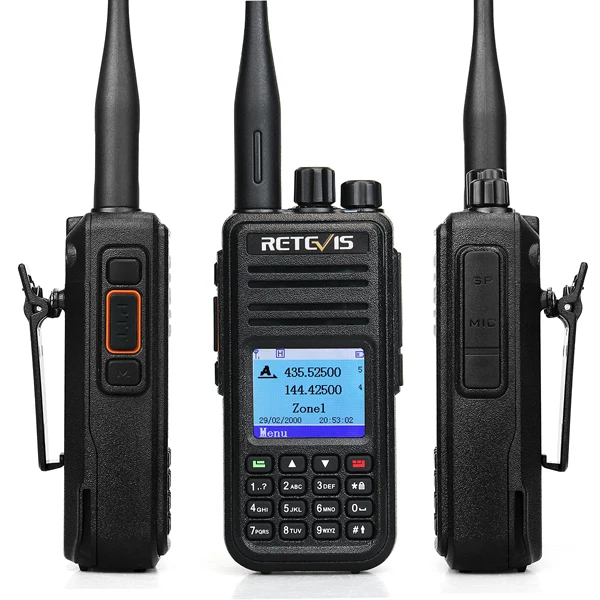

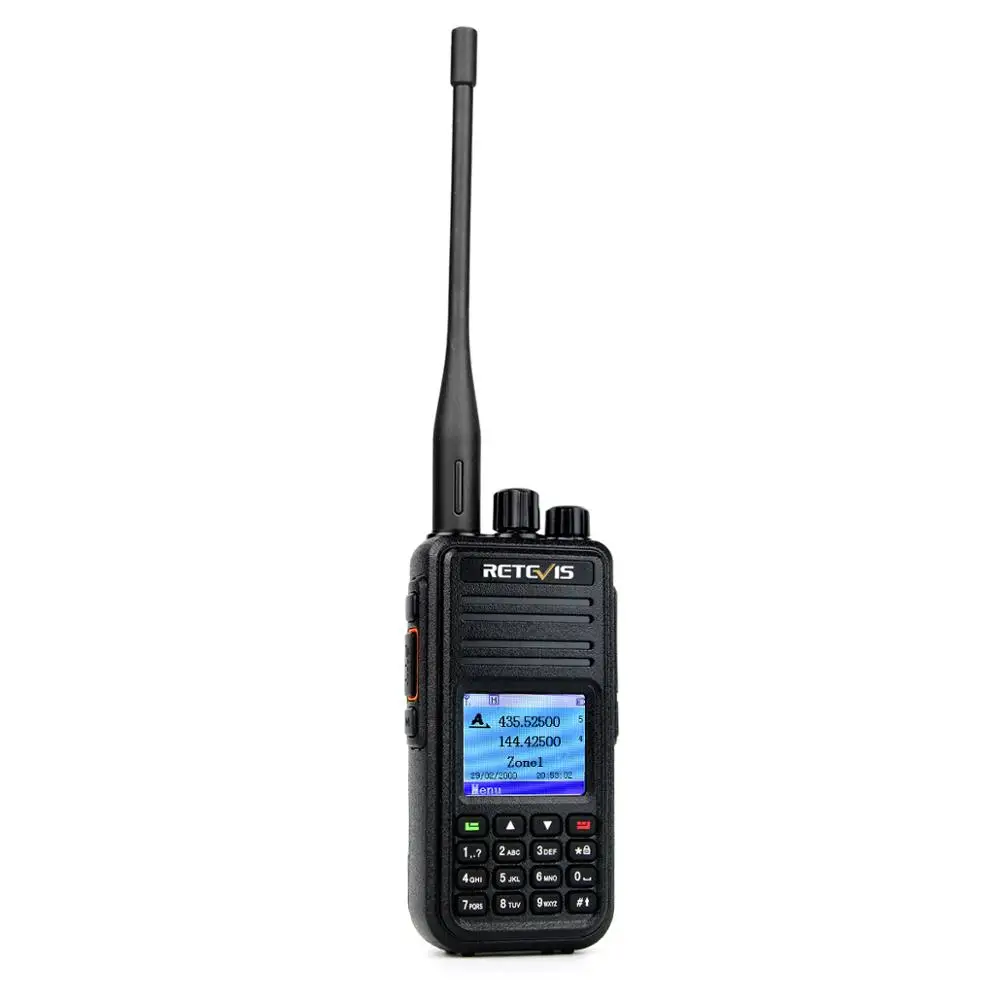

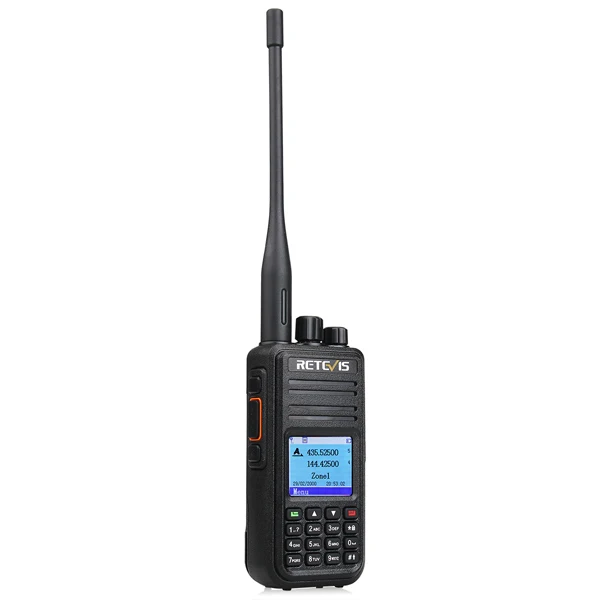

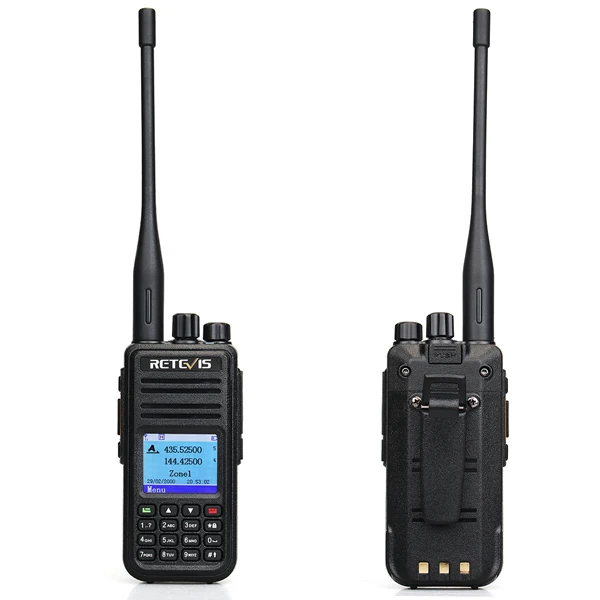

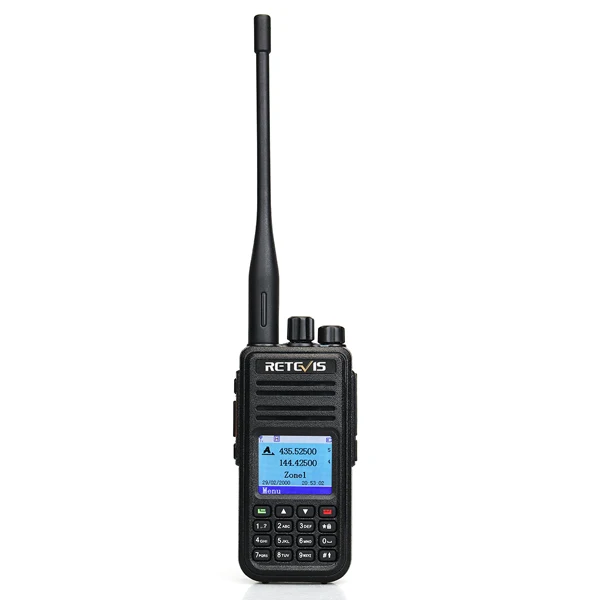

GPS 136 174MHz 400 480MHz Dual Band DMR UHF VHF DMR Radio walkie talkie Retevis RT3S
- Category: >>>
- Supplier: Henan Eshow Electronic Commerce Co. Ltd.
Share on (60799479865):
Product Overview
Description
RT3S dual band digital radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology.
Main Feature:
l GPS
l Use time-division multiple-Access
l (TDMA)digital function
l Dual time slot for repeater
l Dual time slot for point to point
l Firmware upgradeable
l Lone worker
l Encryption function
l Compatible with Mototrbo TierⅠ&Ⅱ
l Single call,group call and all call
l Analog and digital combiend
l Remote kill /stun and activate
l Up to 3000 channels
l Transmit interruption
l Group call match(promiscuous)
l Private call match(promiscuous)
l Record
l Emergency Alarm
l VOX
l TOT
General specifications | |
Frequency | 136-174&400-480MHz |
Channels | 3000 |
Frequency Stability | ±1ppm |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | 7.4V DC |
Dimension | 131 x 61 x 36mm |
Weight | 258g (with battery) |
Battery Type | Li-ion |
Battery Capacity | 2000mAh |
Antenna Impedance | 50Ω |
Audio Impedance | 1W 16Ω |
Channel Spacing | 12.5KHz |
Vocoder | AMBE+2™ |
Transmitter | |
Power | High≤5W, Low≤1W |
Frequency Stability | ±1.0ppm |
Adjacent Channel Power | ≤-60dB |
Free Time Slot Power | TDMA:≤57dBm |
Hum and noise | -40dB 12.5KHz |
Spurious radiation | Antenna:9KHz-1GHz ≤-36dBm 1GHz-12.75GHz ≤-30dBm |
FM modulation mode | 11K0F3E 12.5KHz |
4FSK digital mode | 12.5KHz(data only):7K60FXD 12.5KHz(data and voice):7K60FXW |
Modulation maximum deviation | 2.5KHz 12.5KHz |
Nonactive slot power | -57dBm |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Audio Response | +1~-3dB |
Modulation BER(bit error rate) | ≤5% |
Receiver | |
Analog Sensibility | 0.2µV 12dB SINAD |
Digital Sensibility | 0.25µV(BER:5%) |
Adjacent Channel Selectivity | ≤-60dB 12.5KHz |
Intermodulation | ≤60dB |
Spurious Response | ≥70dB |
Audio Response | +1~-3dB |
Rated Audio Distortion | <5% |
Rated Audio Power | 1W |
Modulation | ≥45dB 25KHz ≥40dB 12.5KHz |

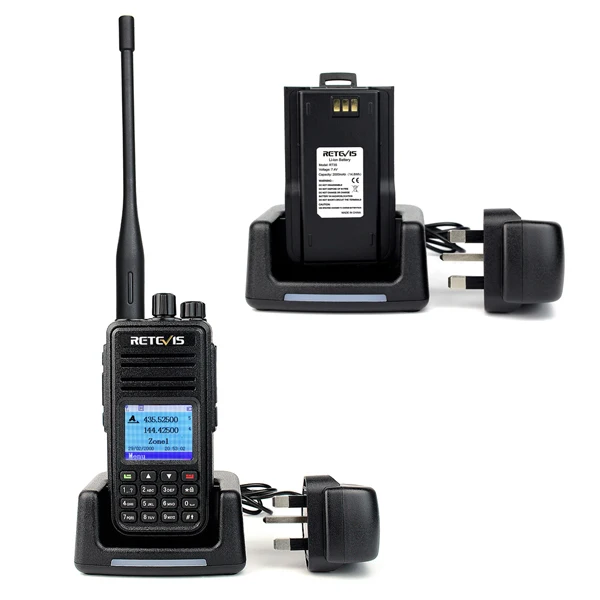

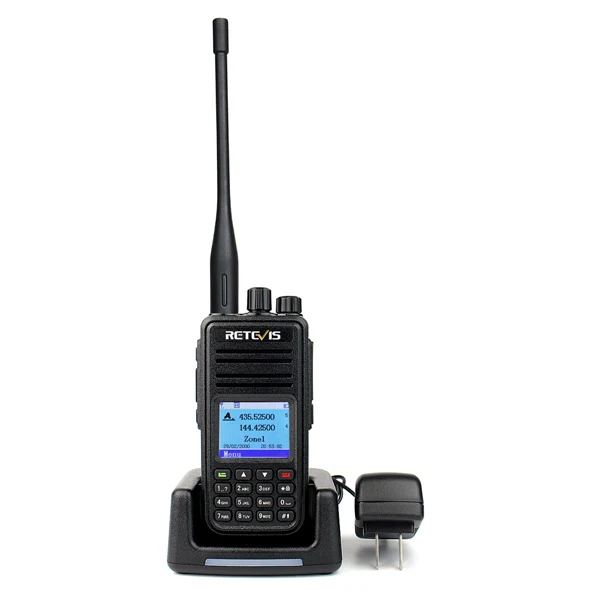

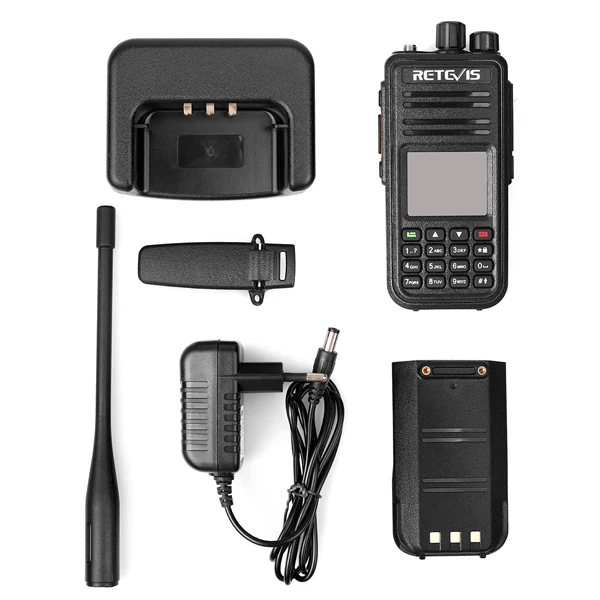

l1 x RT3S two way radio
l1 x Battery
l2 x Antenna
l1 x Adapter
l1 x Charger
l1 x User’s manual
l1 x Belt clip
l1 x Sling
