Product Overview

Description

Weighing bucket loader Scales For Wheel Loader, 10000 Loading Records Can Be Saved Queried and Printed Loader Scale



        Main Features:

• EMC design with high anti-jamming capability, suitable for industrial environment.


• DC24V power input circuit with reverse polarity protection function.


• 32-bit ARM CPU with 72MHz & higher arithmetic speed.


• Dust-proof stainless steel shell with protection level IP65.

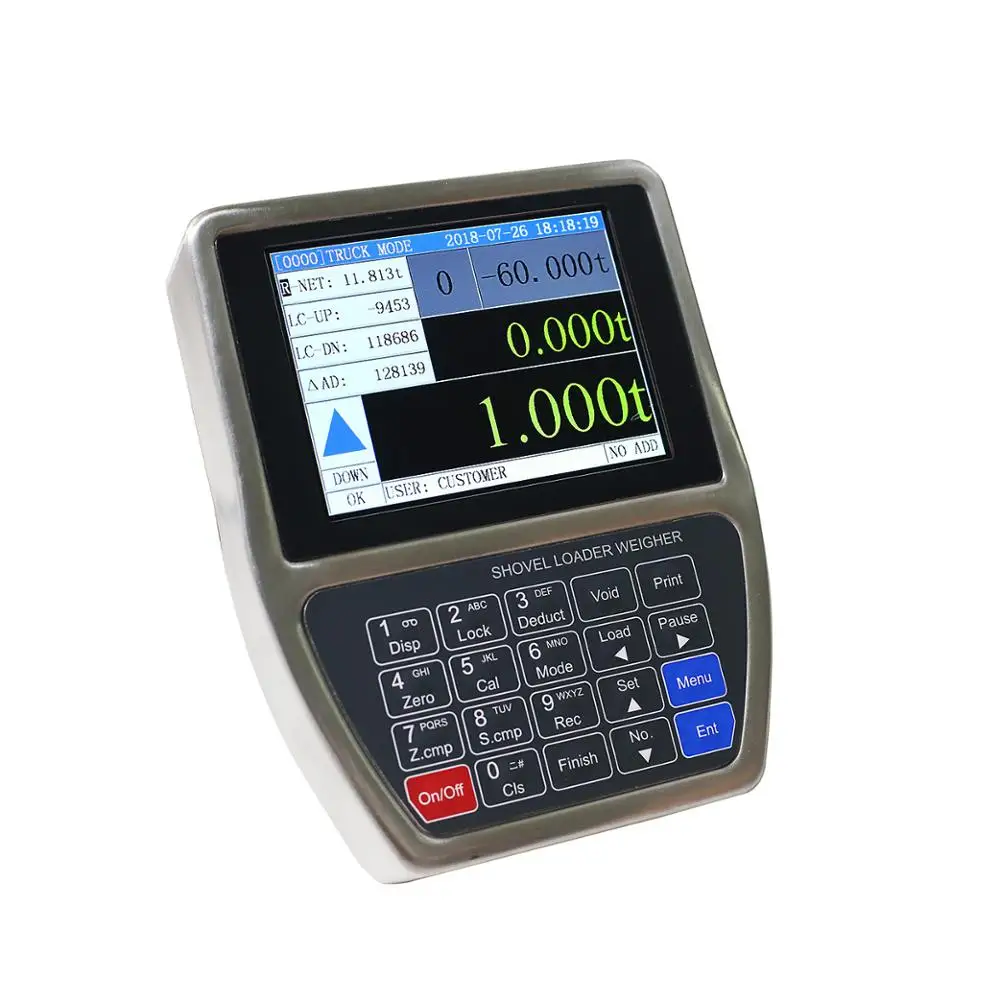

• 640×480 TFT color display screen for English character display.


• The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.


• 20-key English keypad with controllable backlight.


• Number and English Alphabet can be inputted.


• The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.


• Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.


• Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.

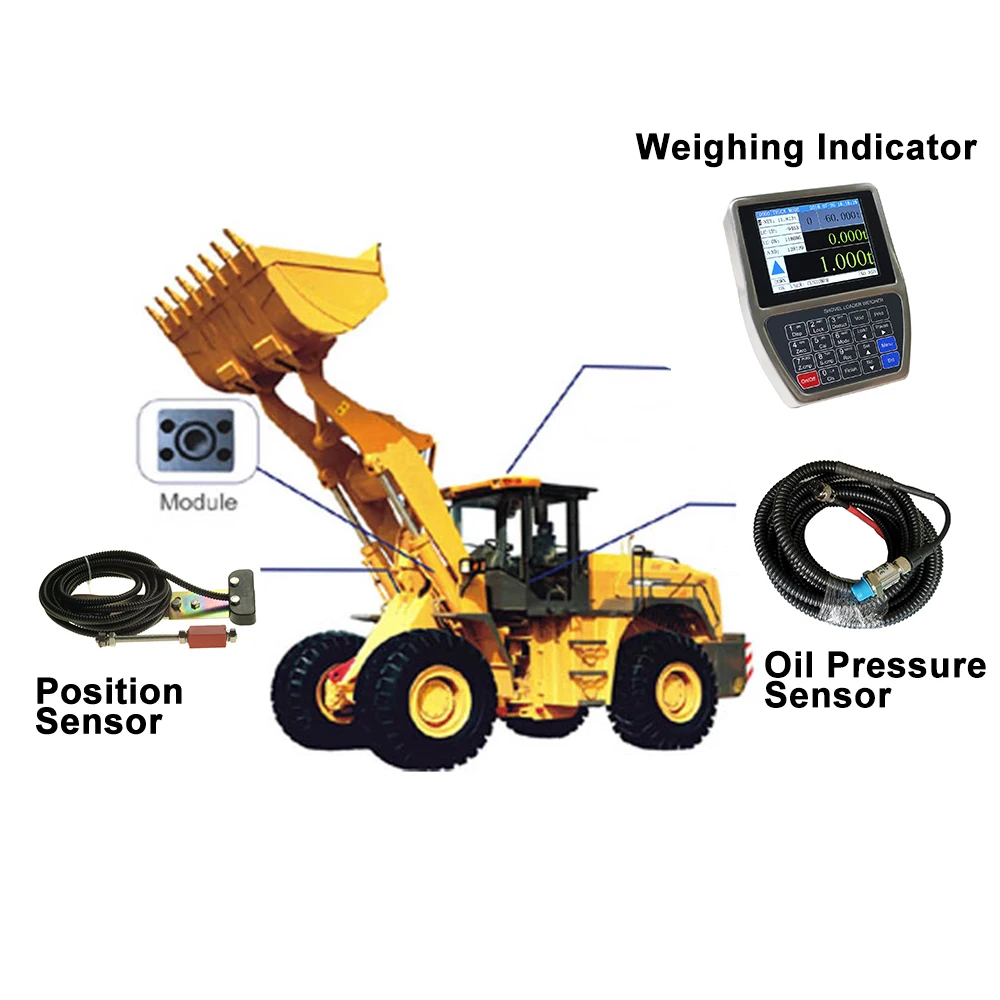

• Using two oil pressure sensors for higher weighing accuracy than using one.


• 24-bit ∑-ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.


• High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.


• 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.

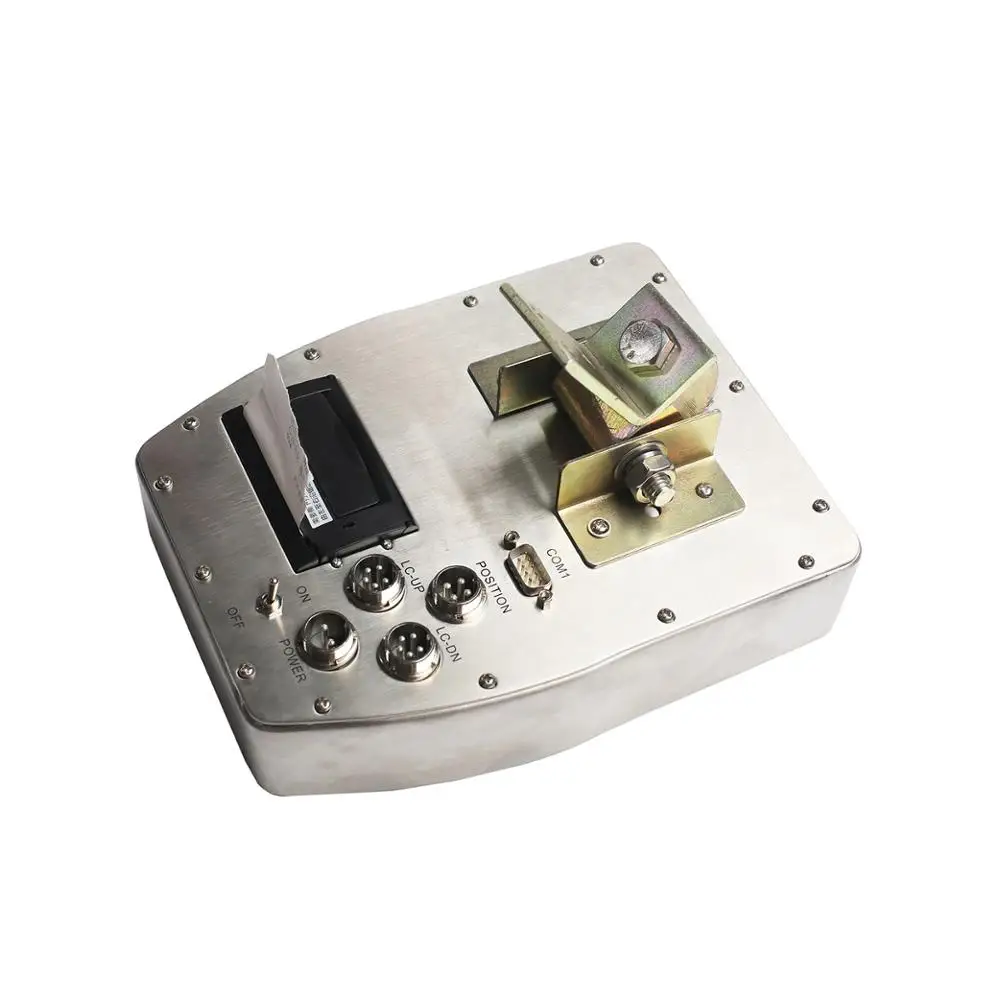

      Pictures



 Main Menu

Main Menu	Second Menu	Description
F1: SET [F1 Parameter Setting]	1 Weighing	Weighing parameters setting.
	2 Calibration	Calibration parameters setting.
	3 Setpoint	Setpoint parameters setting.
	4 Alarm	Alarm parameters setting.
	5 Communcation	Communication parameters setting.
	6 Display	Display and operation interface parameters setting.
	7 Time	Time parameter setting. Date [Parameter [903] Date Format] Time [Hour: Minute: Second] Week [ Monday ~ Sunday]
F2: CAL [F2 System Calibration]	1 Zero Cal. [Unload&Idle]	Zero Calibration. Lift the lift-arm and bucket of wheel loader with unloading and idle speed for correcting Zero Value, Run Length Ratio or IdleAcc.Value (Acceleration Value at Idle Speed).
	2 Zero Comp. [Unload&ACC]	Zero Compensation. Lift the lift-arm and bucket wheel loader with unloading and accelerating for correcting Zero Compensation Coefficient.
	3 Span Cal. [Load&Idle]	Span Calibration. Lift the lift-arm and bucket wheel loader with loading and idle speed for correcting Span Coefficient.
	4 Span Comp. [Load&ACC]	Span Compensation. Lift the lift-arm and bucket wheel loader with loading and accelerating for correcting Span Compensation Coefficient.
F3: REC [F3 Record Management]	1 Query Truck Records	Query Truck Loading Records.
	2 Query Mixing Records	Query Mixing Records.
	3 Query Shift Records	Query Shift Records.
	4 Clear Truck Records	Clear Truck Loading Records.
	5 Clear Mixing Records	Clear Mixing Records.
	6 Clear Shift Records	Clear Shift Records.
	7 USB-Copy Truck Records	Copy Loading Records without Single-bucket-loading -weight to U-disk.
	8 USB-Copy Detail Records	Copy Loading Records with Single-bucket-loading-weight to U-disk.
	9 USB-Copy Detail Records	Copy the Shift Records to U-disk.



Main Menu	Second Menu	Description
F4: LOC [F4 Key-locker]	1 Key-unlocking	Unlocking keypad.
	2 Key-locking	Locking keypad.
	3 Password Set	Exfactory Passwords: Operator Password: 000000. Administrator Password: 000001.
F5: FAC [F5 Factory Adjustment]	Special for manufacturer.
	1 Hardware Test	AD Value of Oil Pressure Signal Linearity Test and Position Signal Test.
	2 Simplified Chinese	Download Simplified Chinese.
	3 Complex Chinese	Download Complex Chinese.
	4 Parameter Backup	Parameter Backup.
	5 Parameter Recovery	Parameter Recovery.
	6 Reset Defaults	Reset to factory defaults.
F6: INF [F6 Product Information]	Only for query.
	1 Version No.	1 Version No.
	2 Serial No.	2 Serial No.
	3 Exfactory Date	3 Exfactory Date.
	4 ID Code	ID Code.
