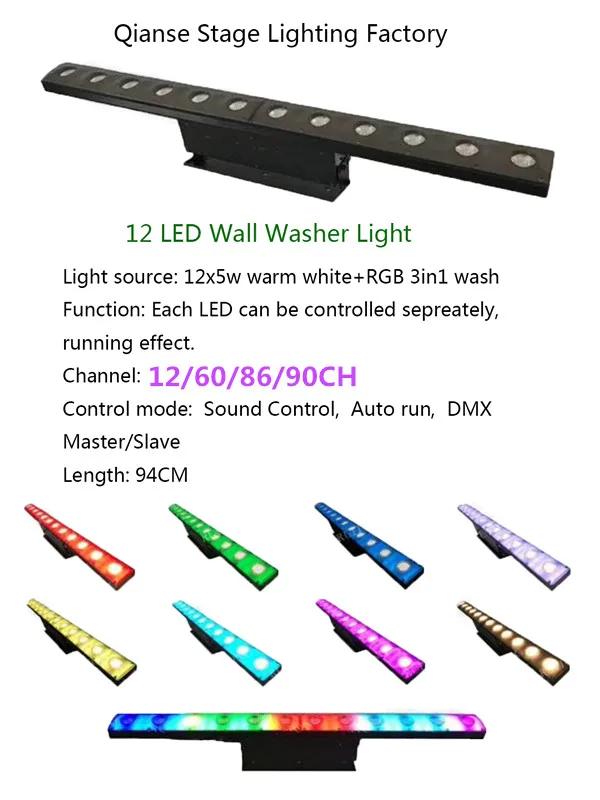

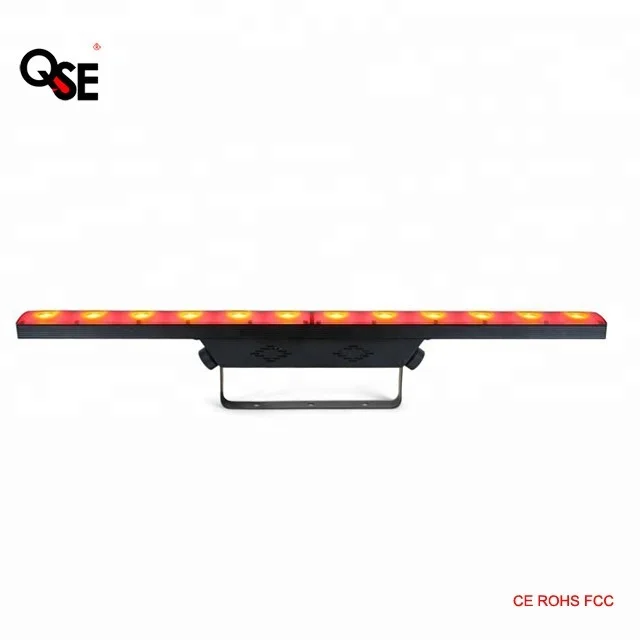

12x5W LED 2 in 1 Pixel Mapping Matrix LED Bar indoor wall washer ce rohs

Product Overview

Description

12*5W warm white +led 3in1 wash  2in1 led bar light LED Wall Washer Light



Main features:

1.Flicker free

2.High output

3.Powerful sharp strobe

4.Unbelievable thermal treatment

5.IP 30

6.Single LED control

7.Beautiful water and rainbow effect



Functions :

1. Stand Alone

2. Smooth RGBW color mixing

3. Color strobe effect ,Electronic Dimming: 0-100%

4. Full Master/Slave operation in any operational mode





Specifications:

1	Advantage	Single LED control,low heat and long life operation(100,000hrs)
2	Voltage	AC 90-240V 50/60Hz
3	Modes	DMX512,Auto,Sound active,Master/Slave
4	Housing	IP30 aluminum housing for indoor using
5	Light source	12*5w + 3in1 lleds
6	Beam Angle	15°/25°/45°degrees
7	DMX Channels	4/8
8	Input/output	Linkable via 3-pin XLR cable
9	Dimension	118*14*14 cm
10	Weight	4.5kg













DMX Channels:



No.	Function	Explanation
CH 1	dimmer	R.G.B.W. linear dimmer, from dark to bright
CH 2	Strobe	R,G,B,W strobe,from slow to fast
CH 3	Feature selection	0—50:Eight channel control;51--100:jump change;101—150:gradual change;151—200:Pulse change;201—255:sound control
CH 4	Function of speed	Function of speed, from slow to fast
CH 5	R dimmer	R linear dimmer, from dark to bright
CH 6	G dimmer	G linear dimmer, from dark to bright
CH 7	B dimmer	B linear dimmer, from dark to bright
CH 8	W dimmer	W linear dimmer, from dark to bright











CE & RoHs,FCC:



Our services:

1. Your inquiry related to our products or prices will be replies in 24 hours.





2. OEM&ODM,any your customized lightings we can help you to design

and put into product without any charges.





3. Good inquiry and after-sale service.





4. We can arrange the shipment for u on free.







Why choose us?



1. 100% manufacture,1 year guarantee time



2. All of our salesmen know the products well,we can provide u a good inquiry service.



3. We have the professional person to guarantee the good after-sale service



4. Neither the old nor the young will be cheated.



5. The way of payment is flexible: T/T,Western Union,Paypal,D/P,D/A,

MoneyGram ,L/C are available.



6.We can arrange the shipment way for u to help u settle the shipment difficulty on

free. (DHL,FEDEX,UPS,TNT,By Air or By Sea )



7.Short delivery time: 2-7days,according to the quantity,an sample can

be delivered in only 1 day.







Caution:

1. Be careful with your operations. With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!





2. Unplug mains lead before opening the housing!





3. To prevent fire or shock hazard, do not expose this fixture to rain or moisture!





4. This fixture must be earthed!





5. Do no try to repair it when the circuit is out of order, send it back to

your supplier to repair!
