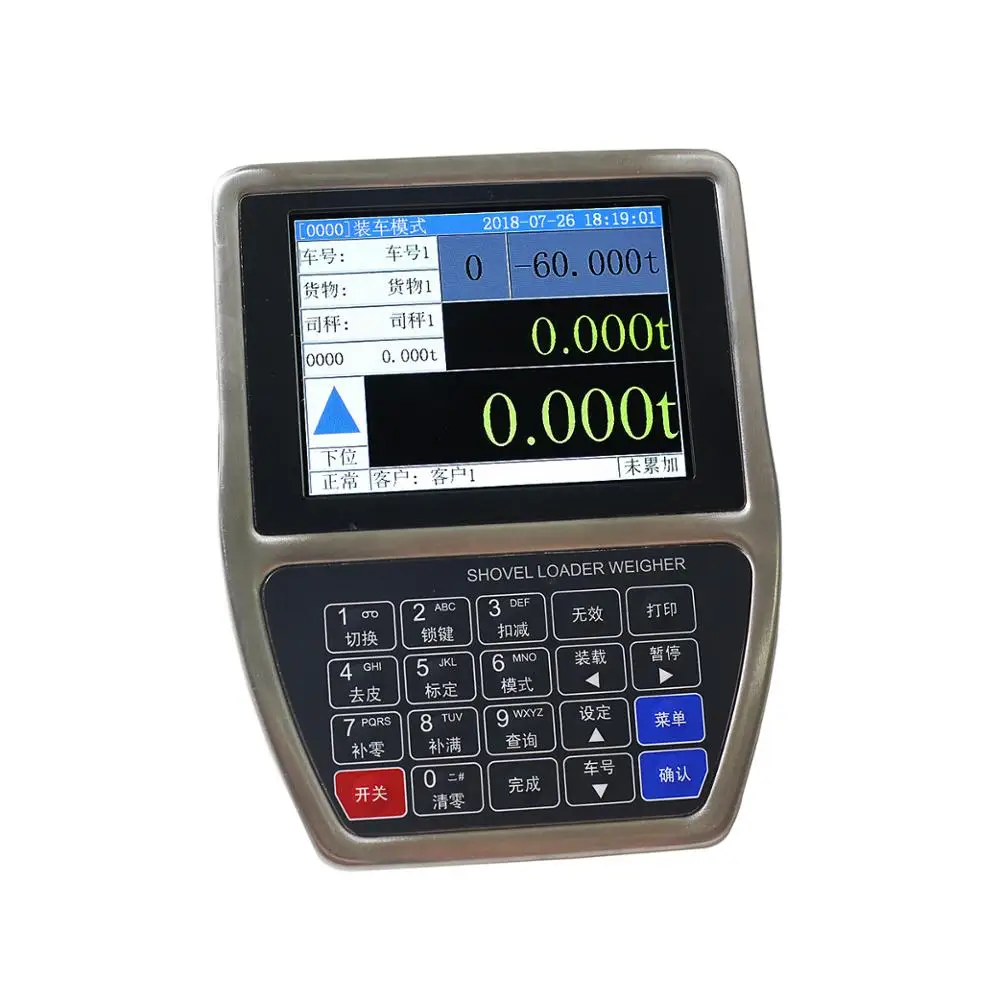

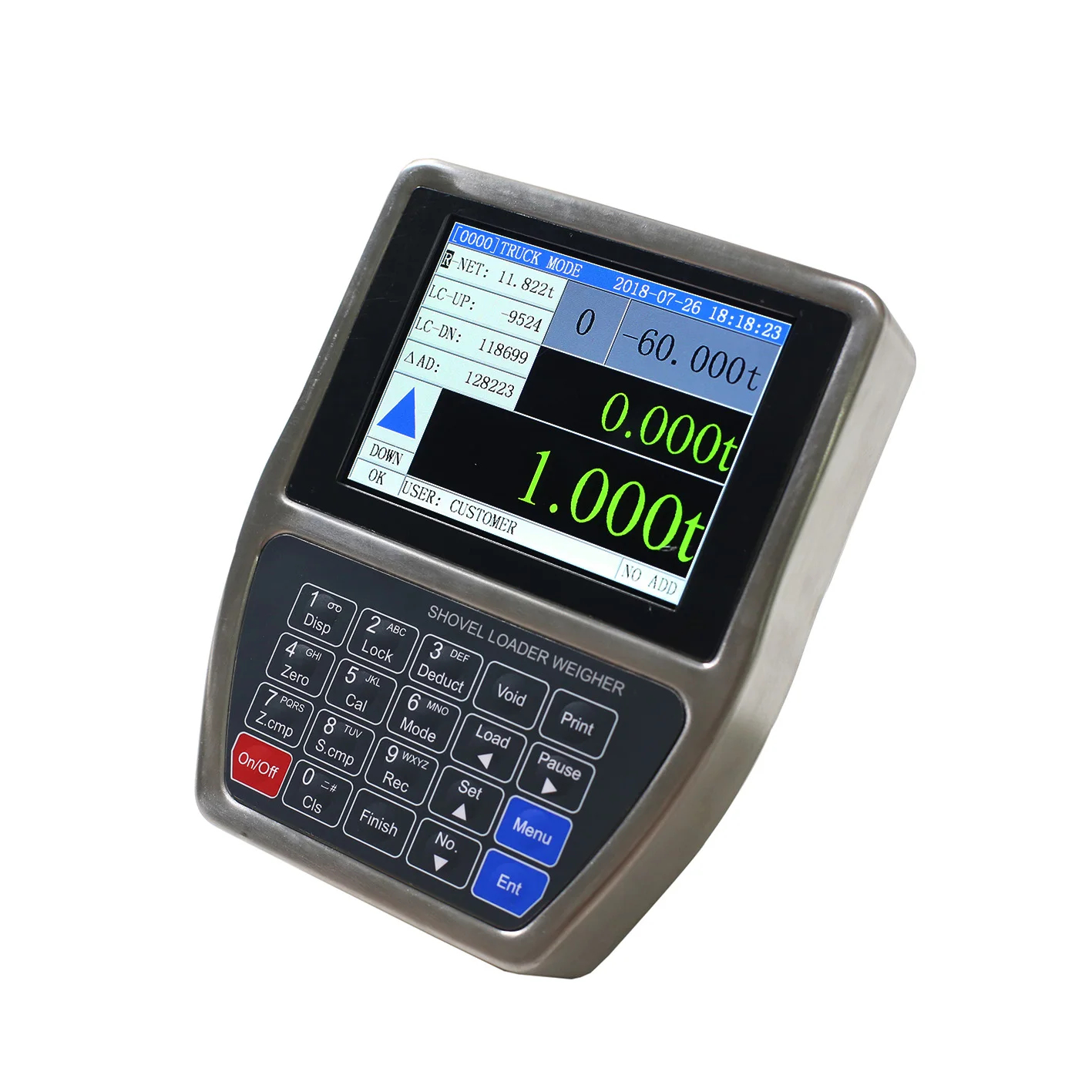

On Board Weighing Systems, Shovel Loader Indicator With Stainless Steel Shell BST106-N59



                 1. Main Features:

² EMC design with high anti-jamming capability, suitable for industrial environment.

² DC24V power input circuit with reverse polarity protection function.

² 32-bit ARM CPU with 72MHz & higher arithmetic speed.

² Dust-proof stainless steel shell with protection level IP65.

² 640×480 TFT color display screen for English character display.

² The display informations of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for judging if Single-bucket-loading-weight is valid and the loading process should be stopped.

² 20-key English keypad with controllable backlight.

² Number and English Alphabet can be inputted.

² The informations of User Name, Truck No., Goods No. and Operator No. can be inputted.

² Upper/Lower Limit of Single-bucket-loading-weight, Setpoint of Totalized Loading Weight and Date/Time can be set.

² Operating Time, Single-bucket-loading-weight, Totalized Loading Weight and Alarm Information can be recorded automatically.

² Using two oil pressure sensors for higher weighing accuracy than using one.

² 24-bit ∑-ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.

² High sampling frequency, anti-vibration digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.

² 10000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight value.



Pictures



         2. Brief Introduction

         2.1 Operating Principle

¨ Wheel Loader Weigher is a dynamic weighing and auto-totalizing equipment installed on wheel loader without changing the original structure of wheel loader.

¨ When the lift-arm of wheel loader lifted to a certain height, the position sensor will trigger the weighing process, and the weighing indicator will collect the oil pressure signal from lower and upper oil chambers of arm-lifting oil cylinder. After signal processing and compensating, Single-bucket-loading-weight will be got and totalized to Totalized Loading Weight automatically, and the Deviation Value between Totalized Loading Weight and Setpoint, alarm messages will be displayed. The operator can judge if the present Single-bucket-loading-weight is valid according to the alarm messages, and confirm the loading weight of last bucket according to Negative Deviation Value for avoiding overloading. After Totalized Loading Weight reached setpoint, the operator should stop loading process, save and print Loading Records.

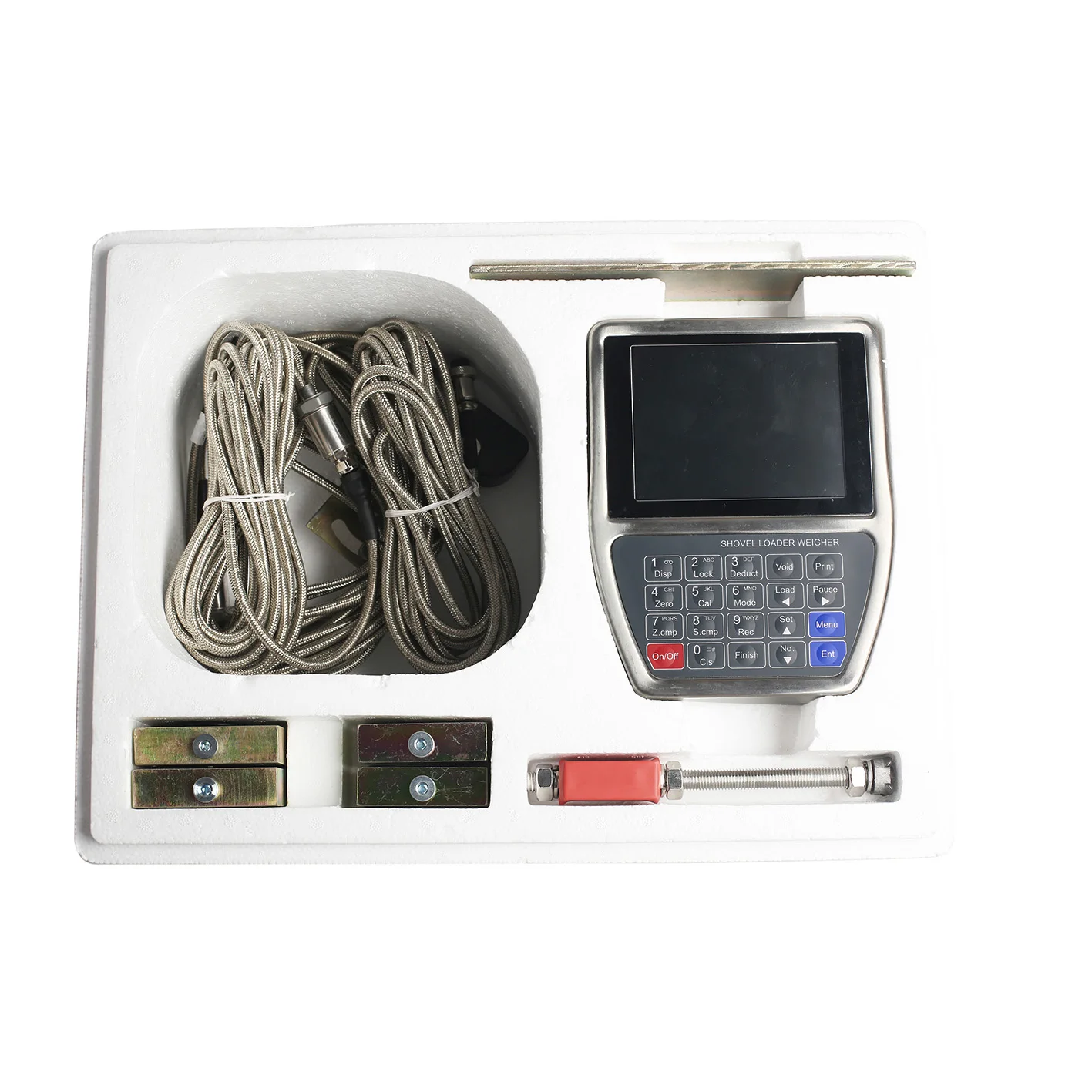

       2.2 System Configuration

¨ 1 Weighing Indicator with Thermal Printer.

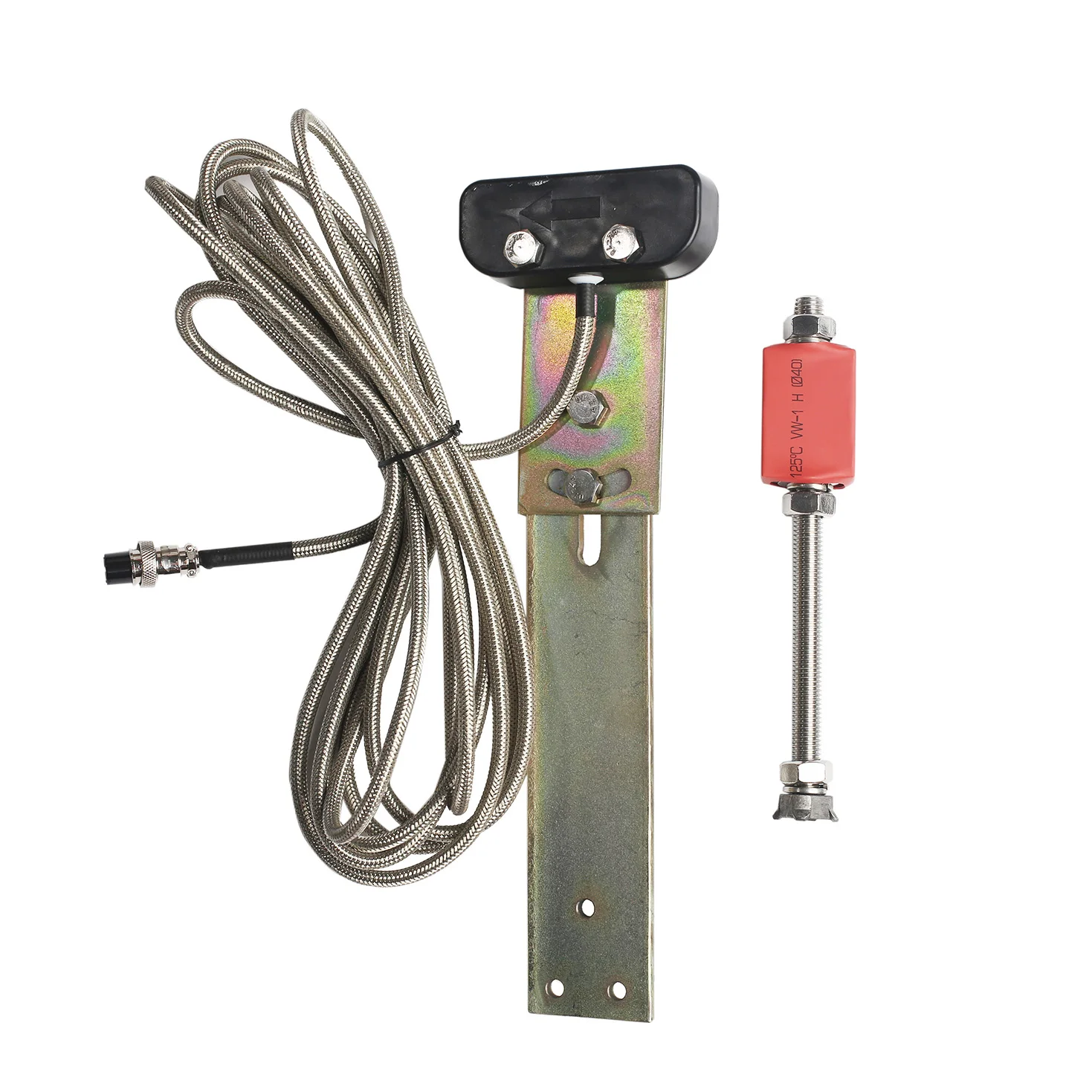

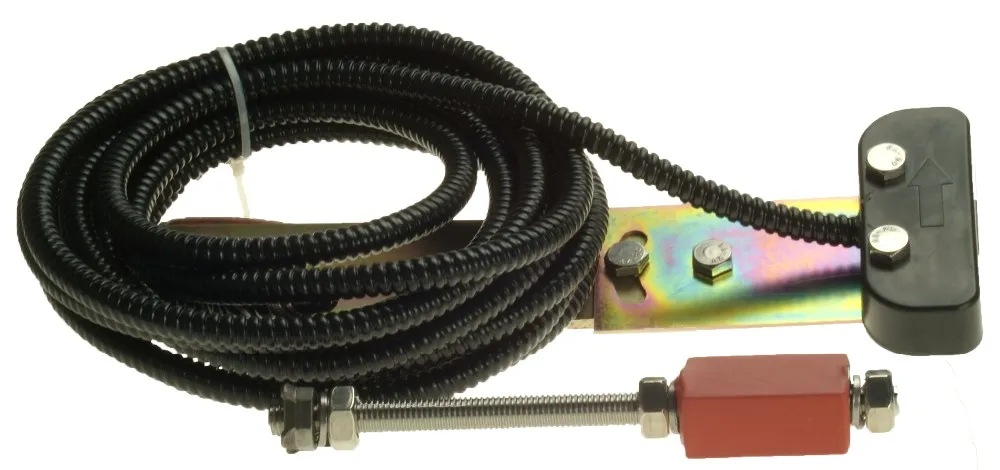

¨ 1 Position Sensor.

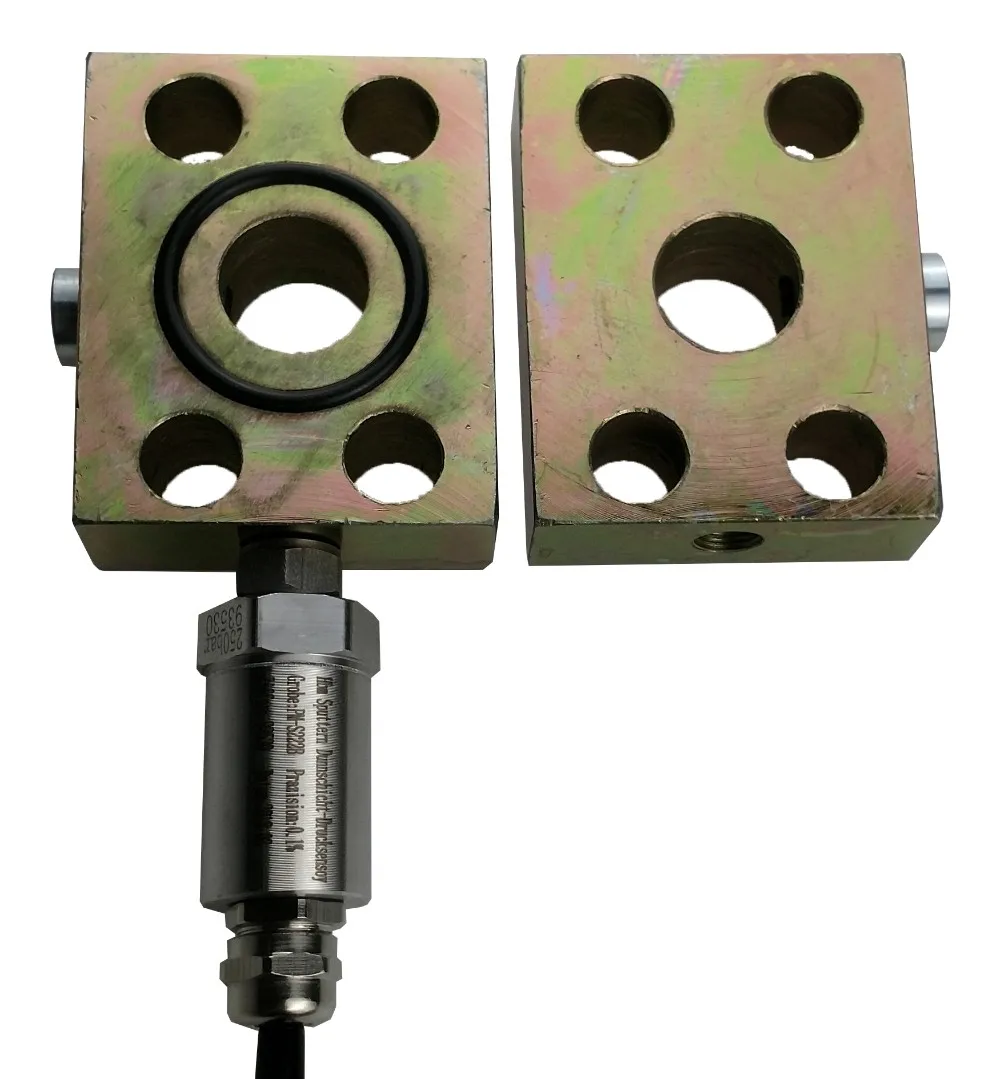

¨ 2 Oil Pressure Sensors.

¨ 2 Plate Type Three-way Joints.

¨ 1 Mounting Fitting.

      2.3 Applicable Wheel Loaders

      Suitable for the wheel loader series with loading capacity 1~12t.

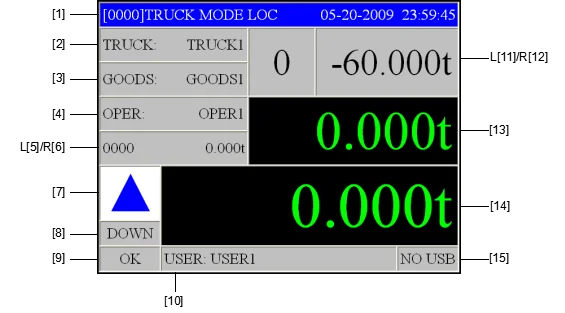

      Main Display Interface

          Keypad Operation



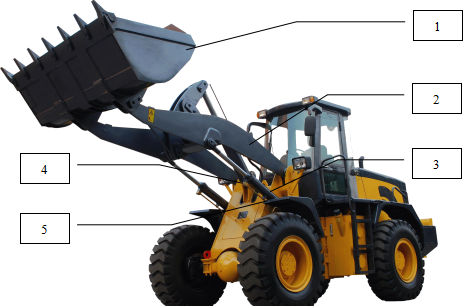

           Structure of Wheel loader



1: Bucket;  2: Lift-arm;  3: Arm-lifting Oil Cylinder;  4: Oil Connecting Port of Upper Oil Chamber;

5: Oil Connecting Port of Lower Oil Chamber.





Related Operation Terms:

² Arm-up: Lift the lift-arm so that the bucket rises.

² Arm-down: Put the lift-arm down so that the bucket goes down to the lowest position.

² Bucket-up: Flip the bucket upward to the limit position.

² Bucket-down: Flip the bucket downward.

² Discharge: Flip the bucket downward for discharging materials.

² Shovel: Shovel materials into the bucket.
