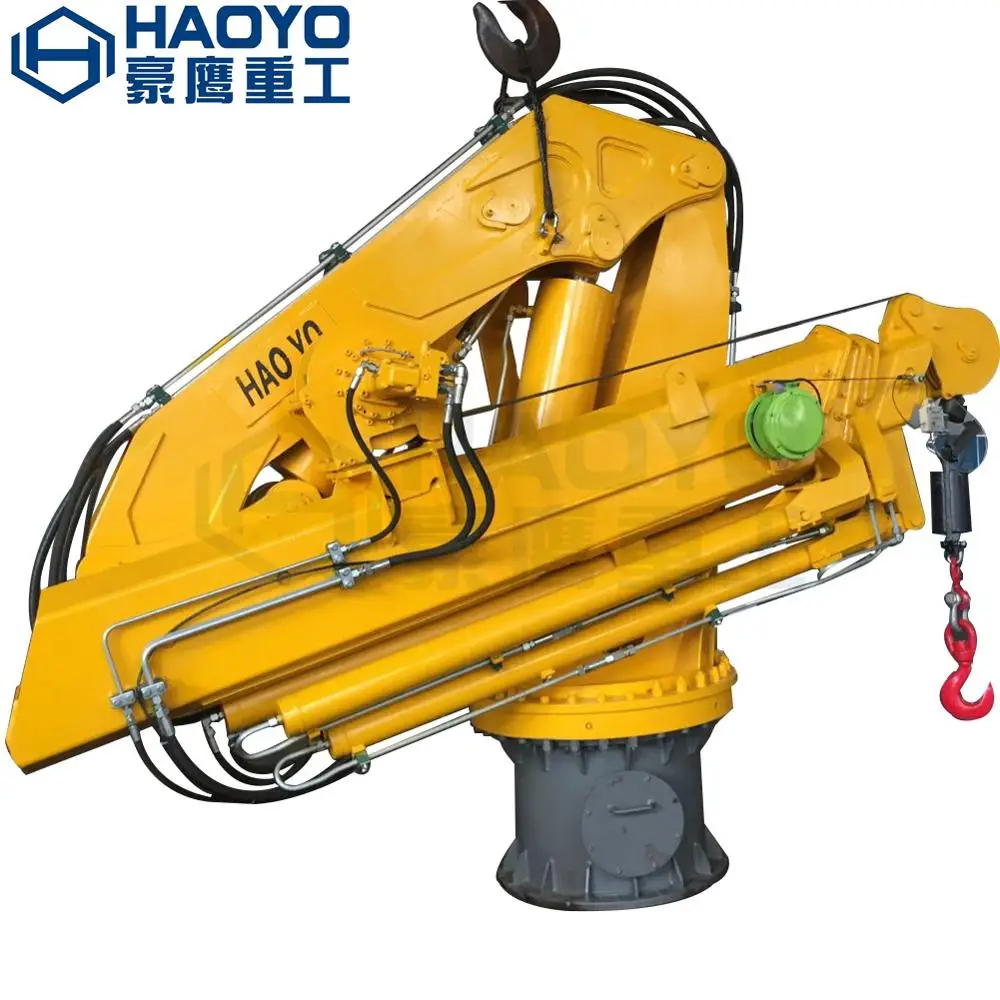

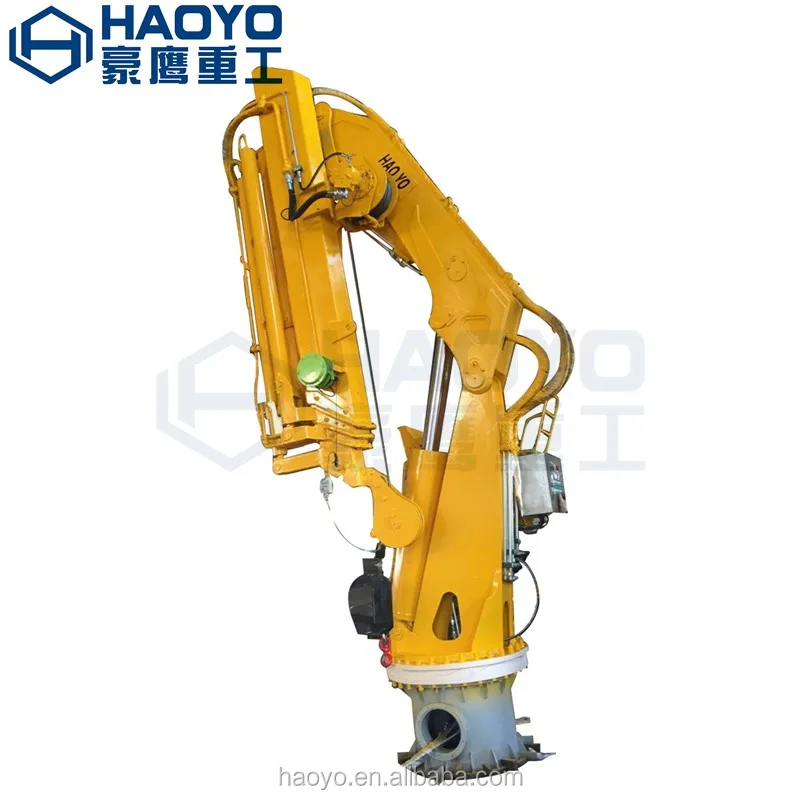

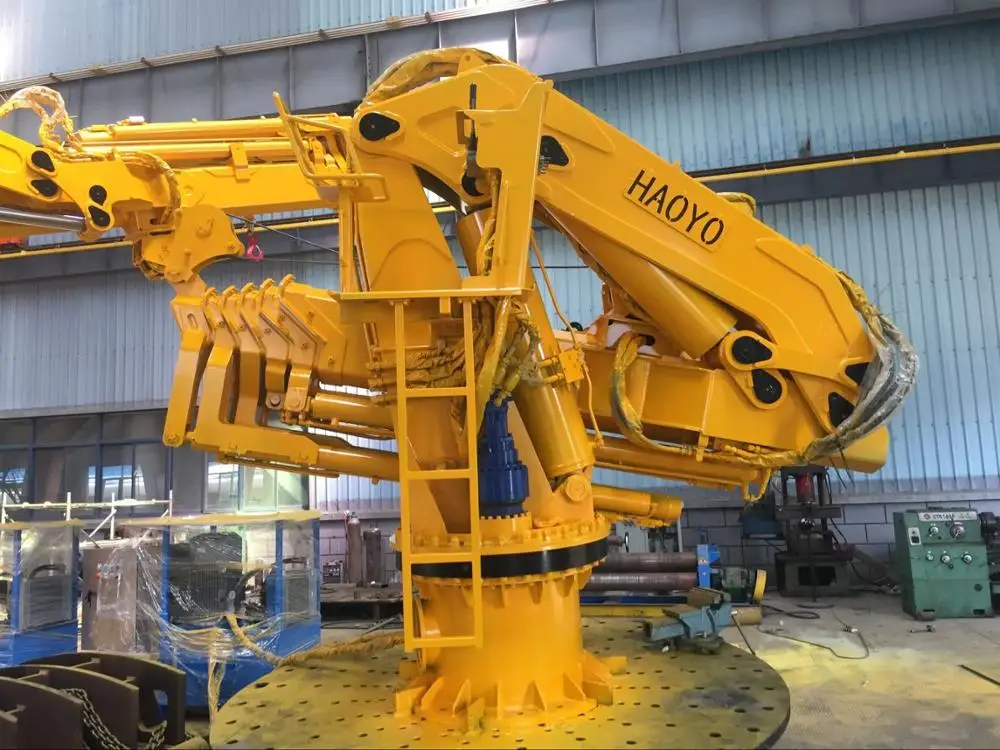

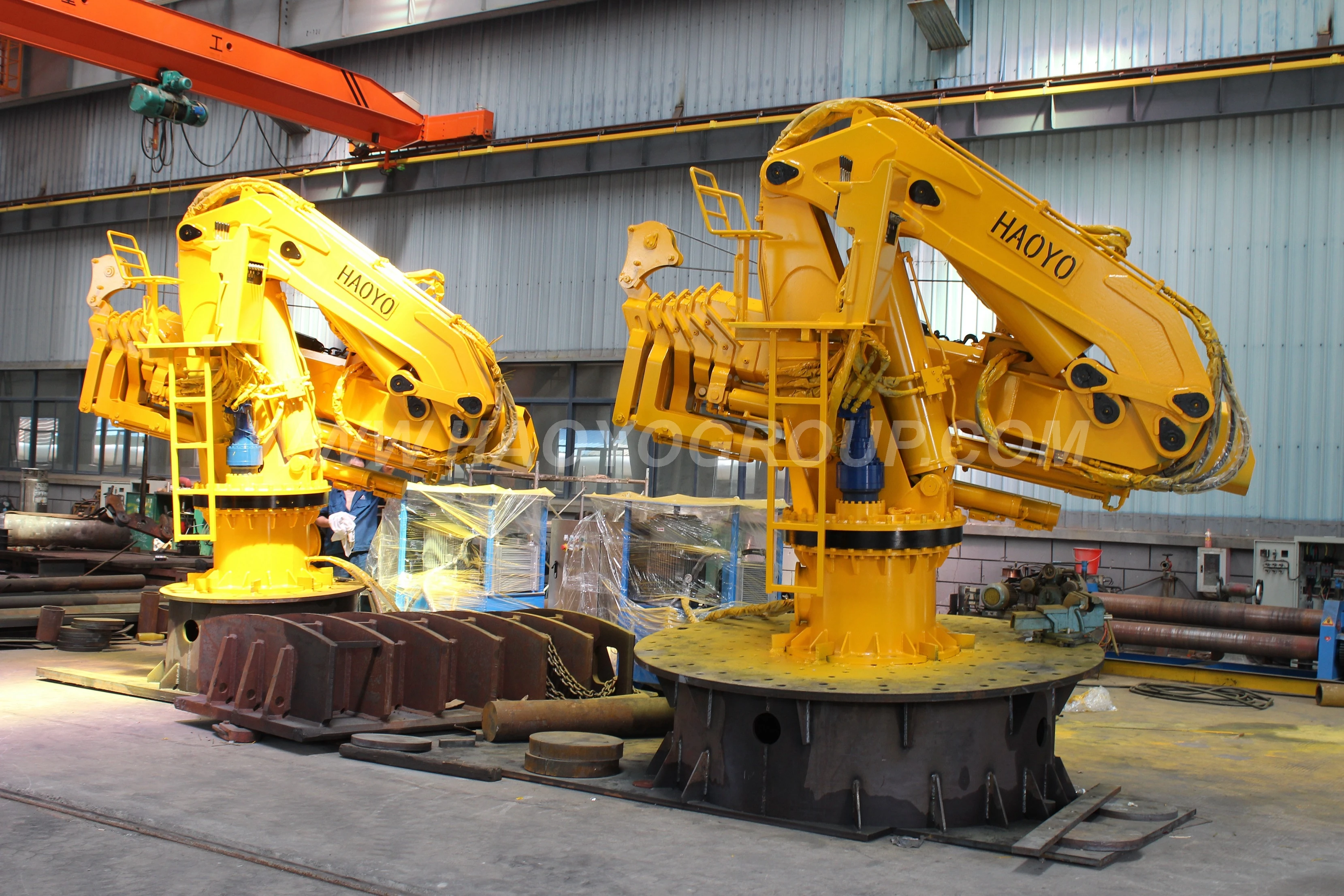

1 ton engine crane marine crane for sale
- Category: >>>
- Supplier: Shanghai HAOYO Machinery Co. Ltd.
Share on (60799571490):
Product Overview
Description
MODEL | Outreach (m) | Safety Load (kN) | Lifting Moment (kNm) | Toal Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
ECK150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
ECK250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 37-4.3 |
ECK 350 | 12.0-16.0 | 3.6・2.3 | 370-430 | 603 | 1095 | 5.3・6.3 |
ECK 550 | 14.0-18.0 | 47-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |
Our Certifications
Detail & Processing
Motor
Self-lubricating bearing
Motor
SIEMENS or ABB motor which has IP5 level
electric
Schneider/Muller for safety
Self-lubricating bearing
Wear-resistant copper abrasion resistant and corrosion stability
control valve group(Italy)
smooth and precise control
hydraulic tube
Hand made for less damage
Crane Body
Smooth and reliable operation
HAOYO provides you with reliable, innovation and customized marine and port handling equipment.We are committed to offer the best performance in every detail.Every main part will use the top import brand to make the crane high stable and safety.

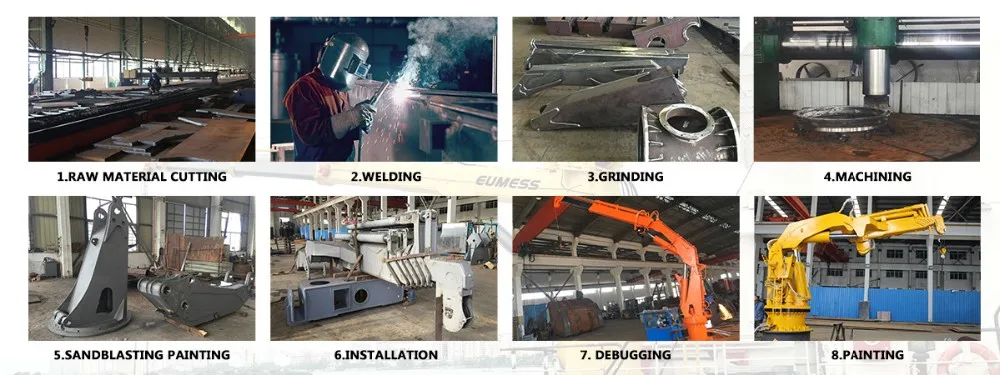

Product Flow
HAOYO provides you with reliable, innovation and customized marine and port handling equipment.We are committed to offer the best performance in every detail.Every main part will use the top import brand to make the crane high stable and safety.

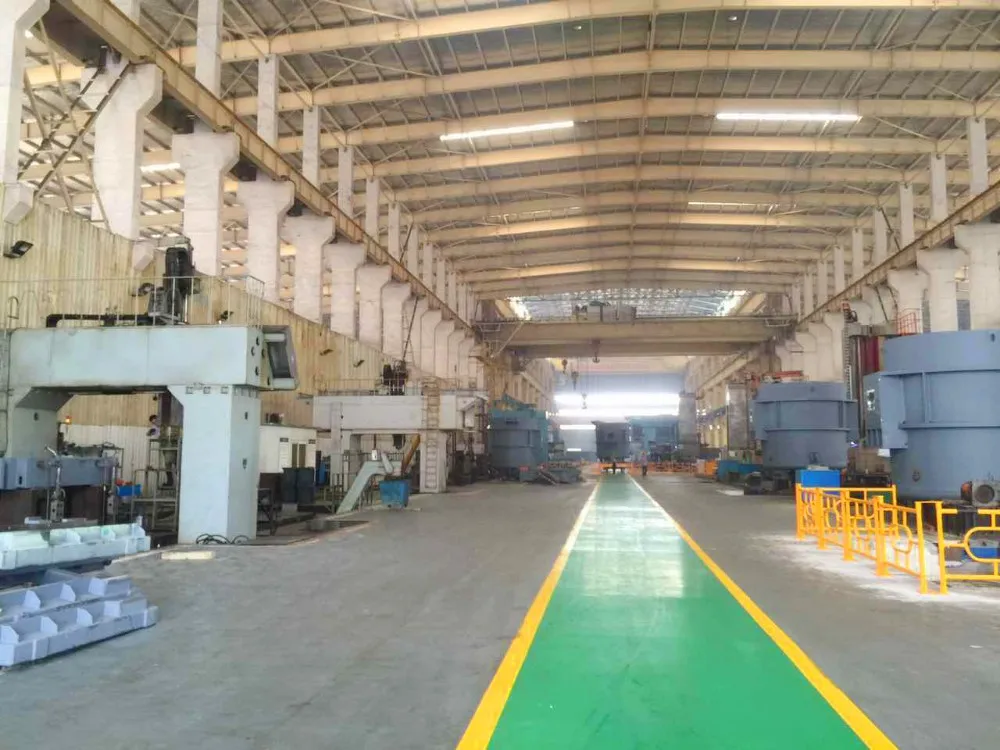

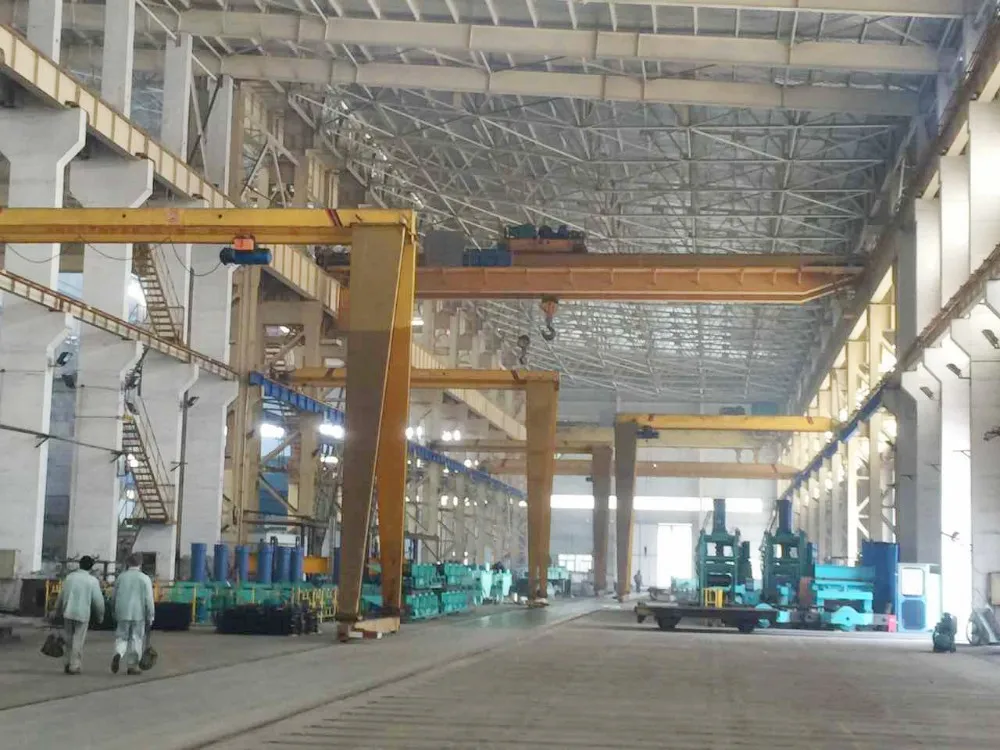

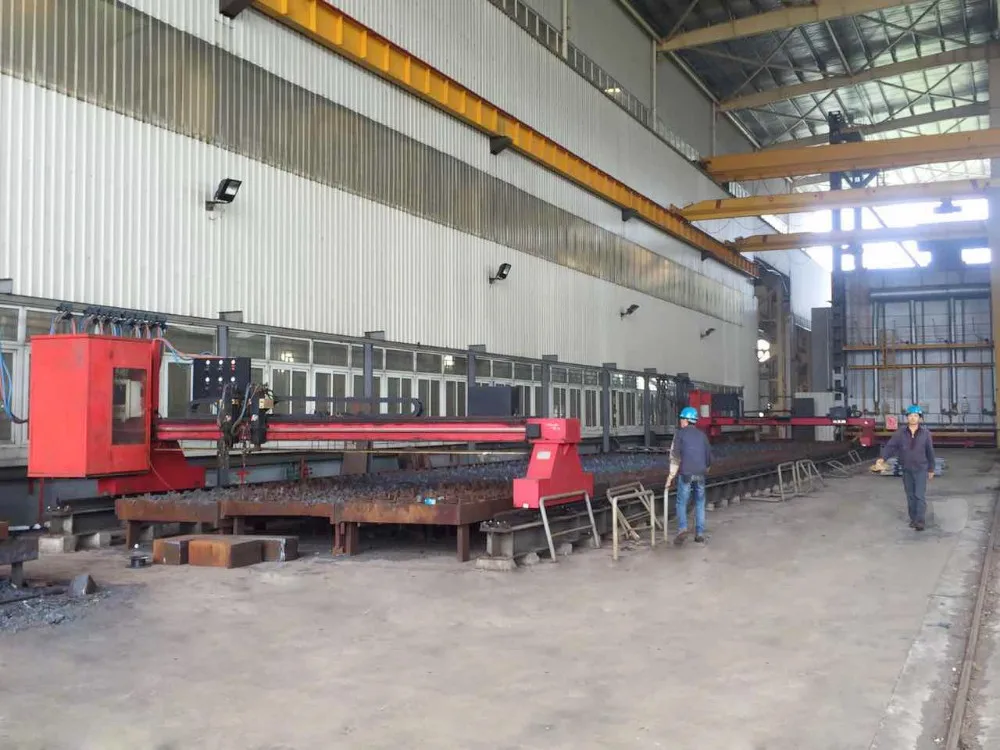

Our Company
More Products
FIXED BOOM CRANE TELESCOPIC CRANE KNUCKLE CRANE FOLDING CRANE
IF YOU WANT MORE INFORMATION PLEASE CLICK THE PICTURE
FAQ
Please provide following necessary information,so we can quote right Model crane.
1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )
2. Crane SWL requested(___ T/___M)
3. Max. working radius of the crane(___M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.
1. What kind of marine crane do you need(stiff boom crane, telescopic boom crane knuckle boom crane knuckle telescopic crane or folding boom crane )
2. Crane SWL requested(___ T/___M)
3. Max. working radius of the crane(___M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
5. If you have any other special request for the crane, please advise us, we will design the suitable model for you.
