Bestguarder Infrared 940NM Night Vision System for Day & Night outdoor Hunting with WIFI function

Product Overview

Description



Bestguarder infrared 850Nm digital night vision conversion kits with  2.4 ” LCD display

Model No: WG-90

Patent No: 201730499740.9 (China),006314332-0001 (Europe),29683933 (USA)







Introduction:

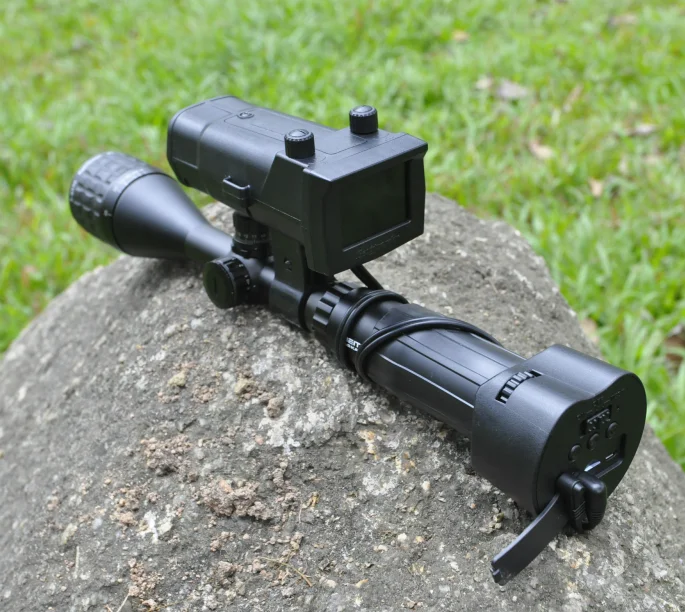

It’s a patented night vision product for hunting in zero light. It converts your day scope( there is no need to remove it) into a powerful night vision system which is quick and simple to set up. It achieves this using 940nm infrared illumination(invisible to people and animals) to literally illuminate the target area immediately in front of where the rifle scope is aiming,allowing clear target detection up to 300 meters (330 yards ) away.

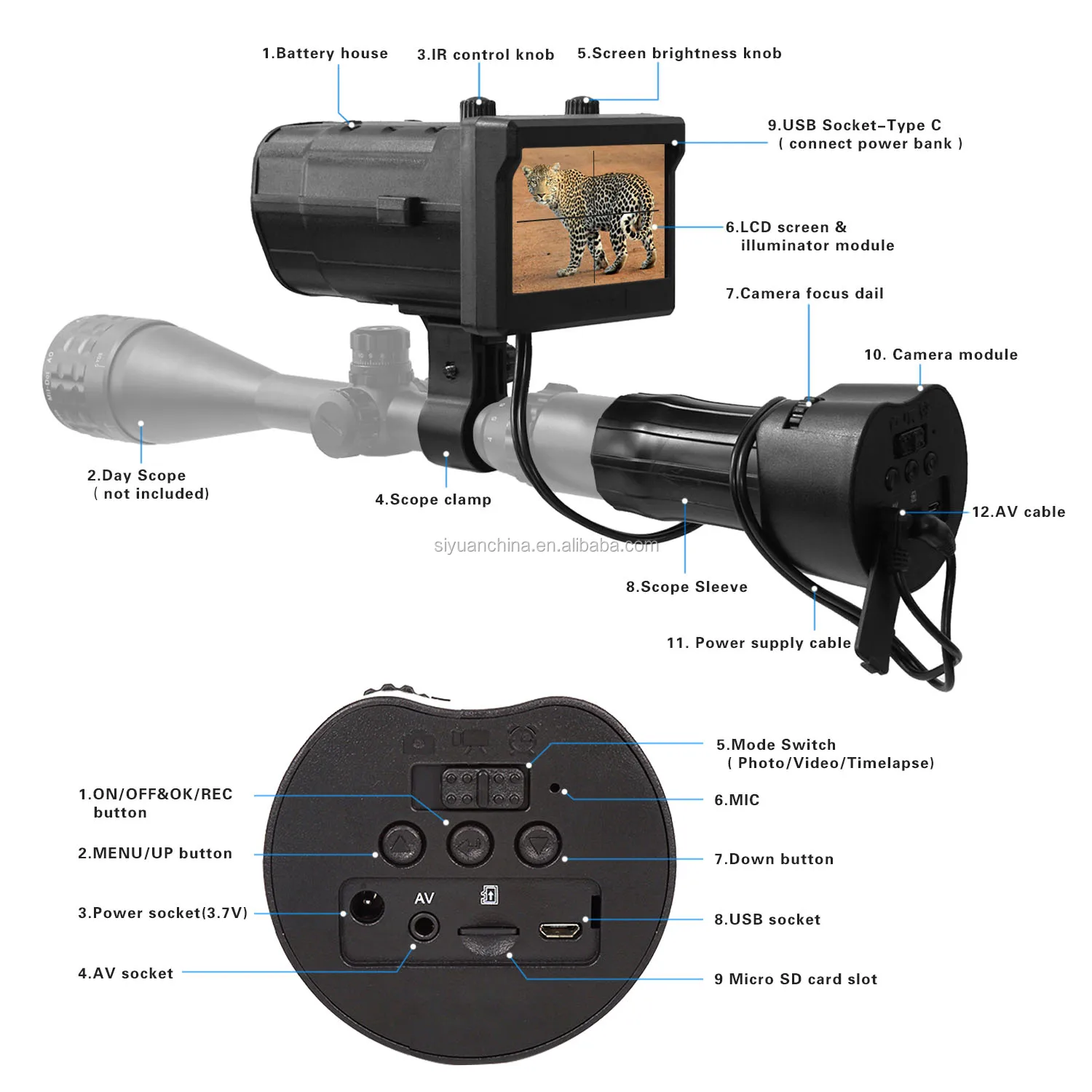

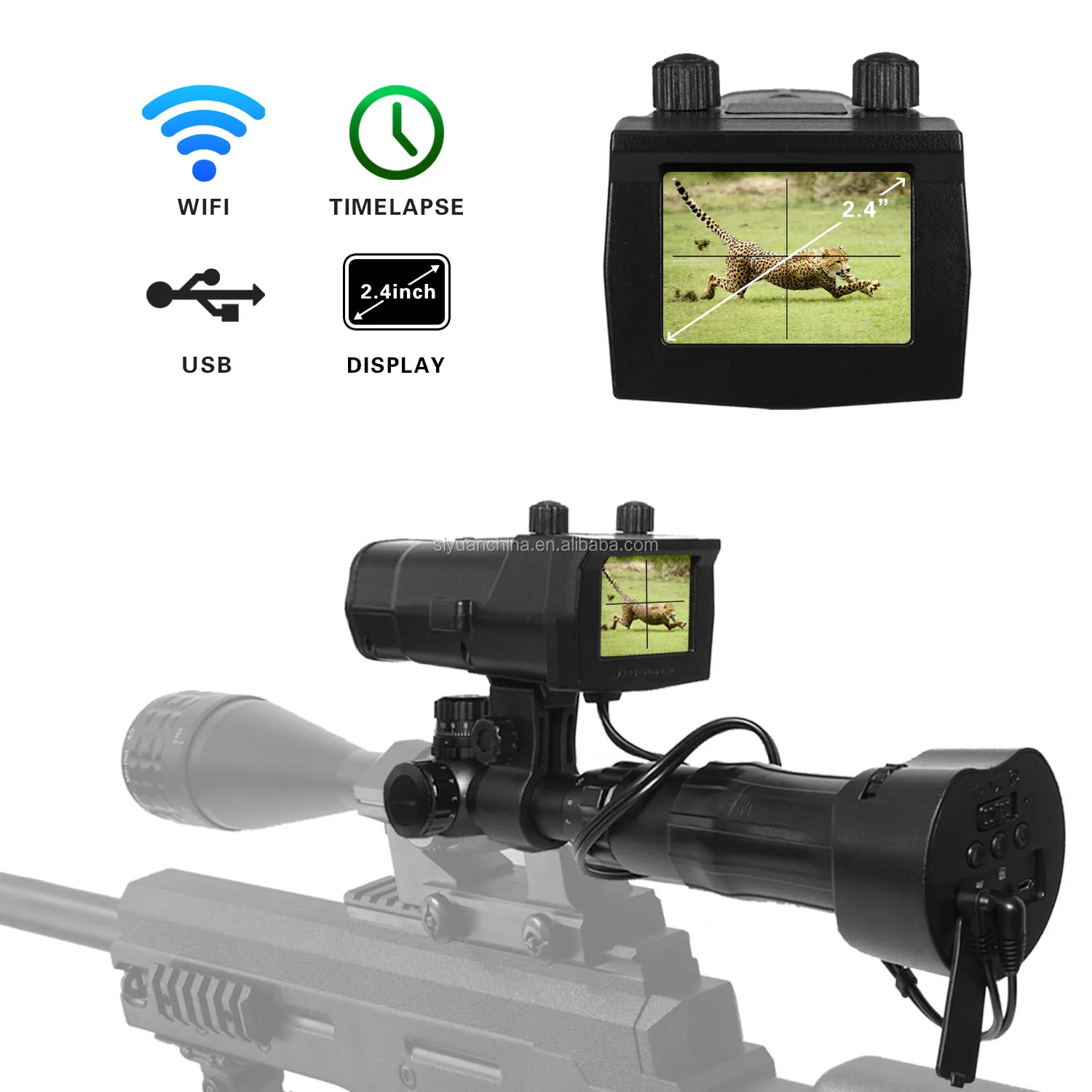

The infrared image is then captured through the rifle scope by a camera attached to the scope eyepieces and then viewed via the units integral 2.4’’ or 4.3’’ LCD screen.



Features:

1. Suitable for use any rifle,

2. Ultra clear night vision,No need to re-zero,NO ambient light required,

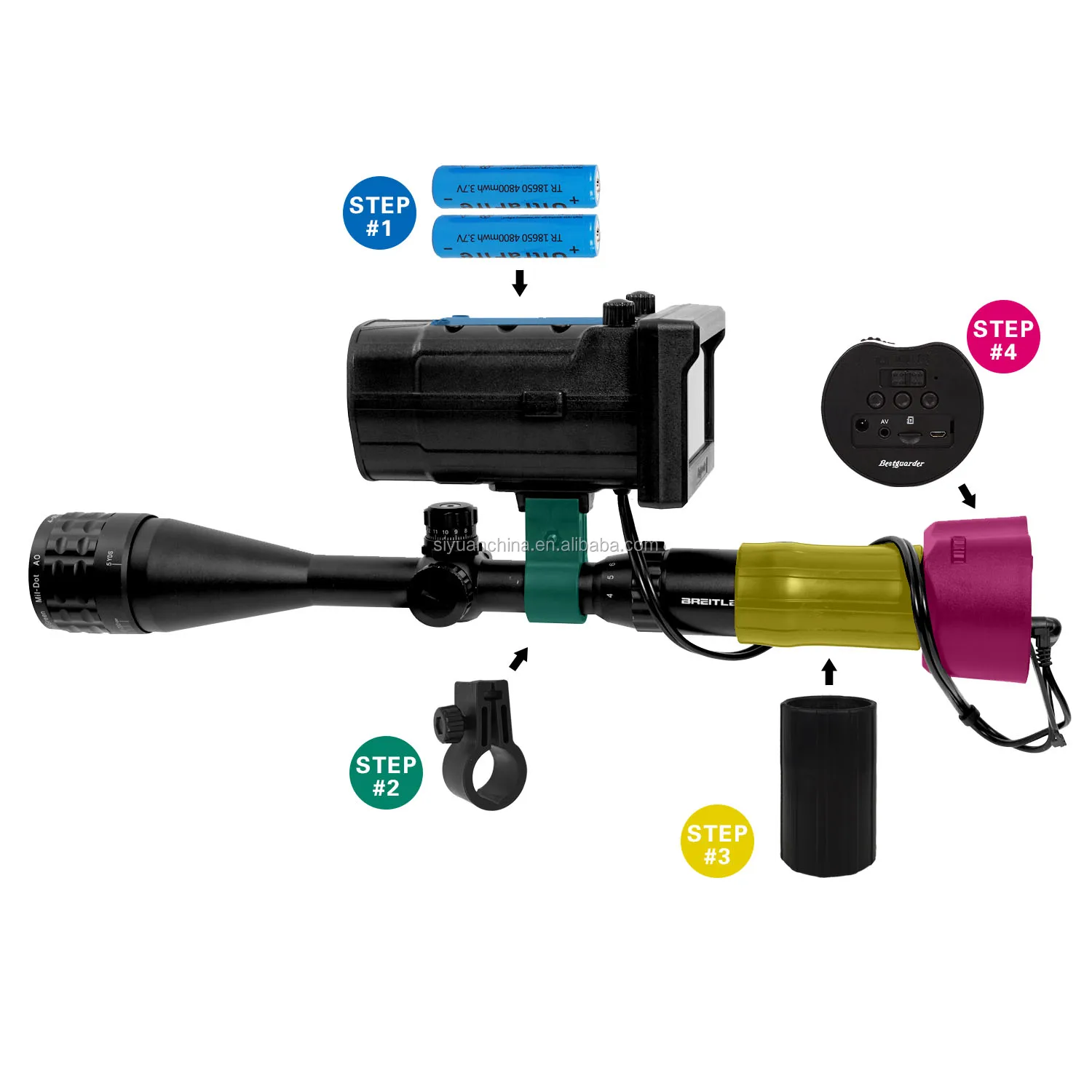

3. 60 second installation,4.3”or 2.4” TFT display,

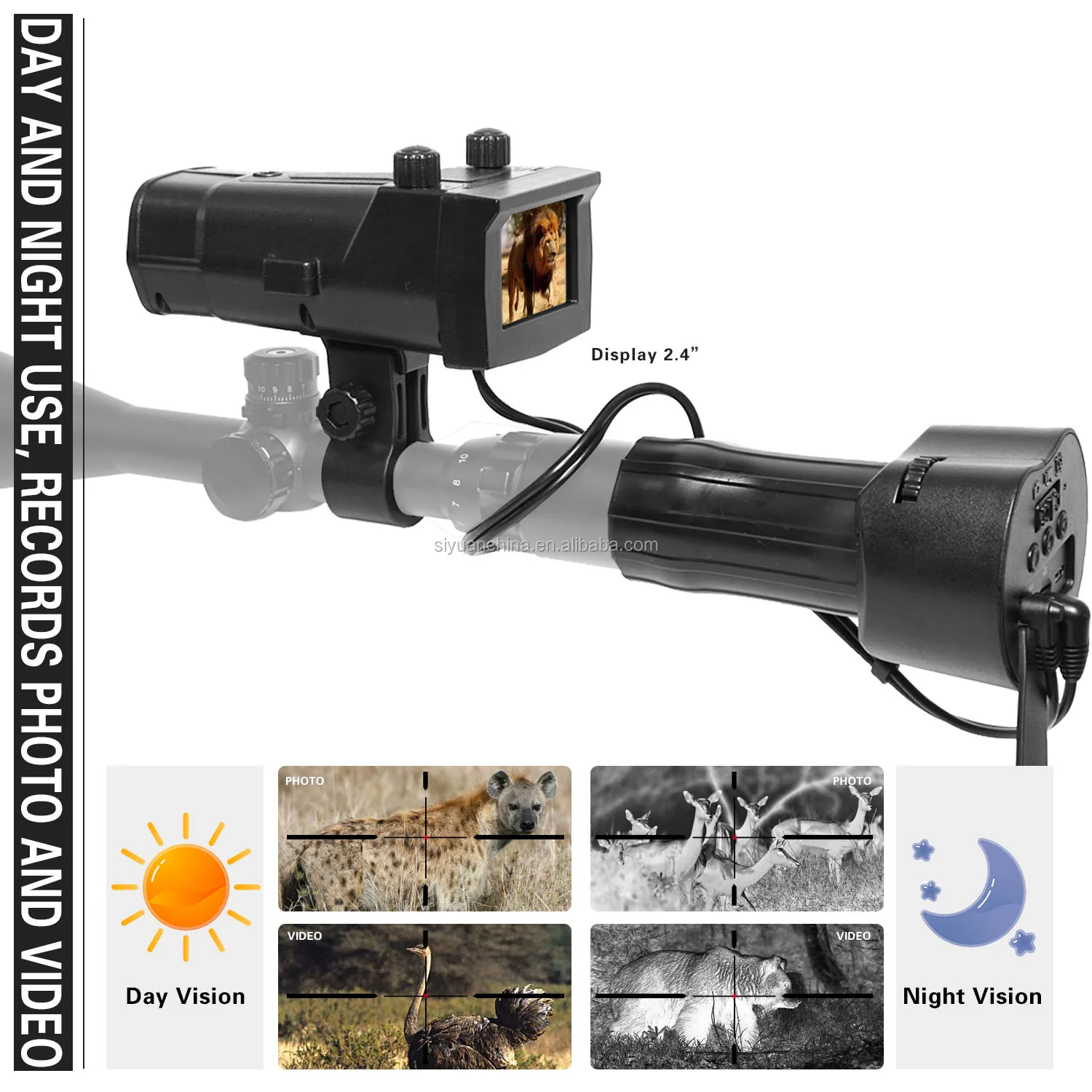

4. Can be used both day and night,

5. Wi-Fi share capability,

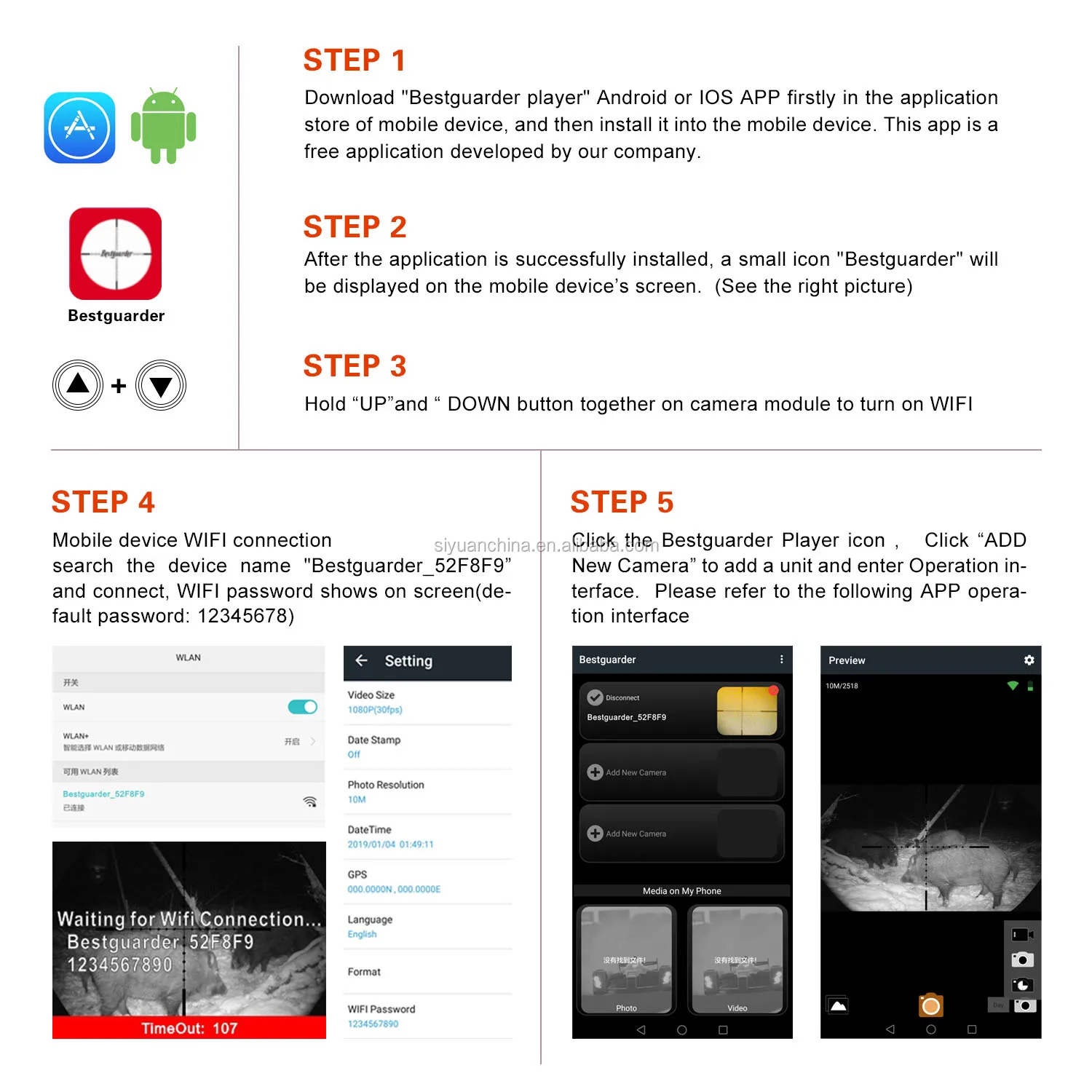

6. Remote viewing via iOS & Android APP



Specifications:

1.Identification range 400 meters dependant on the scope,

2. 1080 x 720 frame resolution, Wi-Fi share capability,

3.  2 *18650 Lithium-ion battery 10000mAh.

4. 1/4 CMOS vs image-intensifier tube,

5. Built-in  2.4”TFT display

6. Resolution of Screen: 640*480

7. PEG: 2592*1944,1600*1200,640*480

8.  Video:1280*720,640*480@30FPS

9.  TF card: up to 32G(no included)

10. Adjustable eyepiece

11. Powerful infrared spotlight

12. 1300ft /400M viewing range

13. Field of View: 9°

14.  F for Objective lens:F=1.2

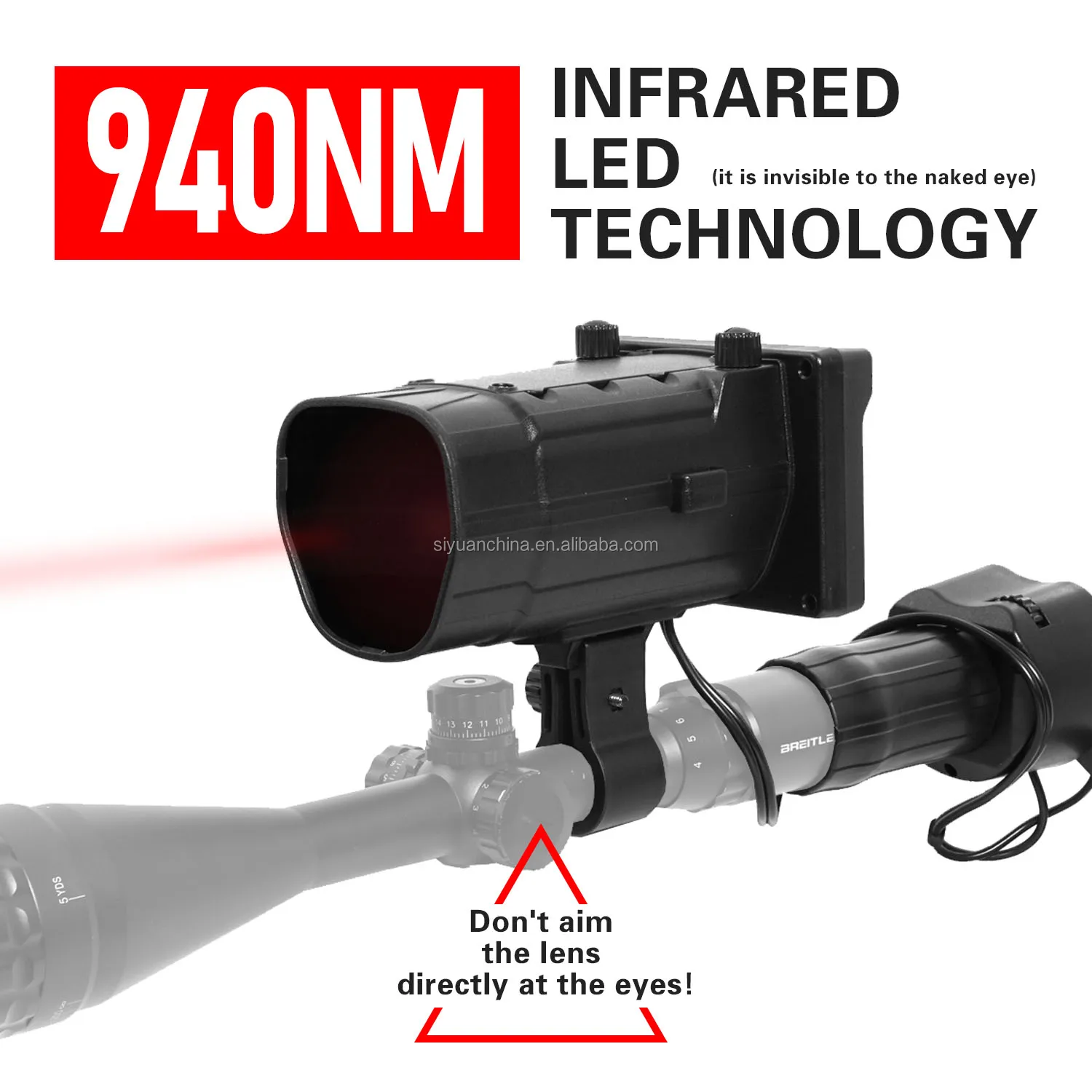

15.  Infrared illuminator:1PCS  940NM 3W Infrared LED

16.  Time stamp:Date and time on picture and video

17.  Observing Distance(Low Light Environment):1m~∞

18. Observing Distance(Full Dark Environment): 1300ft /400M

19. Language:English,French,German,Italian,Japanese&Russian,Spanish, Chinese

20.  Working Power Voltage:4.5-6V or 6V Power bank

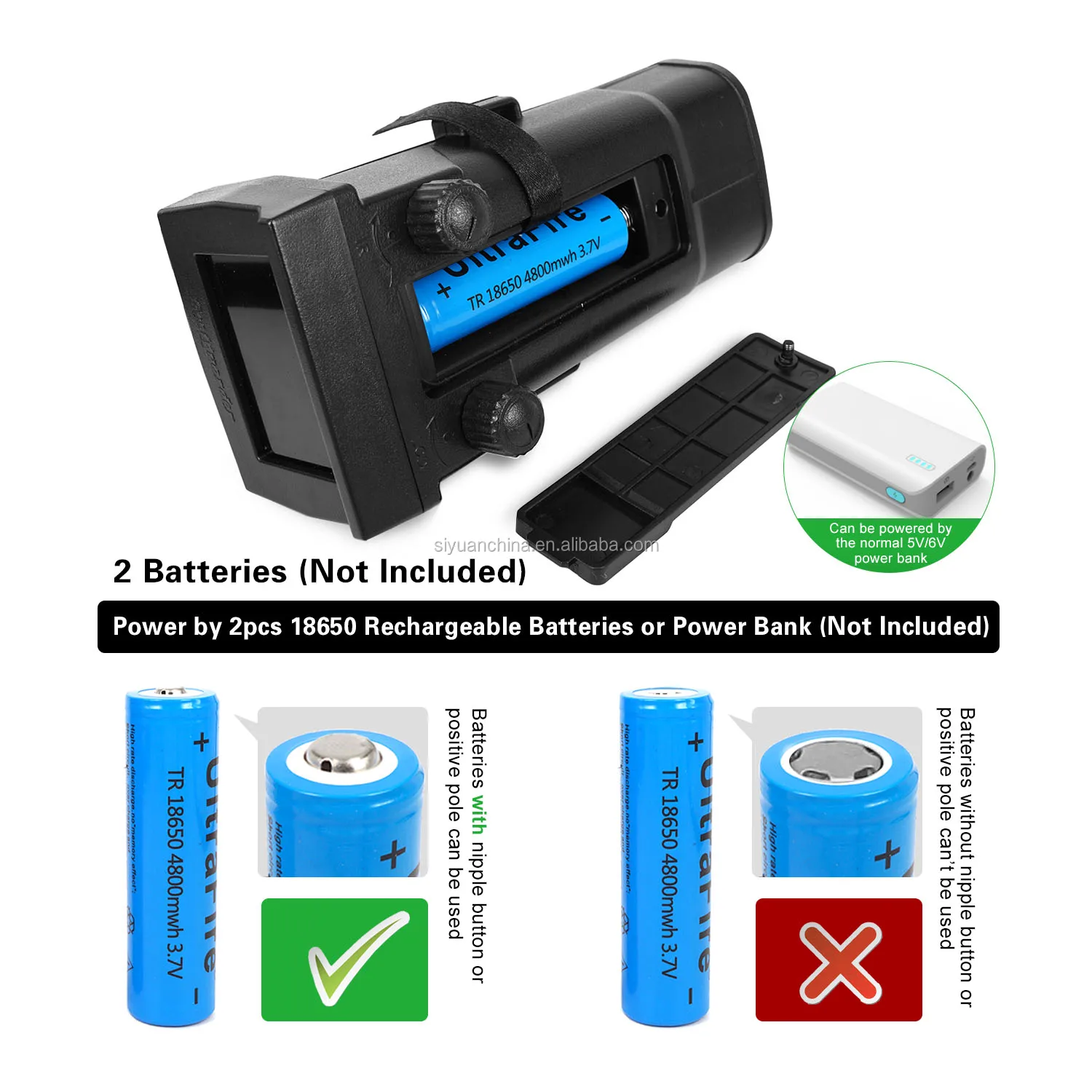

21. Rechargeable Battery:  2  *18650 lithium,alkaline or power bank

22. Up to 15 hours runtime without the use of infrared illuminator.

Up to 6 hour with IR illuminator on.

23. Weight excluding the battery 600g

24. TV Out :Device be a live Infrared surveillance camera connecting TV with TV cable

25. USB: Micro USB2.0

26. AV supporting:NTSC/PAL

27. Water Resistance Standard:IP66

28. Operating Temperature Range:-30-55°(Storage temperature: -40°C - 70°C)

29.  CE/FCC/ROHS approval .
