Manual Olive Oil Big Bottle Make 5 Liter Plastic PET Blow Molding Machine
- Category: >>>
- Supplier: Zhejiang Jinben Machinery Manufacturing Co. Ltd.
Share on (60799611157):
Product Overview
Description
Bottle Blow Machine
1. Suitable for producing PET plastic containers and bottles from 50 to 2000mL
2. Used to produce carbonated bottles, mineral water pesticide bottles, oil bottle cosmetics, wide-mouth bottles and hot fill bottles

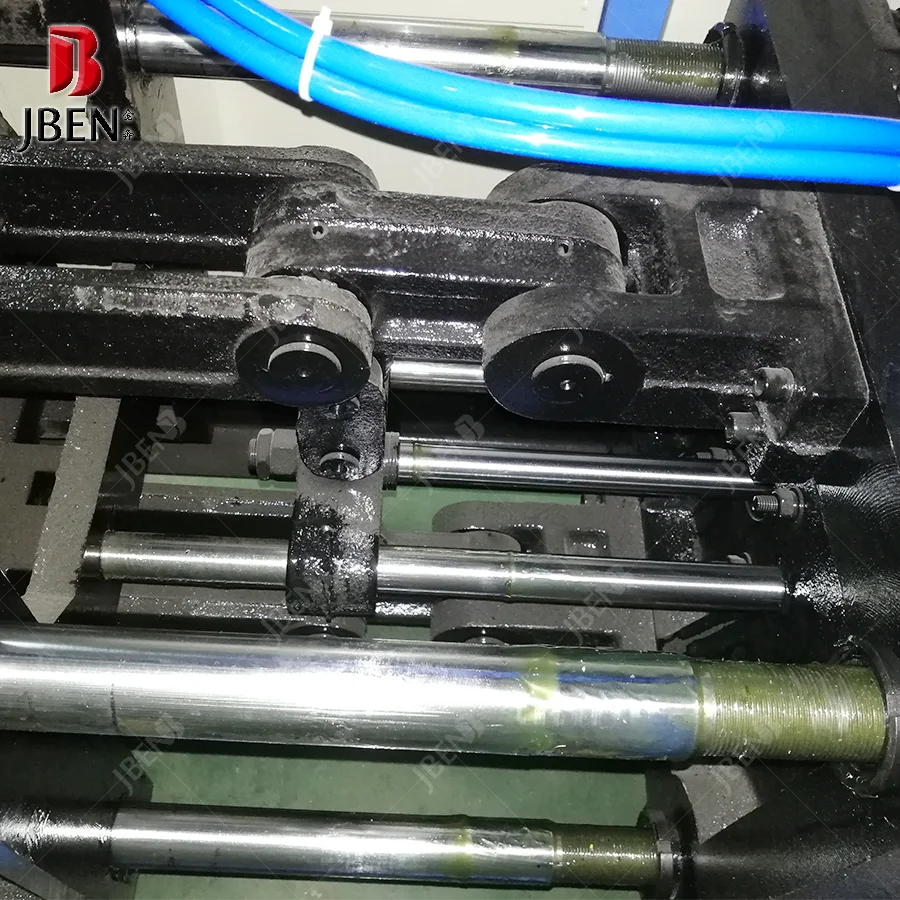

3. Adapts double-crank to adjust mold, heavy locking mold, stable and fast, adapts infrared oven to heat perform, perform rotated and heated equally
4. Air system has been divided into two parts: pneumatic action and bottle parts to meet different requirements for action and blow
5. Can provide sufficient and steady high-pressure for blowing large irregular shaped bottles
6. Equipped with muffler and oiling system to lubricate the mechanical part of machine
7. Can be operated in the step-by-step mode and semi-auto mode
Main Technical Parameter
| ITEM | UNIT | TECH ,DATA |
| Max .Volumn Of Product | L | 5L |
| Production Capacity | BPH | 300-400 |
| Neck Size Of Product | mm | 15-75 |
| Useful Area Of Mould Plate | mm | 340×350 |
| Max. Mould Thickness | mm | 170 |
| Min. Mould Thickness | mm | 120 |
| Mould Stroke | mm | 170 |
| Clamping Force | kn | 50 |
| Stretching Stroke | mm | 360 |
| Working Pressure | Mpa | ≤1.0 |
| Blowing Air pressure | Mpa | ≤4.0 |
| Power Of Main Blower | kw | 2.5 |
| Power Of Preheater | kw | 20 |
| Weight Of Main Blower | kgs | 470 |
| Weight Of Preheater | kgs | 450 |
| Measurement Of Main Blower | mm | 1520×580×1780 |
| Measurement Of Preheater | mm | 1450×700×1150 |
Description

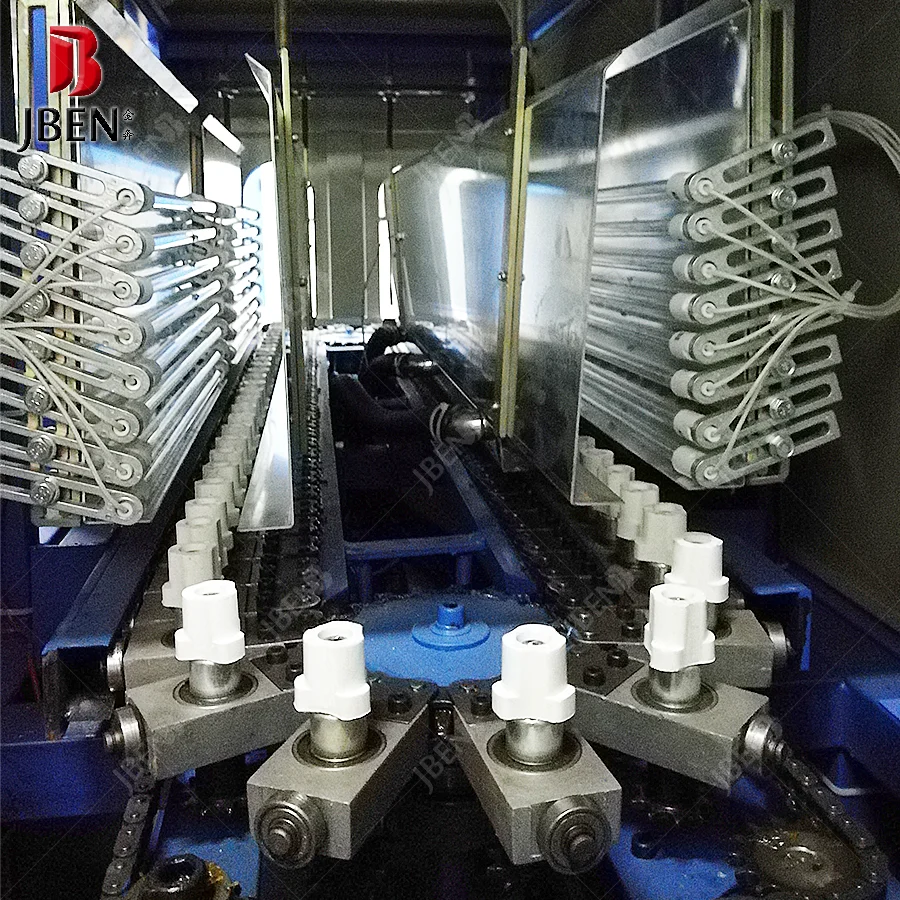

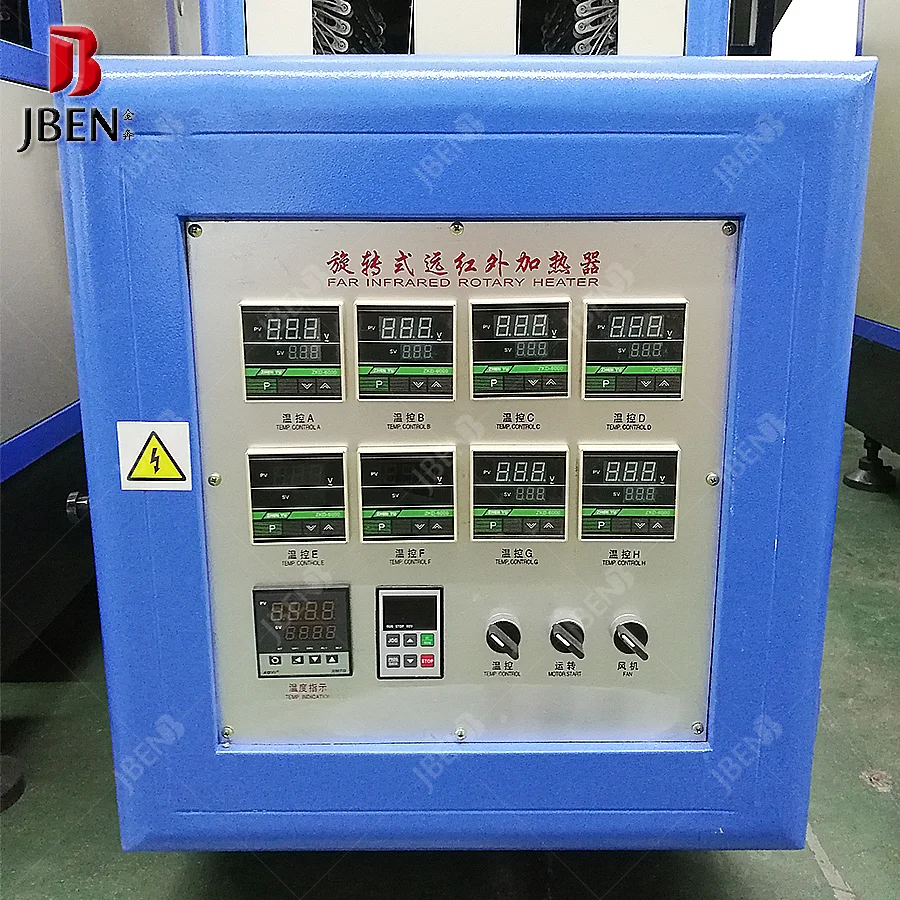

Semi-automatic blowing machine is an advanced 2-step PET blowing equipment. It is widey used for different shaped water bottles, CSD bottles and other beverage containers with PET, PP material. Infred self-rotary heater adopted. Mould closing is with double crank, to avoid mould expension (ensure half line very thin) under high pressure. There are automatic and semi-automatic operation ways to choose. Machine is compatible, with approprite design, easy and safe to operate.
1. Suitable for producing PET plastic containers and bottles from 50 to 2000mL
2. Used to produce carbonated bottles, mineral water pesticide bottles, oil bottle cosmetics, wide-mouth bottles and hot fill bottles
3. Adapts double-crank to adjust mold, heavy locking mold, stable and fast, adapts infrared oven to heat perform, perform rotated and heated equally
4. Air system has been divided into two parts: pneumatic action and bottle parts to meet different requirements for action and blow
5. Can provide sufficient and steady high-pressure for blowing large irregular shaped bottles
6. Equipped with muffler and oiling system to lubricate the mechanical part of machine
7. Can be operated in the step-by-step mode and semi-auto mode
Main Feature
1. Can operate easily without any special training and safety operation
2. Original air cylinder
3.Minimize your initial investment by starting small
4. Add additional systems economically as your business grows
5. Bottles of different sizes can be produced simultaneously to meet your exact requirements
6. Change over from one size to another can be completed simply and quickly
7. Maintenance costs are kept to a minimum and highly-trained personnel are not required
8.Simple operation does not require highly trained operators
How To Make Bottle
Craft Flow
Preform→Preform Storing Parts→Preform Heating (Temperature Adjustment) →(Pull Stretch→Blow Air→ Release Air→ Blow Pin and Mouth at same time→Close The Blow Mouth→Forming)→Finished
The Whole Blowing Line
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine

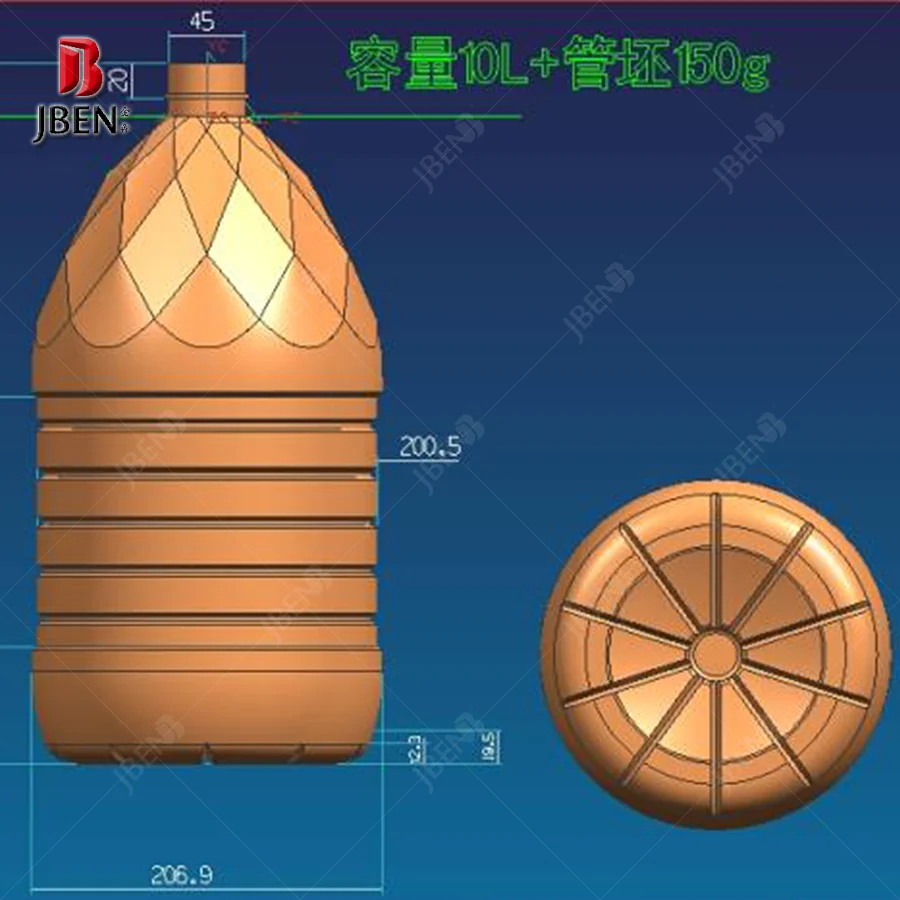

Bottle Design
All bottle shape and bottle size we can do! All bottle parameter can be customized by customer's need. We also can supply the best design solution for you!
Before starting to manufacture the machine it is neccessory for us to get the bottles samples according to which we can design the preform and bottles mold. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.
Know More About Us
Our Main Machine
In The Eyes Of Buyer
We Can Do For You
Check and Test
When finished the machine ,you can come to your factory to check the machine,and we also can send the checking video to you if you do not plan to our factory
Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period and lifelong technical support!
Buying Guides
Contact Here
1. Send inquiry for the Bottle blowing machine to email or WhatsApp:008613695892233
2. Inform us your bottle size ,bottle material and how many bottles do you plan to make per hour? we will make a complete quotation to you for your reference
3. Confirm details of the PET Bottle making machineAt the same time, you are also welcome to visit our factory and we talk face-to-face.
4. Sign sales contract or proforma invoice for this bottle blowing system
5. Pay 30% deposit for confirming this order
6. We confirm receipt of the deposit and make the design of the bottle.
7. After the customer make sure the bottle design, we will start to make the machine for you.
8. After finished the machine ,we will send finished machine pictures and video to you.
9. Pay balance and we arrange packing for the plastic bottle making machine
10. Arrange shipment or send the PET bottle blowing machine to your appointed warehouse.
11. Send the Bill of loading, commercial invoice, packing list, certificate of origin and insurance policy to customers via DHL or UPS or FedEx etc. for custom clearance.
12. Customers receive the PET plastic bottle making machine, then install and operate it as our manual book or operation video. our engineers are also available to service overseas.
13. Business finished, all our PET Bottle blowing machine quality is guaranteed for 1 year .Please contact us freely.
