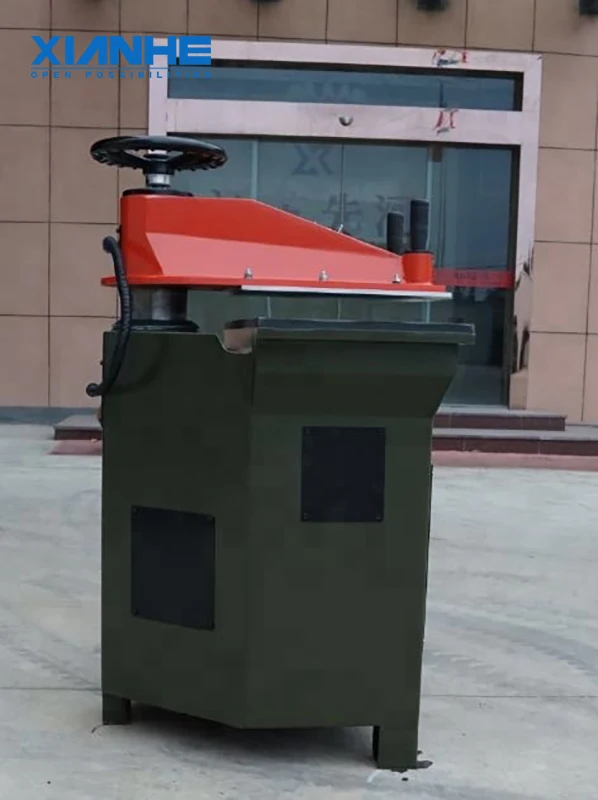

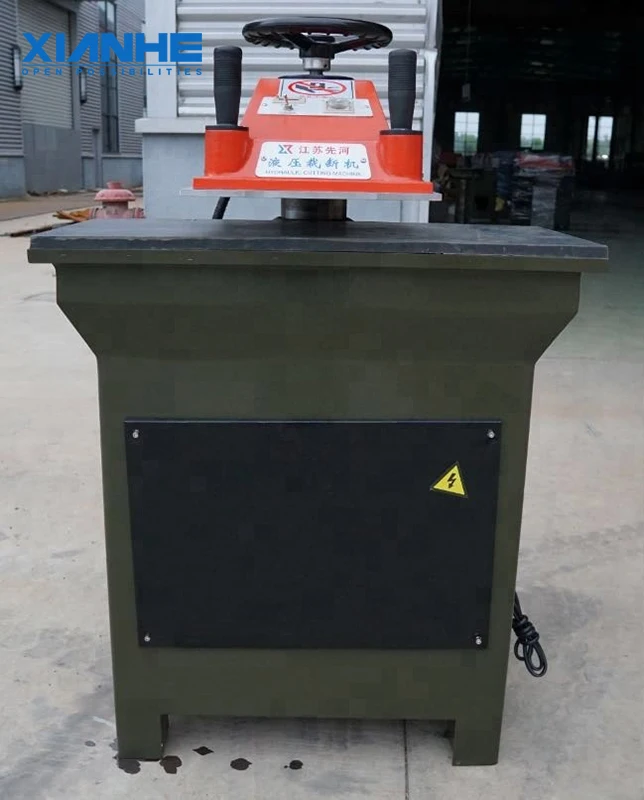

12T EVA Sheet Hydraulic Die Cutting Press
- Category: Shoemaking Machines >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (60799613164):
Product Overview
Description
Product Description
Hydraulic swing arm cutting machine/clicker press/die cutting machine:
Our machine's die cutting range is huge of uses and applications across manufacturing industry, known as clicking press or clicker press.

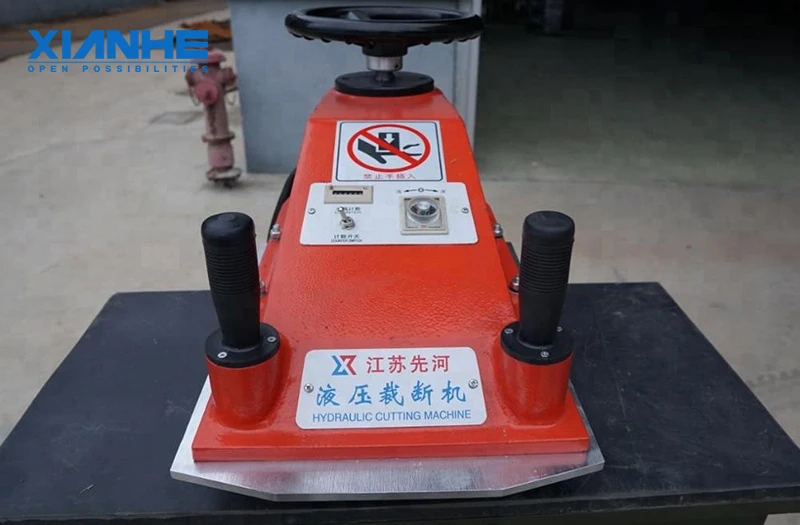

These machines are safe and easy to operate with the operator having only to place the material on the working table of the press, position the cutting tool on the material and press the button on the handle. The beam descends under hydraulic power to cut the required cut shape from single or multiple layers of material.
To assure maximum access and visibility, the swing arm can be easily moved to one side by the operator in order to
gather cut pieces and re-position the tool for the next cut.
Our machine's die cutting range is huge of uses and applications across manufacturing industry, known as clicking press or clicker press.
These machines are safe and easy to operate with the operator having only to place the material on the working table of the press, position the cutting tool on the material and press the button on the handle. The beam descends under hydraulic power to cut the required cut shape from single or multiple layers of material.
To assure maximum access and visibility, the swing arm can be easily moved to one side by the operator in order to
gather cut pieces and re-position the tool for the next cut.
Detailed Images
Size Information
Model | SW/C-12 | SW/C-14 | SW/C-16 | SW/C-20 |
Cutting force | 120KN | 140KN | 160KN | 200KN |
Stroke adjustment | 5-65mm | 5-75mm | 5-75mm | 5-75mm |
Distance between upper and lower board | 60-120mm | 60-140mm | 65-140mm | 65-150mm |
Arm width | 350*450mm | 350*450mm | 350*450mm | 350*550mm |
Bed size | 400*800mm | 400*900mm | 410*900mm | 500-1000mm |

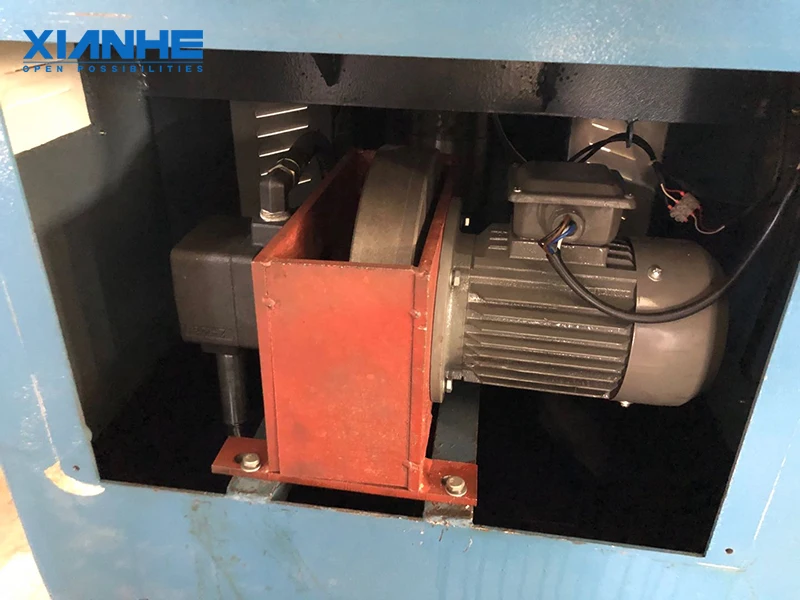

Motor power | 0.75kw | 0.75kw | 1.1kw | 1.5kw |

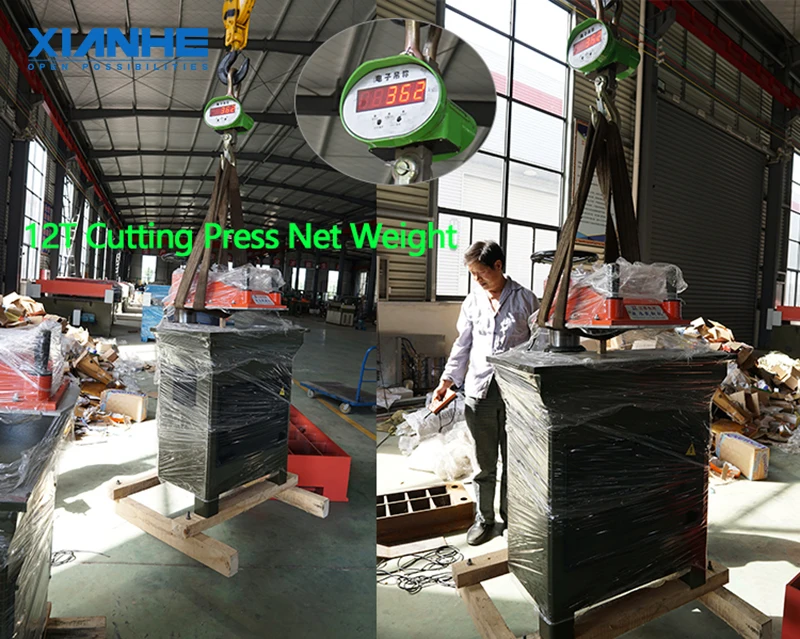

Gross weight | 380kg | 400kg | 480kg | 680kg |
Machine size | 800*650*1240mm | 900*650*1240mm | 900*650*1240mm | 1000*900*1380mm |
