Cold room sandwich panel/Cold room panel cam lock/cold room panel

Product Overview

Description

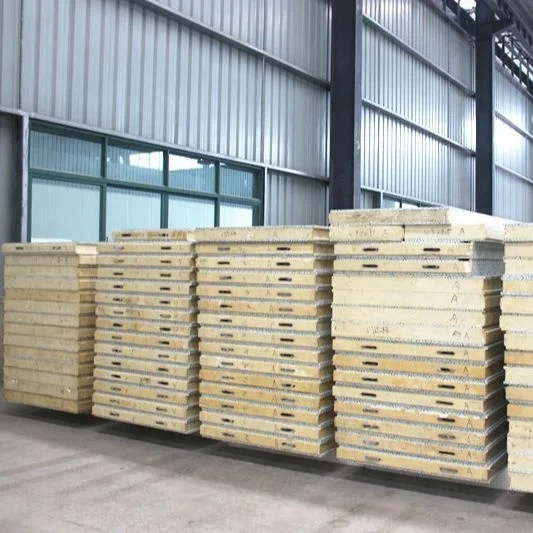

Cold room sandwich panel/Cold room panel cam lock/cold room panel



Product description:



Polyurethane cold room panel is with two sides color coated sheet using high-temperature corrosion-prevented alloy coated plate of zinc and aluminium and high weather-resistance coated paint as paint film, which takes full advantage of its heat-preservation, fire-protection, water-proof, non-poison, odorless and easy installation, thus the construction cost of cold room is greatly reduced.



Specifications:

Cold room panel specification
Panel Type	Polyurethane(PU)Sandwich Panel
Panel Material	Painted steel sheet + PU core + Painted steel sheet
Panel Thickness	75mm 5℃ to 15℃
	100mm -15℃ to 5℃
	120mm -20℃ to -15℃
	150mm -30℃ to -20℃
	200mm lower than -30℃
Panel Length	Customized longest: 11.8m
Panel Width	960mm/990mm
PU Density	40-42kg/m3
Heat Transfer Coefficient	0.022 W/M*K

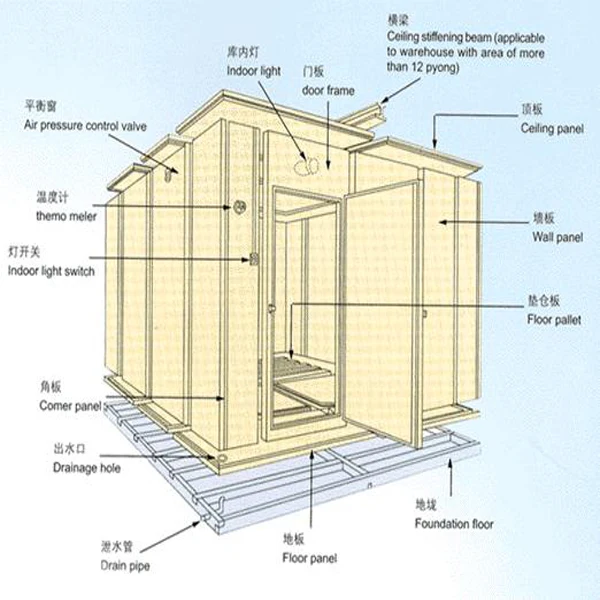

Cold Room Diagram

The complete set of cold room cold storage includes 5 main parts



1. Cold storage panels

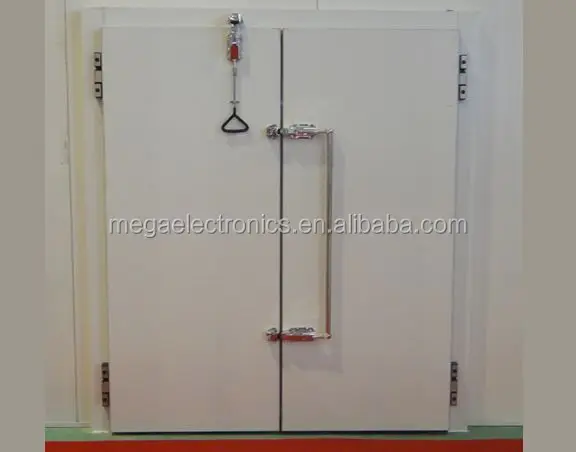

2. Cold room door

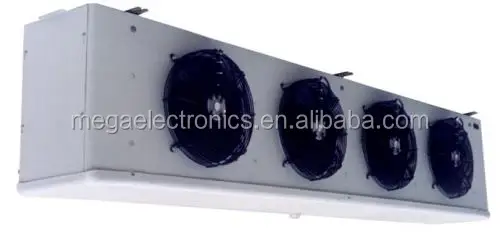

3. Air cooler

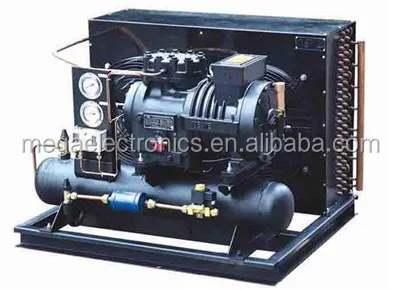

4. Condensing unit

5. Accessories



 Please send the following informations when send email :



1 What produce will be stored in the cold room?

2 .Room size :  Length* Width* Height?

3. Which Country will this project be built in and the average temperature in Summer?

4. Voltage information.

5. Other requirement.
