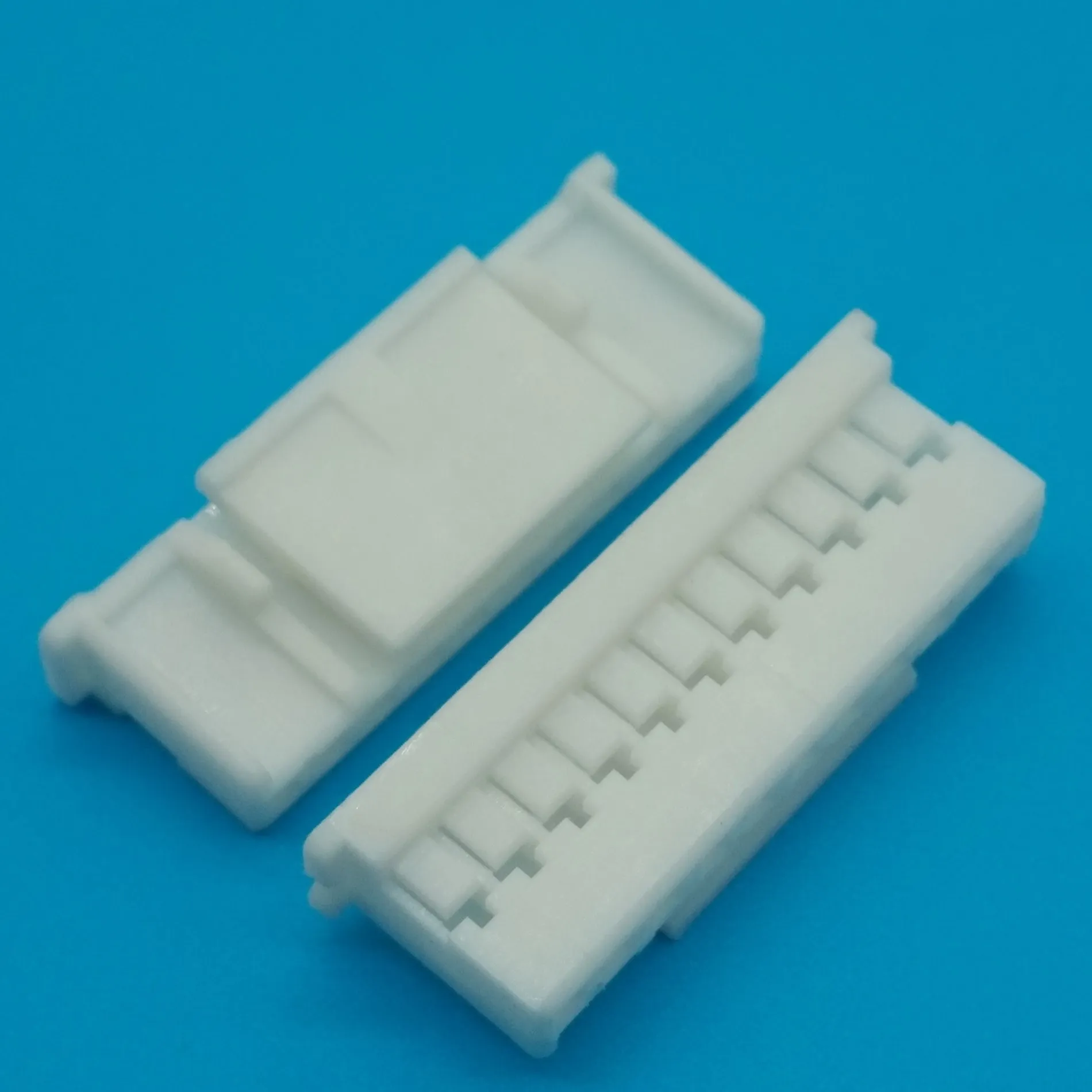

jst JAE yeonho HRS TE Crimp Housings PCB headers DIP molex 35507 2mm pitch 50212 terminals connector
- Category: >>>
- Supplier: Shenzhen Jun An De Connector Co. Ltd.
Share on (60799666512):
Product Overview
Description
Product Characteristics
Series name:PHS
Authentication: ROHS REACH ISO9001
Application:wire to board

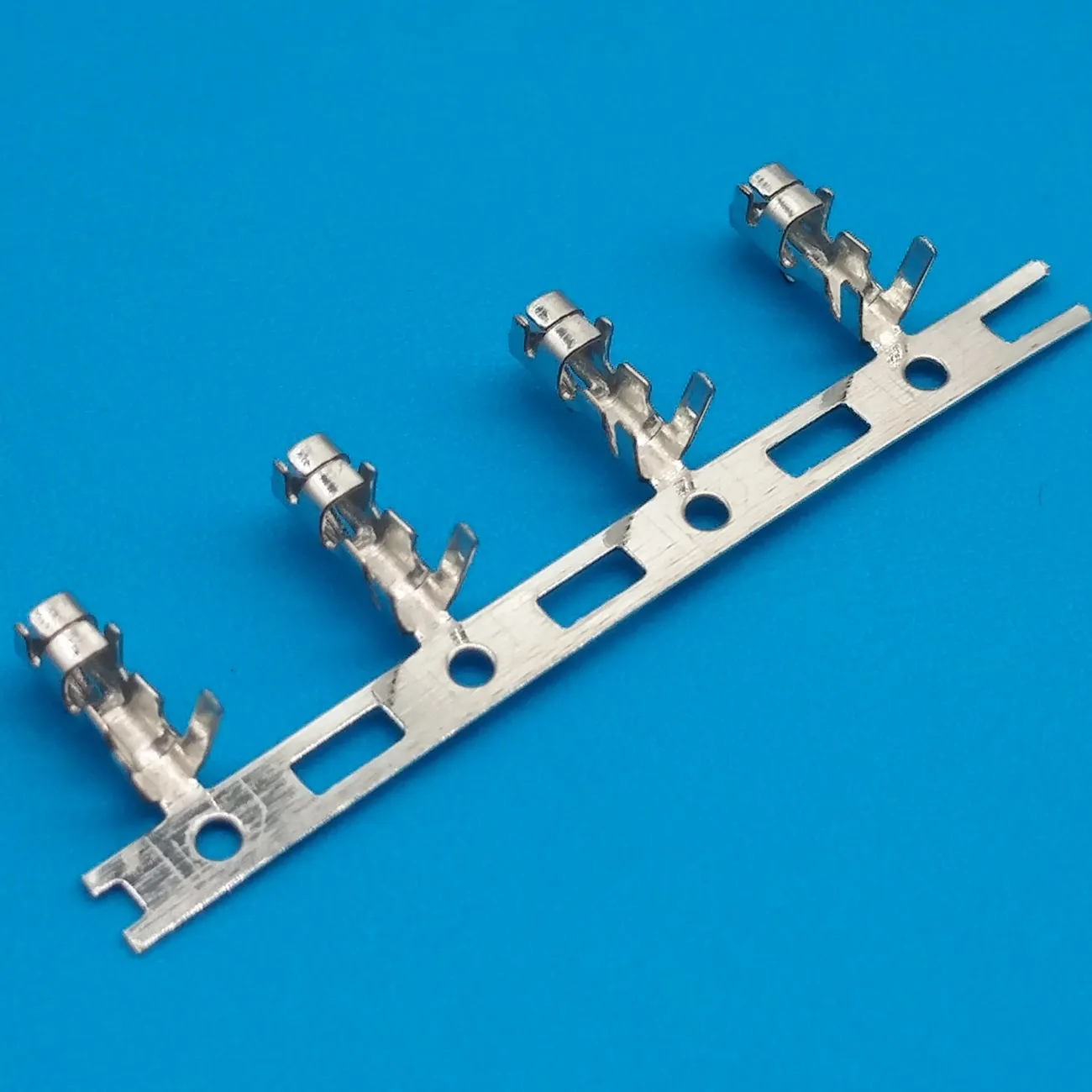

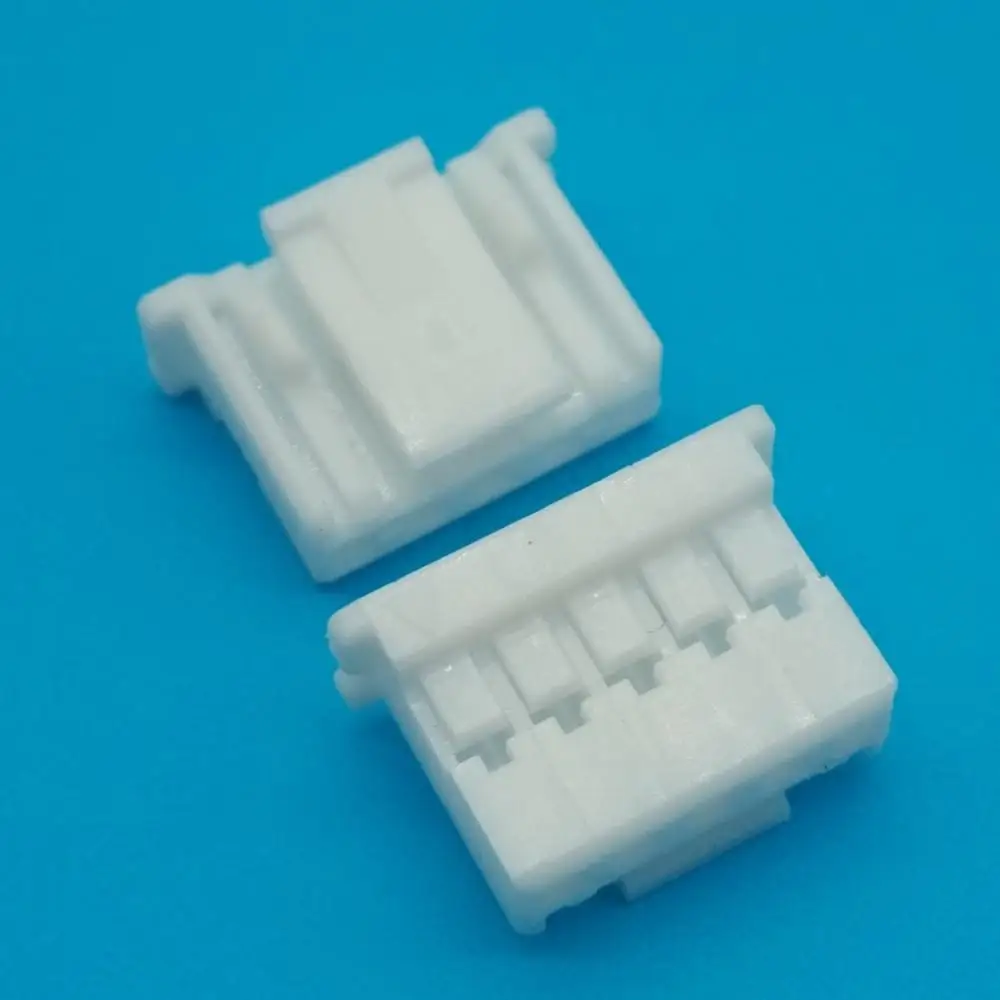

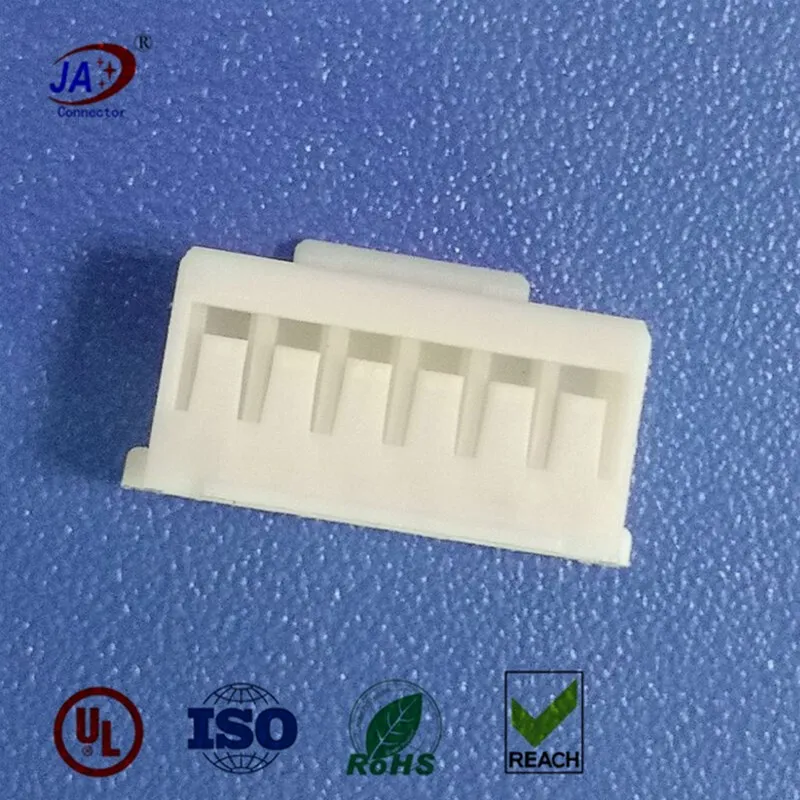

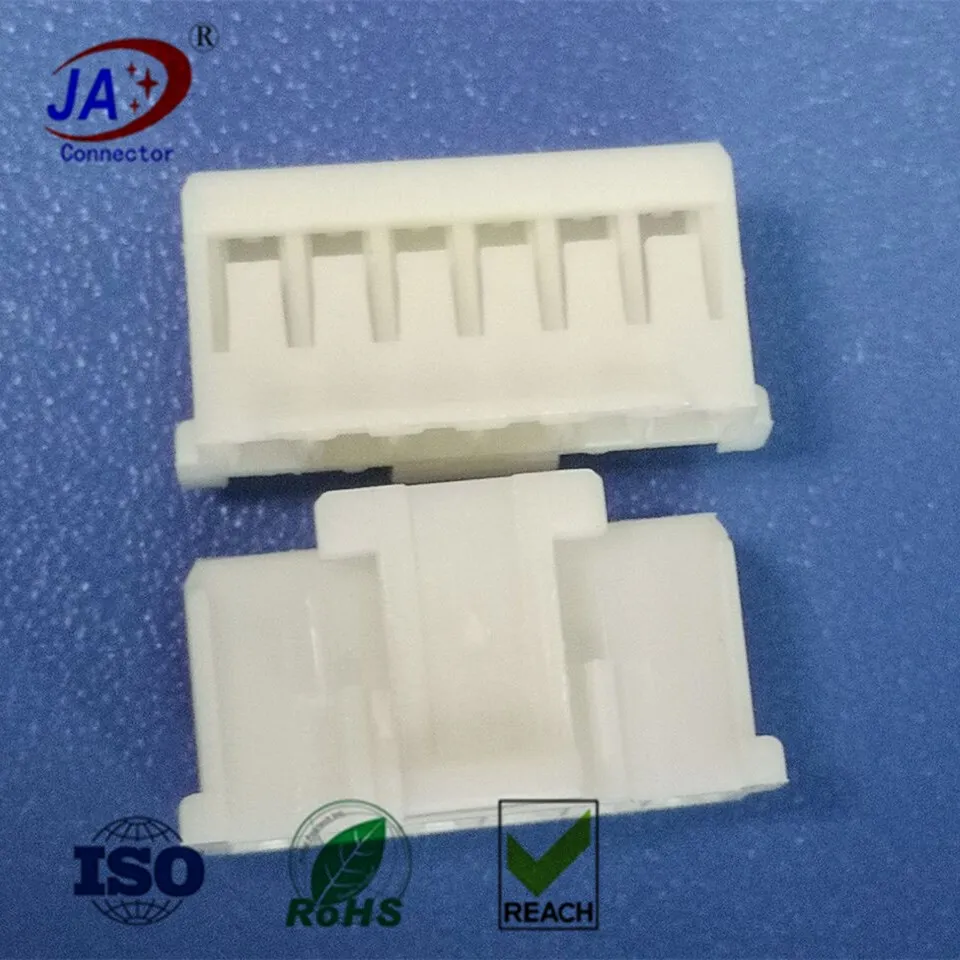

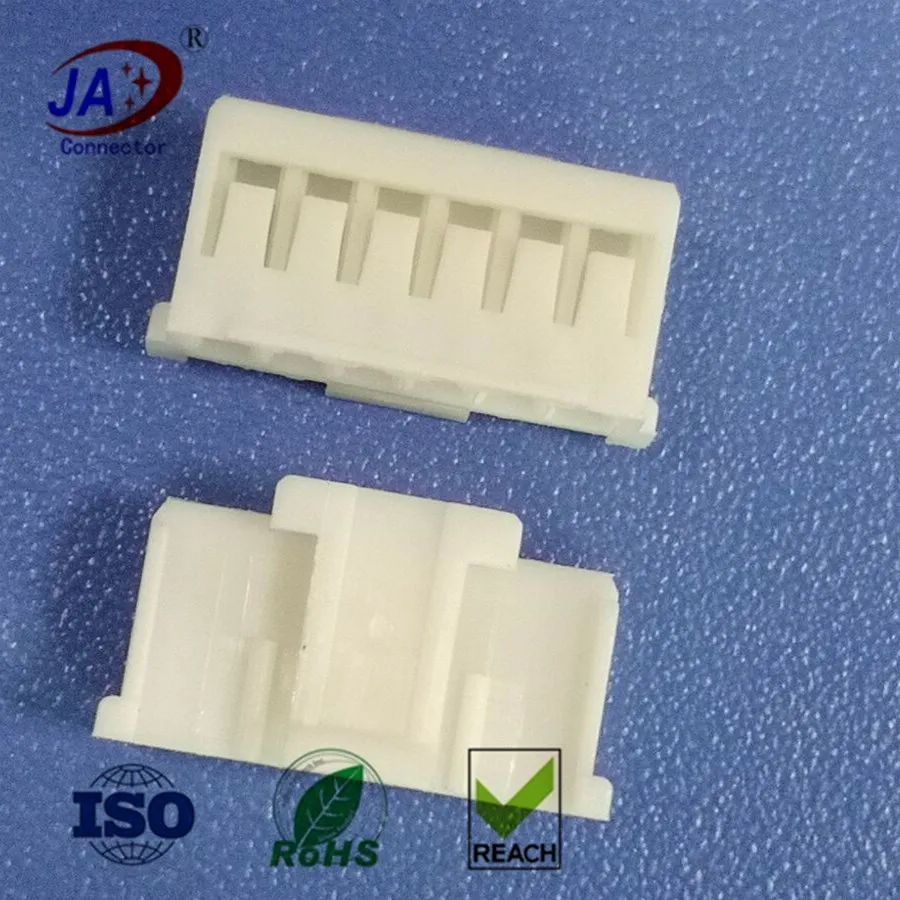

Housing:PHS-nP Terminal :PHS-T
Pitch:2mm Material:Phosphor Bronze
Poles:2pin~16pin Surface Treatment:Tin Plating
Material:Nylon UL94V-0 Packaging Type:Reel
Color:white Wire Size AWG:20 22 24 26 28
Packaging Type:bag male Number:6000piece/reel
male Number:1000piece/bag
Electrical Parameters
Voltage rating:250V
Current rating:3A
Withstand voltage:1000V AC/minute
Working Temperature:-25℃~+85℃
Insulation resistance:1000mΩ
Contact resistance:10mΩ

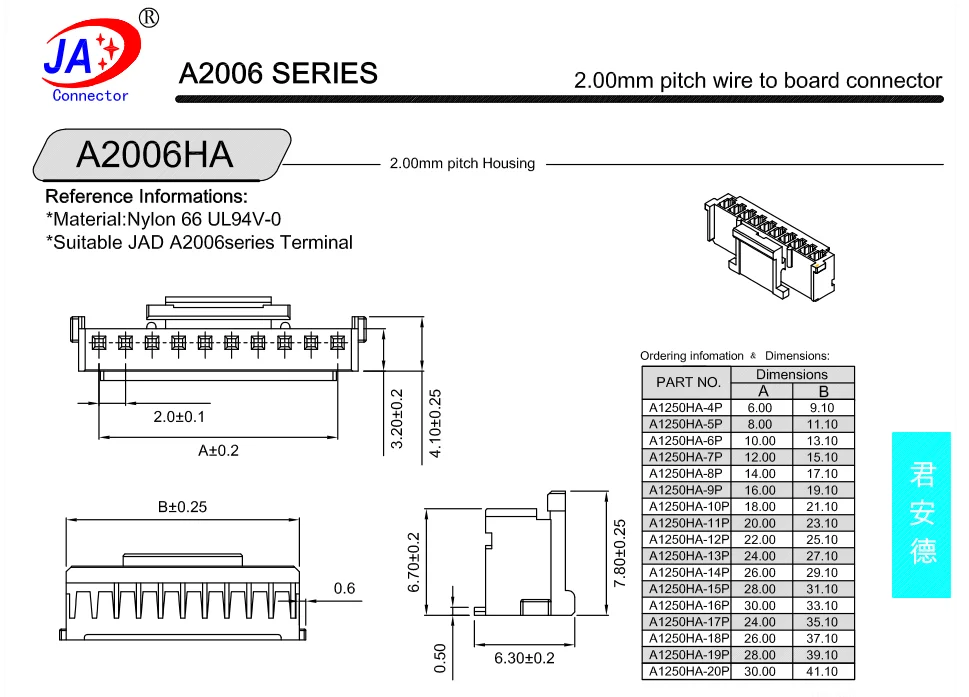

| Product drawings |
Related Products
Company Information
Certificate
Packaging & Shipping
FAQ
Q: What is your MOQ?
A: There is no MOQ for most of the products. Small orders also will be highly welcome.
Q: What’s the sample time and lead time for mass production?
A: Normally, sampling time is about 2-3 days upon receipt of request . Lead time for mass production is 7day after payment
Q: Is a sample available?
A: Yes, we could provide you free sample as your requirement
