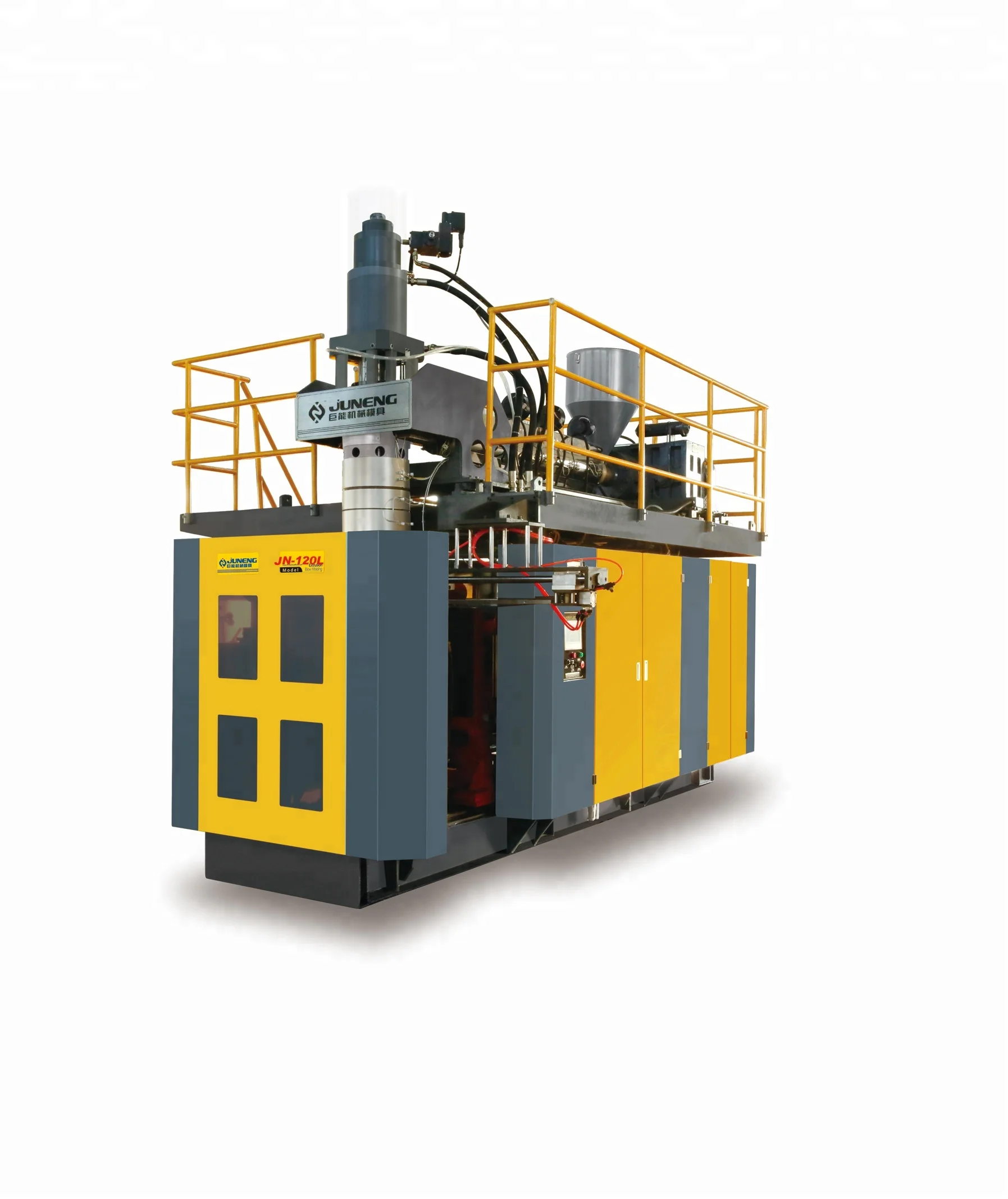

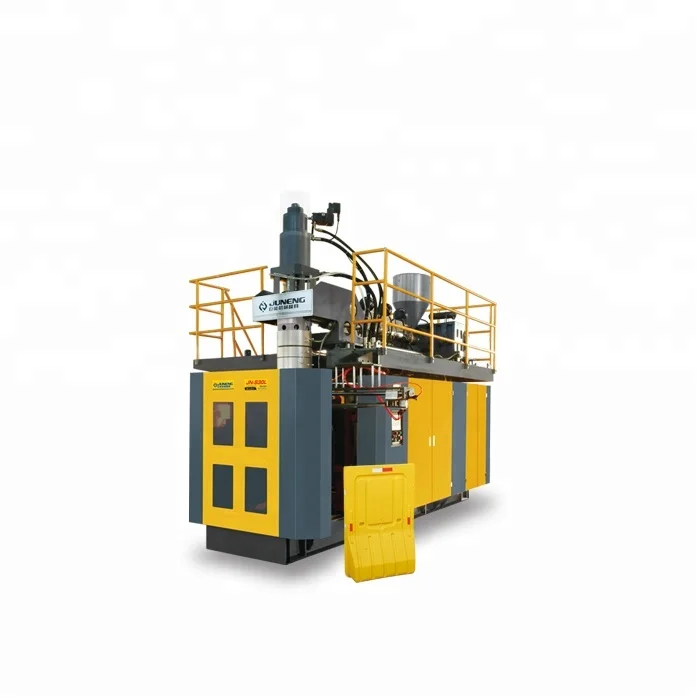

120 Liter Professional Extrusion Blow Molding machine Plastic Parts containers
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (60799685338):
Product Overview
Description
120 Liter China Professional Extrusion blow molding machine
| Max. Product Volume | L | JN-S120L |
| Dry cycle | PC/H | 360 |
| Screw diameter | MM | 100 |
| screw L/D ratio | L/D | 24-26 |
| screw motor power | KW | 45-75 |
| screw heating capacity | KW | 8.4-10.5 |
| No. of heating zone | Zone | 4-5 |
| output of HDPE | KG/H | 180-230 |
| oil pump driver power | KW | 37 |
| clamping force | KN | 440-650 |
| mold stroke | MM | 500-1400 |
| size of mold(W*H) | MM | 900-1200 |
| Moving distance | MM | 420 |
| Max. Die diameter(W*H) | MM | 10.8 |
| Die heat capacity | KW | 12.8 |
| Blowing pressure | MPA | 0.8 |
| Air volume | M3/Min | 1.6 |
| Cooling water pressure | MPA | 0.3 |
| water consumption | L/Min | 150 |
| weight of machine | Ton | 17 |
| size of machine | M | 5.6*2.2*4.5 |
