Black PE backing Heat Shrinkable wraparound Sleeves Tape for Pipeline Bends

High Quality Heat Shrinkable Sleeve Tape

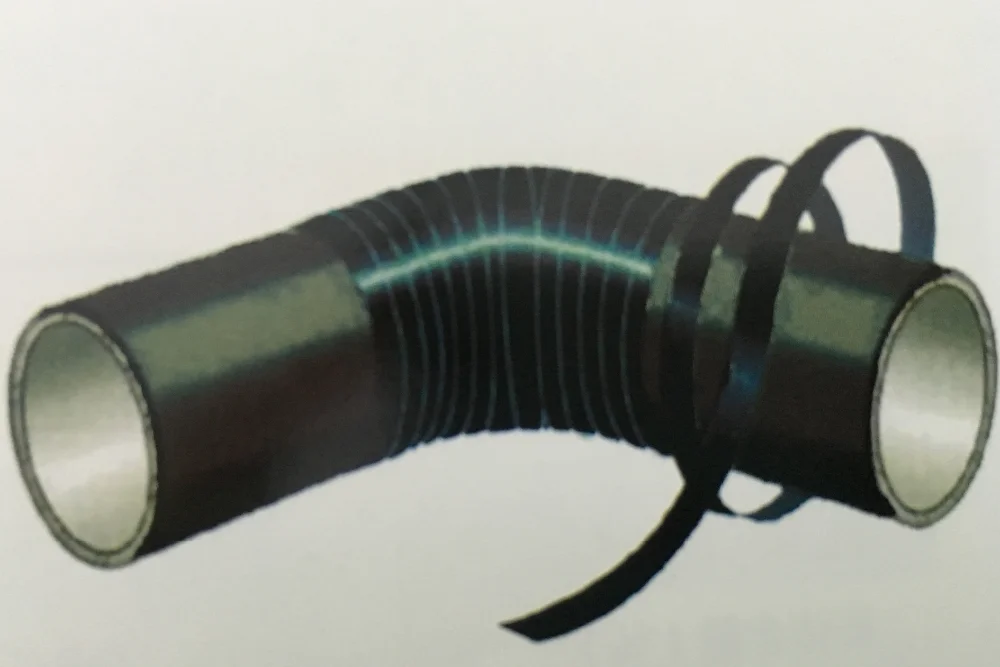

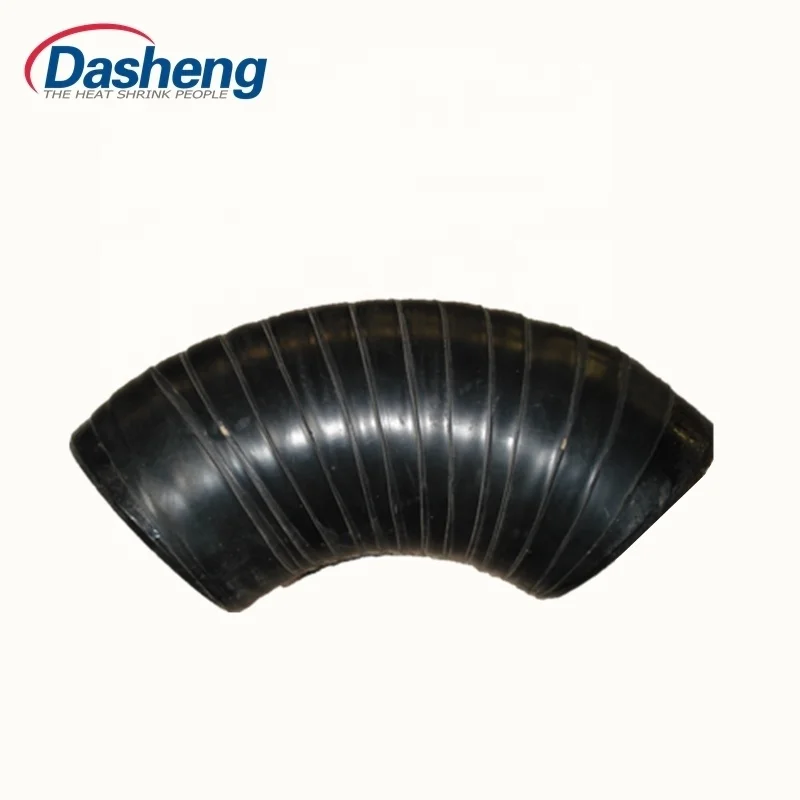

WT heat shrinkable wraparound tape is designed for corrosion protection of field girth weld joint of buried and exposed steel pipelines,also for pipe bends or pipe elbow.WT consists of a radiation crosslinked low density polyethylene backing,coated with a hot sensitive adhesive which effectively bonds to steel substrates and common pipelines coatings,including polyethylene and fusion bonded epoxy.WT can be conveniently used for corrosion protection of steel pipe,especially for protection and repairing pipelines,fittings,elbows,bends and other irregular configurations.

WT provides excellent resistance to cathodic disbandment resulting in effective long-term corrosion protection.The high performance crosslinked backing in combination with a broad of adhesive can be undertaken for regular or high stress environments.Upon the application of heat,wrap around tape shrinks down to fully encapsulate the protected substrate,the hot melting adhesive flows into all surface irregularities,forming a protective barrier against corrosion.

\t
Property
\t
Test Method
\t
WSS 60
\t
Operating Temperature
\t

\t
Up to 60°C
\t
Tensile Strength
\t
ASTM D638
\t
3000 psi
\t
Elongation
\t
ASTM D638
\t
600%
\t
Hardness ShoreD
\t
ASTM D2240
\t
50
\t
Dielectric Strength
\t
ASTM D149
\t
20KV/mm
\t
Volume resistivity
\t
ASTM D257
\t
1x 1016 Ω-cm
\t
Water Absorption
\t
ASTM D570
\t
<0.05%(wt)
\t
Softening Point
\t
ASTM E28
\t
103°C
\t
Lap Shear
\t
ASTM D1002
\t
300 N/cm2@23°C
\t
Peel Strength
\t
DIN EN 12068
\t
60 N/cm@23°C
\t
Impact Resistance
\t
DIN EN 12068
\t
>15J

RANGE:

Standard manufacturing range covers the following sizes and dimensions:
The heat shrinkable tape width: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm
The tape total thickness: 1.8mm, 2.0mm, 2.2mm, 2.3mm, 2.5mm
